OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1120 - ISS 2

100L AIR COMPRESSOR

MODEL NO: RAIDER 15/550

PART NO: 2242117

INTRODUCTION

Thank you for purchasing this Air Compressor.

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the product giving you long and satisfactory service

TECHNICAL DATA

Please note that the details and specifications contained herein, are correct

at the time of going to print.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Input Power 2200W / 3HP

Power supply 230 V/ 50 Hz

Dimensions (L x W x H) 710 x 360 x 650 mm

Weight 38.5 kg

Receiver capacity 100L

Fuse rating 13 amps

Max working pressure 8 Bar/116 psi

Max flow rate 14.5 cu.ft/min)

Sound power level 97 dB LwA

GENERAL SAFETY WARNINGS

WORK AREA

1. Keep the work area clean and well lit. Floors should always be kept clear.

Cluttered or dark areas invite accidents.

2. Keep children and bystanders away while operating a power tool.

Distractions can cause loss of control.

3. The compressor should only be used in areas with adequate ventilation

and should not be exposed to heat or used near flammable substances

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense

when operating the compressor. Do not use the compressor while you are

tired or under the influence of medication, drugs or alcohol. A moment of

inattention can result in personal injury.

2. ALWAYS use eye protection when operating compressed air equipment,

and ensure that others in the work area are protected from flying particles

from the front and from the side.

3. ALWAYS protect yourself against electric shock. Never operate the

compressor in wet or damp locations.

4. NEVER over-reach. Keep your proper footing and balance at all times to

enable better control of the compressor in unexpected situations.

5. NEVER attempt any complex repairs yourself. If you have a technical

problem contact your local dealer.

6. ALWAYS store the compressor out of reach of children.

7. ALWAYS protect your hearing. Ear protection should be worn when

operating this compressor and it’s associated power tools.

8. NEVER direct the air stream at people or animals, as injury may result.

Compressed air can cause soft tissue damage and propel dirt and other

particles at high speed.

9. NEVER insert your fingers or other objects inside the motor housing. Never

operate the compressor without the cover in place.

WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF

FIRE, ELECTRIC SHOCK AND PERSONAL INJURY

WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO

OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE.

GENERAL MACHINE USE AND CARE

1. Prior to use, all operators should become familiar with the instructions in this

booklet especially the ON/OFF switch for emergency stopping.

2. ALWAYS maintain the compressor with care and keep it clean for best /

safest performance.

3. NEVER use this compressor if any part is damaged. Have it inspected and

repaired by your dealer.

4. NEVER attempt to modify the air compressor, tank, fittings or attachments in

any way. Doing so will invalidate the guarantee and could result in

personal injury.

5. NEVER abuse the power cable. Never pull on the cable when removing the

plug from the socket, or lift the compressor by the power cable.

6. ONLY use extension leads that are of an appropriate power rating and

suitable for the work environment. Extension leads must have an earth

connection. Inspect the extension lead regularly and replace if damaged.

7. ONLY USE RECOMMENDED PARTS: To avoid the risk of bursting, only hoses

with a rated pressure of 10 bar, or more should be used. Never attempt to

repair damaged hoses.

8. NEVER abuse the compressor by standing on it.

AIRLINE HOSES

1. ALWAYS ensure that equipment or power tools used in conjunction with the

compressor have a safe working pressure exceeding that of the machine.

2. ALWAYS keep the air hose away from any attached power tools and

ensure that the operator is not restricted by the length of the hose.

3. ALWAYS take care when a long air hose is required in the work area as it

presents a trip hazard. Coil the hose away as soon as the job is finished.

4. ALWAYS avoid kinking or trapping the air hose. Always replace faulty hoses

and never attempt a repair if a leak is detected.

5. NEVER abuse hoses or connectors. NEVER carry an air tool by the hose, or

yank it to disconnect from the air supply. Keep hoses away from heat, oil

and sharp edges. Check hoses for leaks or worn condition before use and

ensure that all connections are secure.

6. ALWAYS ensure that the air supply is turned off at the machine outlet and

any air pressure vented from within the compressor and any attached

equipment when disconnecting air hoses or other equipment.

AIR COMPRESSOR SAFETY INSTRUCTIONS

1. ONLY USE WITHIN THE RECOMMENDED OPERATING TEMPERATURE RANGE:

This compressor should only be used in an ambient temperature of

between +5OC and +40OC (never at or below freezing temperatures).

2. NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS

OPERATING ABNORMALLY: If the compressor operates unusually or makes

strange noises, switch off immediately and purge the air reservoir. Arrange

repairs with your nearest dealer.

3. BREATHING QUALITY AIR: This compressor should not be used to supply

breathing quality air.

4. SAFETY VALVE: Never remove or attempt to adjust the safety valve. The

maximum pressure is factory set. Keep the safety valve free from paint and

other contamination.

5. AVOID UNINTENTIONAL STARTING: Do not move the compressor when it is

connected to the mains power supply.

6. BEFORE EACH USE CHECK THE COMPRESSOR AND HOSE FOR DAMAGED

PARTS: Never use the compressor if it has been damaged in any way. Have

the compressor repaired by a qualified service engineer. Do not use the

compressor if the On/Off switch does not operate correctly.

7. KEEP THE MOTOR AIR VENTS CLEAR: Keep the motor vents clear and free

from dust. Wipe regularly to maintain an adequate supply of clean air.

Avoid using in dusty conditions.

8. OPERATE THE COMPRESSOR AT THE CORRECT VOLTAGE: Make sure that the

mains supply voltage is the same as the voltage shown on the label.

9. ALWAYS adjust the pressure regulator to the recommended setting for the

particular spray gun or air tool being used.

10. When using the compressor for painting:

• Do not work in enclosed areas or near naked flames.

• Ensure that the area in which you are working has good ventilation.

• Protect your nose and mouth with a suitable face mask.

• Always check the safety data sheets for substances being sprayed &

ensure manufacturer’s instructions are followed.

11. DO NOT USE THIS COMPRESSOR TO INFLATE SMALL, LOW-PRESSURE OBJECTS:

Items such as children's toys or footballs can explode if over-inflated.

12. NEVER STOP THE COMPRESSOR BY REMOVING THE PLUG OR SWITCHING OFF

AT THE MAINS SUPPLY: Always use the On/Off switch on the compressor.

SAFETY SYMBOLS

The following safety symbols are shown on the product or it’s packaging.

Please read all of the safety and operating instructions carefully before use.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation

to comply with current WEEE regulations.

This means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws

governing Waste Electrical and Electronic Equipment (WEEE) at a recognised

disposal facility. This product contains valuable raw materials. Metal products

should be taken to your local civic amenity site for recycling of metal

products.

Read this instruction booklet carefully before positioning,

operating or adjusting the compressor.

This compressor produces a high sound level during operation.

Ear protection should be worn.

This compressor contains surfaces which may get hot during

operation. Never operate with the motor housing removed.

This compressor should always be started or stopped by means

of the start/stop button located on the control box. This reduces

the risk of accidental start-up.

Wear eye protection when using this compressor.

Wear ear protection when using this compressor.

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

•TheBlue wire must be connected to the terminal marked Nor coloured Black.

•TheBrown wire must be connected to the terminal marked Lor coloured Red.

•TheYellow and Green wire must be c.onnected to the terminal marked E or

or coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD). If in any doubt, consult a qualified

electrician. DO NOT attempt any repairs yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT

ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN =

EARTH

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

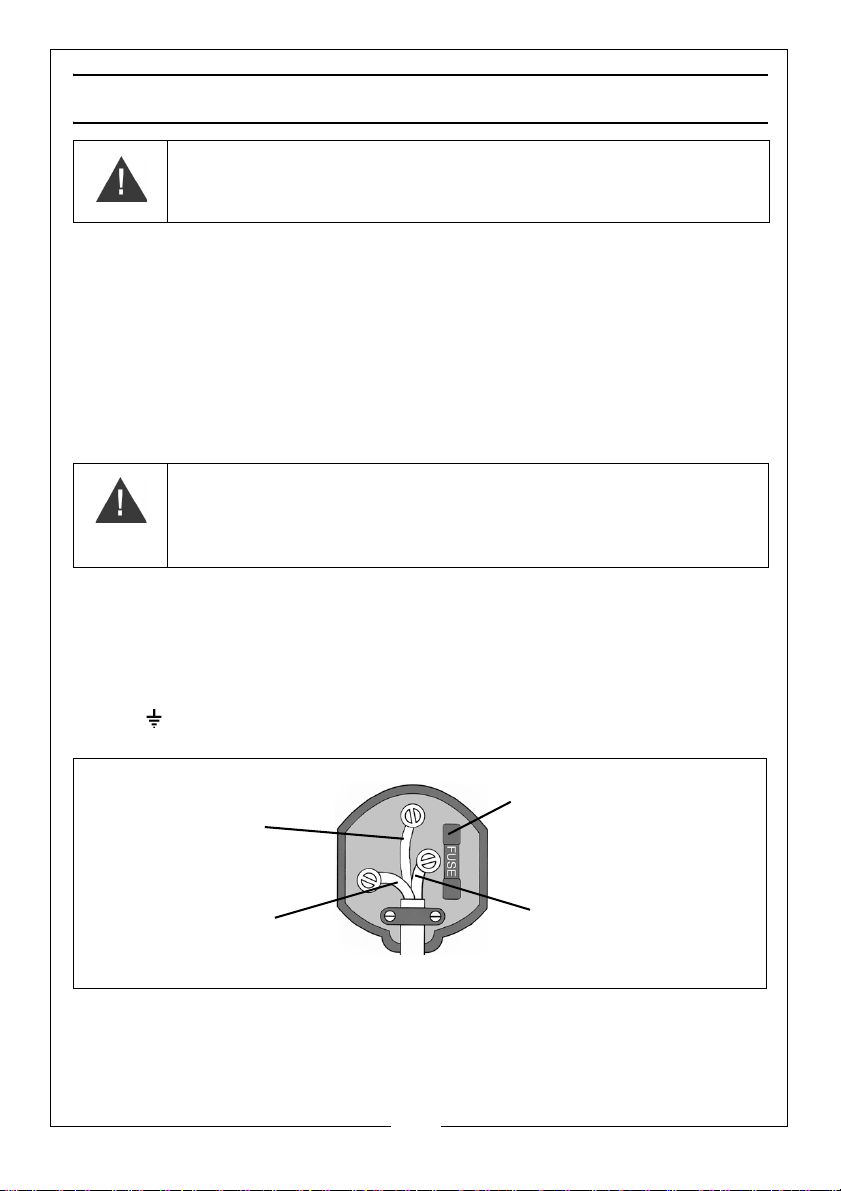

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

ASSEMBLY

ATTACH THE WHEELS

Use a suitable spanner and

screwdriver to attach the wheels to

the compressor.

• Use the washers and spring

washer in the positions shown.

ATTACH THE FEET

Insert the support feet into the

position shown.

Use a suitable spanner and

screwdriver to attach each foot to

the compressor.

• Use the spring washer in the

positions shown.

ATTACH THE AIR FILTER

1. IScrew the air filters into position.

• The air filter must be hand tight

only.

• One filter fits on each side.

INSTALL THE OIL BREATHER CAP

1. Remove the travel plug.

2. Insert the oil breather cap.

MOVING THE AIR COMPRESSOR

1. Stop the compressor and disconnect it from the power supply before you

move it.

2. Always use the handle.

3. To prevent damage, do not lift by (or put strain on) valves or hoses.

CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS

COMPRESSOR.

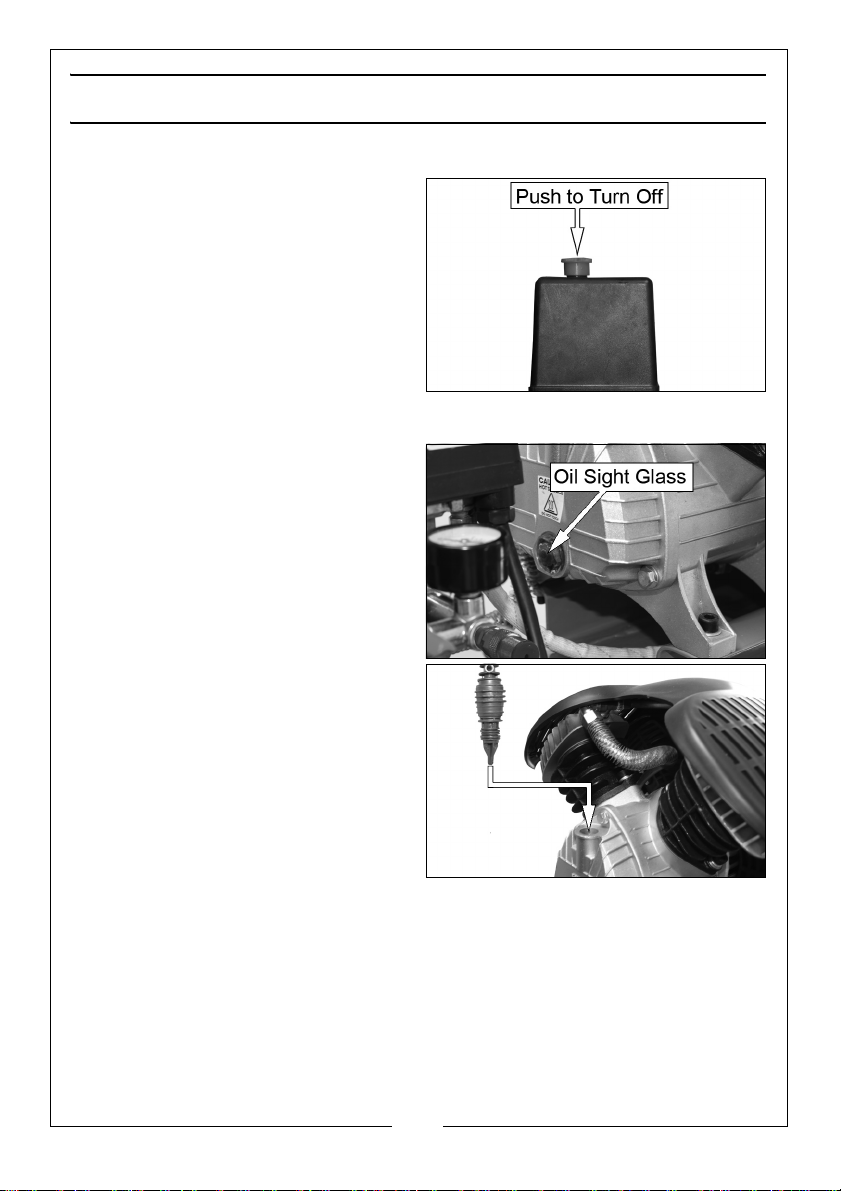

BEFORE USE

Before connecting your compressor to the power supply, check the following:-

• Set the ON/OFF switch to the

OFF position (pushed down).

• Make sure that the compressor

is on level ground.

• Make sure that the supply

voltage matches the voltage

shown on the data label.

CHECK THE OIL LEVEL

1. Make sure the oil level is half way

up the sightglass.

2. If not, remove the oil cap and

addoil to the crankcase.

• Only use SAE30 compressor oil,

available from your dealer.

• Only fill to the halfway point on the

sightglass. Overfilling may result in

damage.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Compresseur d'air

Clarke

Clarke REBEL 30 Manuel d'installation et d'exploitation

Clarke

Clarke INDY OIL FREE Guide de dépannage

Clarke

Clarke SE15 Mode d’emploi

Clarke

Clarke BOXER 14/150P Mode d’emploi

Clarke

Clarke PANTHER 10/240 Mode d’emploi

Clarke

Clarke BANDIT IV Mode d’emploi

Clarke

Clarke SHHH5 Manuel d'installation et d'exploitation

Clarke

Clarke AIRMASTER 14/150 Mode d’emploi

Clarke

Clarke airmaster TIGER 9/54 Mode d’emploi

Clarke

Clarke Hunter 54 Mode d’emploi

Clarke

Clarke WARRIOR 30 Manuel d'installation et d'exploitation

Clarke

Clarke CHAMP Manuel d'installation et d'exploitation

Clarke

Clarke SHHH 2 Manuel d'installation et d'exploitation

Clarke

Clarke SHHHAIR MAX 50/350 Mode d’emploi

Clarke

Clarke CFP10H Manuel d'installation et d'exploitation

Clarke

Clarke RANGER 8/50 Mode d’emploi

Clarke

Clarke Ranger 7/240 Mode d’emploi

Clarke

Clarke PANTHER 9/25 Mode d’emploi

Clarke

Clarke RANGER 64 Mode d’emploi

Clarke

Clarke PIONEER 220 Manuel d'installation et d'exploitation

Clarke

Clarke PP10ND Manuel d'installation et d'exploitation

Clarke

Clarke CHAMP Mode d’emploi

Clarke

Clarke WARRIOR 40 Mode d’emploi

Clarke

Clarke BANDIT Mode d’emploi

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
