OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0718 ISS 1

AIR COMPRESSOR

MODEL NO: CFP10H

PART NO: 2090903

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Engine Driven Compressor.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

IMPORTANT

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

GENERAL SAFETY PRECAUTIONS

Before using your compressor, read and pay attention to the following safety

guidelines.

1. Make sure that all persons using the compressor have read and fully

understand these operating instructions and had any necessary training

WARNING: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE WHEN

THERE IS A RISK OF PERSONNAL INJURY. MAKE SURE THAT THESE

WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES.

CAUTION: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE WHEN

THERE IS A RISK OF DAMAGE TO THE PRODUCT. MAKE SURE THAT THESE

CAUTIONS ARE READ AND UNDERSTOOD AT ALL TIMES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

2. Compressed air is dangerous. Do not point a jet of air at persons or animals

and do not discharge compressed air against the skin.

3. Repairs must only be carried out by a qualified engineer. If problems occur,

contact your Clarke dealer.

4. Before carrying out any maintenance, make sure that the pressure is

released from the air receiver.

5. DO NOT leave pressure in the air receiver overnight or when transporting.

6. DO NOT adjust or tamper with the safety valve. The maximum pressure is

set at the factory.

7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all

times. Similarly, clean air will allow the compressor to work efficiently. Do

not use in dusty or otherwise dirty locations.

8. Some metal parts can become hot during operation. Do not touch these

until the compressor has cooled down.

9. Always set the pressure regulator to the recommended setting for the air

tool being used.

10. When spraying flammable materials e.g. cellulose paint, ensure that there

is sufficient ventilation and keep clear of any source of ignition.

11. Do not use this compressor in explosive atmospheres.

12. Do not operate this compressor in a confined space unless additional

ventilation is provided.

13. Before spraying any material always consult paint manufacturers

instructions for safety and usage.

14. Wear PPE such as goggles to protect your eyes from flying particles. Face

masks will protect you against paint spray and fumes.

15. This compressor will produce noise levels in excess of 70dB(A). Persons

working near the compressor must be equipped with ear protection.

16. Make sure that air hoses are not kinked or wrapped around the compressor

and not subjected to strain.

17. When disconnecting air hoses from your compressor, make sure that the air

supply is turned off at the outlet and vent all pressurised air from within the

air receiver.

18. Make sure that children and animals are kept well away from the

compressor and any airline equipment attached to it.

19. Make sure that any equipment or air tool used in conjunction with your

compressor has a safe working pressure exceeding that of the compressor.

20. Take care when transporting the compressor to prevent tipping over with

resultant spillage of fluids.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

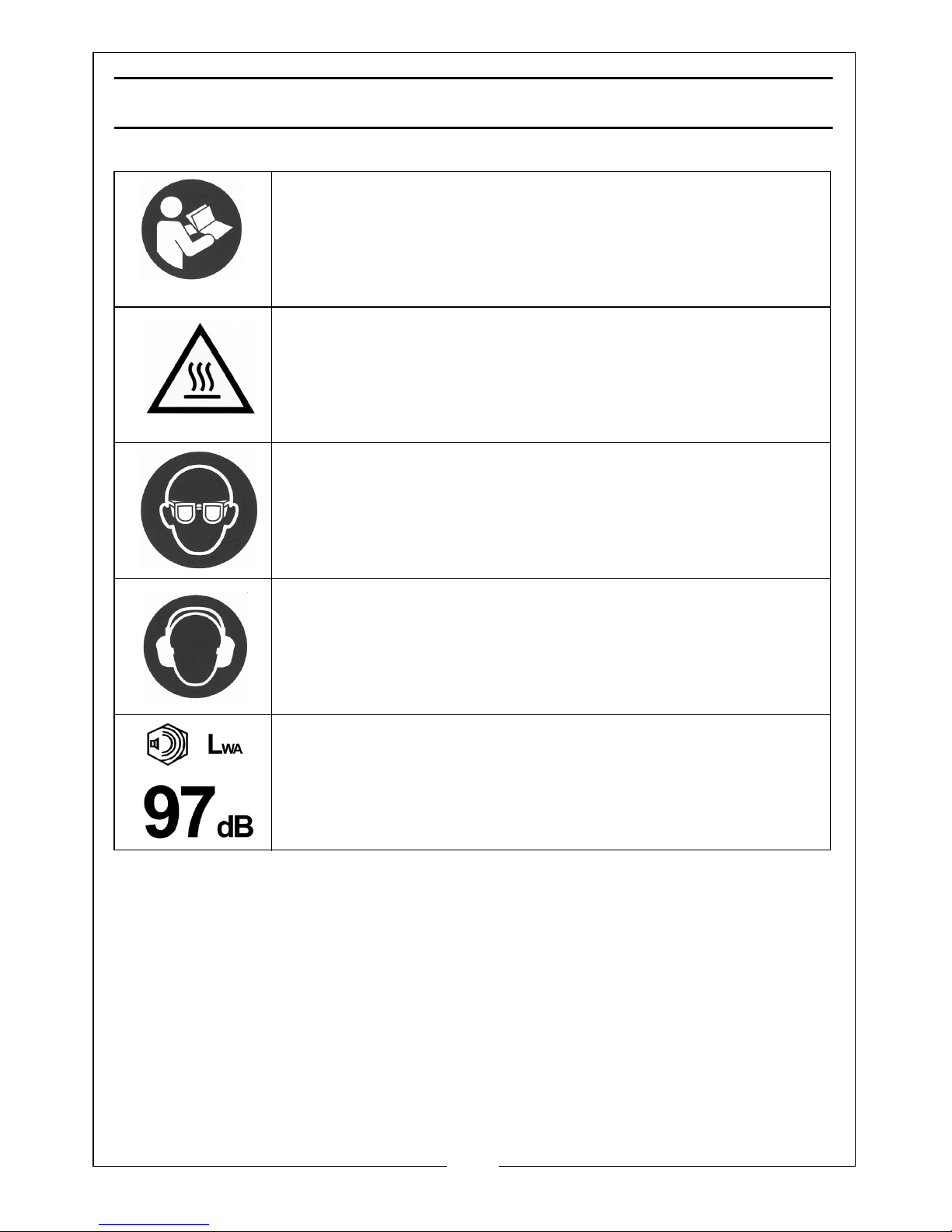

SAFETY SYMBOLS

Refer to instruction manual/booklet.

Hot surface

Wear eye protection

Wear ear protection

This compressor produces a high noise level during

operation.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

POSITIONING THE AIR COMPRESSOR IN THE WORKPLACE

1. Always carry the compressor using the handle.

2. Do not lift by (or put strain on) valves or hoses.

3. Before starting, ensure the compressor is standing on a firm level surface

which does not exceed 10oincline, either transversely or longitudinally.

4. Ensure the environment is dry and dust free.

5. Ensure there is adequate ventilation for:

• Air intake to the compressor pump and engine.

• Cooling for the compressor pump and engine.

• Engine exhaust gases.

FILING WITH OIL

The engine and compressor are

supplied without oil inside.

A 1 litre bottle of dual purpose oil is

provided in the box and must be

added before use (approx 0.6 L to

the engine and 0.4 L to the pump).

For future use, suitable oils are

available from your Clarke dealer:

1 litre of SAE30 Engine oil - Part No. 3050852

1 litre of SAE30 Air Compressor oil - Part No. 3050796

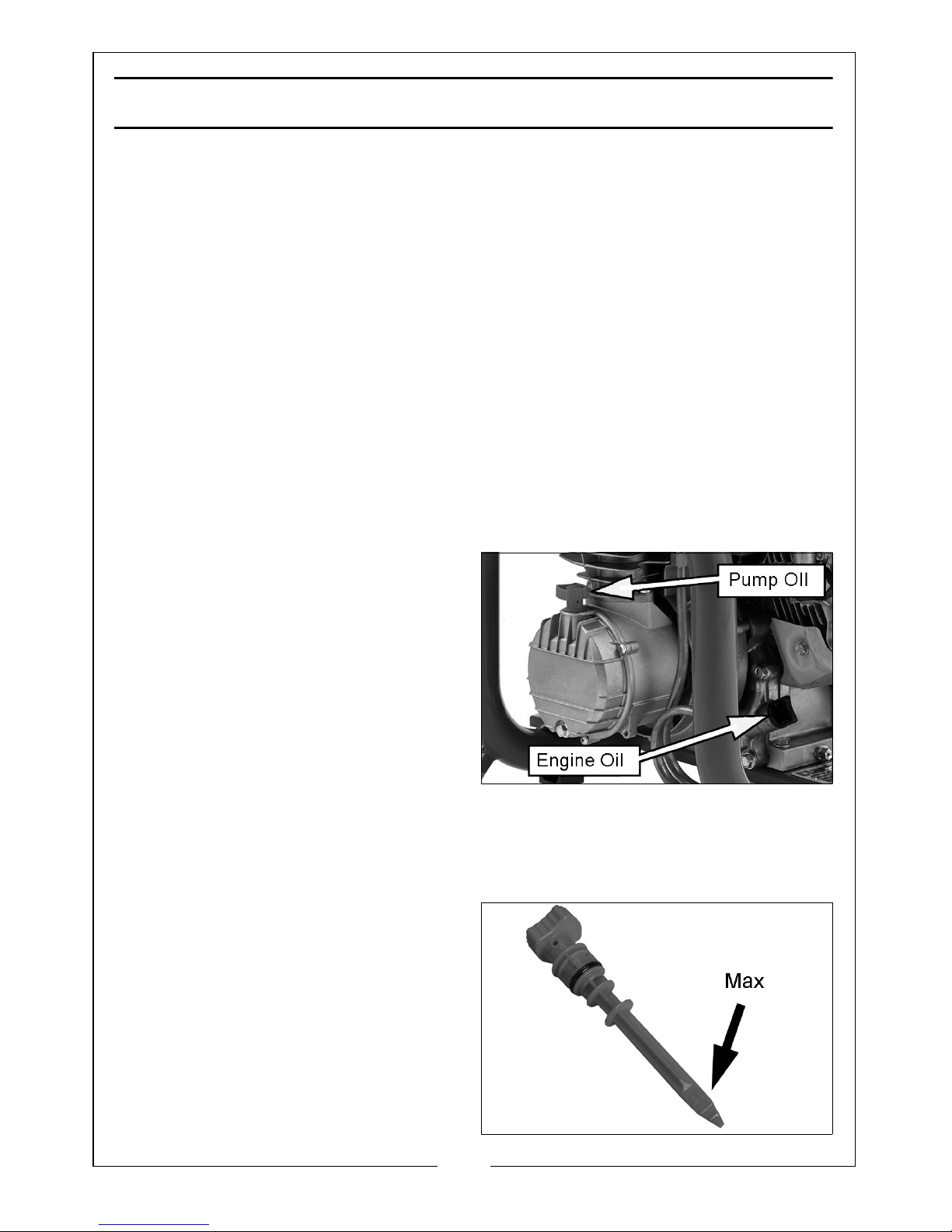

AIR COMPRESSOR (PUMP)

Remove the compressor dipstick and

add 0.4 L of compressor oil to the

compressor. Check the oil level on

the dipstick

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

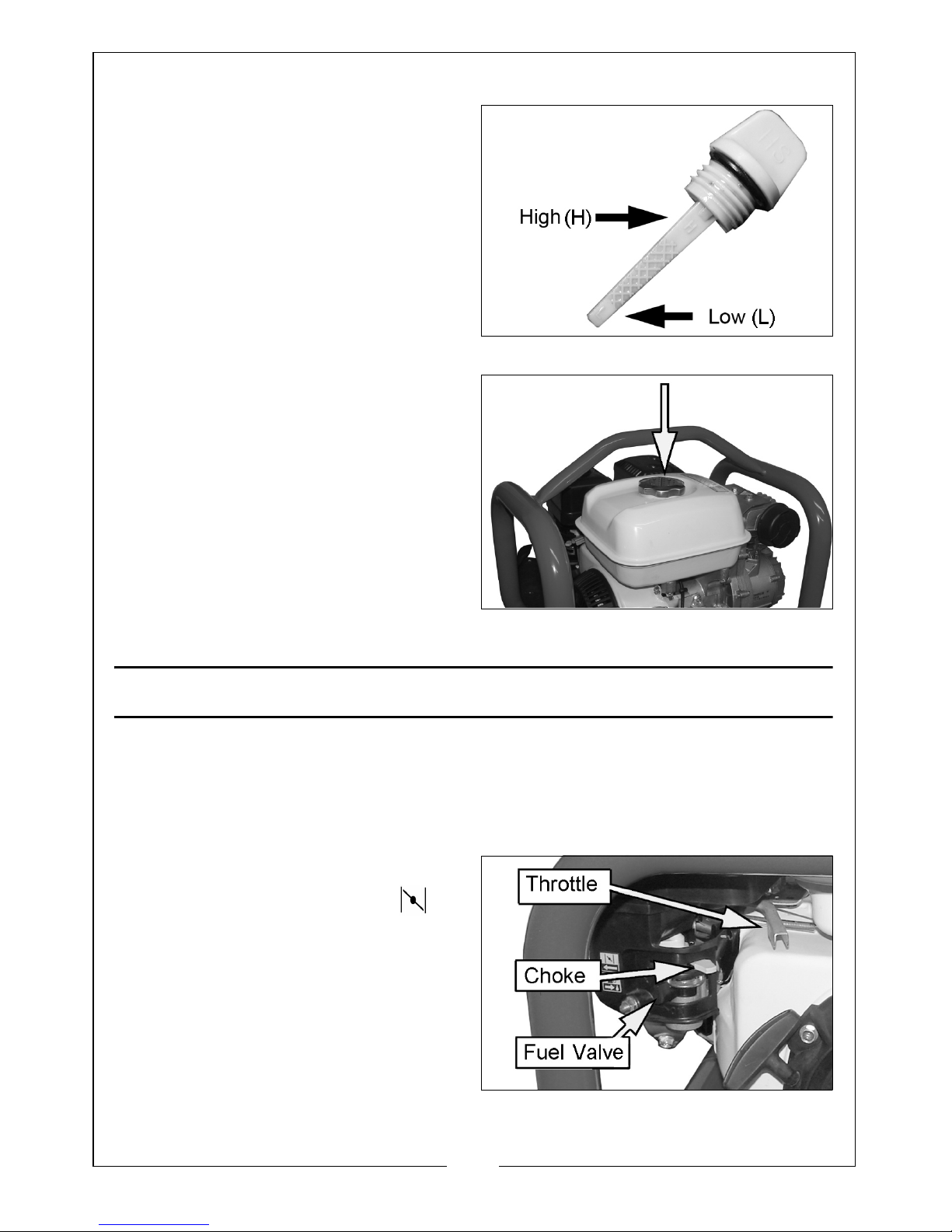

ENGINE

Remove the engine dipstick and add

0.6 L of engine oil to the engine.

Check that the oil level on the

dipstick is within the hatched area

when the dipstick is removed from

the engine.

Ensure the oil level is visible between

the high (H) and low (L) marks on the

engine dipstick.

ADDING FUEL

Remove the filler cap and fill the tank

with unleaded fuel. (Max capacity

1.8 L)

• Use a funnel to avoid

accidental spillage of fuel.

• If fuel is spilled it must be

cleaned from the unit and

surrounding area before

attempting to start the engine.

• Do not overfill.

STARTING AND USING THE COMPRESSOR

STARTING THE ENGINE FOR THE FIRST TIME

NOTE: For first time operation, do not connect the air hose or any tools

and proceed as follows:

1. Turn fuel valve to the ON position.

2. Set the choke lever to the

(starting) position.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

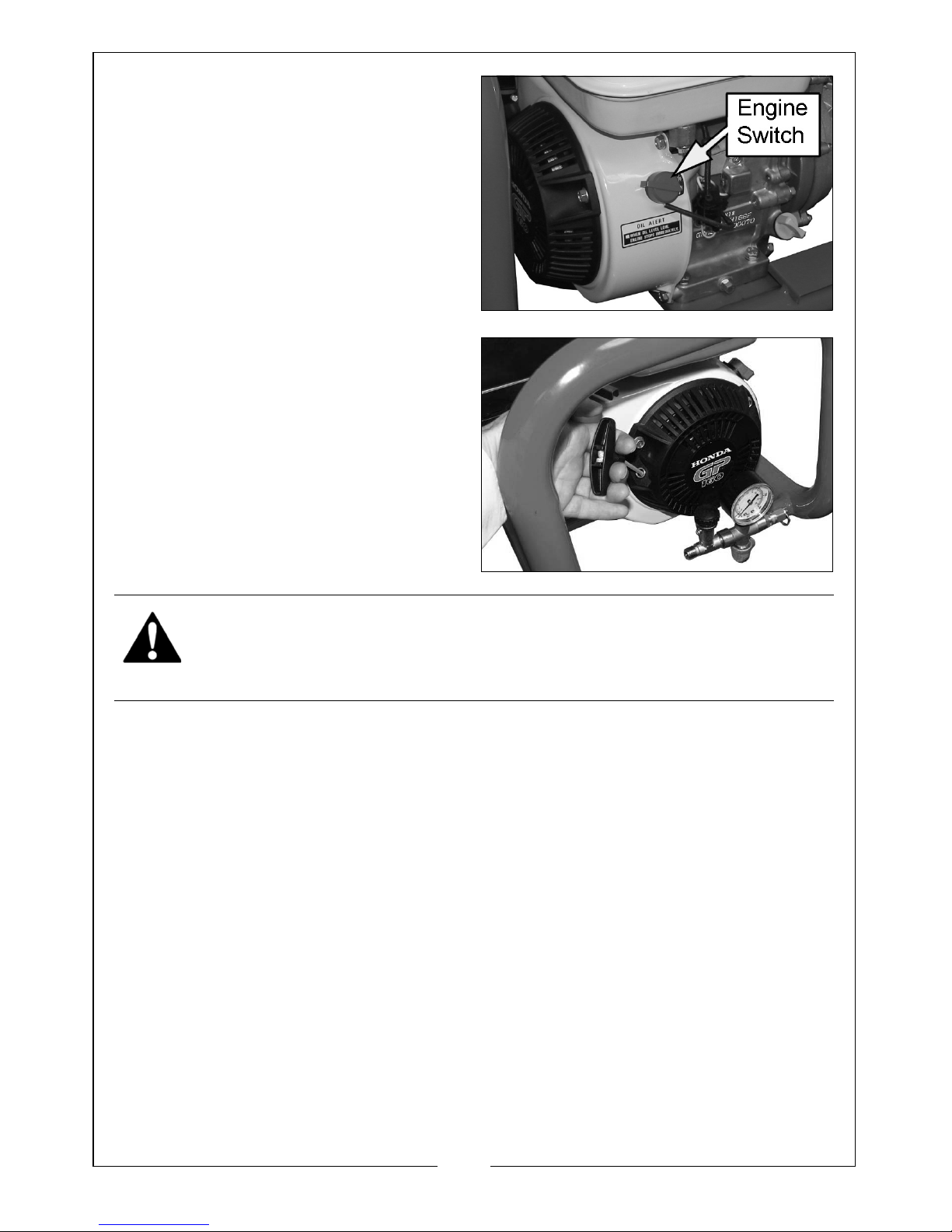

3. Set the engine switch to the “I”

(ON) position.

4. Hold the starting handle firmly and

pull lightly until you start to feel

resistance, then pull sharply to

start the engine.

NOTE: You may have to do this

more than once.

5. When the engine is running steadily, gradually return the choke lever to the

normal running position (to the right).

6. When the engine is running steadily, turn off and attach an air hose to the

compressed air outlet and to the air driven tool.

OIL ALERT SYSTEM

An oil alert system is fitted to prevent engine damage caused by insufficient oil

in the crankcase. Before the oil can fall below a safe limit the oil alert system

will automatically stop the engine although the throttle lever remains in a

running position.

If the engine stops and will not re-start, check the engine oil level before

troubleshooting other areas.

WARNING: ONCE THE ENGINE HAS STARTED, ALLOW THE STARTING

HANDLE TO RECOIL SLOWLY TO AVOID INJURY/DAMAGE AS IT WHIPS

BACK.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ATTACHING AIR TOOLS

1. Attach the air hose to the air

outlet using an appropriate

connector.

2. Attach the air tool to the other

end of the air hose.

• If using snap couplings, use a

whip end, available from your

Clarke dealer.

3. Restart the engine and allow

pressure to build up in the

receiver.

• The gauge will show the available pressure in the receiver.

4. Check the system for air leaks. If any are apparent, stop the engine and

operate the air tool until the air pressure is at zero before rectifying leaks.

NOTE: A self-relieving regulator is fitted which will vent excess air pressure

from the bleed hole when the pressure reaches the maximum.

operating pressure for the compressor.

5. Turn the pressure regulator (clockwise to increase pressure) and proceed

to use your air tool in accordance with its own product instructions.

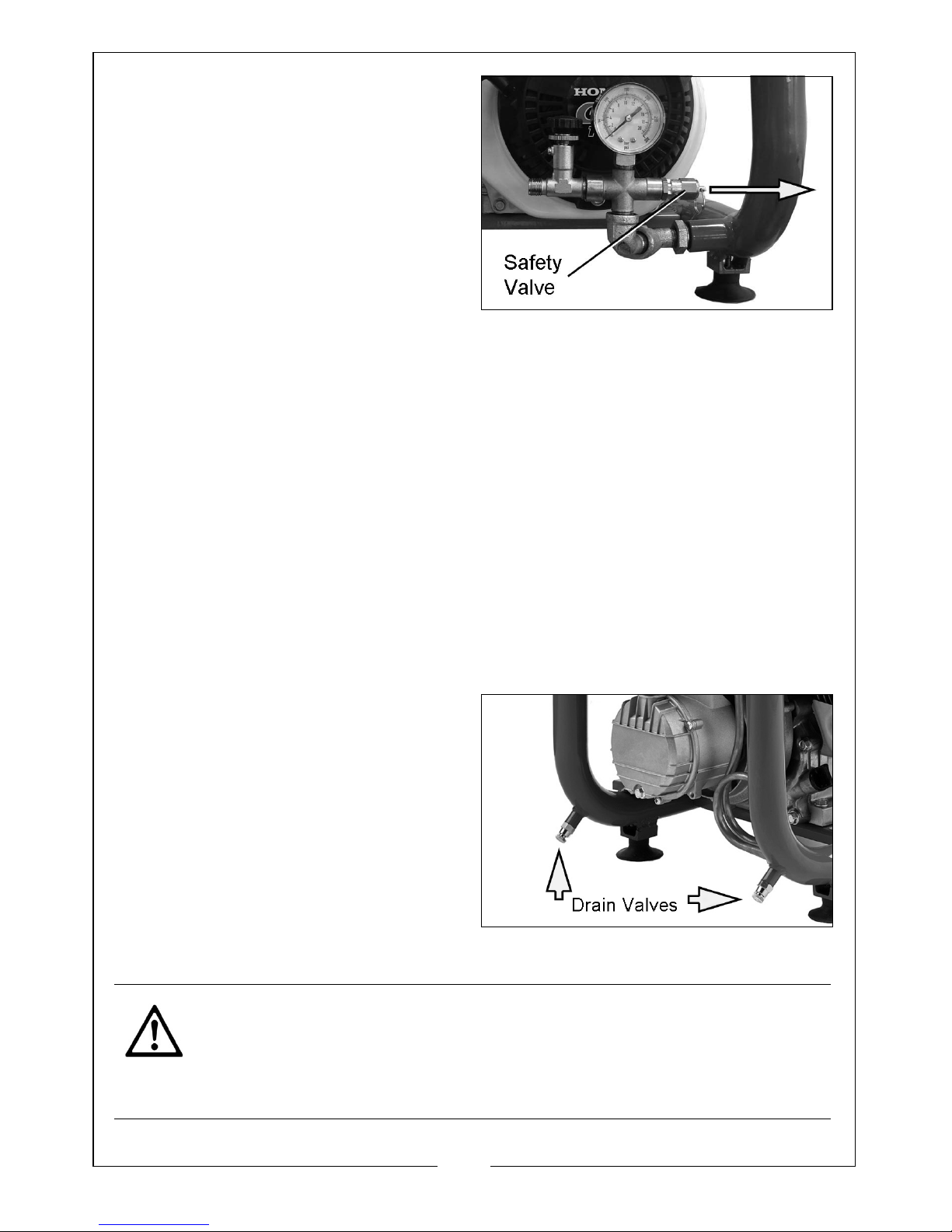

CHECKING THE SAFETY VALVE

1. Check the safety valve to ensure that it works correctly.

2. Pull on the ring attached.

• Air will be released when you pull on the ring and stop when

released.

WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU

READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL. ENSURE THAT THE AIR

TOOL IS SUITABLE FOR USE WITH THIS COMPRESSOR AND HOSE

SPECIFICATIONS.

WARNING: DO NOT REMOVE OR TRY TO ADJUST THE SAFETY VALVE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

3. Do not use the compressor if the

safety valve does not operate in

this way.

• The compressor must be

repaired by a qualified service

agent.

SUBSEQUENT STARTING

1. Connect the air hose to the air outlet and tool and set the pressure

regulator to zero pressure (turned fully anticlockwise).

2. Start the engine and allow pressure to build up.

3. When the pressure in the receiver has built up and air is expelled at the

vent hole, turn the outlet pressure regulator clockwise so that the desired

pressure is shown on the pressure gauge.

4. Check for air leaks at the air tool and connectors before proceeding.

STOPPING THE COMPRESSOR

1. At the end of the day, stop the engine by turning the engine switch to OFF

and closing the fuel valve.

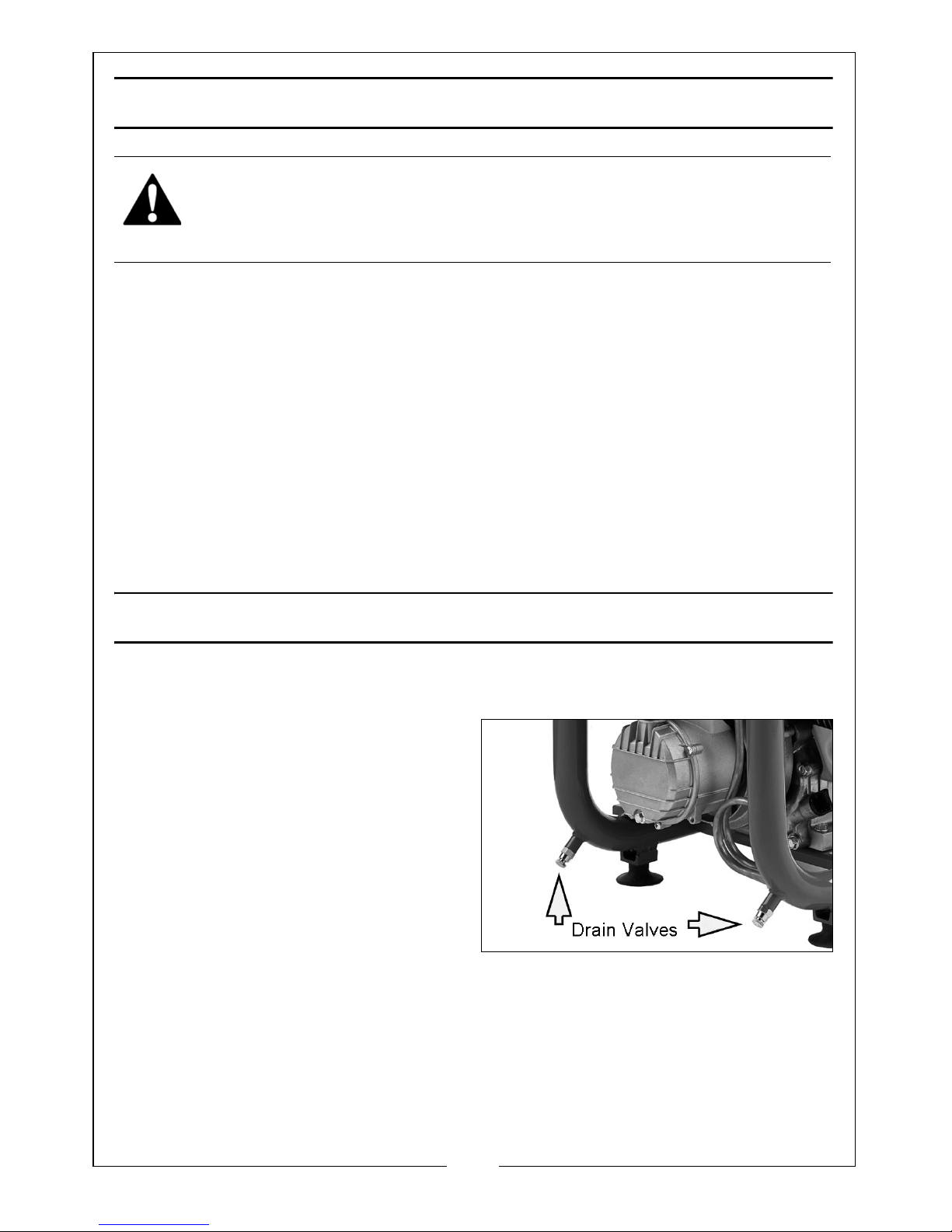

2. Put a container below the drain valve to collect the condensate.

3. Open the drain valves slowly.

• Condensation will drain from

the air receiver.

4. Close the drain valve when the air

receiver has fully drained.

5. Turn the air regulator fully

anticlockwise to close off the air

supply.

6. Operate the air tool to discharge

any pressure in the air line before disconnecting the airline and the air tool.

CAUTION: TAKE CARE NOT TO TOUCH THE ENGINE OR COMPRESSOR AS

THEY REMAIN HOT FOR SOME TIME AFTER USE.

CAUTION: DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO REMOVE

THE AIR TOOL OR DISCONNECT THE AIR HOSE UNTIL YOU ARE SATISFIED

THAT THE PRESSURE HAS BEEN RELEASED.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

• If an automatic in-line lubricator/ filter is used it will keep the air tool

in good condition but should be regularly checked & topped up

with oil. Clarke air-line oil should be used and the lubricator adjusted

to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the air tool.

Higher pressures and contaminated air will shorten the life of the tool

due to faster wear and is a possible safety hazard.

MAINTENANCE

DRAIN THE AIR RECEIVER (DAILY/BEFORE USE)

After use, always open the drain

valve(s) to make sure that any

condensate is drained off.

CHECK OIL (DAILY)

1. Check the engine oil level is

between the Low and High marks

on the dipstick and top-up if

necessary.

2. Check the compressor oil level in

the same way.

3. Remove each dipstick and wipe it clean, Insert the dipstick into the hole as

far a s it will go, then remove it to check the oil level. Do not overfill. Refit

the dipstick.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF A

COMPRESSED AIR SUPPLY.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Compresseur d'air

Clarke

Clarke RANGER 54 Mode d’emploi

Clarke

Clarke XE Series Mode d’emploi

Clarke

Clarke CHAMP 265 Mode d’emploi

Clarke

Clarke SHHH 2 Manuel d'installation et d'exploitation

Clarke

Clarke RANGER 46 Mode d’emploi

Clarke

Clarke PP10ND Manuel d'installation et d'exploitation

Clarke

Clarke AIRMASTER 14/200 Mode d’emploi

Clarke

Clarke BOXER II 18/150 Mode d’emploi

Clarke

Clarke Air RANGER 7-550 Mode d’emploi

Clarke

Clarke CFP9HND Manuel d'installation et d'exploitation

Clarke

Clarke BOXER 55 Manuel d'installation et d'exploitation

Clarke

Clarke XE36/C200 Mode d’emploi

Clarke

Clarke CHAMP Manuel d'installation et d'exploitation

Clarke

Clarke PP10ND Manuel d'installation et d'exploitation

Clarke

Clarke ZX 500 Guide de dépannage

Clarke

Clarke RACER 9/100P (3PH) Mode d’emploi

Clarke

Clarke CHT746 Mode d’emploi

Clarke

Clarke REBEL 30 Manuel d'installation et d'exploitation

Clarke

Clarke MONZA Mode d’emploi

Clarke

Clarke SE Ranges Manuel d'installation et d'exploitation

Clarke

Clarke XE10/100 Mode d’emploi

Clarke

Clarke 2241000 Mode d’emploi

Clarke

Clarke AIRMASTER 18/200 Mode d’emploi

Clarke

Clarke AIRMASTER 14/50P Mode d’emploi

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
