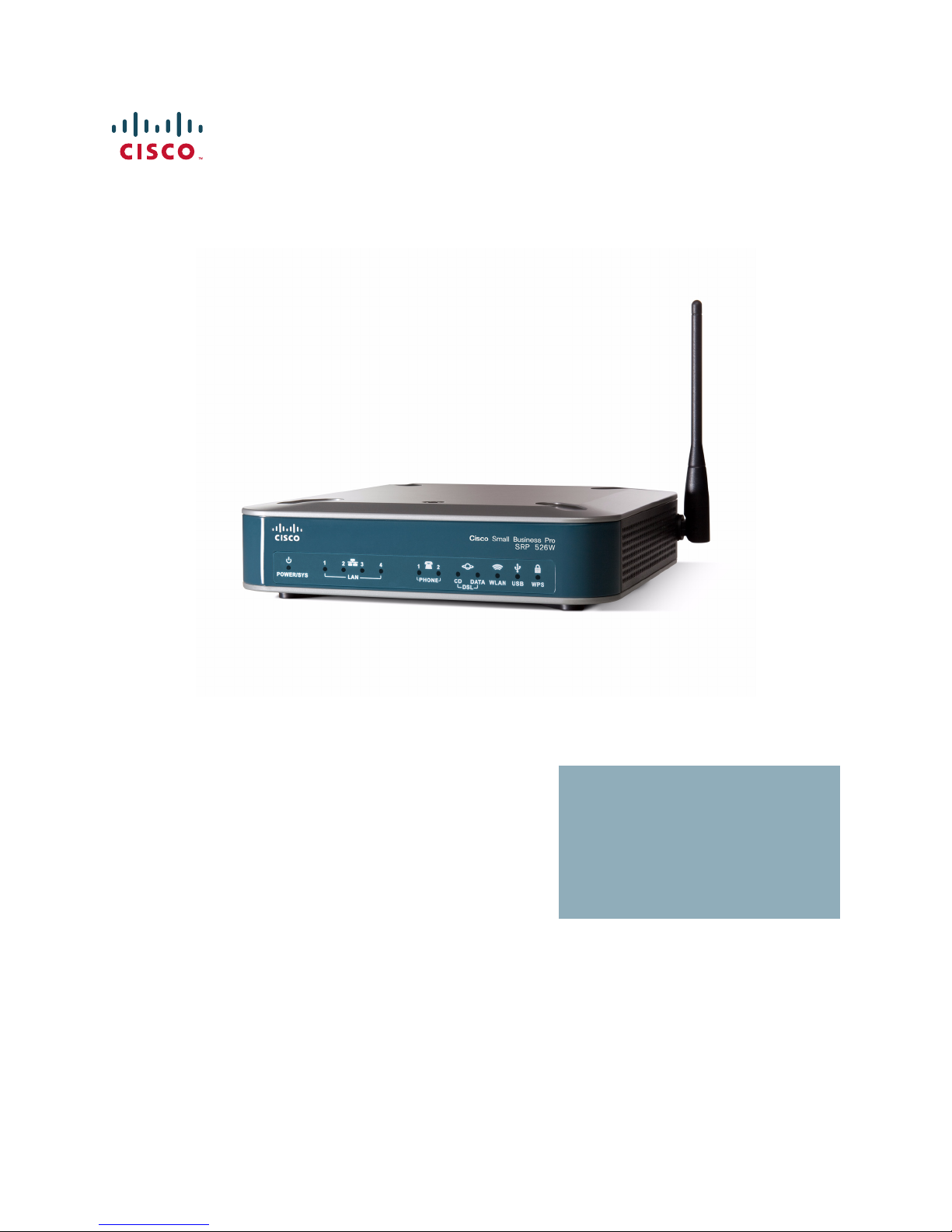

Cisco SRP521W Mode d’emploi

Cisco Small Business Pro

Services Ready Platform SRP 500 Series

ADMINISTRATION

GUIDE

CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco Ironport, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect, Cisco Stackpower,

Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flip Video, Flip Video

(Design), Flipshare (Design), Flip Ultra, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Store, and

Flip Gift Card are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP,

CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity,

Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS,

iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking

Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to

Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States

and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a

partnership relationship between Cisco and any other company. (0907R)

Services Ready Platform SRP 500 Series Administration Guide 3

Contents

Chapter 1: Introduction to the Services Ready Platform 8

Feature Overview 8

Product Overview 8

SRP 521W Front Panel 9

SRP 526W / SRP 527W Front Panel 9

SRP 521W Back Panel 10

SRP 526W / SRP 527W Back Panel 11

Side Panels 12

Top View 13

Default Settings 14

Chapter 2: Getting Started with the Configuration Utility 15

Logging In to the Configuration Utility 15

Using the Configuration Utility 16

Main Window Areas 16

Configuration Utility Icons 17

Chapter 3: The Quick Setup Menu 19

Basic Configuration Setup 19

WAN Setup (Ethernet) 19

WAN Setup (ADSL) 25

LAN Setup 27

Wireless Setup 30

Remote Provisioning 36

Advanced Configuration 38

Voice 38

Mobile Network Setup 38

Firewall 39

NAT 39

Chapter 4: Setting up the Interfaces of the Services Ready Platform 40

Setting up the WAN Interface 40

Services Ready Platform SRP 500 Series Administration Guide 4

Contents

Internet Setup 40

VC Setting 43

IPOA Settings / Static IP Setting 44

PPPoE Settings 44

PPPoA Settings 46

Mobile Network 46

Failover and Recovery (SRP 521W) 50

Failover and Recovery (SRP 526W, SRP 527W) 53

Setting up the LAN Interface 56

DHCP Server 56

VLAN Setting 60

Port Setting 62

Setting up the Wireless LAN 63

Basic Wireless Settings 63

Wireless Protected Setup 66

WPS Method 1 66

WPS Method 2 66

WPS Method 3 67

Wireless MAC Filter 69

Advanced Wireless Settings 71

WMM Setting 75

Using the Management Interface 76

Chapter 5: Configuring the Network 78

Static Routing 78

RIP 80

Intervlan Routing 81

NAT 81

Setting 81

Port Forwarding 82

Port Range Triggering 84

QoS 86

Bandwidth Control 86

Services Ready Platform SRP 500 Series Administration Guide 5

Contents

QoS Policy 87

QoS Settings 88

CoS To Queue 89

DSCP To Queue 90

Firewall 91

Firewall Filter 91

Internet Access Control 94

PPPoE Relay 96

DDNS 98

DMZ 102

IGMP 103

UPnP 105

CDP Setting 106

Chapter 6: Voice Settings 108

Info 108

System 109

SIP 110

Provisioning 111

Regional 117

Chapter 7: Configuring VPN 118

IKE Policy 118

IPSec Policy 120

GRE Tunnel 123

VPN Passthrough 125

Chapter 8: Administration Settings 128

Web Access Management 128

Settings 128

Remote Management 130

Services Ready Platform SRP 500 Series Administration Guide 6

Contents

TR069 130

SNMP 132

Local TFTP 133

Time Setup 135

Setup Wizard 137

User List 137

User Privilege Control 138

Log 139

Factory Defaults 140

Firmware Upgrade 142

Backup & Restore 142

Backup Configuration 142

Restore Configuration 143

Reboot 144

Status 145

Switch Setting 146

Chapter 9: Using Services Ready Platform Diagnostics 148

Ping Test 148

Traceroute Test 149

Detect Active LAN Clients 150

Chapter 10: Viewing the Services Ready Platform Status 152

Router Settings 152

Firewall Status 154

Interface Information 156

Wireless Network 158

Wireless Client Information 159

Mobile Network 160

DHCP Server Information 163

Services Ready Platform SRP 500 Series Administration Guide 7

Contents

QoS status 164

Routing table 165

ARP Table 166

RIP Status 167

IGMP Status 168

VPN Status 169

CDP Neighbor Information 169

Appendix A: Specifications 172

Appendix B: Where to Go From Here 174

Services Ready Platform SRP 500 Series Administration Guide 8

Introduction to the Services Ready Platform

This chapter provides information to familiarize you with the product features and

get started using the web-based Configuration Utility.

•Feature Overview, page 8

•Product Overview, page 8

Feature Overview

Thank you for choosing the Cisco Services Ready Platform SRP 500 Series. The

Services Ready Platform has the features needed for small business.

SRP 500 Series platforms include:

•Intelligence to support voice, data, security, and application services.

•Industry-leading Session Initiation Protocol (SIP) stack to deliver clear, high-

quality voice service.

•Interoperability with popular soft switches and voice gateways.

•Integrated security, VPN capabilities, and an 802.11n wireless access point.

•Standards-based provisioning for streamlined deployments.

Product Overview

The Services Ready Platform, a member of the Cisco Small Business Pro family, is a

unified communications solution for small businesses that provides voice, data,

video, security, and wireless capabilities.

With its web-based interface, the Services Ready Platform is easy to setup and

configure.

Introduction to the Services Ready Platform

Product Overview

Services Ready Platform SRP 500 Series Administration Guide 9

SRP 521W Front Panel

SRP 526W / SRP 527W Front Panel

LED Description

Power/Sys Solid green indicates that the SRP is powered on.

Green flash indicates that the SRP is booting.

LAN Ports 1 to 4 Solid green indicates link. Green flash indicates link

traffic.

WAN (SRP 521W only) Solid green indicates link. Green flash indicates link

traffic.

DSL CD (SRP 526W/527W

only)

Solid green indicates carrier detection.

DSL Data (SRP 526W/527W

only)

Green flash indicates DSL activity.

WLAN Solid green indicates the radio is operational. Green

flash indicates wireless traffic.

276377

LANPOWER/SYS

PHONE USB WPSWLANWLAN

Cisco Small Business Pro

SRP 521W

12 2143

195210

LANPOWER/SYS

PHONE

CD Data

DSL

USB WPSWLAN

Cisco Small Business Pro

SRP 526W

12 2143

Introduction to the Services Ready Platform

Product Overview

Services Ready Platform SRP 500 Series Administration Guide 10

SRP 521W Back Panel

USB Solid green indicates USB device is operational. Green

flash indicates device failure or unsupported device.

WPS Solid green indicates WiFi Protected Setup success.

Slow green flash indicates setup in progress. Fast

green flash indicates a setup error.

Feature Description

Phone Ports 1 to 2 Use these ports to connect to standard analog telephones.

FXO Line Port Use this port to connect to analog telephone Service

(PSTN) which is the analog telephone service network that

traditional telephone service uses.

WAN Port Use this port to connect the Services Ready Platform to

your WAN Internet connection.

LAN Ports 1 to 4 Use these ports to connect to wired computers and other

network devices.

On/Off Switch Use this switch to power the Services Ready Platform on

or off.

12 V DC Power Use this port to connect the provided power adapter.

276375

12VDC

LAN (10/100)WAN (10/100)

21 1234

LINE (FXO)PHONE (FXS)

WAN

Port

On/Off

Switch

FXO

Line

Port

Phone

Ports

12V DC

Power

LAN

Ports
