Cisco Linksys X-Series Manuel utilisateur

User Guide

Linksys X-Series Wireless Router with ADSL2+ Modem

Contents

Linksys X-Series

Product Overview

X1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Top 1

Back 1

Wall-mounting placement 2

X3500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Top 3

Back 3

Wall-mounting placement 4

Installation

Set up your modem-router automatically . . . . . . . . . . . . . . .5

Set up your modem-router manually . . . . . . . . . . . . . . . . . .6

Connect your modem-router 6

Set up your modem-router as only a router 7

How to use Cisco Connect

How to access Cisco Connect . . . . . . . . . . . . . . . . . . . . . . .8

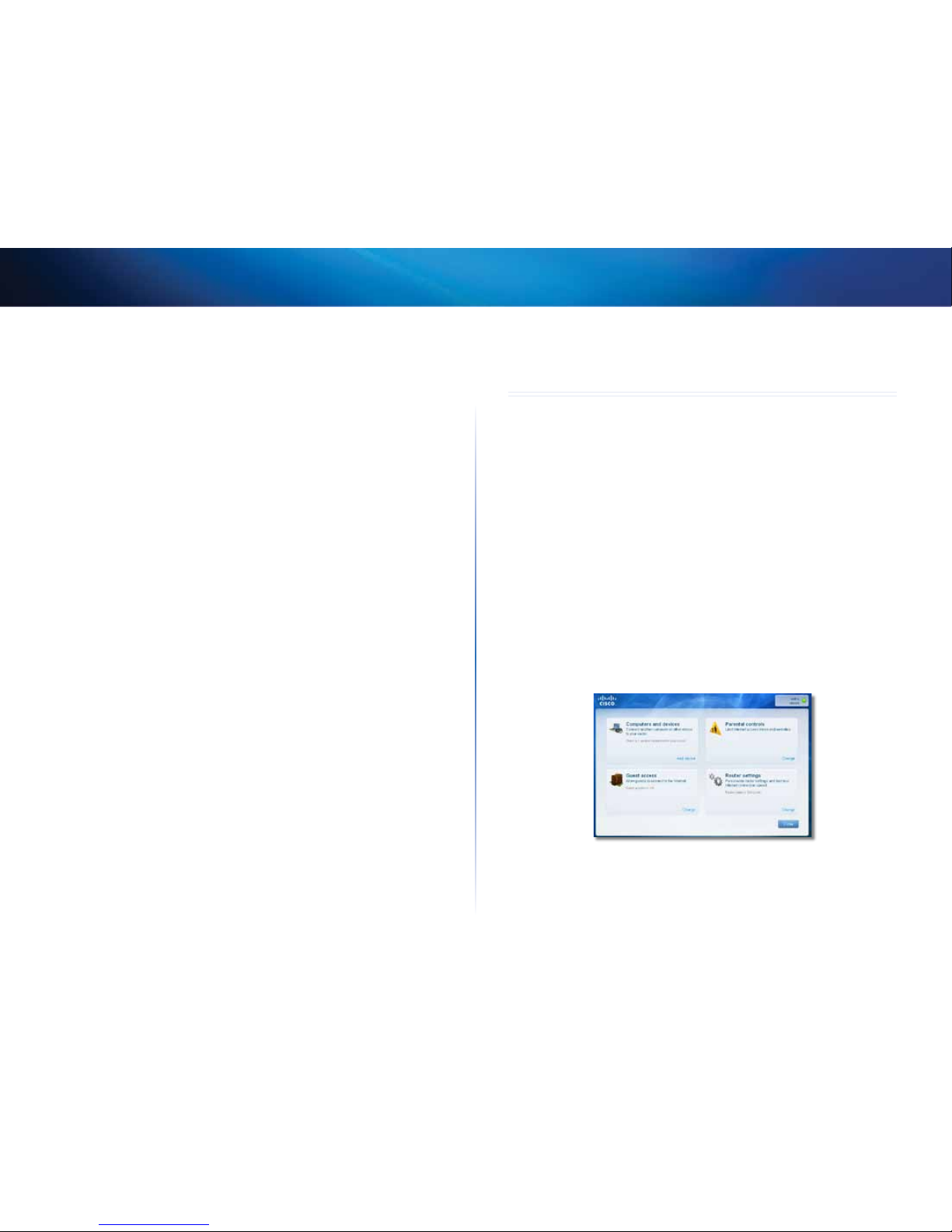

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Main Menu – Computers and Devices 9

Main Menu – Parental Controls 9

Main Menu – Guest Access 9

Main Menu – Router Settings 9

Advanced Conguration

How to access the browser-based utility. . . . . . . . . . . . . . . 10

How to use the browser-based utility. . . . . . . . . . . . . . . . . 11

Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ADSL mode 11

Ethernet mode 12

Manual setup 14

Wi-Fi Protected Setup 17

Wireless > Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . 18

Guest Access 19

Guest Instructions 19

Troubleshooting

X1000/X3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specications

Linksys X1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Linksys X3500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

Product Overview

Linksys X-Series

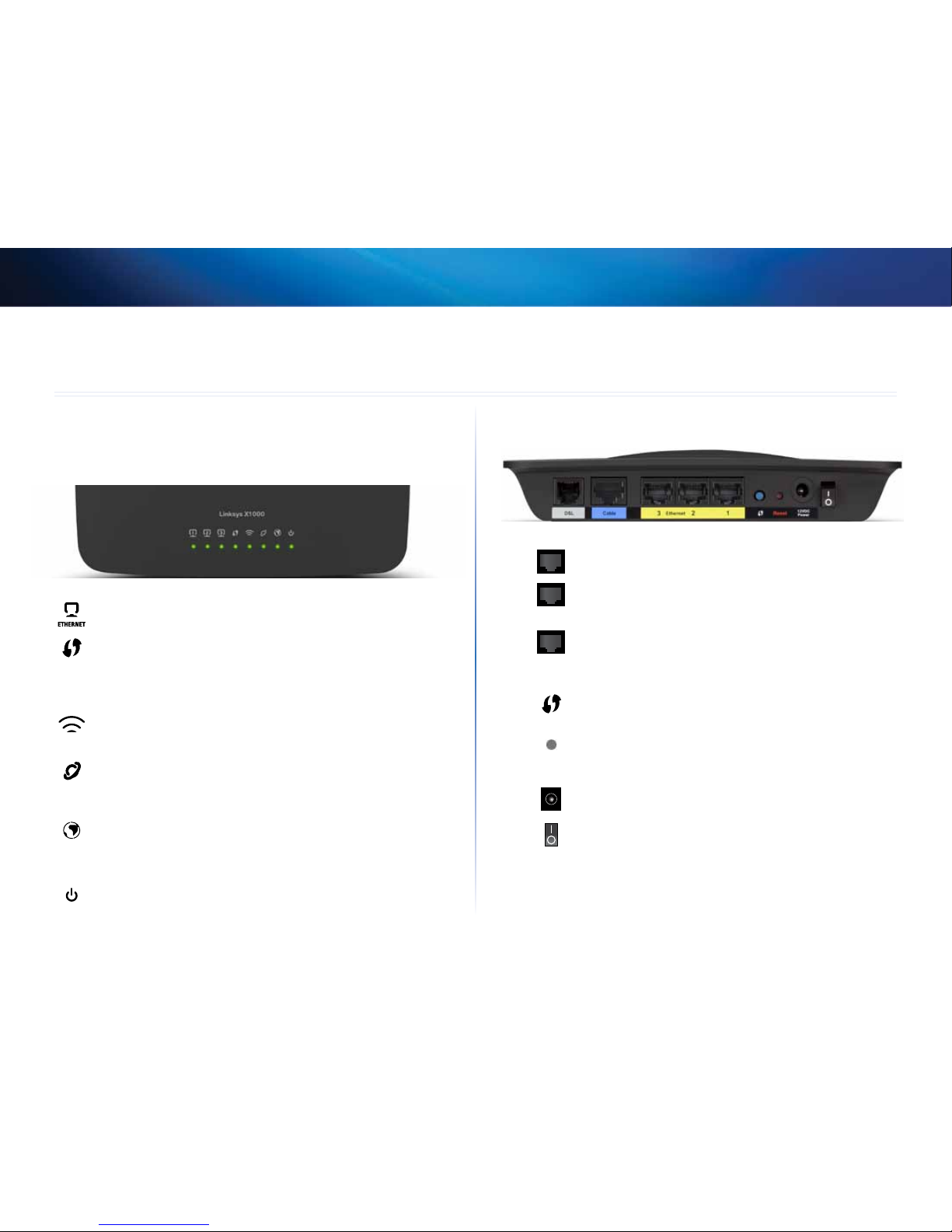

X1000

Top

Ethernet—If the LED is continuously lit, the modem router is

successfully connected to a device through that port.

Wi-Fi Protected Setup™—The LED is continuously lit when a Wi-Fi

Protected Setup™ connection is successfully established. The LED

blinks slowly while Wi-Fi Protected Setup™ is setting up a connection,

and blinks rapidly if an error occurs. The LED is off when Wi-Fi Protected

Setup™ is idle.

Wireless—Lights up when the wireless feature is enabled. It flashes

when the modem router is actively sending or receiving data over the

network.

WAN—Lights up green when the modem router is connected directly

to an ADSL line. Lights up blue when the modem router is set up as

a router only and is connected to the internet through a separate

modem.

Internet— Lights up green when the modem router has an Internet

connection. Flashes green while the modem router is establishing the

Internet connection. Lights up red when the modem router cannot

obtain an IP address.

Power—Lights up green when the modem router is powered on.

When the modem router goes through its self-diagnostic mode during

every boot-up, the LED flashes. When the diagnostic is complete, the

LED is continuously lit. Lights up red when an error occurs.

Back

DSL port—Connects to the ADSL line.

Cable port—To use the modem router as only a router, use

a network cable to connect this port to a separate modem’s

LAN/Ethernet port.

Ethernet port—Using Ethernet cables (also called network

cables), these Ethernet ports connect the modem router

to computers and other Ethernet network devices on your

wired network.

Wi-Fi Protected Setup™ button—Press this button to

have Wi-Fi Protected Setup™ search for your Wi-Fi Protected

Setup™-supported wireless device.

Reset button—This button allows you to reset the router

to its factory defaults. Press and hold the Reset button for

about five seconds.

Power port—The Power port connects to the included

power adapter.

Power button—Press | (on) to turn on the modem router.

Product Overview

Linksys X-Series

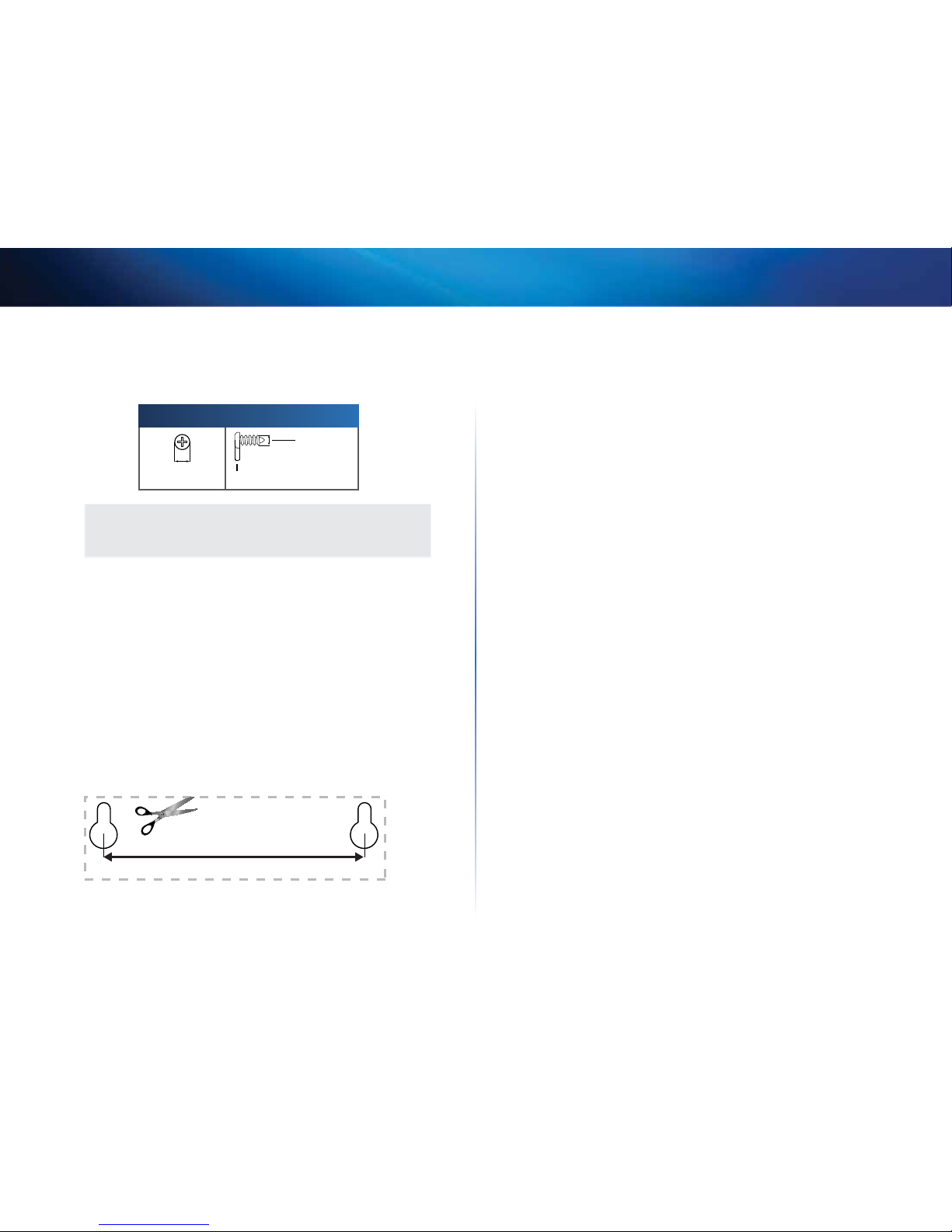

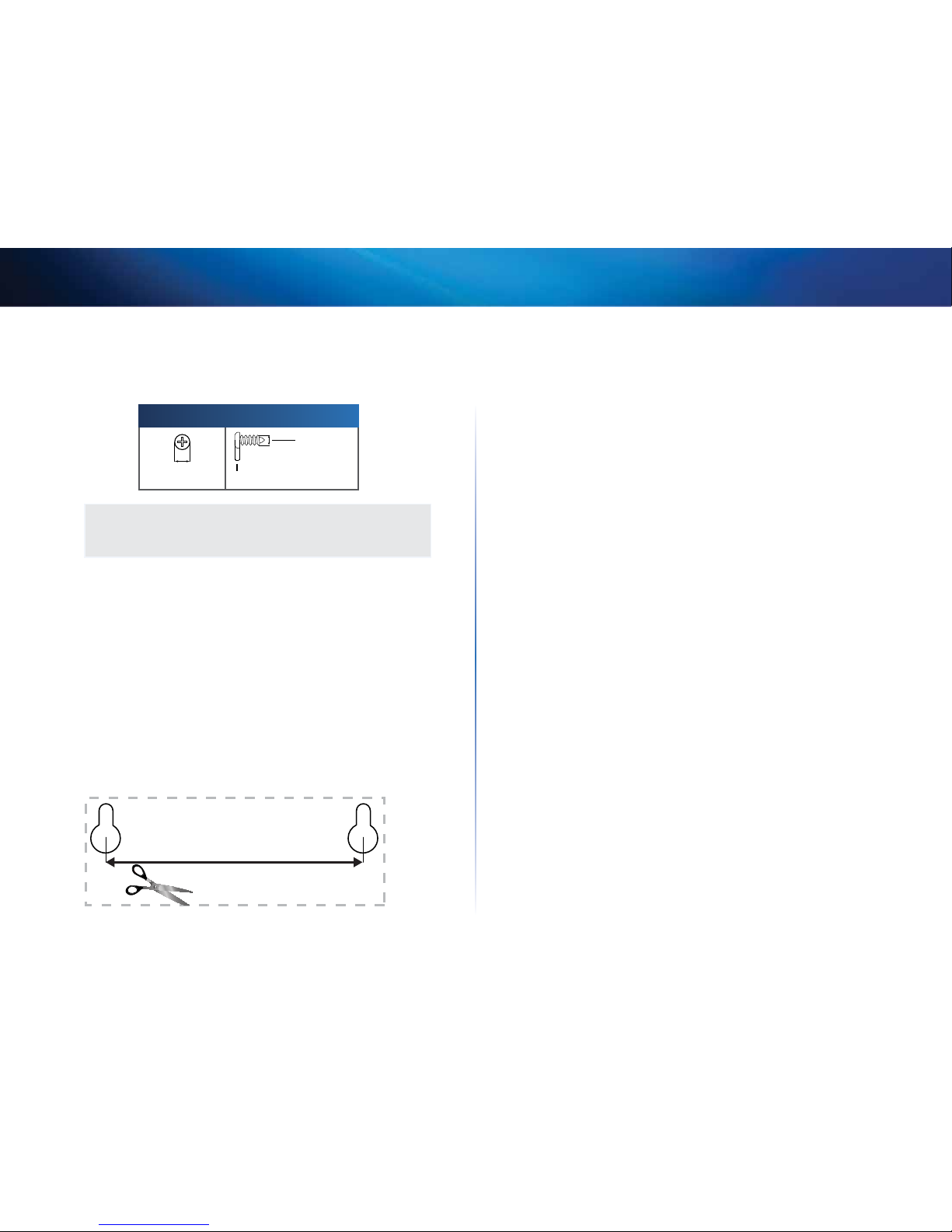

Wall-mounting placement

The router has two wall-mount slots on its bottom panel. The distance between

the slots is 75.6 mm. Two screws are needed to mount the router.

Suggested Mounting Hardware

3-5 mm

7-8 mm 1.5-2 mm

NOTE

Cisco is not responsible for damages incurred by unsecured wall-

mounting hardware.

Follow these instructions:

1. Determine where you want to mount the router. Make sure that the wall

you use is smooth, flat, dry, and sturdy. Also make sure the location is

within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 75.6 mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the router so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the router down

until the screws fit snugly into the wall-mount slots.

Wall-mounting template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

75,6 mm

Product Overview

Linksys X-Series

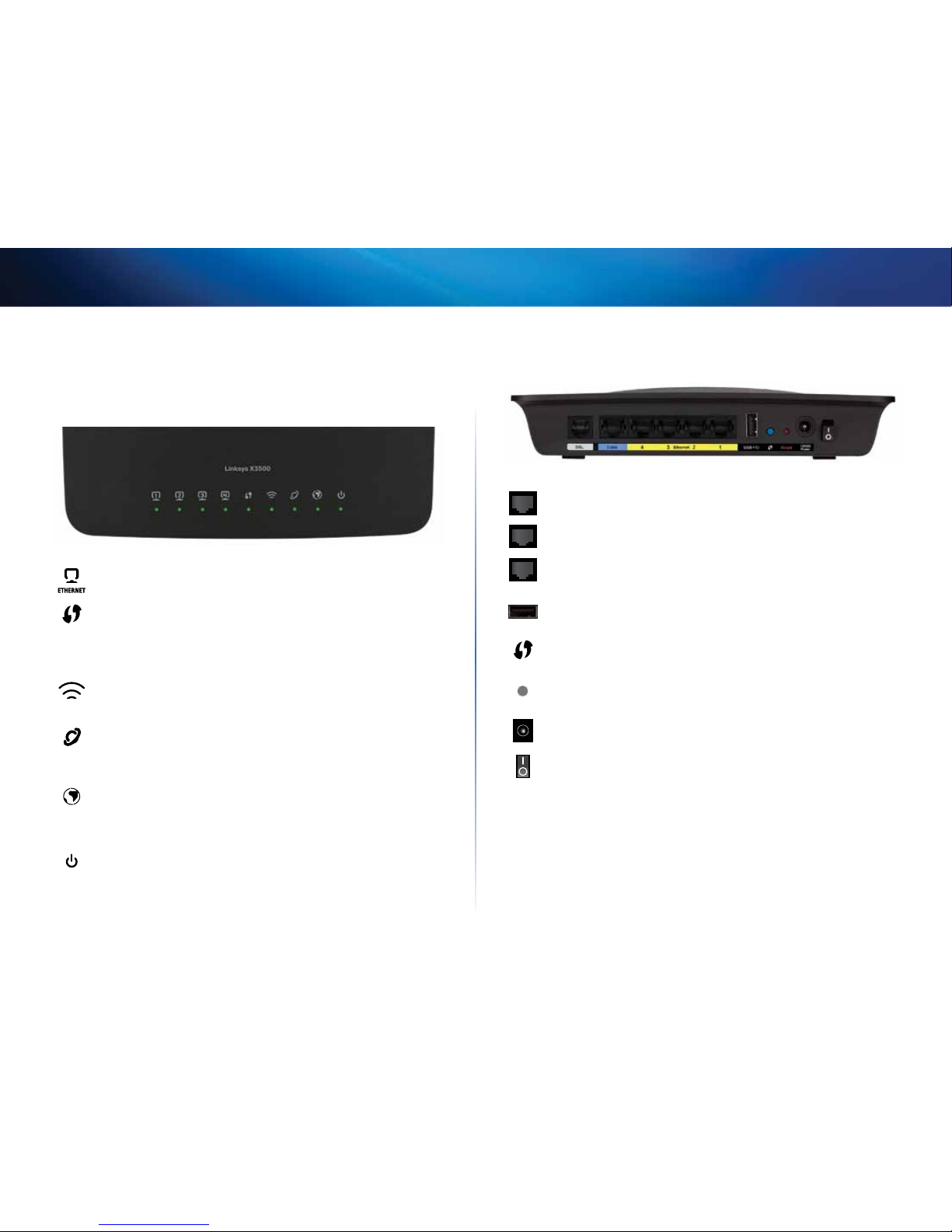

X3500

Top

Ethernet—If the LED is continuously lit, the modem router is

successfully connected to a device through that port.

Wi-Fi Protected Setup™—The LED is continuously lit when a Wi-Fi

Protected Setup™ connection is successfully established. The LED

blinks slowly while Wi-Fi Protected Setup™ is setting up a connection,

and blinks rapidly if an error occurs. The LED is off when Wi-Fi Protected

Setup™ is idle.

Wireless—Lights up when the wireless feature is enabled. It flashes

when the modem router is actively sending or receiving data over the

network.

WAN—Lights up green when the modem router is connected directly

to an ADSL line. Lights up blue when the modem router is set up as

a router only and is connected to the internet through a separate

modem.

Internet— Lights up green when the modem router has an Internet

connection. Flashes green while the modem router is establishing the

Internet connection. Lights up red when the modem router cannot

obtain an IP address.

Power—Lights up green when the modem router is powered on.

When the modem router goes through its self-diagnostic mode during

every boot-up, the LED flashes. When the diagnostic is complete, the

LED is continuously lit. Lights up red when an error occurs.

Back

DSL port—Connects to the ADSL line.

Cable port—To use the modem router as only a router, use a network

cable to connect this port to a separate modem’s LAN/Ethernet port.

Ethernet port—Using Ethernet cables (also called network cables),

these Ethernet ports connect the modem router to computers and

other Ethernet network devices on your wired network.

USB—For network-attached storage, connect an external USB drive

to this port.

Wi-Fi Protected Setup™ button—Press this button to have Wi-Fi

Protected Setup™ search for your Wi-Fi Protected Setup™-supported

wireless device.

Reset button—This button allows you to reset the router to its factory

defaults. Press and hold the Reset button for about five seconds.

Power port—The Power port connects to the included power adapter.

Power button—Press | (on) to turn on the modem router.

Product Overview

Linksys X-Series

Wall-mounting placement

The router has two wall-mount slots on its bottom panel. The distance between

the slots is 82,5 mm. Two screws are needed to mount the router.

Suggested Mounting Hardware

3-5 mm

7-8 mm 1.5-2 mm

NOTE

Cisco is not responsible for damages incurred by unsecured wall-

mounting hardware.

Follow these instructions:

1. Determine where you want to mount the router. Make sure that the wall

you use is smooth, flat, dry, and sturdy. Also make sure the location is

within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 82,5 mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the router so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the router down

until the screws fit snugly into the wall-mount slots.

Wall-mounting template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

82,5 mm

Installation

Linksys X-Series

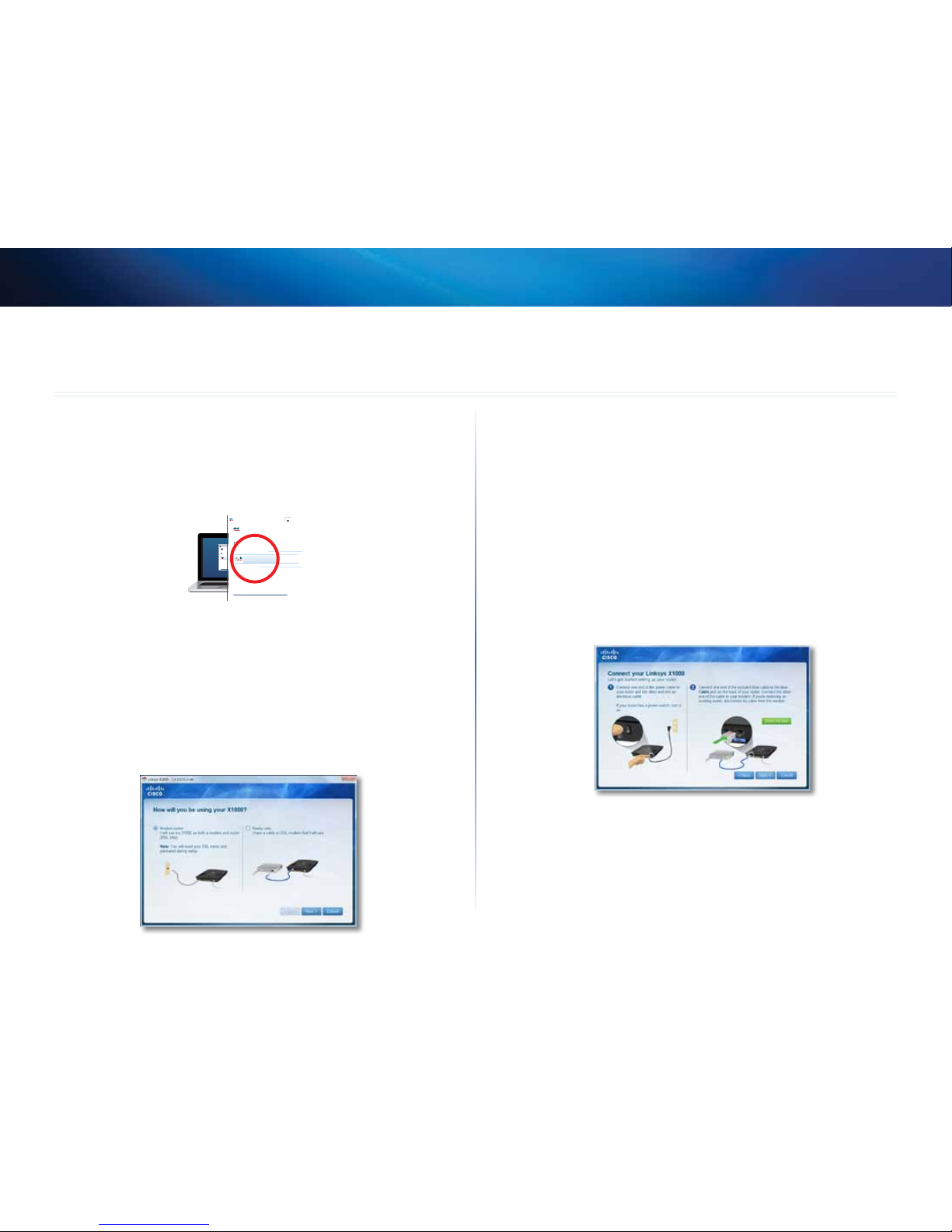

Set up your modem-router automatically

(X1000 screens shown.)

Insert the CD into your CD or DVD drive.

Click Set up your Linksys Router.

DVD/CD-RW Drive (E:) Linksys

Router Setup

AutoPlay

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

DVD/CD-RW Drive (E:) Linksys

Router Setup

AutoPlay

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

If you do not see this:

•For Windows, click Start, Computer, then double-click the CD drive

and the Setup icon.

•For Mac, double-click the CD icon on your desktop, then double-click

the Setup icon.

Read the license terms, select the checkbox, then click Next.

At the How will you be using your X1000/X3500 screen, click Modem

router or Router only, then click Next.

•Modem router: Use the X1000/X3500 as both a DSL modem and

a router. If you have a DSL Internet service provider, this option

provides Internet access and networking connectivity to your home’s

computers, without the need for a separate modem and router.

•Router only: If you have a separate cable or DSL modem for Internet

access, this option provides networking connectivity to your home’s

computers.

The We are now setting up your Linksys X1000/X3500 screen opens. You are

then asked to connect your router’s cables.

If you chose Router only in Step 4:

Connect the power cable, then turn on the power switch.

Connect the blue cable to the Cable port on the back of your router

and to the modem.

Follow the on-screen instructions to finish the setup.

Or, if you chose Modem router in Step 4:

Connect the power cable. If your router has a power button, turn it

on.

Installation

Linksys X-Series

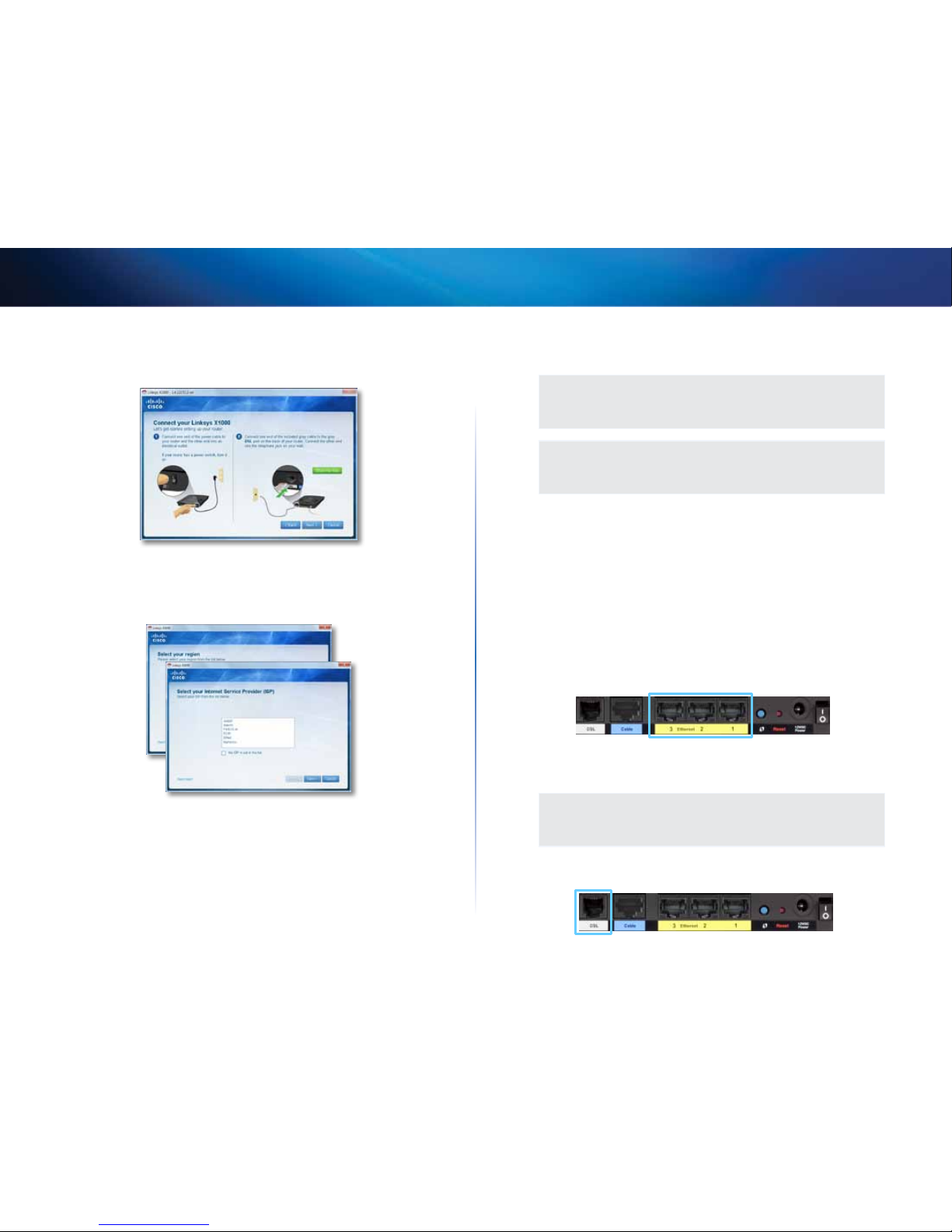

Connect the gray cable to the modem-router’s DSL port and to a

telephone jack on your wall, then click Next.

You are asked to enter your ISP information.

Select your region, click Next, then select your ISP. If prompted, enter

your DSL account name and password.

Or, to skip the automatic detection of your region and manually

configure your Internet connection, select My region is not in this

list, then click Next. Use information available from your ISP to

complete the remaining screens for DSL settings, Internet type, and

account information.

Follow the on-screen instructions to finish the setup.

Set up your modem-router manually

NOTE

Run the Setup CD-ROM to install the modem-router. If you cannot

run the Setup CD-ROM, refer to the steps below.

NOTE

If you are setting up your modem-router in New Zealand, see

“NOTE FOR USERS IN NEW ZEALAND” on page 8.

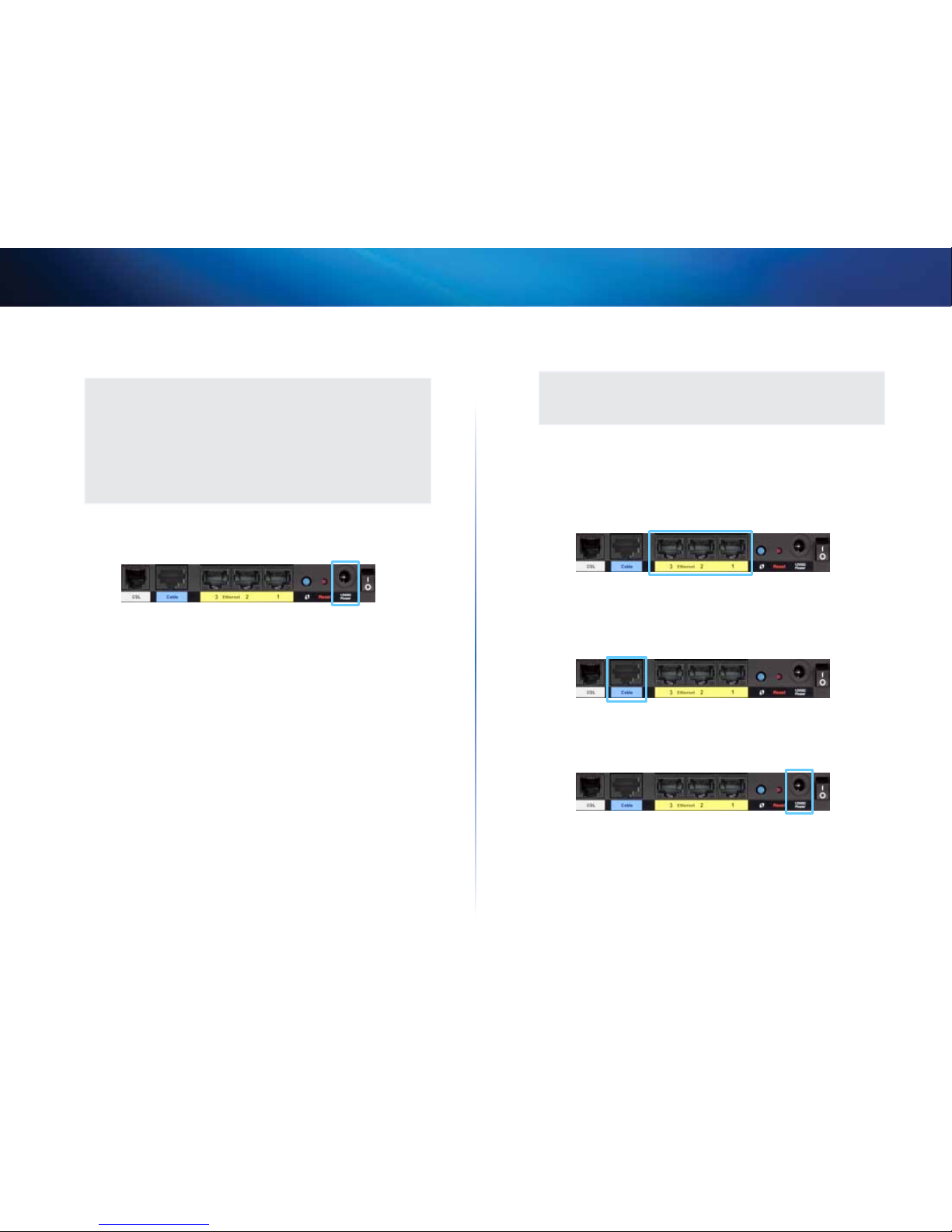

Connect your modem-router

To connect your modem-router (X1000 ports shown):

Power down all your network devices, including your computer(s) and

the modem-router. If you currently use a modem, disconnect it now—

the modem-router replaces your modem.

Connect one end of the provided Ethernet cable to your computer’s

Ethernet adapter and the other end to an Ethernet port on the back of

the modem-router.

Repeat step 2 for each additional computer or device that you want to

connect to the modem-router.

NOTE

If your computer’s Ethernet adapter is not set up, refer to the

Ethernet adapter’s documentation for more information.

Connect one end of the phone cable to the DSL port on the back.

Installation

Linksys X-Series

Connect the other end of the phone cable to the wall jack with ADSL

service or microfilter.

NOTE

If you experience static on your phone line, you may need a

microfilter or splitter. (This is required for users in the UK; other

users should contact their ISPs to verify. ISDN users do not need

a microfilter.) If you require a microfilter, you must install one for

each phone or fax that you use. To install a microfilter, plug it into

a phone jack that has ADSL service, then connect one end of the

provided phone cable to the microfilter’s DSL port.

Connect one end of the power adapter cord to the Power port and the

other end to the electrical outlet.

Power on the computer that you will use to configure the modem-router.

The LEDs for Power, Wireless, and Ethernet (one for each connected

computer) should light up. If not, make sure the modem-router is

powered on and the cables are securely connected.

Set up your modem-router as only a router

NOTE

Run the Setup CD-ROM to install the modem-router. If you cannot

run the Setup CD-ROM, refer to the steps below.

To set up your modem-router as a router:

Connect one end of the provided Ethernet cable to your computer’s

Ethernet adapter and the other end to an Ethernet port on the back of

the modem-router.

Connect one end of an Ethernet cable to the Cable port on the back of

the modem-router, then connect the other end to an available Ethernet/

LAN port on your modem.

Connect one end of the power adapter cord to the Power port and the

other end to the electrical outlet.

Power on the computer that you will use to configure the modem-router.

The LEDs for Power, Wireless, and Ethernet (one for each connected

computer) should light up. If not, make sure the modem-router is

powered on and the cables are securely connected.

How to use Cisco Connect

Linksys X-Series

NOTE FOR USERS IN NEW ZEALAND

To set up the device, follow these instructions:

Access the Setup > Basic Setup screen.

Select RFC 2364 PPPoA from the Encapsulation drop-down menu.

For the Virtual Circuit ID, enter 0 for the VPI and 100 for the VCI.

Select VC for Multiplexing.

Select Multimode from the DSL Modulation drop-down menu.

Enter your User Name and Password details from your ISP.

Click Save Settings.

How to use Cisco Connect

Cisco Connect provides an easy way to manage your router and network. You

can connect computers or devices to your router, give Internet access to guests

in your home, and change the router’s settings.

How to access Cisco Connect

Windows

Go to Start > All Programs > Cisco Connect.

Mac

Go to Go > Applications > Cisco Connect.

Main Menu

When Cisco Connect starts up, the main menu appears and offers four options:

Computers and Devices, Parental Controls, Guest Access, and Router Settings.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Routeur sans fil

Cisco

Cisco 876W - Integrated Services Router Wireless Manuel utilisateur

Cisco

Cisco RV132W Mode d’emploi

Cisco

Cisco Linksys WRT54GS Manuel utilisateur

Cisco

Cisco Firepower 8140 Mode d’emploi

Cisco

Cisco Valet Plus Manuel utilisateur

Cisco

Cisco LINKSYS WRT54GX4 Manuel utilisateur

Cisco

Cisco IR8140H Mode d’emploi

Cisco

Cisco Linksys WRT120N Manuel utilisateur

Cisco

Cisco Small Business WRP400 Manuel utilisateur

Cisco

Cisco SR520W-FE-K9 Manuel utilisateur

Cisco

Cisco WRP400-G1 - Wireless Router Mode d’emploi

Cisco

Cisco Linksys RT31P2 Instructions d'utilisation d'origine

Cisco

Cisco MERAKI mx60 Manuel utilisateur

Cisco

Cisco Linksys E900 Manuel utilisateur

Cisco

Cisco MWR 1941-DC - 1941 Mobile Wireless Router Manuel utilisateur

Cisco

Cisco WRT320N - Wireless-N Gigabit Router Wireless Manuel utilisateur

Cisco

Cisco BEFW11S4 Manuel d'utilisation

Cisco

Cisco BBSM 1 Manuel utilisateur

Cisco

Cisco WRT610N - Simultaneous Dual-N Band Wireless... Manuel utilisateur

Cisco

Cisco Small Business WRP400 Instructions originales

Cisco

Cisco 4402 - Wireless LAN Controller Mode d’emploi

Cisco

Cisco C3201FESMIC-TP= - 3201 Fast EN Switch Mobile Interface Card Expansion... Manuel utilisateur

Cisco

Cisco RV340W Manuel utilisateur

Cisco

Cisco RB-WRT54GS2 - Wireless-G Broadband Router Manuel utilisateur

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

NETGEAR

NETGEAR WNR2000v4 Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

Asus

Asus RT-N10P Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

Asus

Asus DSL-N55U Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur
