MR33 Installation Guide

The Cisco Meraki MR33 is a dual-band enterprise class 802.11ac cloud-managed access point. Designed for high

capacity and high density, the MR33 meets the needs of the most demanding environments, and also includes the first

ever cloud-managed third radio dedicated to optimizing the RF environment and securing the airwaves.

Package Contents

The MR33 package contains the following:

• MR33 Cloud-Managed Access Point

• Mount cradle including built-in level tool

• Mount it

◦ Drop ceiling mount kit

◦ Wall screws, wall screw anchors, and security screw

◦ Spare hardware

Understanding the MR33

Your Meraki MR33 has the following features:

The mount cradle has the following features:

Security Features

The MR33 features multiple options for physically securing the access point after installation:

1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount

cradle. Engaging the security screw prevents accidental dislodging and theft.

2. ensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent

structure using a standard ensington lock.

Ethernet Ports

The MR33 features a Gigabit Ethernet RJ45 port that accepts 802.3at and 802.3af power (labeled “Eth0, PoE”). This

port should be used for uplink to your WAN connection.

Power Source Options

The MR33 access point can be powered using either the Meraki AC Adapter, PoE Injector (both sold separately), or

a PoE switch.

Factory Reset Button

If the button is pressed and held for at least ﬁve seconds and then released, the MR33 will reboot and be restored to its

original factory settings by deleting all conﬁguration information stored on the unit.

LED Indicators and Run Dark Mode

Your MR33 is equipped with a multi-color LED light on the front of the unit to convey information about system

functionality and performance:

• Orange - AP is booting (permanent Orange suggests hardware issue)

• Rainbow - AP is initializing/scanning

• Blinking Blue - AP is upgrading

• Green - AP in Gateway mode with no clients

• Blue - AP in Gateway mode with clients

• Blinking Orange - AP can't find uplink

The MR33 may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In

this mode, the LED will not be illuminated. This mode may be enabled through Meraki dashboard.

NOTE: Blinking Green LED indicates that the device is in site survey mode. Please see the Conducting Site Surveys

with MR Access Points for more details.

Pre-Install Preparation

You should complete the following steps before going on-site to perform an installation.

Conﬁgure Your Network in Dashboard

The following is a brief overview only of the steps required to add an MR33 to your network. For detailed instructions

about creating, conﬁguring and managing Meraki wireless networks, refer to the online documentation

(documentation.meraki.com).

1. Login to http://dashboard.meraki.com. If this is your ﬁrst time, create a new account.

2. Find the network to which you plan to add your APs or create a new network.

3. Add your APs to your network. You will need your Meraki order number (found on your invoice) or the serial

number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need

your Enterprise license key, which you should have received via email.

4. Go to the map / ﬂoor plan view and place each AP on the map by clicking and dragging it to the location where you

plan to mount it.

Check and Upgrade Firmware

To ensure your MR33 performs optimally immediately following installation, it is recommended that you facilitate a

ﬁrmware upgrade prior to mounting your MR33.

1. Attach your MR33 to power and a wired Internet connection. See the "Power the MR33" section for details.

2. The MR33 will turn on and the LED will glow solid orange. If the unit does not require a ﬁrmware upgrade, the LED

will turn either green (no clients associated) or blue (clients associated) within thirty seconds.

* If the unit requires an upgrade, the LED will begin blinking orange until the upgrade is complete, at which point the LED

will turn solid green or blue. You should allow at least a few minutes for the ﬁrmware upgrade to complete, depending on

the speed of your internet connection.

Check and Conﬁgure Firewall Settings

If a ﬁrewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most

current list of outbound ports and IP addresses for your particular organization can be found here.

Assigning IP Addresses to MR33s

All gateway MR33s (MR33s with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP

addresses can be dynamically assigned via DHCP or statically assigned.

Dynamic Assignment

When using DHCP, the DHCP server should be conﬁgured to assign a static IP address for each MAC address

belonging to a Meraki AP. Other features of the wireless network, such as 802.1X authentication, may rely on the

property that the APs have static IP addresses.

Static Assignment

Static IPs are assigned using the local web server on each AP. The following procedure describes how to set the

static IP:

1. Using a client machine (e.g., a laptop), connect to the AP wirelessly (by associating to any SSID

broadcast by the AP).

2. Using a web browser on the client machine, access the AP’s built-in web server by browsing

to http://my.meraki.com. Alternatively, browse to http://10.128.128.128.

3. Click on the “Uplink Conﬁguration” tab. Log in. The default login is the serial number (e.g. Qxxx-xxxx-

xxxx), with no password (e.g., Q2DD-551C-ZYW3).

4. Conﬁgure the static IP address, net mask, gateway IP address and DNS servers that this AP will use on

its wired connection.

5. If necessary, reconnect the AP to the LAN.

Static IP via DHCP Reservations

Instead of associating to each Meraki AP individually to conﬁgure static IP addresses, an administrator can

assign static IP addresses on the upstream DHCP server. Through “DHCP reservations,” IP addresses are

“reserved” for the MAC addresses of the Meraki APs. Please consult the documentation for the DHCP server to

conﬁgure DHCP reservations.

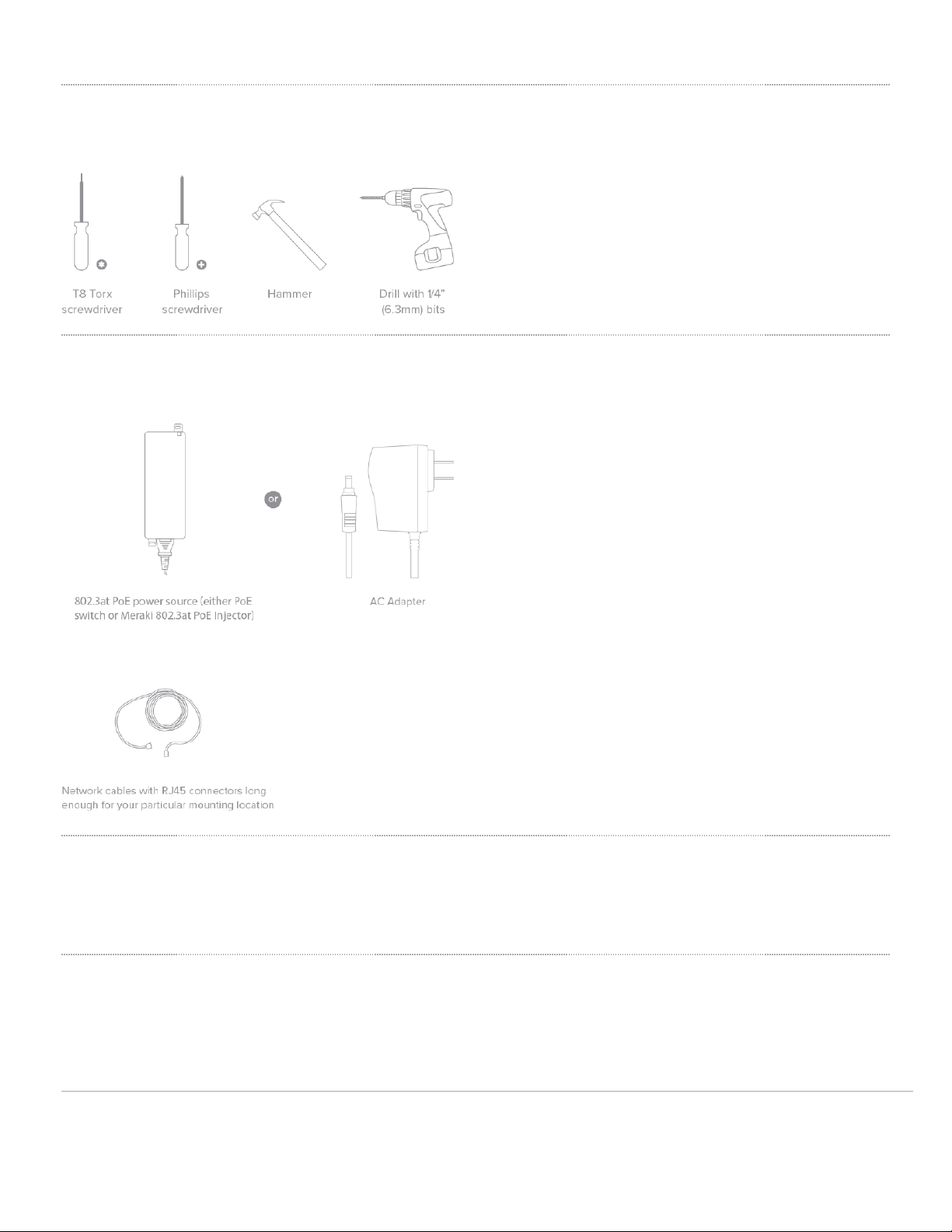

Collect Tools

You will need the following tools to perform an installation:

Collect Additional Hardware for Installation

You will need the following hardware to perform an installation:

Installation Instructions

Warning: Due to the heat dissipation in the back of APs during normal operation, please do not stack powered on APs

on top of each other during pre-installation to avoid heat damage.

Choose Your Mounting Location

A good mounting location is important to getting the best performance out of your MR33 access point. eep the

following in mind:

1. The device should have unobstructed line of sight to most coverage areas. For example, if installing in an ofﬁce

ﬁlled with workspaces divided by mid-height cubicle walls, installing on the ceiling or high on a wall would be ideal.

2. Power over Ethernet supports a maximum cable length of 300 ft (100 m).

3. If being used in a mesh deployment, the MR33 should have line of sight to at least two other Meraki devices. A

Cisco Partner can help ensure that your AP placement is ideal.

Install the MR33

For most mounting scenarios, the MR33 mount cradle provides a quick, simple, and ﬂexible means of mounting your

device. The installation should be done in two steps. First, install the mount cradle to your selected location. Then,

attach the MR33 to the mount cradle.

Attach the mount cradle

The MR33 mount cradle can be used to install your access point in a wide range of scenarios: wall or solid ceiling, below

a drop ceiling, on various electrical junction boxes.

The mount cradle contains a variety of hole patterns that are customized for each installation scenario. The mounting

template (included inbox with mount cradle) should be used to drill holes for wall mounts and also to identify the correct

hole patterns in the mount cradle that should be used for each type of mount. The included mount cradle

template shows the hole patterns that should be used for each type of mount.

Wall or Solid Ceiling Mount Using mount cradle

Using included wall anchors and screws, attach the mount cradle to your mounting wall or ceiling. It is

recommended that the MR33 be mounted to a wall or solid ceiling using the mount cradle for physical security

reasons.

Drop ceiling mount using mount cradle

To mount your MR33 on a drop ceiling T-rail, use the included drop ceiling mounting accessory kit. The

accessory kit can be used to mount to most 9/16”, 15/16” or 1 ½” T-rails. The kit contains:

• Drop ceiling mounting clips with set screws

• 6-32x4 mm screws

• 6-32x7 mm screws only used for recessed rail mount (uncommon)

• 2 rubber spacers

1. Attach the T-rail clips to the T-rail by rotating them and snapping them into place as shown. The black foam

pads should be compressed slightly after installation.

2. Using the dashed lines on the mount cradle template as a guide, set the proper spacing of the T-rail clips on

the T-rail.

3. Tighten the set screws on the T-rail clips to secure the clips using a 5/64”(2 mm) hex key.

4. Attach the mount cradle to the T-rail clips using the mount cradle holes (marked with a “T“).

Tip: Pre-assemble rubber spacers and screws to the mount cradle. The mount cradle can then be held with one

hand while the other hand holds a screwdriver. If mounting your MR33 to a dropped ceiling, skip to the "Power

the MR33" section.

Electrical Junction Box Mount Using mount cradle

The MR33 can be mounted to a 4” square cable junction box, a 3.5 or 4” round cable junction box, or various U.S.

and European outlet boxes (mounting screws are not included).

Using appropriate mounting hardware for your specific type of junction box, attach the mount cradle to the

junction box.

Power the MR33

If mounting to an electrical junction box, feed the Ethernet cable through the cable access hole in the mount cradle. If

mounting to a wall or ceiling, the Ethernet cable will feed from behind the MR33. The "Power Source Options" section of

this document lists the different powering options and their unique characteristics.

Mount the MR33

Attach the MR33 to the Mount Cradle

(This section applies to wall and/or solid ceiling, drop ceiling or electrical junction box mount

where you have already installed the mount cradle.)

The MR33 attaches to the mount cradle with two tabs on the cradle that insert into the MR33, and is secured to the

cradle using one screw.

To attach the MR33 to the mount cradle properly, line up the top edge of the AP with the top tab of the mount cradle.

Since the cradle is already mounted to the wall, guide the MR33 towards the top tab and insert the top tab into the

MR33’s slot.

Then adjust the MR33 to guide the MR33’s bottom slot into the cradle’s bottom tab until it clicks into place. Once in

place, the MR33 should be secured to the cradle by using one of the included screws in the cradle’s bottom tab.
