Cisco IW3702 Access Point Getting

Started Guide

First Published: July 2015

Last Updated: August 2016

This guide documents the hardware features of the Cisco IW3702 access point. It describes the physical and

performance characteristics of each access point, and explains how to install and configure an access point.

This publication is for the network technicians who install and configure access points. You must be familiar with network

structures, terms, and concepts.

The Cisco IW3702 access point is referred to as access point in this document.

Organization

This guide includes the following sections:

Conventions

This document uses the following conventions.

Section Description

Conventions, page 1 Describes text conventions used in this document.

Overview, page 2 Describes the major components and features of the access

point.

Installation, page 11 Provides warnings, safety information, and installation

information you need to install your access point.

Antennas, page 19 Provides information about the antennas used by the access point

and the antenna configurations deployed.

Configuration, page 30 Describes the steps to configure the access point.

Technical Specifications, page 40 Lists technical specifications for the access point.

Ports and Connectors, page 48 Describes the port and connector pinouts for the access point.

Convention Indication

bold font Commands and keywords and user-entered text appear in bold font.

italic font Document titles, new or emphasized terms, and arguments for which you supply values are in

italic font.

[ ] Elements in square brackets are optional.

{x | y | z } Required alternative keywords are grouped in braces and separated by vertical bars.

[ x | y | z ] Optional alternative keywords are grouped in brackets and separated by vertical bars.

Cisco IW3702 Access Point Getting Started Guide

Overview

Note: Means reader take note. Notes contain helpful suggestions or references to material not covered in the manual.

Caution: Means reader be careful. In this situation, you might perform an action that could result in equipment

damage or loss of data.

Warning: IMPORTANT SAFETY INSTRUCTIONS

Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of

the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use

the statement number provided at the end of each warning to locate its translation in the translated safety warnings

that accompanied this device.

SAVE THESE INSTRUCTIONS

Regulatory: Provided for additional information and to comply with regulatory and customer requirements.

Overview

This document describes the Cisco IW3702 access point. The access point is an IEEE 802.11a/b/g/n/ac compliant,

dual-band WiFi access point with external antennas.

The access point is IP67 rated, ruggedized, and certified for on-board rail and outdoor use-cases such as train and

trackside, mining, intelligent transportation systems, and smart city applications. You can mount the access point on a

DIN rail in an industrial enclosure. Its components are designed to withstand extremes in temperature, vibration, and

shock common in industrial environments.

The access point features:

IEEE 802.11a/b/g/n compliant operation

IEEE 802.11ac Wave 1 support

Dual-radio design for 2.4 GHz and/or 5 GHz bands

4x4 multiple-input multiple-output (MIMO) technology with three spatial streams

Cisco CleanAir support for 20, 40, and 80 MHz channels

DC input port (M12 connector)

2 Power over Ethernet (PoE) ports with M12 X-code connectors:

—1 x PoE-IN Gigabit Ethernet port compliant with IEEE 802.3at POE+ PD

—1 x PoE-OUT Gigabit Ethernet port compliant with IEEE 802.3af POE PSE

RS232 console port with cover (RJ-45 connector)

string A nonquoted set of characters. Do not use quotation marks around the string or the string will

include the quotation marks.

courier font Terminal sessions and information the system displays appear in courier font.

< > Nonprinting characters such as passwords are in angle brackets.

[ ] Default responses to system prompts are in square brackets.

!, # An exclamation point (!) or a pound sign (#) at the beginning of a line of code indicates a

comment line.

Convention Indication

Cisco IW3702 Access Point Getting Started Guide

Overview

4 antenna ports (N connector-female)

Rugged IP67 rated housing and -40 to 167°F (-40 to 75°C) operating temperature range (ambient—without solar

loading or wind cooling)

Compact size for space constrained environments

Access Point Models

There are two access point models, based on antenna configuration. Table 1 on page 3 lists the available IW3702

models.

Assembly Details

Bottom and Top Panel Views, page 3

Bottom Panel Components, page 7

Top Panel Components, page 10

Bottom and Top Panel Views

Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Bottom Panel View, page 4

Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Top Panel View, page 5

Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Bottom Panel View, page 6

Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Top Panel View, page 7

Table 1 Access Point Models

Model Description

Cisco IW3700 Series Access Points with Regulatory Domain Code1

1. Regulatory Domains: (x=regulatory domains)

Domain codes available for the IW3700 Series are x=A, B, D, E, M, R, and Z. Other regulatory domains are supported by the

universal access points. Customers are responsible for verifying approval for use in their individual countries. To verify

approval and to identify the regulatory domain that corresponds to a particular country, visit

http://www.cisco.com/go/aironet/compliance.

IW3702-2E-x-K9 Access point with four antenna connectors: 2 on the top and 2 on the bottom.

IW3702-4E-x-K9 Access point with four antenna connectors on top side.

Cisco IW3700 Series Universal Access Points

IW3702-2E-UXK9 Access point with four antenna connectors: 2 on the top and 2 on the bottom.

IW3702-4E-UXK9 Access point with four antenna connectors on top side.

Cisco IW3702 Access Point Getting Started Guide

Overview

Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Bottom Panel View

Figure 1 Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Bottom Panel View

Note: There are four antenna ports on the Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 model: 2 on the top and 2 on the

bottom.

1Status LED 6Power (PWR) connector

2Antenna port B 7Console (CON) port

3PoE OUT port 8Antenna port A

4PoE IN port 9Ground connection

5Protective vent port / Reset button (covered)

Cisco IW3702 Access Point Getting Started Guide

Overview

Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Top Panel View

Figure 2 Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 Top Panel View

Note: There are four antenna ports on the Cisco IW3702-2E-UXK9 / IW3702-2E-x-K9 model: 2 on the top and 2 on the

bottom.

1 Antenna port C 3 Antenna port A

2 Antenna port D 4 Antenna port B

Cisco IW3702 Access Point Getting Started Guide

Overview

Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Bottom Panel View

Figure 3 Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Bottom Panel View

1Status LED 5Power (PWR) connector

2PoE OUT port 6Console (CON) port

3PoE IN port 7Ground connection

4Protective vent port / Reset button (covered)

Cisco IW3702 Access Point Getting Started Guide

Overview

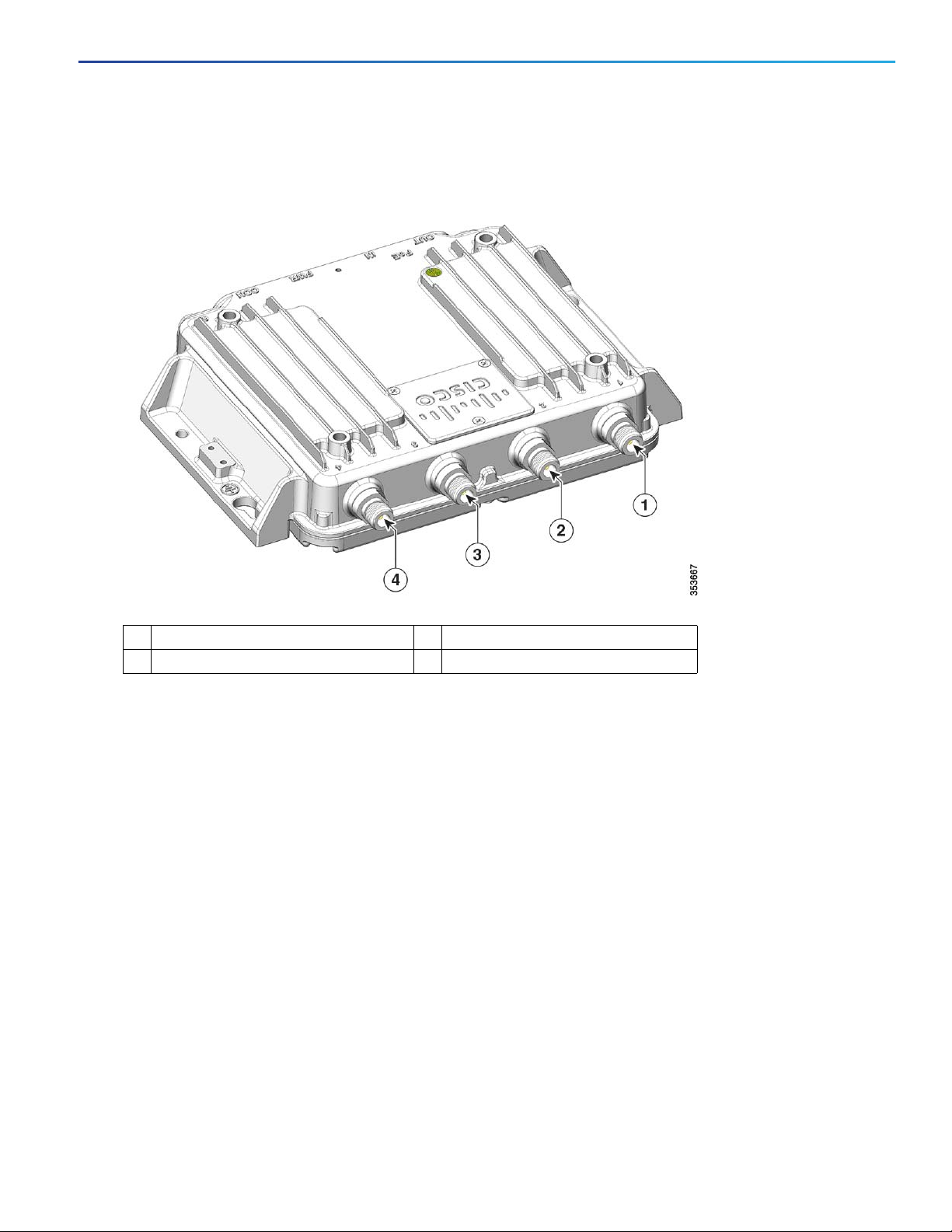

Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Top Panel View

Figure 4 Cisco IW3702-4E-UXK9 / IW3702-4E-x-K9 Top Panel View

Bottom Panel Components

This section describes the bottom panel components shown in Figure 1 on page 4 and Figure 3 on page 6:

Status LED, page 7

PWR Connectors, page 9

Console Port, page 10

PoE IN Port, page 9

PoE OUT Port, page 9

Ground Stud, page 10

Protective Vent Port, page 9

Status LED

The Status LEDs provide information on access point status, activity, and performance. Table 2 on page 8 describes

Status LED states.

1 Antenna port C 3 Antenna port B

2 Antenna port A 4 Antenna port D

Cisco IW3702 Access Point Getting Started Guide

Overview

Table 2 Status LED

Message Type LED Color System State

Boot loader status Blinking pink DRAM memory test in progress.

DRAM memory test OK.

Board initialization in progress.

Initializing flash file system.

Flash memory test OK.

Initializing Ethernet.

Ethernet OK.

Starting Cisco IOS.

Initialization successful.

Client association

status

Green Normal operating condition but no wireless client

association.

Blue Normal operating condition with at least one wireless

client association.

Operational status Blinking blue Software upgrade in progress.

Cycling green-red-off Discovery/join process in progress.

Rapidly cycling blue-green-red Access point location command invoked.

Blinking red Ethernet link not operational.

Boot loader warnings Blinking blue Configuration recovery in progress (MODE button

pushed for 2 to 3 seconds).

Red Ethernet failure or image recovery (MODE button

pushed for 20 to 30 seconds).

Blinking pink Image recovery in progress (MODE button released).

Boot loader errors Red DRAM memory test failure.

Blinking red-blue FLASH file system failure.

Blinking red-off Environment variable failure.

Bad MAC address.

Ethernet failure during image recovery.

Boot environment failure.

No Cisco image file.

Boot failure.

Cisco IOS errors Red Software failure. Disconnect and reconnect unit power.

Cycling blue-green-red-off General warning. Insufficient inline power.

AP status when

provisioned by Cisco

AirProvision

Cycling red-green-off AP waiting to be primed.

Blinking white AP priming via Cisco NDP in progress.

Blinking teal (for 15 seconds) AP upon successful connection to Cisco AirProvision.

Blinking blue AP priming via Cisco AirProvision in progress.

Chirping red AP primed to wrong regulatory domain.

Cisco IW3702 Access Point Getting Started Guide

Overview

PWR Connectors

There are two options for powering the access point:

DC input over the PWR connector.

PoE inline power over the PoE IN port.

The access point requires a DC power supply. To power the access point with a DC power supply, you connect the DC

power to the PWR connector on the bottom panel (see Figure 1 on page 4 and Figure 4 on page 7). The DC input voltage

range is +12 to +48 VDC (-20%, +25%).

The PWR connector is an M12 A-code, 4-pin (male) connector. See Power Port, page 49 and DC Input and PoE IN

Specifications, page 41.

PoE OUT Port

Note: The PoE OUT port is only supported when the access point is powered over the PWR port. When powered over

the PoE IN port, PoE OUT functionality is not supported.

The PoE OUT port is a 10/100/1000 BASE-T port with an M12 X-code connector. The PoE OUT port supplies PoE inline

DC power to power external devices. The PoE OUT port pin-out conforms to Alternative A-MDIX mode.

Note: PoE inline power supports IEEE 802.3af compliant devices and delivers up to 15.4 W of PoE.

For more information about the PoE OUT, PoE IN, and DC input, see DC Input and PoE IN Specifications, page 41.

PoE IN Port

The PoE IN port is a 10/100/1000 BASE-T port with an M12 X-code connector. The port has auto-sensing and

auto-MDIX capabilities.

For more information, see DC Input and PoE IN Specifications, page 41.

Protective Vent Port

The protective vent port relieves pressure inside the access point chassis possibly caused by changing temperatures in

the installation environment. The vent prevents pressure from building up and damaging enclosure seals and potentially

exposing sensitive components to water. The vent also protects the access point interior from dust, dirt, water, and other

environmental elements.

Notes: When powering the access point:

—Power can be supplied via DC input (PWR connector) or PoE inline (PoE IN port), but not both.

—We recommend that you not use two power options concurrently, but no harm results if both are

present.

—If using both power inputs, DC input (PWR connector) power takes precedence and PoE inline

power is not used.

—Power supply redundancy is not supported.

Notes: The PoE IN port is an alternate power input to DC input over the PWR port.

Power the access point over the PWR port to enable the PoE OUT port.

When powered over the PoE IN port, PoE OUT functionality is not supported.

Cisco IW3702 Access Point Getting Started Guide

Overview

Note: If the vent is removed or damaged, the access point is subject to moisture damage.

Reset Button

You use the reset button to reset the access point or reload the software. The reset button is under the protective vent

port. To access the reset button:

1. Use a 5/8" socket to remove the protective vent.

2. Press the reset button.

—Press the reset button for 3 seconds to reset the access point to its factory settings.

—Press the reset button for 20 seconds to reload the access point software.

3. Replace the protective vent using 5/8" socket.

4. Torque the protective vent to 5-7 inch-lbs.

Console Port

You can connect the access point to a PC or laptop through the RJ45 CON port. The RJ45 CON port uses the Cisco

console port RJ45-to-DB9 cable (Cisco PN 72-3383-01).

A cable port seal covers the CON port. This liquid-tight plug protects the access point from environmental elements.

Ensure that the plug is installed during normal operation or when unit is unattended. You can remove and install the port

plug with a 1/2" (13 mm) socket. Torque it to 6-7 ft-lbs

For more information, see Console Port, page 51.

Ground Stud

The ground stud is the access point ground. You use screws to attach the wired grounding lug to the ground stud

(Figure 7 on page 16). Connect the other end of the ground wire to an earth ground such as a grounding rod or

appropriate ground point on a grounded pole.

Top Panel Components

This section describes the top panel components shown in Figure 5 on page 11.

Antenna Port

The antenna connector is a type N female coaxial connector.

Hard Points

The hard points are alternate mounting or attachment points for additional equipment such as directional antennas or

covers.

Note: Do not attach third-party radios using these hard points.

Autres manuels pour IW3702

Table des matières

Autres manuels Cisco Point d'accès sans fil

Cisco

Cisco Catalyst Wireless 9162I Series Manuel

Cisco

Cisco WAP4410N - Small Business Wireless-N Access... Mode d’emploi

Cisco

Cisco aironet 2800 series Guide de référence rapide

Cisco

Cisco AIR-LAP1242AG-A-K9 Manuel utilisateur

Cisco

Cisco MR74 Manuel

Cisco

Cisco Catalyst 9130AX Series Manuel utilisateur

Cisco

Cisco Meraki MR46 Manuel utilisateur

Cisco

Cisco Linksys Wireless-G WBP54GV2 Manuel utilisateur

Cisco

Cisco Aironet 1240AG Series Manuel utilisateur

Cisco

Cisco Aironet 600 Series Manuel utilisateur

Cisco

Cisco AIR-AP352E2R - Aironet 350 - Wireless Access... Manuel utilisateur

Cisco

Cisco Aironet 3600 Series Manuel utilisateur

Cisco

Cisco Catalyst 9136I Series Manuel utilisateur

Cisco

Cisco Catalyst Wireless 9164I Series Manuel utilisateur

Cisco

Cisco WAP121 Mode d’emploi

Cisco

Cisco aironet 1524SB Instructions d'installation et d'utilisation

Cisco

Cisco Aironet AIR-AP1200 Manuel

Cisco

Cisco Aironet 1550 Series Manuel

Cisco

Cisco 700 series Manuel utilisateur

Cisco

Cisco ASA 5508-X Manuel

Cisco

Cisco 1522AG - Aironet Lightweight Outdoor Mesh Access... Manuel utilisateur

Cisco

Cisco 7200 VXR Series Manuel utilisateur

Cisco

Cisco Aironet 1600 Series Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur

Draytek

Draytek VIGORAP 902 Manuel utilisateur
