Cisco GR10-HW-EU Manuel utilisateur
• Mount Kit
◦ Wall screws, wall screw anchors, and security screws
Understanding the GR10
Your Meraki GR10 has the following features:
2
3
The mount plate has the following features:
Security Features
The GR10 features multiple options for physically securing the access point after installation:
1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount
cradle. Engaging the security screw prevents accidental dislodging and theft.
Ethernet Ports
The GR10 features a Gigabit Ethernet R 45 port that accepts 802.3at and 802.3af power (labeled “Eth0, PoE”). This port should be used for uplink to your WAN
connection.
Power Source Options
The GR10 access point can be powered using either the Meraki AC Adapter, PoE Injector (both sold separately), or a third-party PoE switch.
4
Factory Reset Button
If the button is pressed and held for at least five seconds and then released, the GR10 will reboot and be restored to its original factory settings by deleting all
configuration information stored on the unit.
LED Indicators and Run Dark Mode
Your GR10 is equipped with a multi-color LED light on the front of the unit to convey information about system functionality and performance:
• Orange - AP is booting (permanent Orange suggests hardware issue)
• Rainbow - AP is initializing/scanning
• Blinking Blue - AP is upgrading
• Green - AP in Gateway mode with no clients
• Blue - AP in Gateway mode with clients
• Blinking Orange - AP can't find uplink
The GR10 may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In this mode, the LED will not be
illuminated. This mode may be enabled through Meraki dashboard.
Pre-Install Preparation
You should complete the following steps before going on-site to perform an installation.
Setup your Meraki Go Account
The following is a brief overview only of the steps required to add an GR10 to your network. For detailed instructions about creating, configuring and managing
Meraki Go wireless networks, refer to the online documentation (https://documentation.meraki.com/Go).
1. Login to https://account.meraki-go.com/go. If this is your first time, create a new account.
2. Once your account is created, be sure to install the Meraki Go app on your mobile device.
3. Follow the in-app instructions to scan and add your new hardware to the Meraki Go account.
Check and Upgrade Firmware
To ensure your GR10 performs optimally immediately following installation, it is recommended that you facilitate a firmware upgrade prior to mounting your
GR10.
1. Attach your GR10 to power and a wired Internet connection. See the "Power the GR10" section for details.
2. The GR10 will turn on and the LED will glow solid orange. If the unit does not require a firmware upgrade, the LED
will turn either green (no clients associated) or blue (clients associated) within thirty seconds.
* If the unit requires an upgrade, the LED will begin blinking orange until the upgrade is complete, at which point the LED will turn solid green or blue. You should
allow at least a few minutes for the firmware upgrade to complete, depending on the speed of your internet connection.
Check and Configure Firewall Settings
If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most current list of outbound ports and IP addresses
5
for your particular organization can be found here.
Assigning IP Addresses to GR10s
All gateway GR10s (GR10s with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP addresses can be dynamically assigned
via DHCP or statically assigned.
Dynamic Assignment
When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address belonging to a Meraki AP. Other
features of the wireless network, such as 802.1X authentication, may rely on the property that the APs have static IP addresses.
Static Assignment
Static IPs are assigned using the local web server on each AP. The following procedure describes how to set the static IP:
1. Using a client machine (e.g., a laptop), connect to the AP wirelessly (by associating to any SSID
broadcast by the AP) or over a wired connection.
2. If using a wired connection, connect the client machine to the GR10 either through a PoE switch or a
PoE Injector. If using a PoE switch, plug an Ethernet cable into the GR10’s Ethernet jack, and the other
end into a PoE switch. Then connect the client machine over Ethernet cable to the PoE switch. If using a
PoE Injector, connect the GR10 to the “PoE” port of the Injector, and the client machine to the “LAN”
port.
3. Using a web browser on the client machine, access the AP’s built-in web server by browsing
to http://my.meraki.com. Alternatively, browse to http://10.128.128.128.
4. Click on the “Uplink Configuration” tab. Log in. The default login is the serial number (e.g. Qxxx-xxxx-
xxxx), with no password (e.g., Q2DD-551C-ZYW3).
5. Configure the static IP address, net mask, gateway IP address and DNS servers that this AP will use on
its wired connection.
6. If necessary, reconnect the AP to the LAN.
Static IP via DHCP Reservations
Instead of associating to each Meraki AP individually to configure static IP addresses, an administrator can assign static IP addresses on the upstream
DHCP server. Through “DHCP reservations,” IP addresses are “reserved” for the MAC addresses of the Meraki APs. Please consult the documentation
for the DHCP server to configure DHCP reservations.
Collect Tools
You will need the following tools to perform an installation:
6
Collect Additional Hardware for Installation
You will need the following hardware to perform an installation:
Installation Instructions
Choose Your Mounting Location
A good mounting location is important to getting the best performance out of your GR10 access point. Keep the following in mind:
1. The device should have unobstructed line of sight to most coverage areas. For example, if installing in an office
7
filled with workspaces divided by mid-height cubicle walls, installing on the ceiling or high on a wall would be ideal.
2. Power over Ethernet supports a maximum cable length of 300 ft (100 m).
3. If being used in a mesh deployment, the GR10 should have line of sight to at least two other Meraki devices. A
Cisco Partner can help ensure that your AP placement is ideal.
Mount the GR10

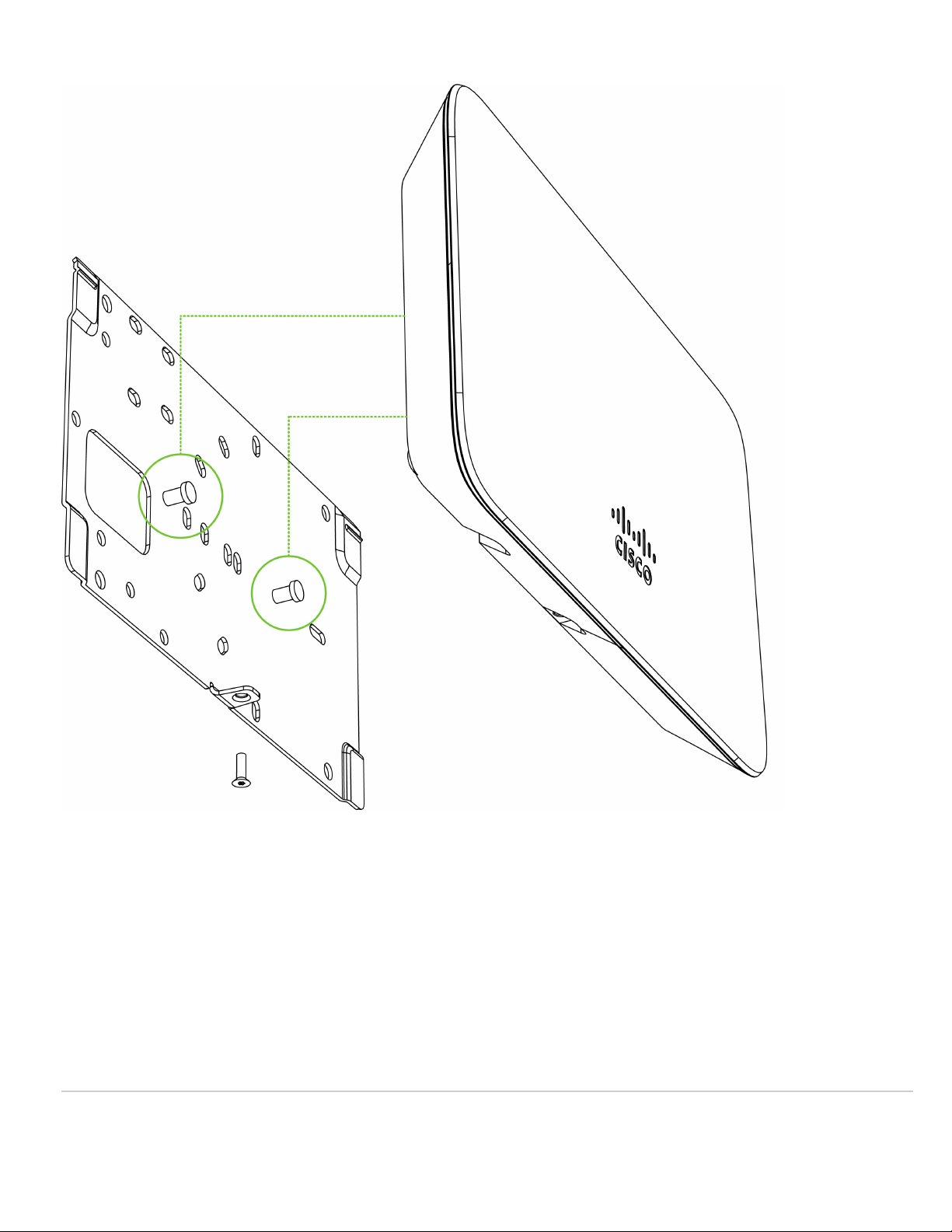

Attach the GR10 to the Mount Cradle
The GR10 attaches to the mount cradle with two tabs on the cradle that insert into the GR10, and is secured to the cradle using one screw.
To attach the GR10 to the mount cradle properly, line up the top edge of the AP with the top tab of the mount cradle. Since the cradle is already mounted to the
wall, guide the GR10 towards the top tab and insert the top tab into the GR10’s slot.
Then adjust the GR10 to guide the GR10’s bottom slot into the cradle’s bottom tab until it clicks into place. Once in place, the GR10 should be secured to the
cradle by using one of the included screws in the cradle’s bottom tab.
8
9
10
