Mounting the Router

This section describes the safety information, equipment, and procedures required to mount the

Cisco 1240 Connected Grid Router (CGR 1240 or router) on a vertical pole or streetlight.

These topics are discussed:

Mounting Kits Overview, page 49

General Safety Information for Mounting, page 50

Contents of the Mounting Kits, page 50

Materials and Tools You Supply, page 54

Mounting Instructions, page 54

Grounding Instructions, page 69

Bracket Dimensions, page 71

Mounting Kits Overview

You will need some or all of the kits described in this section to install the router on a pole. Your installation environment

and requirements determine the kits you need.

For a detailed description of each kit, see Contents of the Mounting Kits, page 50.

Cisco Product ID (PID) Name Description

–Mounting Bracket Kit,

page 51

Use this kit if your installation requires a Cisco mounting

bracket to mount the router. This kit is included with in the

router accessory kit, and is used with the pole kit and

includes the hardware required to attach the mounting

bracket to the mounting plate.

CGR-PMK1000 Pole Mount Kit, page 50 This kit is required for all pole or streetlight installations and

includes a mounting plate and the hardware required to

attach the mounting plate to a pole.

CGR-PMK-BAND Band Strap Kit, page 52 This kit includes two steel straps for mounting the router on

poles larger than 4.5 inches (11.4 cm) in diameter. This kit

is used together with the Pole Mount Kit, page 50. A

BAND-IT Tool is required to install the steel straps on a pole.

AIR-BAND-INST-TL= Strap Tool Kit, page 53 This kit includes a BAND-IT tool that is required when using

steel straps to install the router on poles larger than

4.5 inches (11.4 cm) in diameter.

General Safety Information for Mounting

Read the safety warnings in this section and in Installation Safety and Site Preparation, page 7.

One person is required to properly and safely mount the router.

Caution: All mounting methods at any location are subject to the acceptance of local jurisdiction.

Caution: The mounting surface, attaching screws, and optional wall anchors must be able to support a 50 pound (22.7

kg) static weight.

Caution: Personnel mounting the router must understand grounding methods.

Warning: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it

can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact

with such circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna,

please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:

Canadian Electrical Code, Section 54). Statement 1052

Contents of the Mounting Kits

This section describes the contents of the mounting kits available for the router and when you should use each kit.

Pole Mount Kit

Use the Cisco pole mount kit to install the mounting plate on any pole or streetlight. The kit supports poles that meet the

following criteria:

Size—2 to 16 inch diameter poles

Material—Metal, wood, or fiberglass poles

Figure 23 Pole Mount Kit Contents

Mounting Bracket Kit

Use the mounting bracket kit if you require a Cisco mounting bracket. The mounting bracket attaches to the mounting

plate, and then the router is installed on the mounting bracket.

Note: You can optionally use any compatible mounting bracket with the Cisco pole mount kit. Check with your authorized

Cisco reseller for compatible mounting brackets. See Pole Mount Kit, page 50

Item Name Qty. Description

1Mounting plate 1 Install mounting plate on pole. Mounting bracket attaches to

mounting plate.

2Clamp brackets 2 Use the clamp brackets to install the mounting plate on a pole.

Included Hardware

3Washer (3/8 inch) 4 Use the included hardware to attach the mounting plate to the pole,

as described in Install the Mounting Plate onto a Pole, page 54.

4Split lock washer (3/8 inch) 4

5Nut (3/8-16) 4

6Carriage bolt (3/8-16 x 7 inches) 4

300602

Included Hardware

Qty 4

Figure 24 Mounting Bracket Kit Contents—Required Parts

Band Strap Kit

Use the straps in the Band Strap Kit when you mount the router on a pole larger than 4.5 inches (11.4 cm) in diameter.

This installation also requires the pole mount kit and strap tool kit. See Pole Mount Kit, page 50 and Strap Tool Kit,

page 53.

Item Name Qty. Description

1Mounting bracket 1 Mounts router to mounting plate, which is installed on pole.

2Mounting bracket security panel

(optional)

1 Optional bracket feature, which prevents the unauthorized users

from removing the router from the mounting bracket.

Included Hardware

3Washer (M8) 12 Use this hardware to attach the mounting bracket to the mounting

plate, and the router to the mounting bracket. Assemble the

washer, split lock washer, and bolt as described in Assemble

Bracket Hardware, page 59.

4Split lock washer (M8) 12

5Bolt (M8 x 1.25) 12

6Serrated nut (M8 x 1.25) 1

7Security panel screws (8-32) 3 Use these screws to attach the security panel to the mounting

bracket.

Included Hardware

Qty 12

Qty 4

Qty 12

Qty 4

300603

Figure 25 Band Strap Kit Contents

Strap Tool Kit

Use the tool in the Strap Tool Kit to attach the steel straps included in the band strap kit. Steel straps are required to

install the mounting plate on poles larger than 4.5 inches (11.4 cm) in diameter. See Band Strap Kit, page 52.

Note: The tool in the Strap Tool Kit is manufactured and supported by BAND-IT. For more information about the tool, see

www.band-it-idex.com.

Figure 26 Strap Tool Kit Contents

Item Description

1Steel straps (2)

300604

Item Description

1Strap tool

2Strap tool documentation (not shown)

300605

Materials and Tools You Supply

You must supply some or all of these items to mount the router on a pole. The items you supply depends on the

installation procedure that you use.

Mounting Instructions

This section includes all the procedures required to mount the router on any supported pole type.

This section covers the following procedures:

Router Orientation, page 54

Install the Mounting Plate onto a Pole, page 54

Attach the Mounting Bracket to the Mounting Plate, page 59

Install the Router onto the Mounting Bracket, page 62

Mounting the Router onto a Wall, page 66

Router Orientation

When mounting the router on a pole, ensure that:

The router is oriented with the chassis cabling openings pointing down so the router cables can be correctly

connected through the openings and so the router door opens correctly, as shown in Figure 35 on page 62.

The router is mounted with the hinged access cover facing out.

Install the Mounting Plate onto a Pole

This section describes three different procedures for installing the mounting plate on a pole. Follow the instructions for

the pole type used in your installation.

The instructions in these section refer to the mounting plate features shown in Figure 27 on page 55.

Install the Mounting Plate—Poles Up to 4.5 Inches in Diameter, page 55

Install the Mounting Plate—Poles Larger than 4.5 Inches in Diameter, page 57

Item Required for These Procedures

13-mm box-end wrench or socket set Install the Mounting Plate—Poles Up to 4.5 Inches in Diameter, page 55

Install the Mounting Plate—Through-Pole Mounting (Optional), page 58

Attach the Mounting Bracket to the Mounting Plate, page 59

Bolt, standard washer, fender washer, and nut,

5/8 inch (2 sets)—Bolt length depends on the size

of the pole used in the installation.

Install the Mounting Plate—Through-Pole Mounting (Optional), page 58

Drill and drill bit Install the Mounting Plate—Through-Pole Mounting (Optional), page 58

Phillips screwdriver, or other screwdriver for

cross-recessed screws

Ground the Router, page 70

Install the Optional Security Panel, page 63

Crimping tool or pliers Ground the Router, page 70

Install the Mounting Plate—Through-Pole Mounting (Optional), page 58

Figure 27 Mounting Plate Details

Install the Mounting Plate—Poles Up to 4.5 Inches in Diameter

Required Materials

Mounting plate, carriage bolts, and clamp brackets included in Pole Mount Kit, page 50.

13-mm box-end socket wrench

To install the mounting plate on a vertical pole up to 4.5 inches (11.4 cm) in diameter (refer to Figure 28 on page 56 and

Figure 29 on page 57:

1. Select a mounting location on the pole and place the top and bottom pole clamp bracket (1) notches against the

pole.

2. Place one of the clamp brackets on the opposite side of the pole, aligning the clamp bracket holes with the top two

carriage bolt holes on the mounting plate.

3. Insert a carriage bolt (5) through each of the top two carriage bolt holes on the mounting plate and through the holes

in the clamp brackets.

4. Position the each bolt in the clamp so that the bolt is next to the pole, as shown in Figure 28 on page 56.

5. To place the bracket hardware on each carriage bolt (see Figure 28 on page 56):

Item Description Qty.

1Carriage bolt holes 4

2Bracket mount holes 8

3Clearance holes, 3/4 in. 2

4Pole clamp notches 2

5Steel band strap slots 4

300606

Reverse angle

a. Place the washer (2) and then the split lock washer (3) on the back of each carriage bolt (5).

b. Thread the hex nut (4) on each carriage bolt. Place the split-lock washer between the washer and the nut.

Figure 28 Carriage Bolt Hardware Assembly Details

6. Hand tighten the hex nuts (do not overtighten).

7. Repeat Step 3 through Step 6, installing the two bottom carriage bolts and the second clamp bracket at the bottom

of the mounting plate.

8. Position the mounting plate and clamp brackets on the pole as needed before further tightening the carriage bolts.

9. Use a socket wrench to evenly tighten all four carriage bolts to finish installing the mounting plate on the pole.

300607

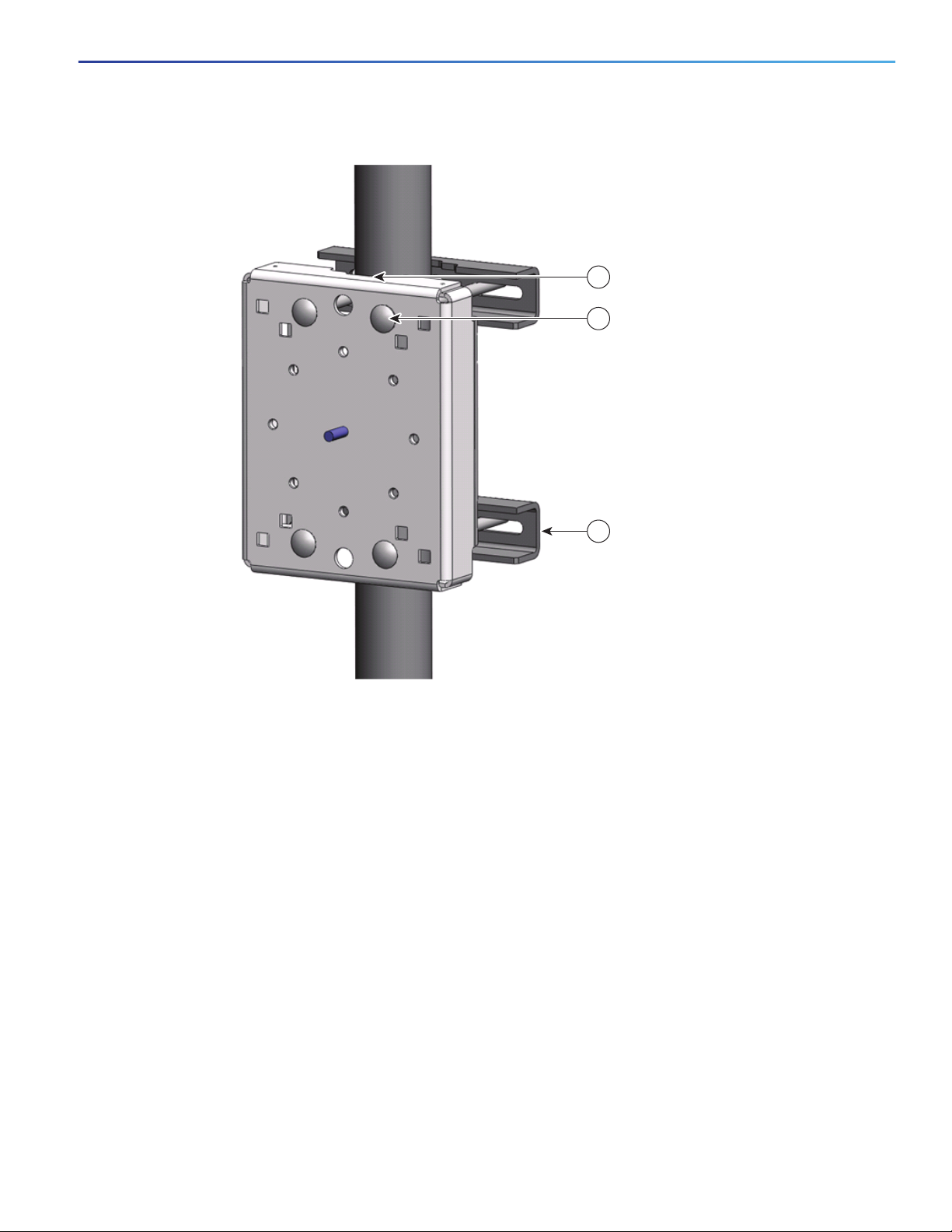

Figure 29 Mounting Plate Installed on Pole with Clamp Brackets

Install the Mounting Plate—Poles Larger than 4.5 Inches in Diameter

Required Materials

Mounting plate and steel straps included in Pole Mount Kit, page 50.

BAND-IT tool included in Strap Tool Kit, page 53

Torque wrench

To install the mounting plate on a vertical pole that is larger than 4.5 inches (11.4 cm) in diameter (refer to Figure 30 on

page 58):

1. Assemble the straps and the mounting plate by threading the two steel straps through the band strap slots on the

mounting plate.

2. Select a mounting location on the pole.

3. Position the mounting plate on the pole as needed and tighten the straps around the pole.

Item Description

1Pole clamp notch

2Carriage bolts (4)

3Pole clamps (2)

300608

4. Use the BAND-IT strap tool to tighten the metal bands around the pole, following the instructions in the box with the

tool. Ensure the metal bands are as tight as possible (approximately 7 ft-lbs).

Note: When the metal bands are tightened to the full tension, the mounting plate cannot be adjusted unless the metal

bands are disassembled or cut.

Figure 30 Mounting Plate Installed on Pole with Steel Straps

Install the Mounting Plate—Through-Pole Mounting (Optional)

If the pole used in your installation is made of wood, you can optionally install the mounting plate using the procedure

described in this section. This is an alternate mounting method to the following two mounting methods, which can also

be used when mounting the router on a wood pole:

Install the Mounting Plate—Poles Up to 4.5 Inches in Diameter, page 55

Install the Mounting Plate—Poles Larger than 4.5 Inches in Diameter, page 57

Required Materials

Mounting plate included in Pole Mount Kit, page 50.

Hardware that you supply: 5/8-in. carriage bolt (length depends on the pole size in your installation), standard

washer, fender washer, nut (2 sets)

Tools that you supply: Drill, drill bit (for 5/8-in. through bolts), and 13-mm box-end socket wrench

To mount the router on a wood pole:

1. Place the mounting plate on the selected mounting location on the pole.

2. Mark the drilling locations on the pole through the clearance holes and remove the mounting plate.

3. Drill holes completely through the pole at the points you marked in Step 2.

4. Position the mounting plate over the drilled holes. Align the clearance holes on the mounting plate with the drilled

holes.

5. Place a standard washer against one of the clearance holes on the mounting plate, then feed the bolt through the

washer, clearance hole, and drilled hole. Push the bolt all the way through the pole. See Figure 27 on page 55.

300609

Autres manuels pour CGR 1240

Table des matières

Autres manuels Cisco Routeur réseau

Cisco

Cisco CISCO871-K9 - 871 Integrated Services Router Manuel

Cisco

Cisco ASR 1000 Series Manuel utilisateur

Cisco

Cisco Catalyst 8540 MSR Manuel utilisateur

Cisco

Cisco Small Business Pro SRP527W Manuel utilisateur

Cisco

Cisco 2811 - Voice Security Bundle Router Manuel utilisateur

Cisco

Cisco SCE 1000 2xGBE Manuel de l'opérateur

Cisco

Cisco MWR 1941-DC - 1941 Mobile Wireless Router Manuel utilisateur

Cisco

Cisco Catalyst 4000 Manuel utilisateur

Cisco

Cisco 12000 - Series Chassis Modular Expansion... Mode d’emploi

Cisco

Cisco Small Business SRP520-U Manuel utilisateur

Cisco

Cisco 7200 VXR Series Instructions d'utilisation et de sécurité

Cisco

Cisco NCS 5500 Series Manuel

Cisco

Cisco 1760V Manuel utilisateur

Cisco

Cisco 7206VXR - VPN Bundle Router Manuel utilisateur

Cisco

Cisco ASR1002 - ASR 1002 Router Manuel utilisateur

Cisco

Cisco Small Business RV320 Mode d’emploi

Cisco

Cisco 2524 - Router - EN Feuille d'instructions

Cisco

Cisco 1751 Manuel utilisateur

Cisco

Cisco 1941W Manuel utilisateur

Cisco

Cisco Ethernet switch Manuel utilisateur

Cisco

Cisco ASR 903 Manuel

Cisco

Cisco CRS Manuel utilisateur

Cisco

Cisco ASR1002 - ASR 1002 Router Manuel utilisateur

Cisco

Cisco 2524 - Router - EN Guide d'installation

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

EnGenius

EnGenius ESR-9710 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Dynacord

Dynacord Promatrix 6000 Manuel utilisateur

Lorex

Lorex F5D8230-4 Manuel utilisateur
