Catalyst 6509-NEB Switch and Cisco OSR-7609

Router Upgrade Note

Product Number: WS-6509-NEB-UPGRD=

This publication describes how to upgrade your Catalyst 6509-NEB switch or Cisco OSR-7609 Router

to use the Supervisor Engine 720 and the Supervisor Engine 32.

Note AC-Input Systems—If your switch or router is using an AC-input power supply, you are required to

install the WS-CAC-3000W power supply. The 3000 W AC-input provides a power output to power the

fan tray.

Note DC-Input Systems—If your switch or router is using a DC-input power supply, you are required to

install the WS-CDC-2500W or PWR-4000-DC power supply. You must provide a separate, direct

connection to power the fan tray. Each input of the fan tray is rated 10 A @ -40 to -60 VDC.

Caution It is important that you follow the steps in this document in the order they are presented.

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Contents

This publication consists of the following sections:

•Safety Overview, page 2

•Parts List, page 3

•Required Tools, page 3

•Installation Guidelines, page 4

•Shutting Down the System, page 4

•Replacing the Panel Safety Cover, page 5

•Replacing the Fan Tray, page 7

•Replacing the Power Supply, page 10

•Connecting Power to the Fan Tray, page 13

•Replacing the Supervisor Engine, page 17

•Powering Up the System, page 21

•Verifying Installation, page 22

•Related Documentation, page 23

•Obtaining Documentation and Submitting a Service Request, page 23

Safety Overview

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may

harm you. A warning symbol precedes each warning statement.

Warning

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

Warning

This unit might have more than one power supply connection. All connections must be removed to

de-energize the unit.

Statement 1028

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you

work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar

with standard practices for preventing accidents. Use the statement number provided at the end of

each warning to locate its translation in the translated safety warnings that accompanied this

device.

Statement 1071

SAVE THESE INSTRUCTIONS

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Parts List

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution

when servicing.

Statement 1034

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building

installation. Install only in accordance with national and local wiring regulations.

Statement 1045

Warning

When installing or replacing the unit, the ground connection must always be made first and

disconnected last.

Statement 1046

Parts List

The following items are included in the upgrade kit:

•One high speed fan tray

The high speed fan tray provides additional cooling for the Supervisor Engine 720 and the

Supervisor Engine 32.

The high speed fan tray requires external power, either from the 3000 W AC-input power supply or

from an external DC power source. The fan tray ships with power wires secured at each terminal

block. Use these wires to connect the fan tray to the 3000 W AC-input power supply using the

supplied cable, or remove them to connect to a DC power source.

•One panel safety cover

The panel safety cover provides increased chassis airflow.

•Two fan tray power cables (for AC-input systems)

The fan tray power cable provides a connection between the fan tray and the 3000 W AC-input

power supply. Two cables are provided for systems with redundant power supplies.

Required Tools

These tools are required to perform the installation:

•Number 1 Phillips-head screwdriver

•Number 2 Phillips-head screwdriver

•Flat-blade screwdriver (for DC-input systems)

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Installation Guidelines

Follow these guidelines when upgrading the chassis:

•If your switch or router is using an AC-input power supply, you are required to install the

WS-CAC-3000W power supply. The 3000 W AC-input provides a power output to power the fan

tray.

•If your switch or router is using a DC-input power supply, you are required to install the

WS-CDC-2500W or PWR-4000-DC power supply. You must provide a separate, direct connection

to power the fan tray. Each input of the fan tray is rated 10 A @ -40 to -60 VDC.

•Observe the following cautions:

Caution It is important that you follow the steps in this document in the order they are presented.

Caution Always use an ESD wrist strap when handling modules or coming into contact with internal

components.

Caution Use both hands to install and remove power supplies. Each Catalyst 6500 series AC-input

power supply weighs between 22 pounds (9.9 kg) and 28 pounds (12.6 kg).

Caution Do not exert too much pressure on the ejector levers. They will bend and be damaged.

Caution In a system with dual power supplies, connect each power supply to a separate input source.

In case of a power source failure, the second source will most likely still be available.

Shutting Down the System

To perform the upgrade, you must shut down the system.

Before you shut down the system, you should first upload the current configuration to a server. This saves

time when bringing the module back online. You can recover the configuration by downloading it from

the server to the nonvolatile memory of the supervisor engine. For more information, refer to the

“Working with Configuration Files” chapter in the Catalyst 6500 Series Software Configuration Guide.

To properly shut down the system, follow these steps:

Step 1 Upload the current configuration to a server. On any modules running Cisco IOS, save the running

configuration.

Warning

Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.

Statement 1

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Panel Safety Cover

Warning

This unit might have more than one power supply connection. All connections must be removed to

de-energize the unit.

Statement 1028

Step 2 Depending on how your system is powered, perform one of the two sets of substeps below.

AC-Input Systems

a. Turn the power switch to the Off (0) position on each power supply. Turning the power switch off

also disengages a pawl that unlocks the power supply from the chassis.

b. Disconnect the power cord from the power source.

c. Loosen the screw on the cable retention device, and disconnect the power cord from the power

supply being removed.

Note The AC power cord for the 4000 W power supply is hard wired and cannot be removed from

the supply.

Warning

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

DC-Input Systems

a. Verify that power is off to the DC circuit for each power supply. As an added safety precaution, you

should secure the source DC circuit breaker switch in the OFF position with electrical tape.

b. Turn the power switch to the Off (0) position on each power supply. Turning the power switch off

also disengages a pawl that unlocks the power supply from the chassis.

Replacing the Panel Safety Cover

This section describes how to remove and install the panel safety cover for the Catalyst 6509-NEB

switch and Cisco OSR-7609 Router. A number 1 Phillips-head screwdriver is required to perform this

procedure.

Caution Always use an ESD wrist strap when handling modules or coming into contact with internal components.

Warning

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution

when servicing.

Statement 1034

To remove the panel safety cover, perform these steps:

Step 1 Use a number 1 Phillips-head screwdriver to remove the 8 panel screws, 4 each located along the top and

bottom of the chassis. (See Figure 1.) Set the screws aside.

Step 2 Grasp the panel handle and pull the panel away from the chassis.

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Panel Safety Cover

Figure 1 Removing the Panel Safety Cover

Step 3 On the new panel safety cover, grasp the panel handle and press the panel into place, starting at the

bottom of the chassis and working up. Be careful not to damage the EMI gasket.

Step 4 Use a number 1 Phillips-head screwdriver to install the 8 panel screws, 4 each located along the top and

bottom of the chassis. (See Figure 2.)

Step 5 Proceed to the “Replacing the Fan Tray” section on page 7 to replace the fan tray.

105072

Panel

handle

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Fan Tray

Figure 2 Installing the Panel Safety Cover

Replacing the Fan Tray

This section describes how to remove and install the fan tray for the Catalyst 6509-NEB switch and

Cisco OSR-7609 Router. The standard fan tray (WS-C6509-NEB-FAN) must be removed and replaced

with the high-speed fan tray (WS-C6509-NEB-FAN2). A flat-blade or number 2 Phillips-head

screwdriver is required to perform this procedure.

105071

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Fan Tray

Removing the Fan Tray

Warning

When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let the

fan blades completely stop before you remove the fan tray.

Statement 258

To remove the standard fan tray (WS-C6509-NEB-FAN), follow these steps:

Step 1 Use a flat-blade or number 2 Phillips-head screwdriver to loosen the two captive installation screws on

the fan tray by turning them counterclockwise. (See Figure 3.)

Figure 3 Removing the Fan Tray

Step 2 Grasp the fan tray handle with one hand and pull the fan tray outward about 1 inch; rock it gently, if

necessary, to unseat the power connector from the backplane. Wait for the fans to stop spinning.

Step 3 Once the fans have stopped spinning, pull the fan tray out further and support the underside of the fan

tray with the other hand.

Step 4 Pull the fan tray clear of the chassis, and put it in a safe place.

INPUT

FAN

OUTPUT

FAIL

INPUT

FAN

OUTPUT

FAIL

30696

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

24PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIAEJECT

PORT1PORT2

SwitchLoad

100%

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIAEJECT

PORT1PORT2

SwitchLoad

100%

LINK

FAN

STATUS

Captive installation

screw

Captive installation

screw

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Fan Tray

Installing the High Speed Fan Tray

To install the high speed fan tray (WS-C6509-NEB-FAN2), follow these steps:

Step 1 Hold the fan tray with the fans facing down and the FAN FAIL LED on the right. (See Figure 4.)

Figure 4 Installing the High Speed Fan Tray

Step 2 Place the fan tray into the front chassis cavity so that it rests on the chassis, and then lift the fan tray up

slightly, aligning the top and bottom chassis guides.

Step 3 Push the fan tray into the chassis until the power connector seats in the backplane and the captive

installation screws make contact with the chassis.

Step 4 Use a flat-blade or number 2 Phillips-head screwdriver to tighten the captive installation screws.

Step 5 Proceed to the “Replacing the Power Supply” section on page 10 to replace the power supply.

INPUT

FAN

OUTPUT

FAIL

INPUT

FAN

OUTPUT

FAIL

105068

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

24PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIAEJECT

PORT1PORT2

SwitchLoad

100%

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIAEJECT

PORT1PORT2

SwitchLoad

100%

LINK

WS-C6500-NEB-FAN2

HIGH SPEED FAN

48V INPUT 1

RTN-48VDCGND

INPOUT POWER

GOOD

Captive installation

screw

Captive installation

screw

48V INPUT2

RTN-48VDC GND

INPOUTPOWER

GOOD

FANFAIL

Catalyst 6509-NEB Switch and Cisco OSR-7609 Router Upgrade Note

78-16162-02

Replacing the Power Supply

Note DC-input systems—See the “Connecting Site Power to the Fan Tray for DC-Input Systems” section on

page 15 to connect site power to the high speed fan tray.

This section describes how to remove and install AC-input power supplies for the Catalyst 6509-NEB

switch and Cisco OSR-7609 router.

Removing an AC-Input Power Supply

Warning

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution

when servicing.

Statement 1034

To remove an AC-input power supply, follow these steps:

Step 1 Loosen the captive installation screw. (See Figure 5.)

Caution Use both hands to install and remove power supplies. Each Catalyst 6500 series AC-input power supply

weighs between 22 pounds (9.9 kg) and 28 pounds (12.6 kg).

Step 2 Grasp the power supply handle with one hand, and slide the power supply part of the way out of the

chassis. Place your other hand underneath the power supply, as shown in Figure 6, and slide the power

supply completely out of the chassis.

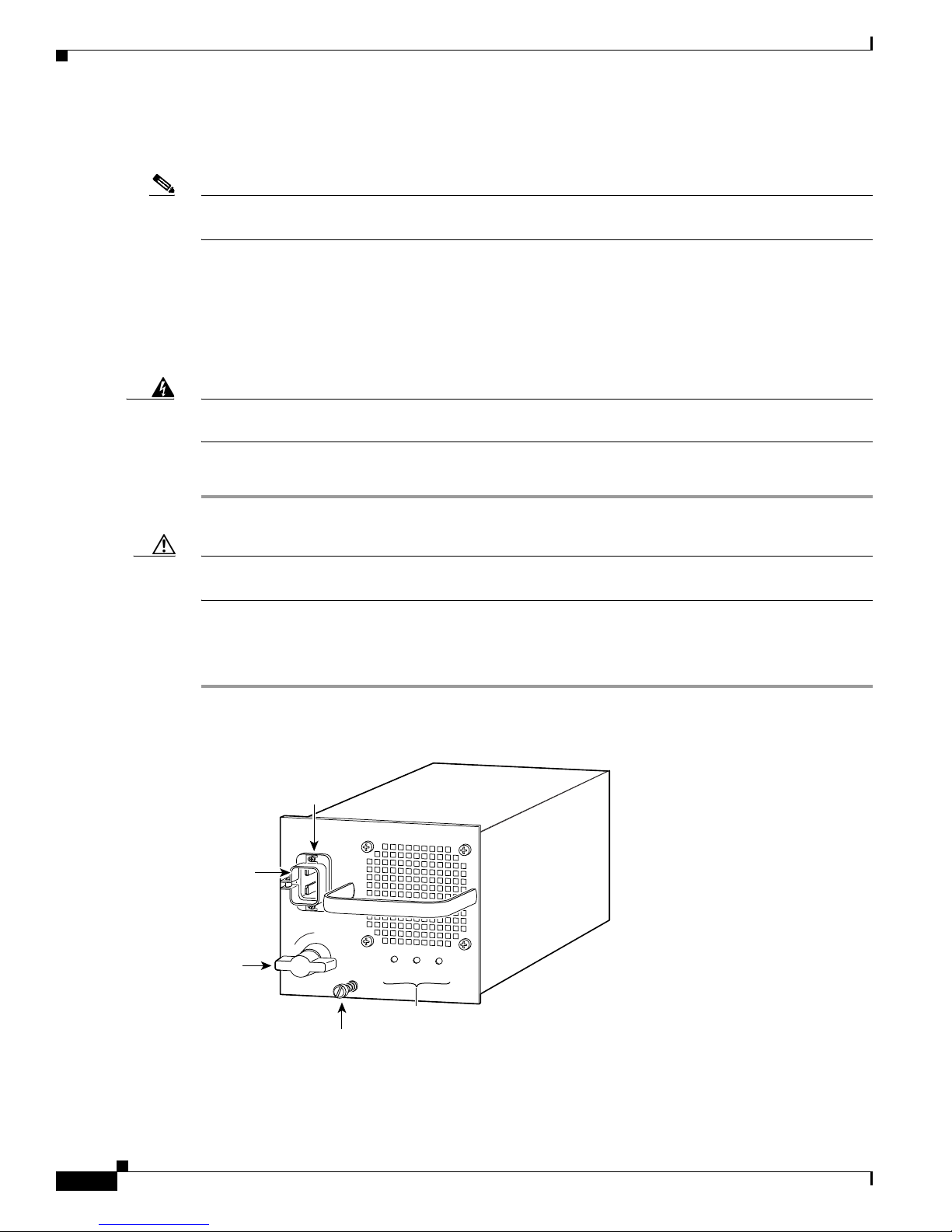

Figure 5 AC-Input Power Supply Front Panel

Power

switch

Cable

retention

device

AC power

connection

INPUT

FAN

OUTPUT

FAIL

Captive installation

screw

Status LEDs

16029

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Routeur réseau

Cisco

Cisco XR 12410 Manuel utilisateur

Cisco

Cisco SLM2024 - Small Business Smart Switch Manuel utilisateur

Cisco

Cisco ASR-920-12CZ-A Manuel

Cisco

Cisco ASR-920-24SZ-IM Manuel utilisateur

Cisco

Cisco ASR 1000 Series Manuel

Cisco

Cisco ASR 900 Series Manuel utilisateur

Cisco

Cisco ASR 903 Manuel utilisateur

Cisco

Cisco 1941W Manuel utilisateur

Cisco

Cisco 827-4V - 827-4V Router - EN Guide rapide

Cisco

Cisco Linksys WET610N Manuel utilisateur

Cisco

Cisco LINKSYS RangePlus WRT100 Manuel utilisateur

Cisco

Cisco 3200 Series Manuel d'installation et d'exploitation

Cisco

Cisco CRS-1 - Carrier Routing System Router Manuel utilisateur

Cisco

Cisco ASR 1002 Manuel utilisateur

Cisco

Cisco E-Series Manuel utilisateur

Cisco

Cisco 3600 Series Manuel utilisateur

Cisco

Cisco Cisco ASR 5000 Application Detection and Control Administration... Manuel

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Instructions d'utilisation

Cisco

Cisco RV180 Manuel utilisateur

Cisco

Cisco 890 Series Manuel utilisateur

Cisco

Cisco RVS4000 - Gigabit Security Router Manuel utilisateur

Cisco

Cisco 4430 Manuel utilisateur

Cisco

Cisco ASR-920-12SZ-IM Manuel

Cisco

Cisco 1711 - Security Access Router Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

EnGenius

EnGenius ESR-9710 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Dynacord

Dynacord Promatrix 6000 Manuel utilisateur

Lorex

Lorex F5D8230-4 Manuel utilisateur
