Cisco CGR 1120 Manuel utilisateur

CHAPTER

1-1

Cisco Connected Grid Device Manager Installation and User Guide

OL-28081-01

Introduction

This chapter provides an overview of the Cisco Connected Grid Device Manager (Device Manager) and

includes the following sections:

•Overview, page 1-1

•Additional Information, page 1-4

Overview

This section includes the following topics:

•Application

•Tasks

Application

The Cisco Connected Grid Device Manager (Device Manager) is a Windows-based application that field

technicians can use to manage the Cisco 1000 Series Connected Grid Routers (CGR 1000) remotely.

Cisco CG-NMS manages multiple CGR 1000 routers whereas the Device Manager connects and

manages a single CGR 1000 at a time.

Cisco CGR 1000 routers are multi-service communications platforms designed for use in field area

networks. The portfolio consists of two models–Cisco CGR 1240 and Cisco CGR 1120–both ruggedized

to varying degrees for outdoor and indoor deployments. Both models are modular and support a

wide-range of communications interfaces such as 2G/3G, Ethernet, and WiFi.

Device Manager connects to the Cisco CGR 1000 by using a secure Ethernet or WiFi link. See Figure 1-1

1-2

Cisco Connected Grid Device Manager Installation and User Guide

OL-28081-01

Chapter 1 Introduction

Overview

Figure 1-1 Device Manager Application Within a Connected Grid Network

Tasks

The Device Manager enables you to:

•Troubleshoot connectivity between a CGR 1000 and the devices connected to the router.

See Test Connectivity, page 3-6

•Bring up or shut down an CGR 1000 interface.

See Manage Interfaces, page 3-11

•Check and update the current CGR 1000 configuration.

See Advanced Command, page 3-23 and Change Configuration, page 3-15

•Update the CGR 1000 image and reset the router.

See Update Image, page 3-18

•View real-time CGR 1000 configuration information for troubleshooting.

See Retrieve Report, page 3-21

•Use advanced commands to troubleshoot the CGR 1000.

See Advanced Command, page 3-23

You initiate all tasks from the At a Glance page. See Figure 1-2

IPSec Tunnel

303104

CGR 1240

Router

Head-end

Router

Head-end

RPDON server

CG-NMS

IPv4/IPv6

LAN

IPv6 link 6LoWPANs

Field Technician with

Device Manager

Field Technician with

Device Manager

Metering Data

Collection System

CGR 1240

Router

IPv4 link

Utility

Network

1-3

Cisco Connected Grid Device Manager Installation and User Guide

OL-28081-01

Chapter 1 Introduction

Overview

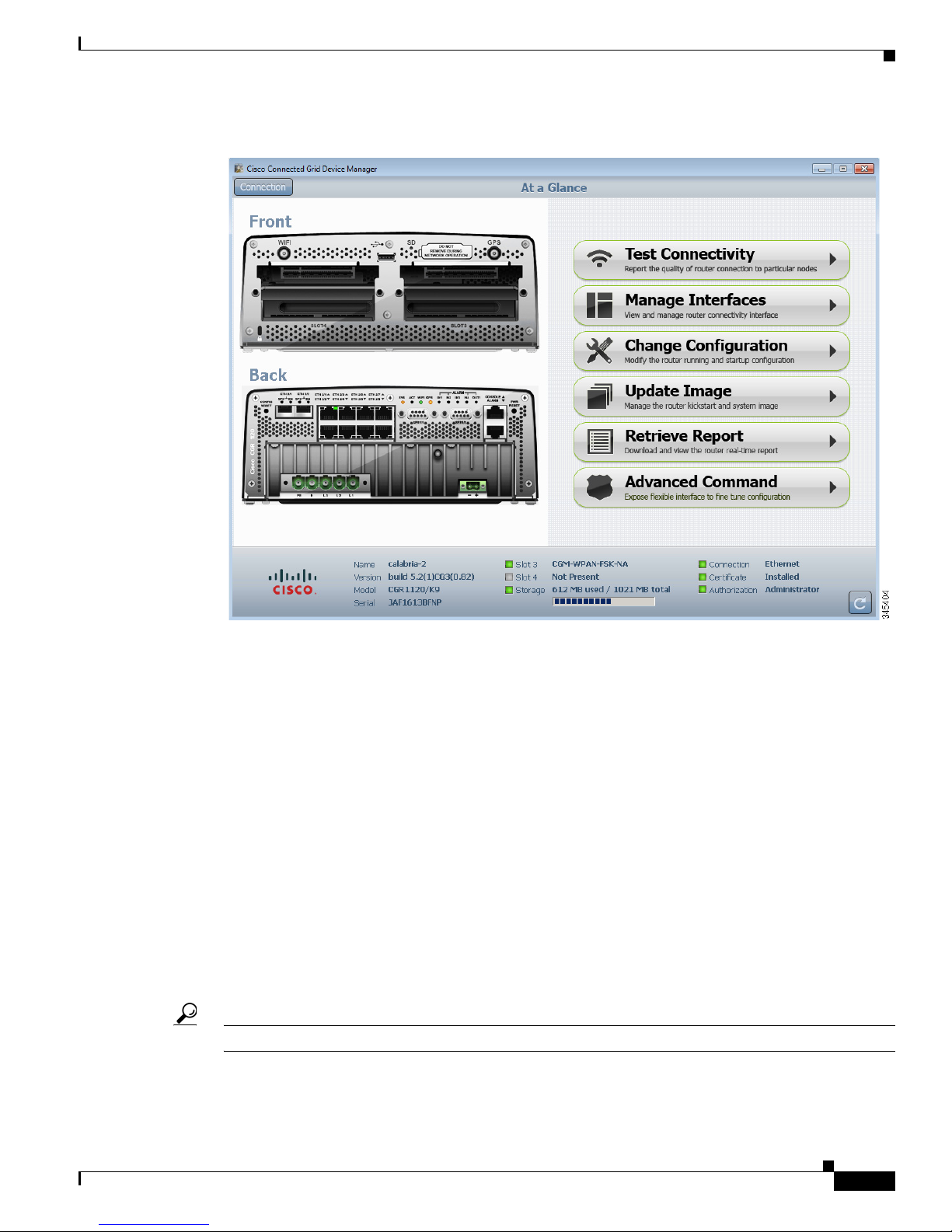

Figure 1-2 At a Glance Page for the CGR 1120

In addition to supported tasks (right-side), the At a Glance page provides a view of the CGR 1000 router

to which the Device Manager is connected (left-side).

At the bottom of the page, you can find the following information:

•Name of the router

•Version of the software

•Model number of the CGR 1000

•Serial number of the CGR 1000

•Door status of the system casing, (Open or Closed) for the router (CGR 1240 only)

•Battery status, when an optional backup battery is installed (CGR 1240 only)

•Slots within the system and modules installed in those slots (CGR 1120 only)

•Storage status including amount of storage available

•Connection method of the Device Manager to the CGR 1000 (WiFi or Ethernet)

•Certificate status

•Authorization indicates the user role of the connected user

Tip To refresh the At a Glance page, click the Refresh icon (lower right-side).

1-4

Cisco Connected Grid Device Manager Installation and User Guide

OL-28081-01

Chapter 1 Introduction

Additional Information

You can find configuration guides and release notes for Cisco 1000 Series Connected Grid products at:

www.cisco.com/go/cgr1000-docs
