Cisco ONS 15454 SDH Manuel

CHAPTER

2-1

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Install Cards and Fiber-Optic Cable

This chapter explains how to install the Cisco ONS 15454 SDH cards and fiber-optic cable (fiber).

Before You Begin

This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).

1. NTP-D15 Install the Common Control Cards, page 2-2—Complete this procedure before installing

any other cards.

2. NTP-D16 Install STM-N Cards and Connectors, page 2-7—Complete this procedure as needed.

3. NTP-D17 Install the Electrical Cards, page 2-10—Complete this procedure as needed.

4. NTP-D18 Install Ethernet Cards and Connectors, page 2-11—Complete this procedure as needed.

5. NTP-D286 Install the FC_MR-4 Cards, page 2-12—Complete this procedure as needed.

6. NTP-D348 Install the Filler Cards, page 2-14—Complete this procedure as needed.

7. NTP-D349 Install the Blank Faceplates, page 2-15—Complete this procedure as needed.

8. NTP-D19 Install Fiber-Optic Cables on Optical Cards, page 2-16—Complete this procedure as

needed.

9. NTP-D245 Route Fiber-Optic Cables, page 2-19—Complete this procedure as needed.

10. NTP-D227 Remove and Replace a Card, page 2-21—Complete this procedure as needed to remove

and replace a card, including deleting the card from Cisco Transport Controller (CTC) and changing

an optical card without losing the card’s provisioning.

11. NTP-D20 Replace the Front Door, page 2-21—If the front door was removed, complete this

procedure to replace the front door and ground strap after installing cards and fiber.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Filler cards serve three important functions: they prevent exposure to hazardous voltages and

currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other

equipment; and they direct the flow of cooling air through the chassis. Do not operate the system

unless all cards and faceplates are in place.

Statement 156

2-2

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D15 Install the Common Control Cards

NTP-D15 Install the Common Control Cards

Warning

During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly

touch the backplane with your hand or any metal tool, or you could shock yourself.

Statement 94

Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the

wristband cable into the ESD jack located on the lower-right outside to edge of the shelf assembly.

Note If protective clips are installed on the backplane connectors of the cards, remove the clips before

installing the cards.

Note If you install a card incorrectly, the FAIL LED flashes continuously.

Step 1 If you plan to install XC-VXL-2.5G cards, review Table 2-1 on page 2-3 to determine card/slot

compatibility. If you plan to install XC-VXL-10G or XC-VXC-10G cards, review Table 2-2 on page 2-5

to determine card/slot compatibility.

Step 2 Complete the “DLP-D332 Install the TCC2/TCC2P Cards” task on page 20-22.

Figure 2-1 shows card installation.

Purpose This procedure describes how to install the common control cards.

Tools/Equipment Redundant TCC2/TCC2P cards

Redundant XC-VXL-2.5G, XC-VXL-10G, or XC-VXC-10G cross-connect

cards

AIC-I card (optional)

Prerequisite Procedures NTP-D13 Perform the Shelf Installation Acceptance Test, page 1-19

Required/As Needed Required

Onsite/Remote Onsite

Security Level Provisioning or higher

2-3

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D15 Install the Common Control Cards

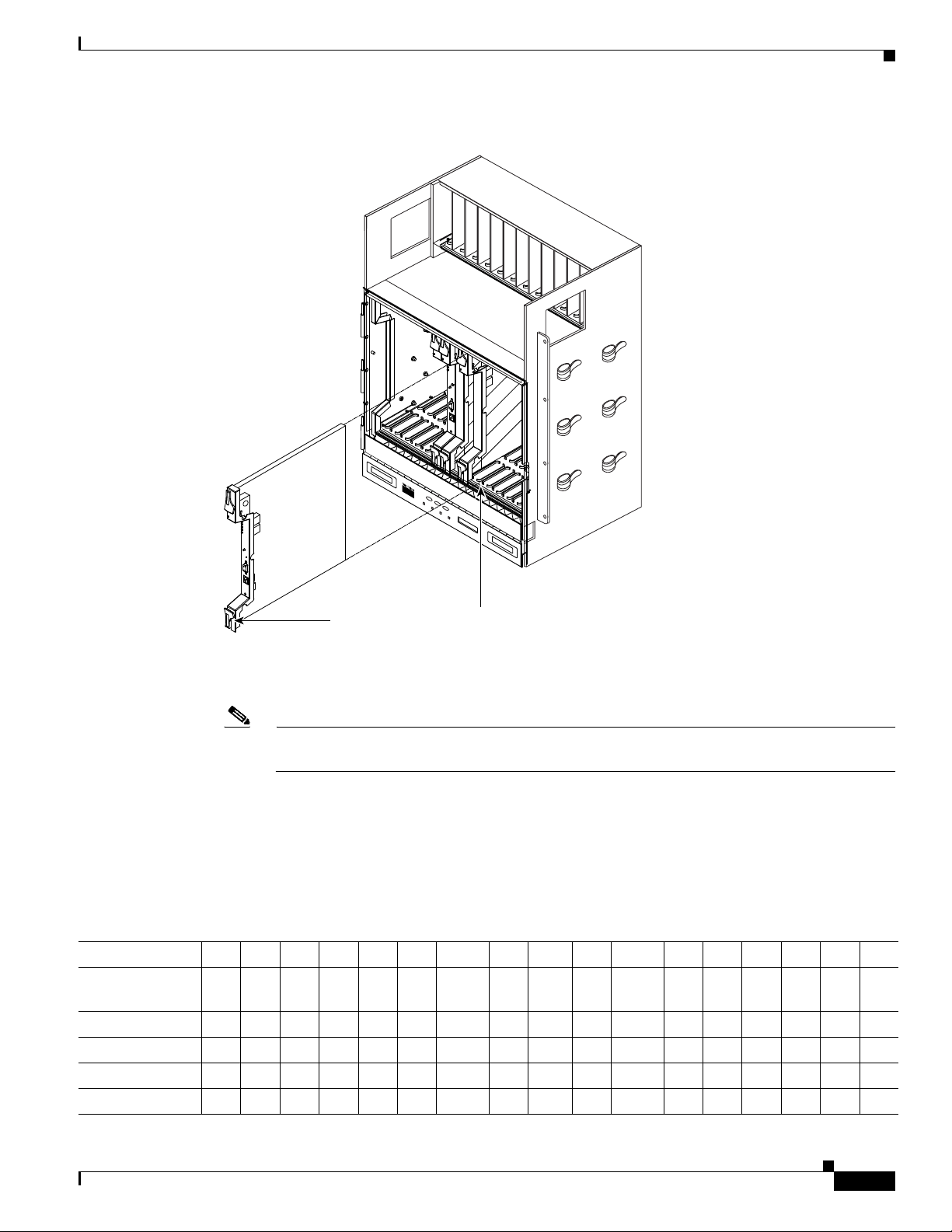

Figure 2-1 Installing Cards in the ONS 15454 SDH

Step 3 Complete the “DLP-D333 Install the XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G Cards” task on

page 20-25.

Note If you install the wrong card in a slot, see the “NTP-D227 Remove and Replace a Card”

procedure on page 2-21.

Step 4 Complete the “DLP-D334 Install the Alarm Interface Controller–International Card” task on

page 20-27, if necessary.

In Table 2-1, X indicates that a card is supported in the slot. The multiservice (traffic) slots, Slots 1 to 6

and 12 to 17, include four slots (Slots 5, 6, 12, and 13) that have four times the bandwidth of the other

multiservice slots.

61239

FANFAIL CRIT MAJMIN

Guide rail

Ejector

Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1.

TCC2/

TCC2PMSMSMSMSMSMS

TCC2/TCC2P X X

XC-VXL-2.5G X X

AIC-I X

DS3i-N-12 XXXXX XXXXX

2-4

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D15 Install the Common Control Cards

E1-42 XXXX XXXX

E3-12 XXXXX XXXXX

STM1E-12 XXXX XXXX

E100T-G XXXXXX XXXXXX

E1000-2-G XXXXXX XXXXXX

G1K-4 XXXXXX XXXXXX

ML100T-12 XXXXXX XXXXXX

ML1000-2 XXXXXX XXXXXX

ML-MR-10 XXXXXX XXXXXX

CE-MR-10 XXXXXX XXXXXX

CE-100T-8 XXXXXX XXXXXX

CE-1000-4 XXXXXX XXXXXX

OC3 IR 4/STM1

SH 1310

XXXXXX XXXXXX

OC3IR/STM1

SH 1310-8

XXXX XXXX

OC12 IR/STM4

SH 1310

XXXXXX XXXXXX

OC12 LR/STM4

LH 1310

XXXXXX XXXXXX

OC12 LR/STM4

LH 1550

XXXXXX XXXXXX

OC12 LR/STM4

LH 1310-4

XXXX XXXX

OC12 LR/STM4

LH 1550

XXXXXX XXXXXX

OC48 IR/STM16

SH AS 1310

XXXXXX XXXXXX

OC48

LR/STM16 LH

AS 1550

XXXXXX XXXXXX

OC48

ELR/STM16 EH

100 GHz

XX XX

OC192

SR/STM64 IO

1310

Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards (continued)

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1.

TCC2/

TCC2PMSMSMSMSMSMS

2-5

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D15 Install the Common Control Cards

In Table 2-2, X indicates that a card is supported in the slot. The multiservice (traffic) slots, Slots 1 to 6

and 12 to 17, include four slots (Slots 5, 6, 12, and 13) that have four times the bandwidth of the other

multiservice slots.

OC192

IR/STM64 SH

1550

Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

OC192

LR/STM64 LH

1550

Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

OC192

LR/STM64 LH

ITU 15xx.xx

Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

FC_MR-4 XXXXXX XXXXXX

15454_MRC-122Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

OC192SR1/

STM64IO Short

Reach and

OC192/STM64

Any Reach3

Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.

1. The term XC is used generically to mean cross-connect card.

2. Designated as MRC-12 in CTC.

3. Designated as STM64-XFP in CTC.

Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards (continued)

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1.

TCC2/

TCC2PMSMSMSMSMSMS

Table 2-2 Slot Compatibility for the XC-VXL-10G or XC-VXC-10G Card

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1

TCC2/

TCC2PMSMSMSMSMSMS

TCC2/TCC2P X X

XC-VXL-10G X X

XC-VXC-10G X X

AIC-I X

DS3i-N-12 XXXXX XXXXX

E1-42 XXXX XXXX

E3-12 XXXXX XXXXX

STM1E-12 XXXX XXXX

E100T-G XXXXXX XXXXXX

E1000-2-G XXXXXX XXXXXX

G1K-4 XXXXXX XXXXXX

2-6

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D15 Install the Common Control Cards

ML100T-12 XXXXXX XXXXXX

ML1000-2 XXXXXX XXXXXX

ML-MR-10 XXXXXX XXXXXX

CE-MR-10 XXXXXX XXXXXX

CE-100T-8 XXXXXX XXXXXX

CE-1000-4 XXXXXX XXXXXX

OC3 IR 4/STM1

SH 1310

XXXXXX XXXXXX

OC3IR/STM1S

H 1310-8

XXXX XXXX

OC12 IR/STM4

SH 1310

XXXXXX XXXXXX

OC12 LR/STM4

LH 1310

XXXXXX XXXXXX

OC12 LR/STM4

LH 1550

XXXXXX XXXXXX

OC12 LR/STM4

LH 1310-4

XXXX XXXX

OC12 LR/STM4

LH 1550

XXXXXX XXXXXX

OC48 IR/STM16

SH AS 1310

XXXXXX XXXXXX

OC48

LR/STM16 LH

AS 1550

XXXXXX XXXXXX

OC48

ELR/STM16 EH

100 GHz

XXXXXX XXXXXX

OC192

SR/STM64 IO

1310

XX XX

OC192

IR/STM64 SH

1550

XX XX

OC192

LR/STM64 LH

1550

XX XX

OC192

LR/STM64 LH

ITU 15xx.xx

XX XX

Table 2-2 Slot Compatibility for the XC-VXL-10G or XC-VXC-10G Card (continued)

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1

TCC2/

TCC2PMSMSMSMSMSMS

2-7

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D16 Install STM-N Cards and Connectors

Step 5 Continue with the following procedures, as needed:

•NTP-D16 Install STM-N Cards and Connectors, page 2-7

•NTP-D17 Install the Electrical Cards, page 2-10

•NTP-D18 Install Ethernet Cards and Connectors, page 2-11

•NTP-D286 Install the FC_MR-4 Cards, page 2-12

Stop. You have completed this procedure.

NTP-D16 Install STM-N Cards and Connectors

Warning

During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly

touch the backplane with your hand or any metal tool, or you could shock yourself.

Statement 94

OC192SR1/

STM64IO Short

Reach and

OC192/STM64

Any Reach2

XX XX

FC_MR-4 XXXXXX XXXXXX

15454_MRC-123XXXXXX XXXXXX

1. The term XC is used generically to mean cross-connect card.

2. Designated as STM64-XFP in CTC.

3. Designated as MRC-12 in CTC.

Table 2-2 Slot Compatibility for the XC-VXL-10G or XC-VXC-10G Card (continued)

Slot 1234567 89 1011 121314151617

Type MS MS MS MS MS MS

TCC2/

TCC2P XC1AIC-I XC1

TCC2/

TCC2PMSMSMSMSMSMS

Purpose This procedure installs the optical cards (STM-1, STM1-8, STM-4,

STM4-4, STM-16, STM-64, and 15454_MRC-12). The MRC-12

(multirate), OC192SR1/STM64IO Short Reach (STM64-XFP Short

Reach), and OC192/STM64 Any Reach(STM64-XFP Any Reach) cards

require Small Form-factor Pluggables (SFPs/XFPs) to provide the fiber

interface to the cards. On all other optical cards, the fiber is plugged

directly into the card. Install according to site plan, if available.

Tools/Equipment STM-1, STM-4, STM-16, STM-64, and MRC-12 cards (as applicable)

Prerequisite Procedures NTP-D15 Install the Common Control Cards, page 2-2

Required/As Needed As needed

Onsite/Remote Onsite

Security Level None

2-8

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D16 Install STM-N Cards and Connectors

Warning

Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products.

Statement 291

Warning

Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do

not view directly with optical instruments. Viewing the laser output with certain optical instruments

(for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye

hazard.

Statement 1056

The following laser activation warning applies only to STM-64 cards with safety keys:

Warning

The laser is on when the card is booted and the safety key is in the on position (labeled 1). The port

does not have to be in service for the laser to be on. The laser is off when the safety key is off (labeled

0).

Statement 293

Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the

wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

Note To simplify subnetwork connection protection (SNCP) to multiplex section-shared protection ring

(MS-SPRing) conversion and node addition, install optical cards according to an east (Slots 12 and 13)

to west (Slots 5 and 6) configuration. This configuration is not mandatory.

Note If you install a card incorrectly, the FAIL LED flashes continuously.

Note During the boot process, a Locked-enabled, disabled STM-N port will output a line alarm indication

signal (AIS-L) to any Unlocked-enabled far-end receivers. See the Cisco ONS 15454 SDH

Troubleshooting Guide for further information about the AIS-L condition.

Step 1 If you installed XC-VXL-2.5G cards, review Table 2-1 on page 2-3 to determine card/slot compatibility.

If you installed XC-VXL-10G or XC-VXC-10G cards, review Table 2-2 on page 2-5 to determine

card/slot compatibility.

Install higher-capacity cards first; for example, install an STM-64 card before installing an STM-12 card.

Let each card completely boot before installing the next card.

Note “OC192SR1/STM64IO Short Reach” and “OC192/STM64 Any Reach” are the titles that appear

on the faceplates of the STM64-XFP cards. In CTC, the cards are abbreviated as STM64-XFP.

Before installing a MRC-12 card, review Table 2-3 for bandwidth limitations based on the slot where the

card is installed and the type of cross-connect card installed in the shelf.

2-9

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D16 Install STM-N Cards and Connectors

Refer to the card’s reference section in the “Optical Cards” chapter of the Cisco ONS 15454 SDH

Reference Manual for more information about slot and bandwidth restrictions.

Step 2 Open the card latches/ejectors.

Step 3 Use the latches/ejectors to firmly slide the optical card along the guide rails until the card plugs into the

receptacle at the back of the slot.

Step 4 Verify that the card is inserted correctly and close the latches/ejectors on the card.

Note It is possible to close the latches/ejectors when the card is not completely plugged into the

backplane. Ensure that you cannot insert the card any further.

Note If you install the wrong card in a slot, complete the “NTP-D227 Remove and Replace a Card”

procedure on page 2-21.

Step 5 Verify the LED activity:

•The red FAIL LED turns on for 20 to 30 seconds.

•The red FAIL LED blinks for 35 to 45 seconds.

•All LEDs blink once and turn off for 5 to 10 seconds.

•The ACT or ACT/STBY LED turns on. The signal fail (SF) LED can persist until all card ports

connect to their far-end counterparts and a signal is present.

Note The booting STM-N card will send an AIS-L to the far-end receiver as long as it is

Locked-enabled, disabled.

Step 6 If the card does not boot up properly, or the LED activity does not mimic Step 5, check the following:

•When a physical card type does not match the type of card provisioned for that slot in CTC, the card

might not boot. If an optical card does not boot, open CTC and verify that the slot is not provisioned

for a different card type before assuming the card is faulty.

•If the red FAIL LED does not turn on, check the power.

•If you insert a card into a slot provisioned for a different card, all LEDs turn off.

•If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not

installed properly. Remove the card and repeat Steps 2to 5.

Table 2-3 Maximum Bandwidth by Shelf Slot for the MRC-12 in Different Cross-Connect

Configurations

XC Card Type

Maximum Bandwidth in Slots 1

through 4 and 12 through 17

Maximum Bandwidth

in Slots 5, 6, 12, or 13

XC-VXL-2.5G OC-48 OC-48

XC-VXC-10G/XC-VXL-10G OC-48 OC-192

2-10

Cisco ONS 15454 SDH Procedure Guide, R8.5

78-18118-01

Chapter 2 Install Cards and Fiber-Optic Cable

NTP- D17 Install the Electrical Cards

Step 7 The MRC-12 card requires SFPs and the STM64-XFP cards require XFPs to provide a fiber interface. If

you installed any of these cards, complete the “DLP-D335 Install GBIC or SFP/XFP Devices” task on

page 20-28 or preprovision the SFP/XFP using the “DLP-D107 Preprovision an SFP or XFP Device”

task on page 18-8.

Step 8 Continue with the “NTP-D19 Install Fiber-Optic Cables on Optical Cards” procedure on page 2-16.

Stop. You have completed this procedure.

NTP-D17 Install the Electrical Cards

Warning

During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly

touch the backplane with your hand or any metal tool, or you could shock yourself.

Statement 94

Note The E3-12 card can be deployed in a central office or a carrier’s exchange.

Note Install higher-capacity cards first; for example, install an E3-12 card before installing an E1-14 card. Let

each card boot completely before installing the next card.

Note Cisco recommends installing STM-N, transponder (TXP), and muxponder (MXP) cards before you

install electrical cards, as applicable.

Step 1 If you installed XC-VXL-2.5G cards, review Table 2-1 on page 2-3 to determine card/slot compatibility.

If you installed XC-VXL-10G or XC-VXC-10G cards, review Table 2-2 on page 2-5 to determine

card/slot compatibility.

Step 2 Open the card latches/ejectors.

Step 3 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the

receptacle at the back of the slot.

Note If you install the wrong card in a slot, complete the “NTP-D227 Remove and Replace a Card”

procedure on page 2-21.

Purpose This procedure installs the electrical cards (DS3i-N-12, E1-42, E3-12, and

STM1E-12).

Tools/Equipment Electrical cards

Prerequisite Procedures NTP-D220 Install the Power and Signal FMECs, page 1-7

NTP-D15 Install the Common Control Cards, page 2-2

Required/As Needed As needed

Onsite/Remote Onsite

Security Level None

Autres manuels pour ONS 15454 SDH

Table des matières

Autres manuels Cisco Matériel réseau

Cisco

Cisco IP/VC 3500 Instructions originales

Cisco

Cisco ONS 15216-MD-40-ODD Manuel utilisateur

Cisco

Cisco IPS 7.1 Manuel utilisateur

Cisco

Cisco Linksys Business Series Network Storage System... Manuel utilisateur

Cisco

Cisco NM-1A-T3 - 1port Ds3 Atm Network Module Manuel utilisateur

Cisco

Cisco 5400 Series Mode d’emploi

Cisco

Cisco linksys PLTK300 Manuel utilisateur

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manuel

Cisco

Cisco WAVE-574-K9 - Wide Area Virtualization Engine... Manuel

Cisco

Cisco S170 Web Manuel utilisateur

Cisco

Cisco Catalyst X6148 Manuel utilisateur

Cisco

Cisco SCE8000 GBE Manuel utilisateur

Cisco

Cisco C7200-I - Input/Output Controller - Control... Manuel utilisateur

Cisco

Cisco CVPN3015-NR - VPN Concentrator 3015 Manuel utilisateur

Cisco

Cisco Aironet 1000 Series Manuel

Cisco

Cisco LightStream 1010 Manuel

Cisco

Cisco AIR-WLC2106-K9 - Wireless LAN Controller... Manuel utilisateur

Cisco

Cisco Secure Firewall Management Center 1700 Manuel utilisateur

Cisco

Cisco Nexus 93180LC-EX Manuel utilisateur

Cisco

Cisco 8540 - Catalyst Campus Switch Router Modular Expansion... Manuel utilisateur

Cisco

Cisco Versatile Interface Processor (VIP6-80)... Manuel de l'opérateur

Cisco

Cisco ASR 5000 Mode d’emploi

Cisco

Cisco 220 Series Smart Plus Manuel utilisateur

Cisco

Cisco ASA 5506-X Manuel

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
