Cisco Secure Endpoint PC4000 Hardware Installation Guide

First Published: 2023-08-28

Last Modified: 2023-11-03

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,

INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,

EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH

THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,

CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.

CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT

LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS

HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network

topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional

and coincidental.

All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.

Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:

https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a

partnership relationship between Cisco and any other company. (1721R)

CONTENTS

Overview 1

CHAPTER 1

Features 1

Package Contents 3

Serial Number Location 3

Front Panel 5

Front Panel LEDs 6

Rear Panel 8

Rear Panel LEDs 9

Power Supply 10

Hardware Specifications 11

Product ID Numbers 12

Power Cord Specifications 12

Installation Preparation 21

CHAPTER 2

Installation Warnings 21

Safety Recommendations 23

Maintain Safety with Electricity 24

Prevent ESD Damage 25

Site Environment 25

Site Considerations 25

Power Supply Considerations 25

Rack Configuration Considerations 26

Mount the Chassis 27

CHAPTER 3

Unpack and Inspect the Chassis 27

Rack-Mount the Chassis 27

Cisco Secure Endpoint PC4000 Hardware Installation Guide

iii

Connect Cables, Turn on Power, and Verify Connectivity 31

Maintenance and Upgrade 35

CHAPTER 4

Power Button Shut Down 35

Remove and Replace a Drive 36

Remove and Replace a Power Supply 38

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Contents

CHAPTER 1

Overview

•Features, on page 1

•Package Contents, on page 3

•Serial Number Location, on page 3

•Front Panel, on page 5

•Front Panel LEDs, on page 6

•Rear Panel, on page 8

•Rear Panel LEDs, on page 9

•Power Supply, on page 10

•Hardware Specifications, on page 11

•Product ID Numbers, on page 12

•Power Cord Specifications, on page 12

Features

The Cisco Secure Endpoint PC4000 appliance supports Secure Endpoint Private Cloud version 4.0 and later.

The following table lists the features of the Cisco Secure Endpoint PC4000. See Product ID Numbers, on

page 12 for a list of the spare product IDs (PIDs) associated with the Secure Endpoint PC4000. You can

remove and replace drives and power supplies. For all other internal component failures, you must send your

chassis for return merchandise authorization (RMA). Use the Cisco Returns Portal for RMA:

https://www.cisco.com/c/en/us/support/returns/returns-portal.html.

Table 1: Secure Endpoint PC4000

DescriptionFeature

2 RUForm factor

Yes

Standard 19-in. (48.3 cm) 4-post EIA rack

Rack mount

Front to rear

Cold aisle to hot aisle

Airflow

Displays the serial number.Pullout asset card

Cisco Secure Endpoint PC4000 Hardware Installation Guide

DescriptionFeature

Yes

Two threaded holes for dual-hole grounding lug.

Use is optional. The supported AC power supplies

have internal grounding, so no additional chassis

grounding is required.

Grounding hole

YesLocator beacon

YesPower switch

Two Intel Xeon Gold 6330 processorsProcessor

2 TB RAMMemory

Thirty-two 64-GB DDR4-3200-MHz RDIMMsRDIMMs

Two built-in dual 1/10-GB portsManagement ports

Version 3.0 Type A

USB ports

One 3-row 15-pin DE-15 connector

Enabled by default.

VGA port

4 fixed SFP+ ports

Supported SFP cables SFP-10G-SR

SFP ports

One 1-GB RJ45 serial port running RS-232 (RS-232D

TIA-561)

Serial console port

Two 1050-W AC power supplies (hot-swappable and

redundant as 1+1)

System power

3196 BTU/hrPower consumption

6 fans for front-to-rear coolingFans

Fourteen UCS-SD960G63X-EP (960 GB SSD RAID

Ten UCS-SD76T61X-EV (7.6 TB SSD RAID 6)

Two UCS-SD38T61X-EV (3.8 TB SSD RAID 1)

Hot-swappable

Storage

1RAID controller

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Overview

Features

Package Contents

The following figure shows the package contents for the Secure Endpoint PC4000. Note that the contents are

subject to change and your exact contents might contain additional or fewer items.

Figure 1: Package Contents

RJ-45 to RJ-45 Cat 5 Ethernet cable,

yellow six feet long (Cisco part number

72-1482-XX)

2Chassis1

Cisco Secure Endpoint Private Cloud

Virtual Appliance PC4000

This document has a URL and QR code

that point to the Digital Documentation

Portal. The portal contains links to the

Product Information page, the Hardware

Installation Guide, the Regulatory and

Safety Information Guide, and the Quick

start Guide.

4Cisco rail kit (Cisco part number

800-43376-02)

—SFP+ cables (Optional; in package if

ordered.)

Serial Number Location

The serial number (SN) for the Secure Endpoint PC4000 is printed on the pullout asset card located on the

front panel as shown in the following figure.

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Overview

Package Contents

Figure 2: Serial Number on Pullout Asset Card

The serial number is also on the label on the cover of the chassis as shown in the following figure.

The cover latch on the top of the chassis cover is not supported. There are no internal field-replaceable parts

in the Secure Endpoint PC4000.

Caution

Figure 3: Serial Number Location on Cover

Serial number label1

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Overview

Serial Number Location

Front Panel

The following figure shows the front panel features and disk-drive configuration for the Secure Endpoint

PC4000. See Front Panel LEDs, on page 6 for a description of the LEDs.

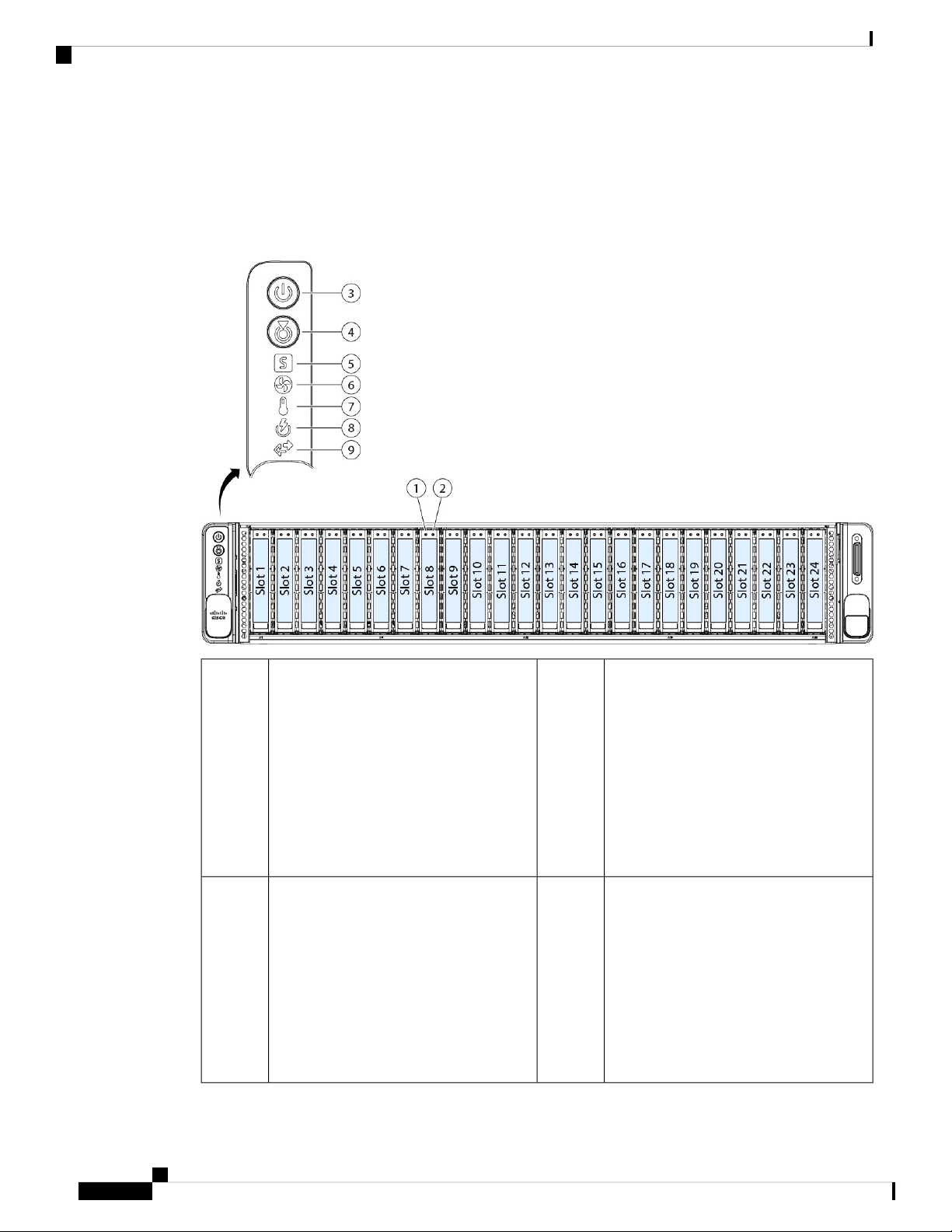

Figure 4: Secure Endpoint PC4000 Front Panel

Drive bays 15-24 populated with 7.6TB

SSDs for the backup volume.

2Drive bays 1-14 are populated with SSDs

for the /data volume.

Unit identification button/LED4Power button/power status LED3

Fan status LED6System status LED5

Power supply status LED8Temperature status LED7

Pullout asset card10Network link activity LED9

——KVM connector

Used with KVM cable that provides one

DB-15 VGA, one DB-9 serial, and two

USB connectors.

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Overview

Front Panel

Front Panel LEDs

The following figure shows the front panel LEDs and describes their states.

Figure 5: Front Panel LEDs and Their States

SAS/SATA drive activity LED

• Off—There is no drive in the drive

tray (no access, no fault).

• Green—The drive is ready.

•Green, flashing—The drive is reading

or writing data.

2SAS/SATA drive fault

•Off—The drive is operating properly.

• Amber—Drive fault detected.

• Amber, flashing—The drive is

rebuilding.

• Amber, flashing with one-second

interval—Drive locate function

activated in the software.

Unit identification

• Off—The unit identification function

is not in use.

• Blue, flashing—The unit

identification function is activated.

4Power button/LED

• Off—There is no AC power to the

appliance.

• Amber—The appliance is in standby

mode.

• Green—The appliance is in main

power mode. Power is supplied to all

appliance components.

Cisco Secure Endpoint PC4000 Hardware Installation Guide

Overview

Front Panel LEDs
