Cisco Network Adapter VIP-FE-TX/4E Manuel de l'opérateur
1
Customer Order Number:
Copyright © 1995
Cisco Systems, Inc.
All rights reserved.
Documentaion Part Number:
VIP-FE-TX/4E Installation and Configuration
Product Number VIP-FE-TX/4E(=)
This configuration note is a standalone publication that provides instructions for installing,
configuring, and maintaining the Fast Ethernet/Ethernet Versatile Interface Processor
(VIP-FE-TX/4E) in your Cisco 7000 series and Cisco 7500 series routers.
The VIP-FE-TX/4E operates with the CxBus in the Cisco 7000 series and CyBus in the Cisco 7500
series, and requires that the host Cisco 7000 series and Cisco 7500 series router is running Cisco
Internetwork Operating System (Cisco IOS) Release 11.1(1) or later, or a Cisco-approved beta
version of Cisco IOS Release 11.1 or later.
Note The entire VIP-FE-TX/4E assembly, with port adapters installed, is a field-replaceable unit
(FRU). Individual port adapters are not available as spare parts.
Included are steps for VIP-FE-TX/4E hardware installation, and basic VIP configuration steps and
examples for configuring the individual interfaces on a new VIP.
This publication has two main sections:
•Versatile Interface Processor Functions, page 3—this section discusses general VIP features,
maintenance considerations, and overall functions
•VIP Port Adapter Functions, page 29—this section contains subsections that discuss each port
adapter and its specific features, configuration and connection requirements, and functions
You need only refer to the information that is specific to your FE-TX and 4E port adapter or that
applies to specific VIP functionality. A table of contents is included on page 2 so you can more easily
find what you need.
Note For complete descriptions of interface subcommands and the configuration options available
for VIP-related interfaces, and which support VIP functionality, refer to the section “If You Need
More Information.”
DOC-782879=
78-2879-01
2VIP-FE-TX/4E Installation and Configuration
Table of Contents
Table of Contents
This configuration note includes the following sections:
•If You Need More Information
•Versatile Interface Processor Functions, page 3
—What is the VIP?, page 3
Note The following section contains important information about the latest Cisco IOS release.
—VIP Software Prerequisites, page 5
—VIP Hardware Prerequisites, page 5
—What is the Cisco 7000 Family?, page 5
—VIP Port Adapter Hardware Configuration Overview, page 10
—VIP Microcode Overview, page 11
—VIP Installation Prerequisites, page 11
—VIP Installation, page 16
—Checking the Installation and Verifying VIP Status, page 19
—Upgrading VIP Microcode, page 23
—Upgrading and Replacing DRAM SIMMs, page 26
•VIP Port Adapter Functions, page 29
—FE-TX Port Adapter, page 29
—4E Port Adapter, page 44
•SELV Circuit Warning Translations, page 57
•Cisco Information Online, page 58
If You Need More Information
The Cisco Internetwork Operating System (Cisco IOS) software running the router contains
extensive features and functionality. The effective use of many of many of these features is easier if
you have more information at hand.
To obtain general information about documentation, call Customer Service at 800 553-6387 or
408 526-7208. Customer Service hours are 5:00 a.m. to 6:00 p.m. Pacific time, Monday through
refer to the Cisco Information Packet that shipped with your router.
VIP-FE-TX/4E Installation and Configuration 3
Versatile Interface Processor Functions
For additional information on configuring the Cisco 7000 series or Cisco 7500 series routers, the
following documentation resources are available to you:
•UniverCD
This publication and all other Cisco Systems publications are available on UniverCD, which is
Cisco’s online library of product information. UniverCD is updated and shipped monthly, so it
might be more up to date than printed documentation. To order UniverCD, contact a Cisco Sales
or Customer Service representative.
•For systems with Cisco IOS Release 11.1(1), a Cisco-approved 11.1 beta software version, or a
later Cisco IOS release, refer to the following modular configuration and modular command
reference publications, as appropriate for your configuration:
—Configuration Fundamentals Configuration Guide
—Configuration Fundamentals Command Reference
—Wide-Area Networking Configuration Guide
—Wide-Area Networking Command Reference
—Standard Network Protocols Configuration Guide
—Standard Network Protocols Command Reference
—Network Protocols Configuration Guide
—Network Protocols Command Reference
—Bridging and IBM Networking Configuration Guide
—Bridging and IBM Networking Command Reference
—Configuration Builder Getting Started Guide
—Troubleshooting Internetworking Systems
Versatile Interface Processor Functions
The following sections describe the Versatile Interface Processor (VIP) and discuss VIP-specific
features and functions, such as installing and removing the VIP, installing and removing port
adapters, and using and configuring common VIP interface functions.
What is the VIP?The VIP is a new interface processor for use with the Cisco 7000 series and Cisco 7500 series
routers, and it installs in the interface processor slots in your Cisco 7000 series or 7500 series router.
The VIP uses a single motherboard with up to two port adapters. The VIP port adapters provide the
individual LAN, WAN, or LAN/WAN interface ports. The VIP can be removed from a chassis while
power is on and the system is operating.
Caution The VIP supports online insertion and removal (OIR), which allows you to remove and
replaceaVIPwithoutfirstshuttingdown the system. Online insertion and removalmaximizesrouter
availability by letting you add or remove VIPs during system operation; however, the system may
indicate a hardware failure if you fail to follow proper procedures. To help avoid problems with the
installation, review the functional description in the section “Online Insertion and Removal—An
Overview” on page 13, and follow the VIP installation steps carefully.
4VIP-FE-TX/4E Installation and Configuration
Versatile Interface Processor Functions
Note The VIP port adapters themselves do not support OIR, nor are they FRUs.
The VIP uses a Reduced Instructions Set Computing (RISC), Mips 4600 processor for high
performance, and has an internal operating frequency of 100 megahertz (MHz) and a 50-MHz
system bus interface. The VIP has 8 megabytes (MB) of dynamic random access memory (DRAM)
as the default DRAM configuration.
Figure 1 shows a VIP-FE-TX/4E. The VIP firmware (microcode), which contains card-specific
software instructions, resides in a Flash memory device in socket location U17. For pinouts, refer to
the section “FE-TX Port Adapter Receptacles, Cables, and Pinouts” on page 33. Single in-line
memory modules contain the DRAM. You can install VIPs in any available interface processor slots
in your Cisco 7000 or Cisco 7500 series router.

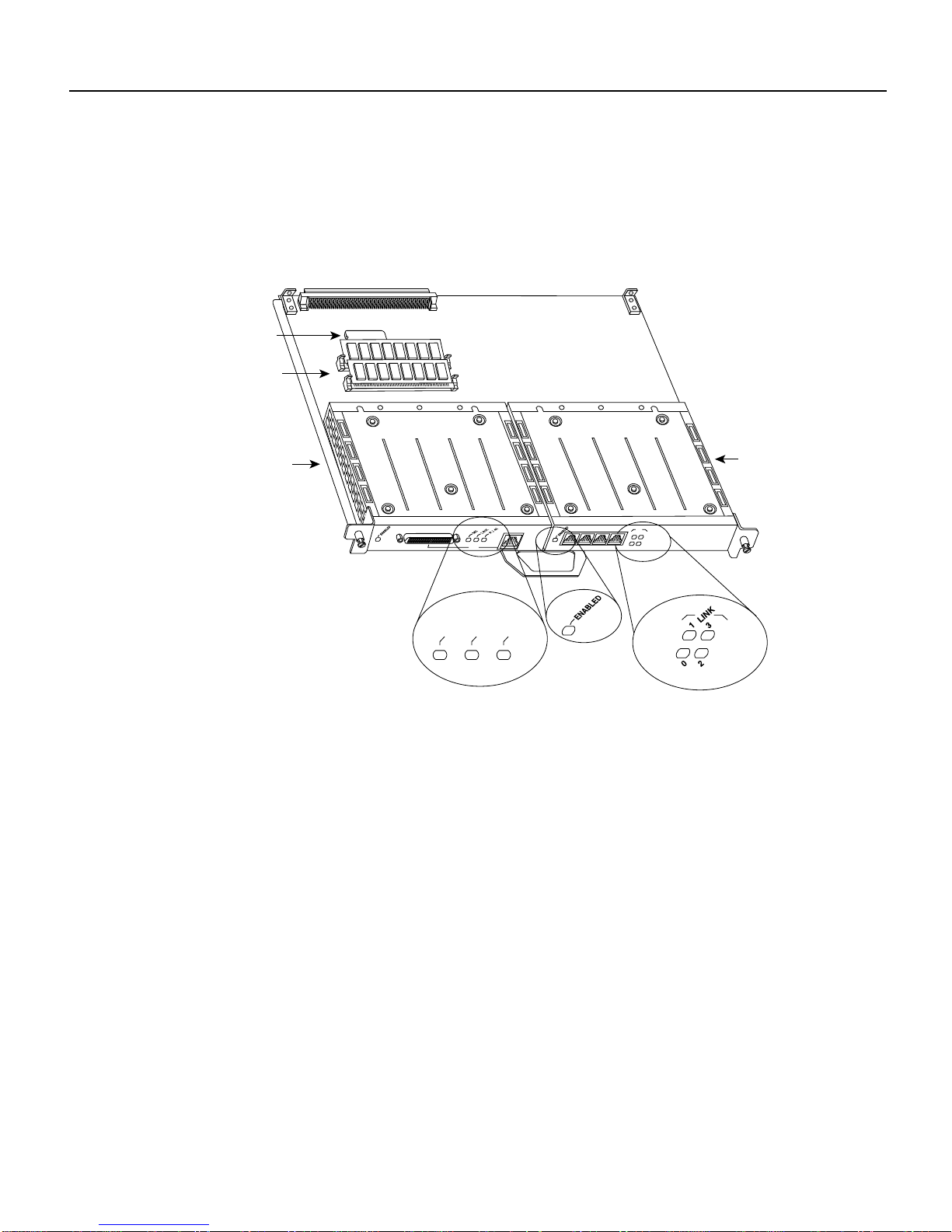

Figure 1 VIP with One FE-TX and One 4E Port Adapter (Product Number VIP-FE-TX/4E[=])
Note In the Cisco 7000, Cisco 7507 and Cisco 7513 chassis, the VIP is installed vertically. In the
Cisco 7010 and Cisco 7505 chassis, the VIP is installed horizontally. Port adapters have a handle
attached, but this handle is not shown to allow a full view of detail on each port adapter’s faceplate.
H4711
DRAM
SIMMs
Microcode
Flash U17
Bus connector
ETHERNET-10BT
LINK
13
02
0
1
2
3
MII
LINK
RJ45
0
FAST ETHERNET
U2
U1
FE-TX in
port adapter
slot 0
4E in port
adapter
slot 1
Port adapter
handles not shown
VIP-FE-TX/4E Installation and Configuration 5
Versatile Interface Processor Functions
VIP Software Prerequisites
The VIP requires that the host Cisco 7000 series and Cisco 7500 series router is running Cisco
Internetwork Operating System (Cisco IOS) Release 11.1(1) or later, or a Cisco-approved beta
version of Cisco IOS Release 11.1 or later.
Note The latest Cisco IOS release is available via anonymous File Transfer Protocol (FTP) from
ftp/[email protected]. Detailed information about the latest Cisco IOS release can be
found in the ASCII file vip1-readme, which is also available via FTP from ftp.cisco.com in the
directory /ftp/beta111_dir. This ASCII file includes information and instructions on how to get
the current Cisco IOS software images and VIP microcode. To access information located in Cisco
Information Online (CIO), refer to the section “SELV Circuit Warning Translations” at the end of
this publication.
VIP Hardware Prerequisites
The VIP operates with the CxBus in the Cisco 7000 series and CyBus in the Cisco 7500 series, and
operates with the optional RSP7000 and RSP7000CI RSP-based processor modules in the
Cisco 7000 series routers: Cisco 7000 and Cisco 7010. The VIP will also operate with the Route
Processor (RP) and Switch Processor (SP) in the Cisco 7000 series routers. The VIP operates with
all RSP-based processor modules currently shipping in the Cisco 7000 series and Cisco 7500 series
routers: Cisco 7505, Cisco 7507, and Cisco 7513.
What is the Cisco 7000 Family?
For the Cisco 7000 family of routers, which includes the Cisco 7000 series and Cisco 7500 series
routers, network interfaces reside on modular interface processors, including the VIP, which provide
a direct connection between external networks and the high-speed CxBus in the Cisco 7000 series
and the high-speed CyBus in the Cisco 7500 series.
In all systems, the remaining slots support any combination of network interface types: Ethernet
attachment unit interface (AUI), Ethernet 10BASE-T, Fast Ethernet 100BASE-TX, Asynchronous
Transfer Mode (ATM), Token Ring, multichannel applications, Fiber Distributed Data Interface
(FDDI), channel attachment, serial, or High-Speed Serial Interface (HSSI), and all VIP–based
interfaces.
6VIP-FE-TX/4E Installation and Configuration
Versatile Interface Processor Functions
Cisco 7000 Series Figure 2 and Figure 3 show the rear of the Cisco 7000 series routers: the seven-slot Cisco 7000 and
the five-slot Cisco 7010, respectively. In the Cisco 7000 series, two slots are reserved for the SP (or
SSP) and RP, or for the 7000 Series Route Switch Processor (RSP7000) and the 7000 Series Chassis
Interface (RSP7000CI). The remaining slots are for interface processors: slots 0 through 4 in the
Cisco 7000, and slots 0 through 2 in the Cisco 7010.
Figure 2 Cisco 7000, Interface Processor End
H5288
Interface processor slots 0 123 4 RSP
7000
slot 5
RSP
7000CI
slot 6
Upper
power supply
Lower
power supply
I
O
DC FAIL
AC POWER
I
O
DC FAIL
AC POWER
Captive
installation screw
Captive
installation screw
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR
ENABLE
ENABLE
VIP-FE-TX/4E Installation and Configuration 7
Versatile Interface Processor Functions
Figure 3 Cisco 7010, Interface Processor End
Cisco 7500 Series Figure 4, Figure 5, and Figure 6 show the rear of the Cisco 7500 series routers: the five-slot
Cisco 7505, the seven-slot Cisco 7507, and the thirteen-slot Cisco 7513, respectively.
In the Cisco 7505, one slot (4) is reserved for the Route Switch Processor (RSP1), which contains
the system processor and performs packet switching functions. Slots 0 through 3 are for interface
processors.
Figure 4 Cisco 7505, Interface Processor End
H5874
RSP7000CI slot 4
RSP7000 slot 3
Interface processor slot 1
DC OK LED
Power switch
Chassis ground
screw
Power receptacle
Interface processor slot 2
Interface processor slot 0
AC-input power supply
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR
ENABLE
ENABLE
H2761
RSP slot
DC OK LED
o
wer switch
Chassis
grounding
receptacles
Power receptacle AC-input power supply
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR
ENABLE
ENABLE
Interface processor slot 1
Interface processor slot 2
Interface processor slot 0
Interface processor slot 3
8VIP-FE-TX/4E Installation and Configuration
Versatile Interface Processor Functions
Figure 5 shows the rear of the seven-slot Cisco 7507 router. In the Cisco 7507, up to two slots (2 and
3) are reserved for the Route Switch Processor (RSP2), which contains the system processor and
performs packet switching functions. Slots 0 and 1 and 4 through 6 are for interface processors.
Figure 5 Cisco 7507, Interface Processor End
ENABLE
ENABLE
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR 2
SLAVE
MASTER
SLAVE/MASTER
H3888
Slot 0 1234 5 6
pper
o
wer supply
hassis
r
ounding
e
ceptacles
o
wer
o
wer supply
I
O
DC FAIL
AC POWER
I
O
DC FAIL
AC POWER
RSP slots
aptive
stallation screw
aptive
stallation screw
VIP-FE-TX/4E Installation and Configuration 9
Versatile Interface Processor Functions
Figure 6 shows the rear of the Cisco 7513 with two AC-input power supplies installed. Two slots (6
and 7) are reserved for the second generation Route Switch Processor (RSP2), which contains the
system processor and performs packet switching functions. Slots 0 through 5 and 8 through 12 are
for interface processors.
Figure 6 Cisco 7513, Interface Processor End
ENABLE
ENABLE
H5268
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR 2
SLAVE
MASTER
SLAVE/MASTER
Blower module
Cable-management
bracket
Card cage and
processor modules
Air intake vent
Power supplies
Chassis grounding
receptacles
0
I
AC
OK FAN
OK OUTPUT
FAIL
0
I
AC
OK FAN
OK OUTPUT
FAIL
POWER
A
POWER
B
10 VIP-FE-TX/4E Installation and Configuration
Versatile Interface Processor Functions
VIP Port Adapter Hardware Configuration Overview
The port adapters attach to the VIP motherboard. (See Figure 7.) Each port adapter contains the
physical connections for the VIP interface types to connect to your network.
Figure 7 VIP with One FE-TX and One 4E Port Adapter (Product Number VIP-FE-TX/4E[=])
Following are the VIP port adapters by interface type:
•Ethernet 10BASE-T—4E
•Fast Ethernet 100BASE-TX—FE-TX
•Synchronous serial—4T
•Token Ring—4R
Following are the supported electrical interfaces:
•4E port adapter—10BASE-T Ethernet, using RJ-45
•FE-TX port adapter—IEEE 802.3u Fast Ethernet 100BASE-TX, using Media Independent
Interface (MII) or RJ-45
•4T port adapter—synchronous serial (EIA/TIA-232, EIA-TIA-449, EIA-530, V.35, and X.21;
determined by the cable), using DB-60, 60-pin mini-D-sub connectors
•4R port adapter—IEEE 802.5 Token Ring, using DB-9, 9-pin D-sub connectors
H4711
DRAM
SIMMs
Microcode
Flash U17
Bus connector
ETHERNET-10BT
LINK
13
02
0
1
2
3
MII
LINK
RJ45
0
FAST ETHERNET
U2
U1
FE-TX in
port adapter
slot 0
4E in port
adapter
slot 1
Port adapter
handles not shown
Table des matières
Autres manuels Cisco Matériel réseau
Cisco
Cisco Remote PHY Shelf 7200 Manuel d'installation
Cisco
Cisco 15530-LCMB-0200 - ESCON Multiplexing Line Card... Manuel
Cisco
Cisco CVPN3015-NR - VPN Concentrator 3015 Manuel utilisateur
Cisco
Cisco Rack-Mount and Cable Mgmt. 7505/7010 Manuel utilisateur
Cisco
Cisco C8510MSR-SKIT-DC - Catalyst 8510 Multiservice Switch... Manuel utilisateur
Cisco
Cisco PC4000 Manuel utilisateur
Cisco
Cisco IPS 7.1 Manuel utilisateur
Cisco
Cisco ONS 15454 Series Manuel
Cisco
Cisco BR1400 Series Guide de référence rapide
Cisco
Cisco Aironet 1430 Series Manuel utilisateur
Cisco
Cisco ONS 15454 DWDM Manuel utilisateur
Cisco
Cisco Aironet 1040 Series Manuel utilisateur
Cisco
Cisco Secure Network Server 3700 Series Manuel
Cisco
Cisco Firepower 4100 Series Manuel utilisateur
Cisco
Cisco Aironet 340 Series Manuel utilisateur
Cisco
Cisco AIR-BR1410A-A-K9 - Aironet 1410 Wireless... Manuel utilisateur
Cisco
Cisco IP/VC 3500 Instructions originales
Cisco
Cisco Linksys NSLU2 Manuel utilisateur
Cisco
Cisco ONS 15200 Series Manuel utilisateur
Cisco
Cisco Wide Area Application Engine 612 Manuel
Manuels Matériel réseau populaires d'autres marques
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuel utilisateur
Yudor
Yudor YDS-16 Manuel utilisateur
D-Link
D-Link ShareCenter DNS-320L Manuel utilisateur
Samsung
Samsung ES1642dc Instructions d'utilisation
Honeywell Home
Honeywell Home LTEM-PV Instructions de montage
