Features

The Cisco Firepower 4100 is a standalone modular security services platform. It is capable of running multiple

security services simultaneously and so is targeted at the data center as a multiservice platform. The series

includes the Firepower 4112, 4115, 4125, and 4145. See Product ID Numbers, on page 29 for a list of the

product IDs (PIDs) associated with the 4100 series.

The Firepower 4100 supports Cisco Secure Firewall Threat Defense, Cisco Secure Firewall eXtensible

Operating System (FXOS), and Cisco Secure Firewall ASA software. See Cisco Firepower 4100/9300 FXOS

Compatibility, which lists software and hardware compatibility information for the Firepower 4100 series.

The following figure shows the Firepower 4100.

Overview

Figure 1: Firepower 4100

The following table lists the features for the Firepower 4100.

Table 1: Firepower 4100 Features

4145412541154112Feature

•Common Criteria (CC) certification for the Network Device

Collaborative Protection Profile (NDcPPv2.2E), VPN

Gateway Module (VPNGW_MOD_v1.1), and Firewall

Module (FW_MOD_v1.4e) for ASA 9.16.x.

• Common Criteria (CC) and Commercial Solutions for

Classified (CSFC) for FTD 6.2.x.

•CC for the Network Device Collaborative Protection Profile

(NDcPPv2.1) for ASA 9.12.xand FX-OS 2.6.x.

• Federal Information Processing Standards (FIPS) 140-2 on

ASA 9.12.x, FTD 6.4.x, and FX-OS 2.6.x.

• Department of Defense Information Network Approved

Product List (DoDIN APL) for ASA 9.12.xand FTD 6.4.x.

• US Government Compliance for IPv6 (USGv6) for ASA

9.8.xand FTD 6.2.x.

Firepower 4112 has not yet completed the above

certifications.

Note

See the "Security Certifications Compliance" chapter

in the Cisco FXOS CLI Configuration Guide or Cisco

FXOS Firepower Chassis Manager Configuration

Guide for the procedure to enable security modes.

Note

—Security standards

certifications

—Certified

——Network Equipment

Building Systems

(NEBS) certification

1 RU

Fits a standard 19-inch (48.3cm) square-hole rack

Form factor

Overview

Features

4145412541154112Feature

Slide rails, mount ears, and screws included (4-post EIA-310-D rack)Rack mount

Front to rear

Cold aisle to hot aisle

Airflow

Two 22-core

2.1-GHz Intel Xeon

6152

Two 16-core

2.1-GHz Intel Xeon

6130T

Two 12-core

2.1-GHz Intel Xeon

4116

One 12-core

2.1-GHz Intel Xeon

4116

Processor

384-GB DRAM

12 x 32-GB

DDR4-2666

192-GB DRAM

12 x 16-GB

DDR4-2666

192-GB DRAM

12 x 16-GB

DDR4-2400

96-GB DRAM

6 x 16-GB

DDR4-2400

Memory

With two 8-port network modules installed

Maximum number

of interfaces

One Gigabit Ethernet

Supports 1-Gb fiber or copper SFPs

Management port

One RJ-45 consoleSerial port

One USB 2.0 Type AUSB port

Eight fixed 1-Gb and 10-Gb SFP+ ports (named Ethernet 1/1 through 1/8)Network ports

Eight fixed 1-Gb and 10-Gb SFP+ portsSmall form-factor

pluggable (SFP)

ports

Displays the serial number; on the front panelPullout asset card

On rear panelGrounding lug

On front panelLocator beacon

On rear panelPower switch

Two network module slots (network module 2 and network module 3)Network modules

Overview

Features

4145412541154112Feature

• 8-port 10-Gigabit Ethernet SFP+

• 4-port 40-Gigabit Ethernet QSFP+

• 8-port 1-Gigabit Ethernet copper with hardware bypass

• 2-port 40-Gigabit Ethernet QSFP+ (built-in) with hardware bypass

• 6-port 1-Gigabit Ethernet SX fiber SFP (built-in) with hardware bypass

• 6-port 10-Gigabit Ethernet SR fiber SFP+ (built-in) with hardware bypass

• 6-port 10-Gigabit Ethernet LR fiber SFP+ (built-in) with hardware bypass

• 2-port 100-Gigabit Ethernet QSFP28

First supported in threat defense 7.2 and ASA 9.18.1.

Note

Supported network

modules

Two (1+1) power supply module slots

Ships with two 1100-W AC power supply

modules

Hot-swappable

Two (1+1) power supply module slots

Ships with one 1100-W AC power supply

module

Hot-swappable

AC power supply

Two (1+1) power supply module slots

950-W DC power supply module

Hot-swappable

DC power supply

(optional)

1+1Redundant power

Six fan module slots

5+1 redundancy

Hot-swappable

Fan

Two SSD slots

Ships with one 800-GB SSD installed in

slot 1. Slot 1 is the primary SSD and

should always be present.

RAID is not supported.

Note

The SSD must be installed in

slot 1. Slot 2 is reserved only

for the optional MSP.

Caution

Two SSD slots

Ships with one 400-GB SSD installed in

slot 1. Slot 1 is the primary SSD and

should always be present.

RAID is not supported.

Note

The SSD must be installed in

slot 1. Slot 2 is reserved only

for the optional Malware

Storage Pack (MSP).

Caution

Storage

Installed in the second SSD slot onlyMSP (optional)

Overview

Features

Deployment Options

Here are some examples of how you can deploy the Firepower 4100:

• In a data center using NGFW and ASA

• At the core/aggregation layer of a 3-tier data center in a high availability configuration

• As a dedicated multifunctional security service within converged infrastructure stacks, for example,

vBlock, FlexPod, and so forth, at the access layer

• As a high-performance data center security appliance between the WAN edge and the data center core

in a high availability configuration

• Inter-DC clustering deployments

• In newer spine/leaf data center designs, deployment as a leaf that exclusively offers security functions

Package Contents

The following figure shows the package contents for the Firepower 4100. Note that the contents are subject

to change and your exact contents might contain additional or fewer items.

Figure 2: Firepower 4100 Package Contents

Blue console cable PC terminal adapter (part

number 72-3383-01)

2Firepower 4100 chassis1

Overview

Deployment Options

10/100/1000BASE-T SFP transceiver4Two power cords (country-specific)

See Power Cord Specifications, on page 32 for

a list of supported power cords.

Cable management bracket kit (part number

69-100376-01)

• Two cable management brackets (part

number 700-106377-01)

• Four 8-32 x 0.375-inch Phillips screws (part

number 48-2696-01)

6Ground lug kit (part number 69-1000359-01):

• One ground lug #6 AWG, 90 degree, #10

post (part number 32-0608-01)

•Two 10-32 x 39-8-inch Phillips Head screws

(part number 48-0700-01)

Two slide rail locking brackets (part number

700-105350-02)

Six 8-32 x 0.375-inch Phillips screws (part

number 48-2696-01)

8Two slide rails with two M3 x 0.5 x 6-mm screws

(48-101144-01)

Flextronics tie wrap and tie wrap clamp (part

number 52-100202-01)

10Artesyn tie wrap and tie wrap clamp (part number

52-100204-01)

—Cisco Secure Firepower 4100

This document has a URL and QR code that point

to the Digital Documentation Portal. The portal

contains links to the Product Information page,

the Hardware Installation Guide, the Regulatory

and Safety Information Guide, the Getting Started

Guide, and the Easy Deployment Guide.

Serial Number Location

The serial number for the Firepower 4100 series chassis is located on the pullout asset card on the front panel.

Overview

Serial Number Location

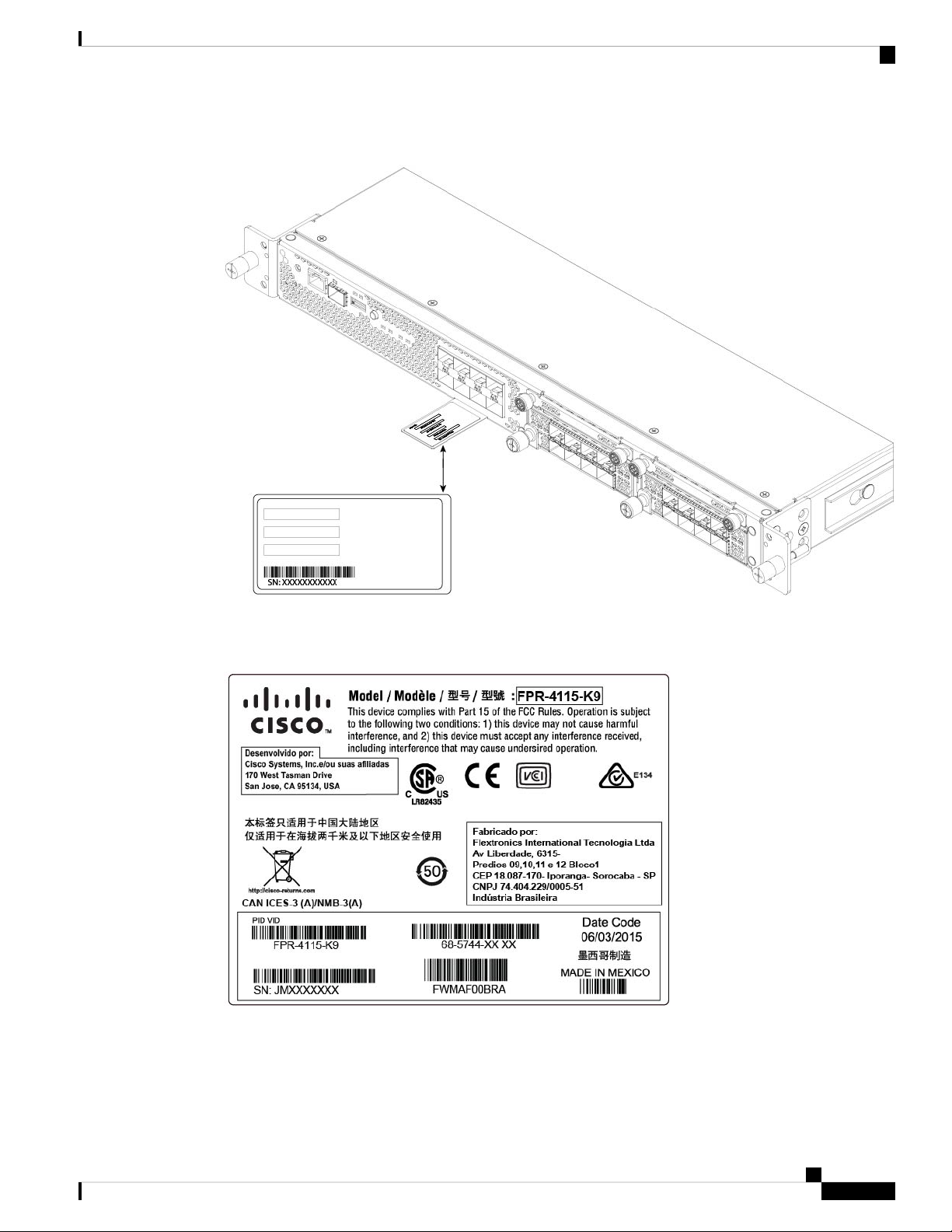

Figure 3: Serial Number on the 4100 Chassis

You can also view additional model information on the compliance label located on the bottom of the chassis.

Figure 4: Compliance Label on the 4100 Chassis

Overview

Serial Number Location

Front Panel

The following figure shows the front panel of the Firepower 4100.

Figure 5: Firepower 4100 Front Panel

Gigabit Ethernet management port2RJ-45 console port1

Eight fixed SFP+ (1-Gb/10-Gb) ports (in network

module slot 1)

Ethernet 1/1 through 1/8 labeled top to bottom,

left to right

4USB 2.0 Type A port3

SSD 2

Reserved for the optional MSP.

6SSD 1

Reserved for the primary SSD; slot 1 must always

be populated.

Locator LED8Power LED7

Network module 2

The 10-Gb network module is shown.

Note

10Pullout asset card9

Network module 3

The 10-Gb network module is shown.

Note

RJ-45 Console Port

The Firepower 4100 has a standard RJ-45 console port. You can use the CLI to configure your Firepower

4100 through the RJ-45 serial console port by using a terminal server or a terminal emulation program

on a computer.

The RJ-45 (8P8C) port supports RS-232 signaling to an internal UART controller. The console port does

not have any hardware flow control, and does not support a remote dial-in modem. The baud rate is 9600.

You can use the standard cable found in your accessory kit to convert the RJ-45 to DB-9 if necessary.

Type A USB Port

You can use the external USB Type A port to attach a data storage device. The external USB drive

identifier is disk1:. The USB Type A port supports the following:

• Hot swapping

Overview

Front Panel

• USB drive formatted with FAT32

• Boot kick-start image from the Supervisor ROMMON for discovery recovery purposes

• Copy files to and from workspace:/ and volatile:/ within local-mgmt. The most relevant files are:

• Core files

• Ethanalyzer packet captures

• Tech-support files

• Security module log files

• Platform bundle image upload using download image usbA:

The USB Type A port does not support Cisco Secure Package (CSP) image upload.

Network Ports

The Firepower 4100 chassis has eight fixed ports that require 1-Gb/10-Gb SFP/SFP+ transceivers (fiber

or copper). They are numbered from left to right starting with 1 and are named Ethernet 1/1 through

Ethernet 1/8. The 4100 also has two network module slots that support different numbers of ports

depending on the network module. See Network Modules, on page 11 for the supported network modules.

See for Supported SFP/SFP+ and QSFP Transceivers, on page 25 the list of supported transceivers.

Each port has LEDs that represent link/activity status.

Management Port

The Firepower 4100 chassis has a management port that requires a 1-Gb fiber or copper SFP.

Front Panel LEDs

The following figure and table describe the Firepower 4100 front panel LEDs.

Figure 6: Front Panel LEDs

Overview

Front Panel LEDs

Health (SYS)

• Off—System is not booting yet.

• Green, flashing—Power-up diagnostics are

complete and system is booting up.

• Green—The system has passed power-up

diagnostics.

• Amber—Power-up diagnostics has failed.

• Amber, flashing—Alarm; power-up

diagnostics are running.

2Management

• Off—No connection or port is not in use.

• Amber—No link or network failure.

• Green—Link up.

• Green, flashing—Network activity.

Power

• Off—Input power not detected.

• Green, flashing—Appears only when you

move the power switch from ON to OFF.

System is shutting down and powers off once

shutdown is completed.

• Amber—System is powering up.

• Green—System fully powered up.

• Amber, flashing—Reserved.

4SSD

• Off— SSD not present.

• Green—SSD is present; no activity.

• Green, flashing—SSD is active.

• Amber—SSD failure.

• Amber, flashing—Rebuilding, flashes at 1

Hz.

•Amber, flashing—Predictive failure analysis

(PFA) and hot spare; two fast flashes at 4

Hz, pause for 0.5 seconds.

Locator LED

• Off—Locate is off.

• Blue—Locate is on.

6Active (ACT)

This LED is not supported; reserved for future

use.

Network activity

• Off—No connection or port is not in use.

• Amber—No link or network failure.

• Green—Link up.

• Green, flashing—Network activity.

Rear Panel

The following figure shows the rear panel of the Firepower 4100.

Overview

Rear Panel

Autres manuels pour Firepower 4100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Matériel réseau

Cisco

Cisco C8510MSR-SKIT-DC - Catalyst 8510 Multiservice Switch... Manuel utilisateur

Cisco

Cisco Linksys Business Series Network Storage System... Manuel utilisateur

Cisco

Cisco 3660 Series Manuel utilisateur

Cisco

Cisco ASR 5500 Manuel utilisateur

Cisco

Cisco EXPLORER 3100 Manuel utilisateur

Cisco

Cisco DS-X9530-SF1-K9 - Supervisor-1 Module - Control... Manuel utilisateur

Cisco

Cisco Network Storage System NSS3000 Series Manuel utilisateur

Cisco

Cisco Remote PHY Shelf 7200 Manuel d'installation

Cisco

Cisco NSS2000 - Gigabit Storage System Chassis Comment utiliser

Cisco

Cisco 7246 - uBR Router Manuel utilisateur

Cisco

Cisco Aironet 340 Series Manuel utilisateur

Cisco

Cisco VSVM Mode d’emploi

Cisco

Cisco NCS 1004 Manuel utilisateur

Cisco

Cisco IAD1101 Manuel utilisateur

Cisco

Cisco ONS 15454 Mode d’emploi

Cisco

Cisco S170 Web Manuel utilisateur

Cisco

Cisco UCS X10c Instructions d'installation et d'entretien

Cisco

Cisco NCS 4016 Manuel utilisateur

Cisco

Cisco GRP= Guide rapide

Cisco

Cisco TELEPRESENCE MCU ACCESSING CONFERENCES - Manuel utilisateur

Cisco

Cisco SA520-K9 - SA 500 Series Security Appliances Manuel utilisateur

Cisco

Cisco MA-UMNT-MR-A3 Manuel utilisateur

Cisco

Cisco ONS 15454 SDH E1-75 Manuel utilisateur

Cisco

Cisco UCS-FI-6332-16UP Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
