Cisco TelePresence

MCU MSE 8510

Getting started

61-0021-03

Contents

General information ................................................................................................................ 3

About the Cisco TelePresence MCU MSE 8510 ................................................ 3

Port and LED location ................................................................................................ 3

LED behavior .............................................................................................................................. 4

Installing the MCU MSE 8510 ............................................................................................... 5

Step one: Install the MCU MSE 8510 into the MSE 8000 chassis ................ 5

Step two: Connect to Ethernet Port A ................................................................. 7

Initial configuration ................................................................................................................. 8

Step one: Configure Ethernet Port A settings .................................................. 8

Step two: Assign an IP address to the MCU MSE 8510 .................................. 8

Configuring the MCU MSE 8510 .......................................................................................... 9

Step one: Log in to the MCU MSE 8510 .............................................................. 9

Step two: Allocate port licences ............................................................................ 9

Step three: Using an H.323 gatekeeper or SIP registrar (optional) ........... 9

Step four: Add endpoints (optional) ..................................................................10

Using the MCU MSE 8510 ....................................................................................................11

Creating conferences ..............................................................................................11

Calling participants in to a conference .............................................................12

Calling in to a conference ......................................................................................12

Streaming conferences ...........................................................................................13

Instructing conference participants ................................................................................14

Checking for updates ............................................................................................................14

Troubleshooting and technical support information ...............................................15

Using the event log to help solve a problem ..................................................15

Getting more help ....................................................................................................15

Disclaimers and notices ........................................................................................................16

General information

About the Cisco TelePresence MCU MSE 8510

The Cisco TelePresence MCU MSE 8510 (MCU MSE 8510) is a technologically

advanced media processor that fits into a Cisco TelePresence MSE 8000 chassis. It

can be used as a Multipoint Control Unit (MCU) combining continuous presence

high definition video conferencing and the highest possible voice quality.

Port and LED location

Figure 1 shows the position of ports and LEDs on the MCU MSE 8510 .

Figure 1: MCU MSE 8510 front panel

Console Port

USB Port

& Activity LEDs

Status LED

Alarm LED

Admin Port

& Activity LEDs

Ethernet Ports & Status LEDs

Power LED

LCD Display

LED behavior

Table 1 describes the behavior of the LEDs.

Table 1: MCU MSE 8510 LED behavior

LED Color Indicates

USB Port Activity Green Reserved for future expansion

Admin Port Activity Green Reserved for future expansion

Status Green The MCU MSE 8510 is operating

normally

Alarm Red The MCU MSE 8510 is booting or has

developed a fault, for example:

temperature is outside normal limits

battery failure of the internal clock

Refer to the web interface for more

information about the problem (go to

Status > Health)

Ethernet Port Status, for each

Ethernet port and Admin port:

FDX Green The link has been negotiated as a full-

duplex link

Act Green Packets are being transmitted on this port

Link Green The speed of the link from this port,

which is either 10, 100, or 1000 Mbps

Power Blue The MCU MSE 8510 is receiving power

from the MSE 8000 chassis.

Installing the MCU MSE 8510

Step one: Install the MCU MSE 8510 into the MSE 8000 chassis

1 Remove the blade or blanking blade from the slot into which you are going to

install the MCU MSE 8510:

i Using a No.1 Phillips screwdriver, loosen the screws in the retaining latches

with an anti-clockwise quarter turn.

ii Open both retaining latches on the front of the blade or blanking blade.

When open, a retaining latch is at a 90° angle perpendicular to the front of

the blade.

Important: Before installing the MCU MSE 8510 into the MSE 8000,

read the safety information guide for the MSE 8000 chassis at

http://www.cisco.com/go/telepresence/safety.

Although blades are hot-swappable parts, you must only remove one

blade at any time. Remove the power from the MSE 8000, if you need to

remove more than one blade at a time.

Before hot-swapping a blade, shut down the blade using the web interface.

Do not shut down a blade during a software upgrade or if the blade is

processing (for example if a conference is taking place on a blade).

The MSE 8000 backplane uses high performance data connectors. Do not

remove MCU MSE 8510 blades unless necessary because doing so may

reduce the life of these connectors.

Make sure that you have the correct power requirements and sufficient

power in your PSU; for information on powering the MSE 8000 refer to

the Getting Started Guide on http://www.tandberg.com/support/video-

conferencing-documentation.jsp).

You must install either a blade or a blanking blade in each of the ten

positions in the chassis.

The Supervisor blade must be installed into slot 1 of the MSE 8000

chassis.

Installing the MCU MSE 8510

iii Slide out the blade or blanking blade.

2 Open both retaining latches on the front of the MCU MSE 8510. When open, a

retaining latch is at a 90° angle perpendicular to the front of the blade.

3 Slide the MCU MSE 8510 into the blade slot (as shown in Figure 2) until it

stops.

4 Simultaneously close both retaining latches on the blade (thereby engaging the

connectors at the rear of the blade) to secure in the chassis as shown in Figure 3.

5 Using a No.1 Phillips screwdriver, tighten the screws in the retaining latches

with a clockwise quarter turn.The power is connected automatically as soon as

you close the latches. The LCD panel displays messages as parts are checked and

eventually you see "Waiting for application to boot" after which the Cisco logo

appears followed by the IP address allocated to the MCU MSE 8510.

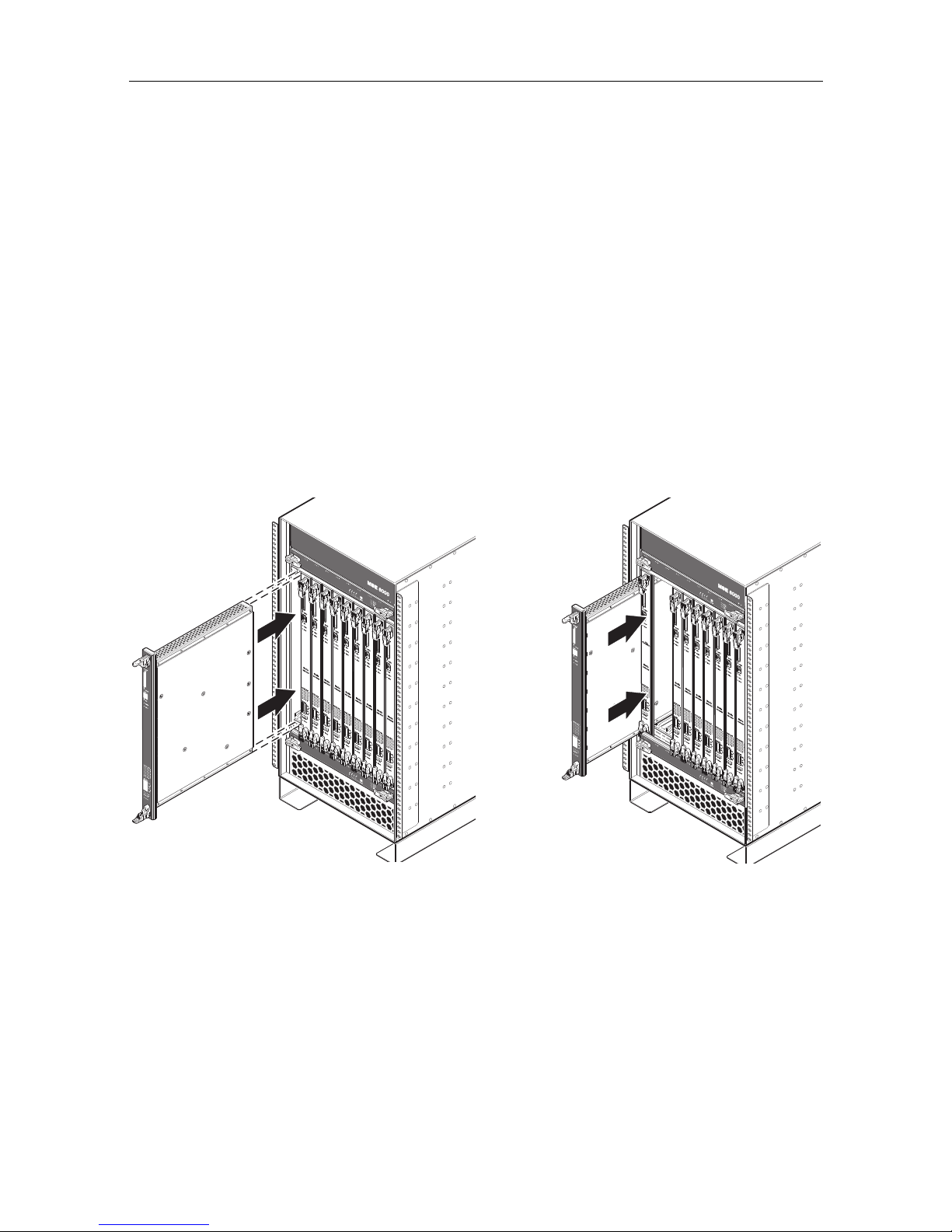

Figure 2: Inserting a blade into the chassis

Installing the MCU MSE 8510

Figure 3: Closing the retaining latches on the front of a blade

Step two: Connect to Ethernet Port A

Connect an Ethernet cable from Ethernet Port A to an Ethernet switch (rather than a

hub, to minimize interference from other devices on the network). The Ethernet

port is a 10/100/1000 Mbps auto-sensing connection.

Ethernet Ports B, C and D may not be supported in the software supplied

with your blade. Do not connect to these ports unless the web interface

allows you to configure them. Do not connect multiple ports to the same

subnet unless instructed to do so by the web interface.

Initial configuration

Step one: Configure Ethernet Port A settings

The default setting for the MCU MSE 8510 Ethernet ports is auto-sensing mode. If

the switch ports to which you connect the MCU MSE 8510 are not also set to auto-

sensing mode, then you need to configure the MCU MSE 8510 Ethernet ports to use

the same speed and duplex mode.

To configure Ethernet Port A, log in to the Supervisor’s web interface and go to

Hardware > Blades. For more information about configuring the port, refer to the

online help accessible from the Supervisor’s web interface.

Step two: Assign an IP address to the MCU MSE 8510

You can use the Supervisor’s web interface to configure the IP addresses of all blades

installed in the MSE 8000. Note that all blades are supplied with DHCP enabled. and

therefore the MCU MSE 8510 will attempt to find an IP address. The LCD panel will

show the IP address allocated. You can either keep this setting or assign static IP

addresses to a blade from the Supervisor’s web interface. To view or configure the IP

address of the MCU MSE 8510, log in to the Supervisor and go to Hardware >

Blades. To access the web interface of the MCU MSE 8510, go to Hardware >

Blades and click the IP address of that blade.

Both ends of the Ethernet connection must be configured in the same

way. For example, either configure both ends of the link to be auto-

sensing or configure both ends to operate at the same speed and duplex.

To establish a 1000Mbps connection, both ends of the link must be

configured as auto-sensing.

Configuring the MCU MSE 8510

Step one: Log in to the MCU MSE 8510

All administration of the MCU MSE 8510 is performed via the web interface.

To log in to the web interface of the MCU MSE 8510 :

1 Log in to the Supervisor’s web interface.

2GotoHardware > Blades and click the IP address of the MCU MSE 8510.

3Click

information page is displayed.

Step two: Allocate port licences

Port licenses must be allocated to the MSE 8510 from the Supervisor's Port licenses

page. Where the MSE 8510 is supporting high definition conferencing, each port

requires more than one port license. Refer to the online help for assistance.

Step three: Using an H.323 gatekeeper or SIP registrar

(optional)

If you have H.323 endpoints, using an H.323 gatekeeper can make it easier for

participants to call in to a conference. You can configure the MCU MSE 8510 to use

an external gatekeeper or its own built-in gatekeeper. For information about using

the built-in gatekeeper, refer to the online help.

If you have SIP endpoints, using a SIP registrar can make it easier for participants to

call in to a conference.

To configure the MCU MSE 8510 to use an H.323 gatekeeper:

1 In the web interface of the MCU MSE 8510 , go to Settings > H.323.

2Enable

H.323 gatekeeper usage and configure the settings you require, using

the online help for further assistance.

3Click

Apply changes.

Cisco recommends that you change the admin account to use a password

as soon as possible. To do that, click Change password on the Login

information page or go to Users, click the admin link, and provide the

required user information.

Configuring the MCU MSE 8510

To configure the MCU MSE 8510 to use a SIP registrar:

1 In the web interface, go to Settings > SIP.

2 Configure the settings you require, using the online help for further assistance.

3Click

Apply changes.

Step four: Add endpoints (optional)

One way to add participants to a conference that you create is to have the MCU MSE

8510 automatically call them when the conference starts. To do this, you configure

their endpoints on the MCU MSE 8510 . When you set up a conference, you can

choose the endpoints from the Pre-configured participants list. This is easier than

entering each endpoint’s details every time. Participants that are pre-configured for a

conference will automatically be called by the MCU MSE 8510 to join that

conference.

To define pre-configured endpoints:

1 In the web interface of the MCU MSE 8510 , go to Endpoints:

To add a H.323 endpoint, click Add H.323

To add a SIP endpoint, click Add SIP

To add a VNC screen, click Add VNC

2 Configure the endpoint settings you require, using the online help for further

assistance.

3Click

Add endpoint.

Before you configure the MCU MSE 8510 to use, and register

conferences to, a SIP registrar, you must set up the MCU MSE 8510 and

its conferences on that SIP registrar.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Matériel réseau

Cisco

Cisco Mc3810 - 16MB Flash Memory Guide rapide

Cisco

Cisco Catalyst X6148 Manuel utilisateur

Cisco

Cisco NCS 6008 LCC Mode d’emploi

Cisco

Cisco IDS-4230-FE - Intrusion Detection Sys Fast Ethernet... Manuel de l'opérateur

Cisco

Cisco ONS 15310-MA SDH Manuel

Cisco

Cisco ISA 3000 Guide de démarrage rapide

Cisco

Cisco CPS-MSP-1RU-K9 Manuel utilisateur

Cisco

Cisco Firepower 1010 Manuel utilisateur

Cisco

Cisco ASA 5506-X Manuel

Cisco

Cisco SCE 2000 4/8xFE Manuel de l'opérateur

Cisco

Cisco Cisco 5400 ENCS Manuel

Cisco

Cisco ONS 15454 SDH Manuel

Cisco

Cisco Cisco ONS 15600 SDH Manuel utilisateur

Cisco

Cisco CMX 3375 Manuel utilisateur

Cisco

Cisco UCS X10c Instructions d'installation et d'entretien

Cisco

Cisco NAC3350-PROF-K9 - NAC Profiler Server Manuel utilisateur

Cisco

Cisco ATA 191 Manuel utilisateur

Cisco

Cisco S170 Web Manuel utilisateur

Cisco

Cisco ASA Guide de démarrage rapide

Cisco

Cisco 3600 Series Instructions d'utilisation et de sécurité

Cisco

Cisco 2610 - Router - EN Manuel utilisateur

Cisco

Cisco 40-Gigabit and 100-Gigabit CFP Transceiver... Guide de démarrage rapide

Cisco

Cisco Aironet 1430 Series Manuel utilisateur

Cisco

Cisco 2650XM Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
