Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 3

Contents

Overview....................................................................................................4

Certified Product Summary ..............................................................4

Known Limitations .............................................................................5

Polycom References ............................................................................5

Product Support ..................................................................................6

Section 1: Configuration for SVP Operation...........................................7

Network Topology..............................................................................7

Configuring a New Controller Starting from Factory

Defaults.................................................................................................7

Connecting to the Controller Via a Browser ...................................8

Installing Software ..............................................................................9

Controller Setup ..................................................................................9

Connecting APs.................................................................................10

AP Configuration..............................................................................11

Setting up the SSID ...........................................................................17

Section 2: Configuration for Wi-Fi Standard QoS or CCXv4

Operation.................................................................................................23

Network Topology............................................................................23

Configuring a New Controller Starting from Factory

Defaults...............................................................................................24

Connecting to the Controller Via a Browser .................................24

Installing Software ............................................................................25

Controller Setup ................................................................................26

Connecting APs.................................................................................27

AP Configuration..............................................................................28

Setting up the SSID ...........................................................................37

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

Overview

Polycom’s Voice Interoperability for Enterprise Wireless (VIEW)

Certification Program is designed to ensure interoperability and high

performance between SpectraLink Wireless Telephones and WLAN

infrastructure products.

The products listed below have been thoroughly tested in Polycom’s

lab and have passed VIEW Certification. This guide describes the

configuration of Cisco 2100/4400/5500 Series WLC (Wireless LAN

Controller), WiSM (Wireless Services Module) and 3750G Integrated

WLC with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs with

SpectraLink 8020/8030 Wireless Telephones.

Certified Product Summary

Manufacturer:

Cisco Systems: www.cisco.com

Certified products:

Controllers:

2100, 4400, 5500 Series WLC

(Wireless LAN Controller)

3750G Integrated WLC

WiSM (Wireless Services

Module)

APs:

1100

1130

1140

1200

1230

1240

1250

AP Radio(s):

2.4 GHz (802.11b/g/n), 5 GHz (802.11a/n)

Security:

WPA-PSK, WPA2-PSK, WPA2-Enterprise (EAP-FAST

and PEAPv0/MSCHAPv2) with CCKM (Cisco Client Key

Management)

QoS:

SVP, Wi-Fi Standard QoS, CCXv4

AP and WLC software version

tested:

5.2.193.0†

6.0.199.4††

Handset models tested:

SpectraLink 8020/8030 Wireless Telephone*

Radio mode:

802.11b & b/g mixed

802.11a

Meets VIEW minimum call

capacity per AP:

8 calls (SVP)

6 (Wi-Fi Standard QoS)**

6 (CCX)**

12 calls (SVP)

8 (Wi-Fi Standard QoS)**

8 (CCX)**

Network topology:

Switched Ethernet (recommended)

† Push-to-talk (PTT) audio quality may be impaired on Cisco 1140 and 1250 802.11n APs with

version 5.2.193.0 certified software. All customers requiring PTT using these models should pilot

test this feature at their deployment site.

†† Screen captures included in this document are for Cisco software version 6.0.199.4. Refer to

Version D of this guide for screen captures for software version 5.2.193.0.

Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 5

*SpectraLink handset models 8020/8030 and their OEM derivates are verified compatible with

the WLAN hardware and software identified in the table. Throughout the remainder of this

document they will be referred to collectively as “SpectraLink Wireless Telephones” or

“handsets”.

** ONLY Release 3.0 capable handsets support WPA2-Enterprise, Wi-Fi Standard QoS, and

CCXv4. Release 3.0 is not be available for Polycom handsets connecting to traditional PBXs.

Known Limitations

Push-to-talk (PTT) audio quality may be impaired on Cisco 1140

and 1250 802.11n APs with version 5.2.193.0 certified software.

All customers requiring PTT with these models should pilot test

this feature at their deployment site.

Heavy multicast, broadcast or push-to-talk (PTT) traffic may

impair voice quality.

Polycom References

Please refer to the Polycom Deploying Enterprise-Grade Wi-Fi Telephony

white paper. This document covers the security, coverage, capacity

and QoS considerations necessary for ensuring excellent voice quality

with enterprise Wi-Fi networks.

For more detailed information on wireless LAN layout, network

infrastructure, QoS, security and subnets, please see the Best Practices

Guide for Deploying SpectraLink 8020/8030 Wireless Telephones. This

document identifies issues and solutions based on Polycom’s

extensive experience in enterprise-class Wi-Fi telephony. It provides

recommendations for ensuring that a network environment is

adequately optimized for use with SpectraLink 8020/8030 Wireless

Telephones.

These two white papers are available at:

http://www.polycom.com/products/voice/wireless_solutions/wifi

_communications/handsets/spectralink_8020_wireless.html

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

Product Support

This document does not cover the steps involved in converting

autonomous APs to Lightweight mode such that they can be

controlled by the Cisco WLCs.

Please contact Cisco's Customer Support at www.cisco.com for

instructions on this procedure. Once the APs are converted, this

document can be used to provision APs.

This document does not cover the steps involved to configure a

RADIUS server required for using WPA2-Enterprise or Cisco FSR

security types.

1. Installation and configuration guides for Cisco Wireless LAN

Controllers can be found on Cisco’s website.

2. To convert the Cisco 1200 Series Autonomous AP to Lightweight

mode, go to:

http://www.cisco.com/en/US/docs/wireless/access_point/con

version/lwapp/upgrade/guide/lwapnote.html

3. For more information on the APs in Lightweight mode, see Cisco

Aironet Access Point Support for Lightweight Access Point

Protocol [Cisco Aironet 1130 AG Series] and Cisco Aironet Access

Point Support for Lightweight Access Point Protocol [Cisco

Aironet 1240 AG Series].

4. Screen captures included in this document are for Cisco software

version 6.0.199.4. Refer to Version D of this guide for screen

captures for software version 5.2.193.0.

5. For other assistance, contact either Cisco’s or Polycom’s customer

service at:

www.cisco.com or www.polycom.com

Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 7

Section 1: Configuration for SVP Operation

Network Topology

SIP PBX

TFTP Server, DHCP Server

RADIUS Authentication Server

(for WPA2-Enterprise Security)

Wireless Data Client

SpectraLink 8000 series

Wireless Telephones

Cisco4400 Series

WIRELESSLAN CONTROLLER

MODEL4402 50 AP

CONSOLE

STATUS

ALARM

PS1

PS2

LINK ACT

SERVICE

LINK ACT

UTILITY 1 2

LINK

ACT

Cisco WLC

Cisco AP

SVP Server

This configuration is not applicable to all customer environments.

Configuring a New Controller Starting from Factory Defaults

1. Initial provisioning of the controller is done via the command line

interface (CLI). Connect a null modem serial cable between the

console port of the controller and the serial port of a PC.

2. Open a terminal program, such as Hyper Terminal, and configure the

port settings to 9600 baud, no parity, 8 data bits and 1 stop bit.

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

3. Power-on the controller. Status of the controller’s boot process will

appear as the controller is powering up. Once the controller is

running, it will prompt you to run the Startup Wizard.

4. The Startup Wizard provides for an easy means to perform initial

controller setup and provisioning. Refer to the Installation and Startup

Guide for the Cisco 4400 Series WLC, or other appropriate controller,

found at Cisco’s website. This document contains a detailed

explanation of using the Startup Wizard for the 4400:

http://www.cisco.com/en/US/docs/wireless/controller/4400/quic

k/guide/ctrlv32.html#wp34023

5. Once the controller has been configured via the Startup Wizard, the

remaining configuration can be configured through the switch-web

interface using a Web browser (Cisco recommends using MS IE 6.0+).

6. If necessary, the controller can be reset to factory defaults. To reset

the WLC to factory default, you must reboot, then type Recover-

config at the CLI. This only works before the first time a user logs in

via the console.

Connecting to the Controller Via a Browser

1. Connect to the WLC by pointing your internet browser to the URL:

https<IP_Addr> (where <IP_Addr> is the IP address of the

management interface of the WLC).

2. Click the Login prompt. The default User Name and Password is

admin.

3. Once logged in properly, a page similar to the one below displays.

Section 1: SVP Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 9

Installing Software

1. Make sure that the correct version of software, listed in the Product

Summary, is installed on the controller. From the main menu, click

Monitor.

2. In the navigation pane, click Summary. The heading labeled Software

Version shows the current software version.

3. Download the appropriate software for your model of controller from

the Cisco website.

4. Set up a Trivial File Transfer Protocol (TFTP) server running on a PC

to download the file to the controller.

5. Connect to the controller via a Web browser.

6. From the main menu, click Commands.

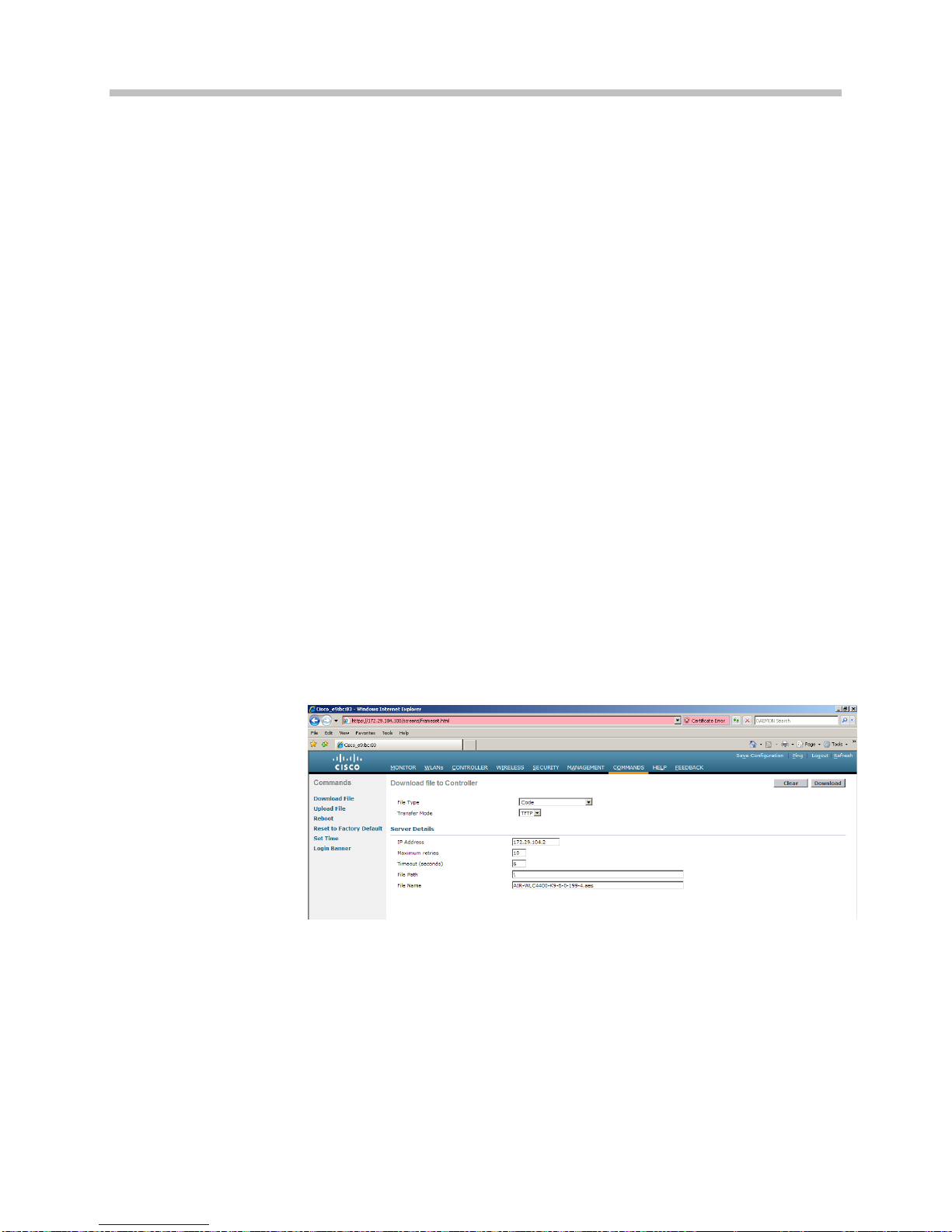

7. In the navigation pane, click Download File.

8. For File Type, select Code.

9. For TFTP Server, type in the IP Address of the TFTP server.

10. Add the File Path (this is the path in the TFTP server’s root directory

and not the system path where the TFTP server is located) and File

Name of the firmware file to download.

(Note the example simply uses the /designator for the root TFTP

directory.) Point the TFTP server to the code.

11. Allow a few minutes for the download to complete.

12. Reboot the Controller

Controller Setup

The initial setup of the controller is shown below.

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

The setup instructions outlined in this document are for the

configuration shown in the diagram only. Your configuration may

differ, and the appropriate adjustments must be made.

1. From the main menu, click Controller.

2. Set the Ethernet Multicast Mode to Multicast and enter a multicast IP

address that is currently not being used on your network for the

Multicast Group Address.

3. Click the Apply button.

4. Click Save Configuration.

Connecting APs

As the APs are connected to the network, they should automatically

find the controller via the CAPWAP discovery algorithms. The

Dynamic Host Configuration Protocol (DHCP) server will assign each

AP an IP address.

You can configure a DHCP server to run on a remote PC for a small

deployment. However, for large-scale deployments, an enterprise-

grade DHCP server must be used.

The ap-manager and management interfaces’ configuration should

include the DHCP server you have configured. Alternately, you can

configure the DHCP server internally on the controller to hand out

leases to the connected clients. (Note: The WLC’s DHCP server does

not lease addresses to the AP.) The instructions for doing so are

included at the end of this document.

1. From the main menu, click Controller.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Matériel réseau

Cisco

Cisco ONS 15310-MA SDH Manuel

Cisco

Cisco Mc3810 - 16MB Flash Memory Guide rapide

Cisco

Cisco ASA Guide de démarrage rapide

Cisco

Cisco RSP4+ Bootflash Memory Upgrade to 16MB... Manuel de l'opérateur

Cisco

Cisco 5400 Manuel utilisateur

Cisco

Cisco GS7000 Mode d'emploi

Cisco

Cisco 8540 - Catalyst Campus Switch Router Modular Expansion... Manuel utilisateur

Cisco

Cisco UCS-FI-6332-16UP Manuel utilisateur

Cisco

Cisco UCS X10c Instructions d'installation et d'entretien

Cisco

Cisco ASA 5506-X Manuel

Cisco

Cisco CGR 1240 Manuel utilisateur

Cisco

Cisco NSS4100 - Gigabit Storage System Mode d’emploi

Cisco

Cisco AIR-BR350-A-K9 - Aironet 350 Wireless Bridge Manuel

Cisco

Cisco Linksys NSLU2 Manuel utilisateur

Cisco

Cisco Firepower 2130 Guide de maintenance et de service

Cisco

Cisco ONS 15600 Manuel utilisateur

Cisco

Cisco MERAKI CW9166D1 Manuel utilisateur

Cisco

Cisco WAVE-574-K9 - Wide Area Virtualization Engine... Manuel

Cisco

Cisco Fourth-Generation Versatile Interface Processor... Manuel de l'opérateur

Cisco

Cisco Firepower 1010 Series Manuel

Cisco

Cisco ONS 15454 SDH Manuel

Cisco

Cisco ONS 15454 Manuel utilisateur

Cisco

Cisco Cisco ASA Series Manuel utilisateur

Cisco

Cisco Edge Concentrator MGX 8220 Manuel de référence

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
