Cisco Linksys SPA8000-XU Instructions d'utilisation d'origine

QUICK INSTALLATION

8-Port Telephony

Gateway

Model: SPA8000

Package Contents

8-Port Telephony Gateway

RJ-45 Ethernet Cable

Power Supply

Power Cord

Quick Installation

•

Table of Contents

Connect....................................................4

Conﬁguration...............................................6

Interactive Voice Response Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

RegulatoryInformation....................................12

WEEEInformation .........................................16

Warranty..................................................22

ContactInformation.......................................23

Before You Begin

Make sure you have the following:

An active Network connection

Active Internet phone service accounts and settings (if connecting to Internet phone service)

A cable/DSL modem (if connecting to Internet)

One computer for conﬁguration of the Gateway or an analog telephone with an RJ-11 phone

cable

NOTE: If the Gateway is pre-configured by your ITSP, then you

do not need to change any of the default voice settings. Refer to

the documentation supplied by your service provider for more

information.

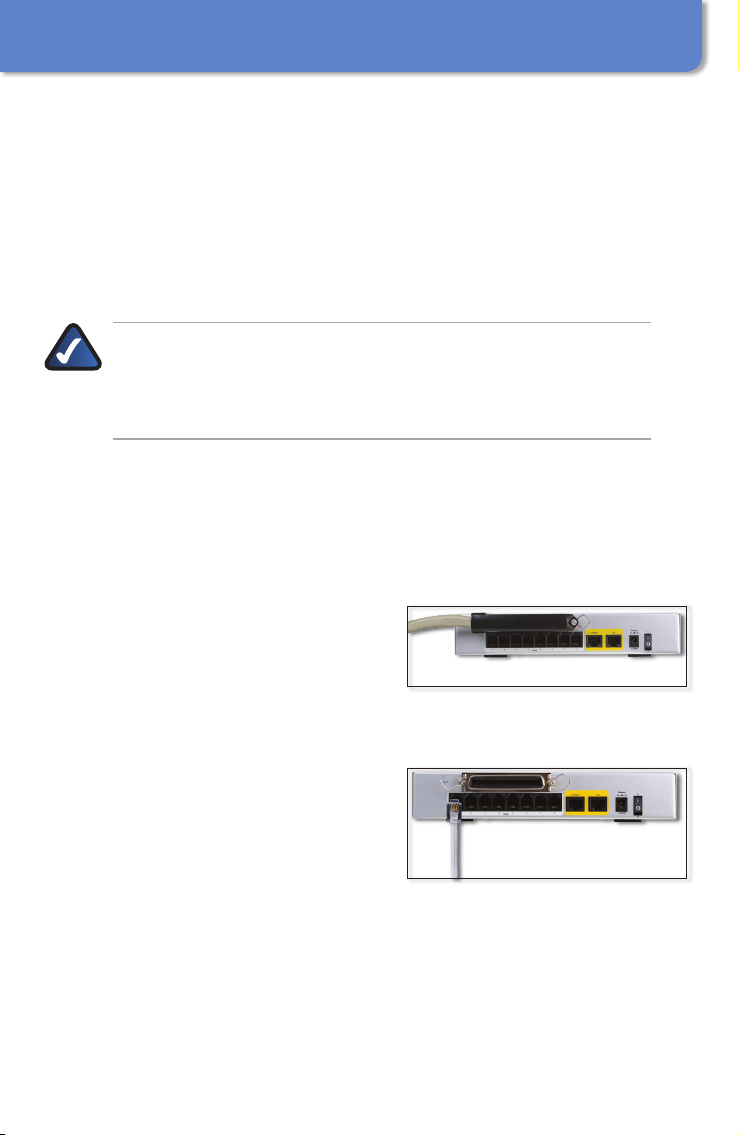

Power off your network devices,

including your modem and PC.

If you have an RJ-21 connector

available, you can connect to

the RJ-21 port on the back of the

Gateway. Then skip to step E. If you

are connecting individual phone

lines, go to step C.

Connect one end of an RJ-11 phone

cable to the Gateway’s PHONE 1

port. Connect the other end to your

analog telephone.

Repeat Step C with each PHONE

port if you have an additional

telephones to connect.

•

RJ-21 ConnectionRJ-21 Connection

RJ-11 Phone portRJ-11 Phone port

Connect1�

Connect one end of an Ethernet

network cable (included) to the

ETHERNET port of the Gateway.

Connect the other end to your

cable/DSL modem.

Connect one end of a different

Ethernet network cable to the AUX

port of the Gateway. Connect the

other end to the Ethernet port of

your PC.

Power on the cable/DSL modem.

Connect the included power

adapter to the Gateway’s power

port, and then plug the power

adapter into an electrical outlet.

Press the On switch to power on

the Gateway. The power LEDs on

the front panel will light up as soon

as the Gateway powers on.

Power on your PC.

NOTE: Make sure your PC’s Ethernet adapter is set to obtain an

IP address automatically. For more information, refer to Windows

Help.

Ethernet ConnectionEthernet Connection

AUX ConnectionAUX Connection

Power PlugPower Plug

Configuration2�

Launch the web browser on the PC.

Enter http://192.168.0.1/

advanced in the Address field

(192.168.0.1 is the default local IP

address of the Gateway). Then press

Enter.

If your Internet Telephony Service

Provider (ITSP) did not supply a

password, you will not see a login

screen. Proceed to step D.

If your ITSP supplied a password,

you will see a login screen. In the

User Name field, enter user, which

is the default user name for user

access (this cannot be changed).

Then enter the password supplied

by your ITSP.

The Router - Status screen will

appear. Click the WAN Setup tab.

Proceed to the appropriate

instructions for your Internet

Connection Type: DHCP, Static IP,

or PPPoE.

DHCP

Select DHCP for the

Connection Type.

If you use a cable modem, you

may need to configure the

MAC Clone Settings. (Contact

your ISP for more information.)

Enable MAC Clone Service.

If your service uses a specific

PC MAC address, then select

yes from the Enable MAC Clone

Router - Status ScreenRouter - Status Screen

Enable MAC Clone ServiceEnable MAC Clone Service

Service setting. Then enter the

PC’s MAC address in the Cloned

MAC Address field.

Click Submit All Changes.

Static IP

Select Static IP for the

Connection Type.

In the Static IP Settings section,

enter the IP address in the

Static IP field, the subnet mask

in the NetMask field, and the

default gateway IP address in

the Gateway field

In the Optional Settings

section, enter the DNS server

address(es) in the Primary DNS

and optional Secondary DNS

fields.

Click Submit All Changes.

PPPoE (most DSL users)

Select PPPoE for the

Connection Type.

Enter the user name in the

PPPoE Login Name field, and

enter the password in the

PPPoE Login Password field.

Click Submit All Changes

If the Gateway is pre-configured by your ITSP, then you do not need to change

any of the default voice settings. Refer to the documentation supplied by your

service provider for more information.

If you want to change the settings for your Internet phone service, refer to the

User Guide, which is available on the Linksys website at www.linksys.com.

If you want to configure network settings using the Interactive Voice Response

Menu, refer to the next section.

Static IPStatic IP

PPPoEPPPoE

This section explains how to use the Interactive Voice Response Menu to

configure the Gateway’s network settings. You will use the telephone’s keypad

to enter your commands and select choices, and the Gateway will use voice

responses.

To access the Interactive Voice Response Menu:

Use a telephone connected to the PHONE port of the Gateway. (You can

only access the Interactive Voice Response Menu through an analog

telephone, not any of the Internet phones.)

Press **** (in other words, press the star key four times).

Wait until you hear the“Linksys configuration menu—please enter the

option followed by the # (pound) key or hang up to exit” response.

Refer to the following table that lists actions, commands, menu choices, and

descriptions. After you select an option, press the # (pound) key. To exit the

menu, hang up the telephone.

Using the Interactive Voice Response Menu

While entering a value, such as an IP address, you may exit without entering any

changes. Press the * (star) key twice within half a second. Otherwise, the * will

be treated as a decimal point or dot.

After entering a value, such as an IP address, press the # (pound) key to indicate

you have finished your selection. To save the new setting, press 1. To review the

new setting, press 2. To re-enter the new setting, press 3. To cancel your entry

and return to the main menu, press * (star).

For example, to enter the IP address 191.168.1.105 by keypad, press these keys:

191*168*1*105. Press the # (pound) key to indicate that you have finished

entering the IP address. Then press 1 to save the IP address or press the * (star)

key to cancel your entry and return to the main menu.

If the menu is inactive for more than one minute, the Gateway will time out. You

will need to re-enter the menu by pressing ****.

The settings you have saved will take effect after you hang up the telephone.

The Gateway may reboot at this time.

Interactive Voice Response Menu3�

Interactive Voice Response Menu

Action Command Choices Description

Enter Interactive

Voice Response

****

Use this command to enter

the Interactive Voice Response

Menu. Do not press any other

keys until you hear, “Linksys

configuration menu. Please

enter the option followed by

the # (pound) key or hang up

to exit.”

Check Internet

Connection Type 100 Check static or dynamic IP

address assignment.

Set Internet

Connection Type

101 DHCP - 0

Static IP - 1

PPPoE - 2

PPPoe, DHCP - 3

DHCP, PPPoE - 4

Select the type of Internet

connection you are using. Refer

to the documentation supplied

by your Internet Service

Provider (ISP)

Check IP Address

(Ethernet Port)

110 Hear the IP address assigned

to the Gateway’s Internet

(external) interface.

Set Static IP

Address

111 First, set the Internet

Connection Type to static IP

address; otherwise, you will

hear, “Invalid Option,”if you try

to set the static IP address. Use

the * (star) key when entering a

decimal point.

Check Network

Mask (or Subnet

Mask)

120 Hear the network or subnet

mask assigned to the Gateway.

Set Network (or

Subnet) Mask

121 First, set the Internet

Connection Type to static IP

address; otherwise, you will

hear, “Invalid Option,”if you try

to set the network or subnet

mask. Use the * (star) key when

entering a decimal point.

Check Gateway

IP Address

130 Hear the IP address of the

Gateway (usually the network

router).

Interactive Voice Response Menu

Action Command Choices Description

Set Gateway IP

Address

131 First, set the Internet

Connection Type to static IP

address; otherwise, you will

hear, “Invalid Option,”if you try

to set the gateway IP address.

Use the * (star) key when

entering a decimal point.

Check MAC

Address

140 Hear the MAC address of the

Gateway in hexadecimal string

format.

Check Firmware

Version

150 Hear the version number of

the firmware running on the

Gateway.

Check Primary

DNS Server IP

Address

160 Hear the IP address of the

primary DNS (Domain Name

Service) server.

Set Primary DNS

Server IP Address

161 First, set the Internet

Connection Type to static IP

address; otherwise, you will

hear, “Invalid Option,”if you

try to set the IP address of the

primary DNS server. Use the

* (star) key when entering a

decimal point.

Check Internet

Web Server Port

170 Hear the port number of the

Internet Web server used for

the Web-based utility

Check AUX port

IP Address

210 Hear the IP address of the AUX

port.
