Canon WFT-E8A Manuel utilisateur

This manual is for the EOS-1D X Mark II installed with firmware version

1.1.0 or later.

INSTRUCTION MANUAL

Wireless File Transmitter

WFT-E8

This product also supports certain CINEMA EOS cameras. For compatible

products, contact the nearest Canon Service Center. When using the

transmitter, refer to “Guide for Canon Camcorders”.

The transmitter is an accessory for EOS cameras that enables wireless

functions when attached to the camera.

Using the transmitter’s wireless functions enables you to do the

following:

Introduction

What You Can Do with the Transmitter

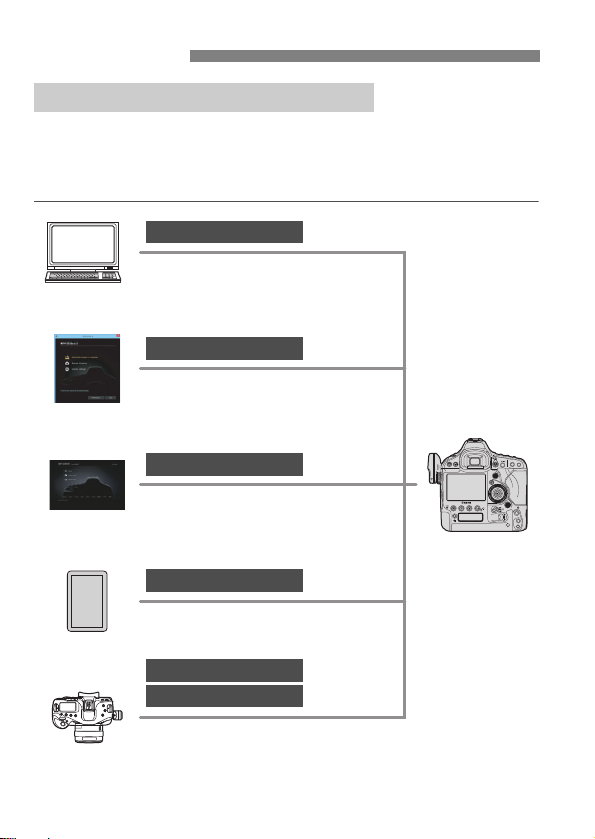

Use EOS Utility to shoot, view, and

download images remotely

FTP Transfer

WFT Server

Linked Shooting

Transfer images to an FTP server

Wirelessly trigger shooting by slave

cameras linked to a master camera

Synchronize time between the

same camera models

Use a web browser to shoot, view, and

download images remotely

EOS Utility

Smartphone

Sync the Camera Time

Use a smartphone to shoot, view, and

download images remotely

To comply with local radio wave regulations, Canon offers five

region-specific versions of the transmitter (A, B, C, D, and E) in

various areas around the world (see separate sheet). For

convenience, the product in this manual is referred to as “WFT-E8”,

without reference to the versions A, B, C, D, or E.

In this manual, the term “access point” indicates wireless LAN

access points, wireless LAN routers, etc. that relay a LAN

connection.

These instructions should be followed only after setting up your LAN

and FTP server environments. For information about setting up the

environments, refer to the documentation provided with each device

or contact the manufacturer.

The EOS-1D X Mark II is used for operation instructions,

illustrations, and sample screens in this manual. Note that the

functions, operations, screens displayed on your camera, etc. may

differ, depending on the camera model used.

Read the Camera Instruction Manual and familiarize yourself with

operating the camera before following the instructions on camera

options.

Icons in this Manual

<6> : Indicates the Main Dial.

<5> : Indicates the Quick Control Dial.

<9> : Indicates the Multi-controller.

<0> : Indicates the Setting button.

* In addition to the above, the icons and symbols used on the camera’s buttons

and displayed on the LCD monitor are also used in this manual when discussing

relevant operations and functionality.

(p.**) : Reference page numbers for more information.

: Warnings to prevent potential problems during operation.

: Supplemental information.

Conventions Used in this Manual

Basic Assumptions

All operations explained in this manual assume that the power

switch is set to <1>.

It is assumed that all the menu settings, Custom Functions, etc. are

set to their defaults.

Image transfer, remote shooting, or viewing images requires adequate

knowledge of configuring your wireless LAN and FTP server. Canon cannot

provide support for configuring wireless LANs or FTP servers.

Note that Canon cannot be held liable for any loss or damage to the

transmitter from erroneous network or FTP server settings. In addition,

Canon cannot be held liable for any other loss or damage caused by use of

the transmitter.

When using wireless functions, establish appropriate security at your own

risk and discretion. Canon cannot be held liable for any loss or damage

caused by unauthorized access or other security breaches.

Chapter List

Introduction 2

Basic Network Settings 13

Transferring Images to an FTP Server 37

Operating Remotely Using EOS Utility 55

Operating Remotely Using WFT Server 59

Operating Remotely Using a Smartphone 75

Linked Shooting 83

Synchronizing the Camera Time Wirelessly 97

Terminating the Connection and Reconnecting 101

Checking and Operating Connection Settings 105

Troubleshooting Guide 117

Reference 139

Introduction 2

Conventions Used in this Manual..................................................... 3

Chapter List ...................................................................................... 5

Safety Precautions ........................................................................... 8

Nomenclature ................................................................................. 10

Attaching to the Camera..................................................................11

Basic Network Settings 13

Preparation..................................................................................... 14

Basic Communication Function Settings........................................ 18

Displaying the Connection Wizard ................................................. 22

Connecting with Easy Connection.................................................. 25

Checking the Type of Access Point................................................ 27

Connecting via WPS (PBC Mode).................................................. 28

Connecting via WPS (PIN Mode) ................................................... 29

Connecting to a Detected Network Manually ................................. 31

Setting the IP Address.................................................................... 34

Transferring Images to an FTP Server 37

Configuring FTP Server Connection Settings ................................ 38

Transferring Images Individually..................................................... 43

Batch Transfer ................................................................................ 48

Viewing Transferred Images........................................................... 53

Operating Remotely Using EOS Utility 55

Configuring EOS Utility Connection Settings ................................. 56

Using EOS Utility............................................................................ 58

Operating Remotely Using WFT Server 59

Configuring WFT Server Connection Settings ............................... 60

Displaying WFT Server .................................................................. 62

Viewing Images .............................................................................. 65

Shooting Remotely [Camera control] ............................................. 67

Shooting Remotely [Simple control] ............................................... 72

Using WFT Server in Linked Shooting ........................................... 74

Contents

5Operating Remotely Using a Smartphone 75

Configuring Smartphone Connection Settings................................76

Operating the Camera Using a Smartphone...................................78

Specifying Viewable Images ...........................................................80

Linked Shooting 83

Basic Linked Shooting ....................................................................84

Positioning the Cameras.................................................................88

Using the Transmitter with WFT Server .......................................... 90

Synchronizing the Camera Time Wirelessly 97

Synchronizing the Time...................................................................98

Terminating the Connection and Reconnecting 101

Terminating the Connection ..........................................................102

Reconnecting ................................................................................ 103

Checking and Operating Connection Settings 105

Displaying the Connection Settings Screen..................................106

Changing Settings.........................................................................108

Saving and Loading Settings ........................................................ 112

Function Settings Screen.............................................................. 114

Troubleshooting Guide 117

Responding to Error Messages .................................................... 118

Troubleshooting Guide.................................................................. 135

Communication Function Setting Notes........................................136

Checking Network Settings...........................................................138

Reference 139

Creating and Registering Captions ...............................................140

Setting Network Manually .............................................................142

Setting IP Address Manually.........................................................144

Specifications ................................................................................ 146

Index .............................................................................................149

The following precautions are provided to prevent harm or injury to

yourself and others. Make sure to thoroughly understand and follow

these precautions before using the product.

If you experience any malfunctions, problems, or damage to the

product, contact the nearest Canon Service Center or the dealer

from whom you purchased the product.

Safety Precautions

Warnings: Follow the warnings below. Otherwise, death or

serious injuries may result.

To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock,

follow the safeguards below.

• Do not insert any foreign metallic objects into the electrical contacts of the

equipment, accessories, or connecting cables.

Do not use the equipment where there is flammable gas. There is a risk of explosion

or fire.

If you drop the equipment and the casing breaks open to expose the internal parts,

do not touch the exposed parts. There is a possibility of electrical shock.

Do not disassemble or modify the equipment. High-voltage internal parts may cause

electrical shock.

Do not store the equipment in dusty or humid places. This is to prevent fire or

electrical shock.

Before using the equipment on board airplanes or in hospitals, make sure use is

permitted. Electromagnetic waves emitted by the equipment may interfere with

instrumentation or medical equipment.

Do not hold the camera in the same position for long periods of time. Even if the

camera does not feel too hot, prolonged contact with the same body part may cause

skin redness or blistering due to low-temperature contact burns. Using a tripod is

recommended for people with circulation problems or very sensitive skin, or when

using the camera in very hot places.

Cautions: Follow the cautions below. Otherwise, physical injury

or property damage may result.

Do not leave the equipment in a hot car interior or near high-temperature objects.

The equipment may become hot and cause burns if touched.

Do not leave the product in a low-temperature environment for an extended period of

time. The equipment will become cold and may cause injury when touched.

Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a

risk of fire.

Do not use paint thinner, benzene, or other organic solvents to clean the transmitter.

This poses a risk of fire and may be hazardous to your health.

Safety Precautions

The transmitter is a precision instrument. Do not drop it or subject it to

physical shock.

The transmitter is not waterproof. Do not use it underwater.

Wipe off any moisture with a dry and clean cloth. If the transmitter has been

exposed to salty air, wipe it with a clean, well-wrung wet cloth.

Never leave the transmitter near any equipment that generates a strong

magnetic field, such as magnets or electric motors.

Do not leave the transmitter in excessive heat, such as in a vehicle in direct

sunlight. High temperatures may damage the transmitter.

Do not wipe the transmitter using cleaners containing organic solvents. For

stubborn dirt, take it to the nearest Canon Service Center.

Avoid storing the transmitter where there are chemicals that result in rust

and corrosion such as in a chemical lab.

Handling Precautions

Nomenclature

Attachment pin

Tightening screw

Terminal

<F>Wired LAN connection

Connection icon

<D>Wireless LAN connection

Transmitter Case

EOS-1D X Mark II Rear LCD Panel (Example Display)

Terminal cap

Table des matières

Autres manuels Canon Émetteur

Canon

Canon Wireless File Transmitter WFT-E4 II A Manuel utilisateur

Canon

Canon ST-E3-RT Manuel utilisateur

Canon

Canon WFT-E7 Ver.2 Manuel utilisateur

Canon

Canon EOS 5D - Focusing Screen Ee-A Manuel utilisateur

Canon

Canon WFT-E2 Manuel utilisateur

Canon

Canon WFT-E6 Manuel utilisateur

Canon

Canon Wireless File Transmitter WFT-E4 II A Manuel utilisateur

Canon

Canon Wireless File Transmitter WFT-E7A Manuel utilisateur

Canon

Canon WFT-E6 Guide de démarrage rapide

Canon

Canon WFT-E6 Manuel utilisateur

Canon

Canon WFT-E6 Manuel utilisateur

Canon

Canon WFT-E8 Manuel utilisateur

Canon

Canon WFT-E2 Manuel utilisateur

Canon

Canon WFT-E1 Manuel utilisateur

Canon

Canon WFT-R10 Instructions de montage

Canon

Canon WFT-E6 Manuel utilisateur

Canon

Canon Wireless Transmitter WFT-E6A Manuel utilisateur

Canon

Canon ST-E3-RT-V2 Manuel utilisateur

Canon

Canon Wireless File Transmitter WFT-E2 II A Manuel utilisateur

Canon

Canon WFT-E1 Manuel utilisateur

Canon

Canon ST-E3-RT Manuel utilisateur

Canon

Canon WFT-E3 Manuel utilisateur

Canon

Canon WFT-E9 Instructions de montage

Canon

Canon 5743B002 Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
