BZB Gear BG-QuadFusion-4K Manuel utilisateur

BG-QuadFusion-4K

4-Channel 4K UHD HDMI & DisplayPort Production Switcher with

Built-in Audio Mixer & USB 3.0 Capture Card

User Manual

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Table of Contents

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Package Contents 6

Speciﬁcations 6

Panel Descriptions 8

Tally/GPI Pinout 9

Multiview Window 10

Button Descriptions 11

Main Menu / System Settings 17

PC QuadFusion Control Application 18

Application Example 20

Tech Support 21

Warranty 22

Mission Statement 23

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●Unplug this device during lightning storms

●Clean only with a soft dry microﬁber cloth.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

●Only use accessories speciﬁed by the manufacture

●Product speciﬁcations may be subject to technical upgrades without further notice

●Do not hot plug when it is working.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Introduction

The BG-QuadFusion-4K production switcher is a ﬂexible control device that

supports up to 4 simultaneous inputs. With its 4 HDMI inputs and 1 alternate DisplayPort

video input, the BG-QuadFusion-4K provides users with multiple connection options that all

support 4K@60Hz resolutions. The diverse selection of outputs includes an HDMI multiview

output to easily monitor your video productions, 2x HDMI 4K PGM outputs and 1x HD

HDMI PGM output for local broadcasts. The BG-QuadFusion-4K also features a built-in

USB video capture device which uses H.264 encoding to ensure seamless recording and

streaming.

Other features include a format converter, special eﬀect generator, and audio

processor. The audio interface supports 2-CH analog audio embedding and extraction with

a 3.5mm stereo line level input, 2x 3.5mm microphone inputs, and a 3.5mm stereo output.

DCB control and Tally/GPI outputs provide support for 3rd party control systems. The

intuitive push button controls, on-screen menu displayed through the multiview output, and

an included PC control application for remote network control ensure ease of use. With the

BG-QuadFusion-4K at hand, users can make the most out of their video productions in

studios or mobile, on-location, video production environments.

Features

●4x 4K@60Hz HDMI Inputs and 1x 4K@60Hz DP Inputs

●3x Program (PGM) HDMI outputs and 1x Multiview HDMI output

●Metal aluminum alloy provides a high strength and lightweight body

●Hall sensor T-Bar and a diverse selection of transition eﬀects

●Pattern key can customize the BAR key to display various test patterns or images

●Broadcast & TV standard Tally interface support via GPI control interface

●Capable of PGM screen freeze (STILL), Fade to Black (FTB), Picture-in-Picture (PiP),

and Picture-out-Picture (PoP) functions

●Luma and Chroma key

●Hard CUT and AUTO transition eﬀects

●2 channel audio embedding and extraction

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Package Contents

●1 x BG-QuadFusion-4K

●1 x Power Adapter (12V DC)

●1 x User Manual

●1x 3ft USB 3.0 Type-B to Type-A cable

Speciﬁcations

Technical Speciﬁcations

Video Input

Signal

Input Connections

4x HDMI

1x DisplayPort

Data Rate

270Mbps - 18Gbps

Signal Amplitude

800mV±10%

Impedance

100Ω

Balance

Adaptive

HDMI/DP Input

Resolutions

480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2160p

3840x2160, 1920x1080, 1680x1050, 1600x900,

1440x1050, 1366x768, 1360x768, 1280x1020,

1280x960, 1280x800, 1280x768, 1280x720,

1280x600, 1152x864, 1024x768, 800x600

Video Output

Signal

Output Connections

1x HDMI Multiview Output

3x HDMI PGM Outputs

1x USB 3.0 Type-B

Output Resolutions

2160p60, 2160p50, 2160p30, 2160p25, 1080p60

Data Rate

270Mbps - 18Gbps

Return Loss

>15dB 5MHz-3GHz

Signal Amplitude

800mV±10%

Impedance

100Ω

DC Oﬀset

0V±0.5V

Control

RJ45

15-Pin Serial

Baud Rate: 9600 Data Bits: 8

Stop Bits: 1 Parity: None

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Audio

Line In / Out

3.5mm stereo mini

MIC

2x 3.5mm stereo mini

Mechanical Speciﬁcations

Dimensions(W x D x H)

284mm x 175mm x 60mm

Working Humidity

20%-70%RH

Operating Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

-4°F to 167°F (-20°C to 75°C)

Power Supply

12V

Power Rate

≤35w

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Panel Descriptions

No.

Name

Description

Line Out

3.5mm stereo line level output for audio extraction.

Line In

3.5mm stereo line level input for audio embedding.

MIC Inputs 1/2

2x 3.5mm stereo mini microphone inputs for audio embedding.

Control

RJ45 LAN connection for software control and network access.

Stream USB 3.0

1080p60 USB 3.0 PGM output / capture

HD PGM

1x HDMI program output capable of downscaling to 1080p60.

DCB

External control for keyboard, wireless tally, or device cascade

PWR

DC 12v power supply.

Tally/GPI

Connect to a director tally light/GPI control system.

HDMI/DP Input 1

Selectable HDMI or alternate DisplayPort input connections capable of 4K60.

HDMI 2-4

3x HDMI input connections capable of 4K60 inputs

Multiview

HDMI multiview output capable of displaying 4 connected inputs and device

menu.

PGM

2x HDMI program outputs capable of 4K60.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

Tally/GPI Pinout

Tally Function

GPI Function

PGM-IN 1

GPI-IN 1

PGM-IN 2

GPI-IN 2

PGM-IN 3

GPI-IN 3

PGM-IN 4

GPI-IN 4

PVW-IN 1

GPI-IN 5

PVW-IN 2

GPI-IN 6

PVW-IN 3

GND

PVW-IN 4

GPI Optional Feature List:

GPI-INx Optional Feature

Description

PGM 1

Simulate PGM 1 button

PGM 2

Simulate PGM 2 button

PGM 3

Simulate PGM 3 button

PGM 4

Simulate PGM 4 button

PGM_BAR

Simulate PGM BAR button

CUT

Simulate CUT transition button

AUTO

Simulate AUTO transition button

MUTE

Simulate MUTE button

FTB

Simulate Fade to Black (FTB) button

STILL

Simulate STILL button

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL

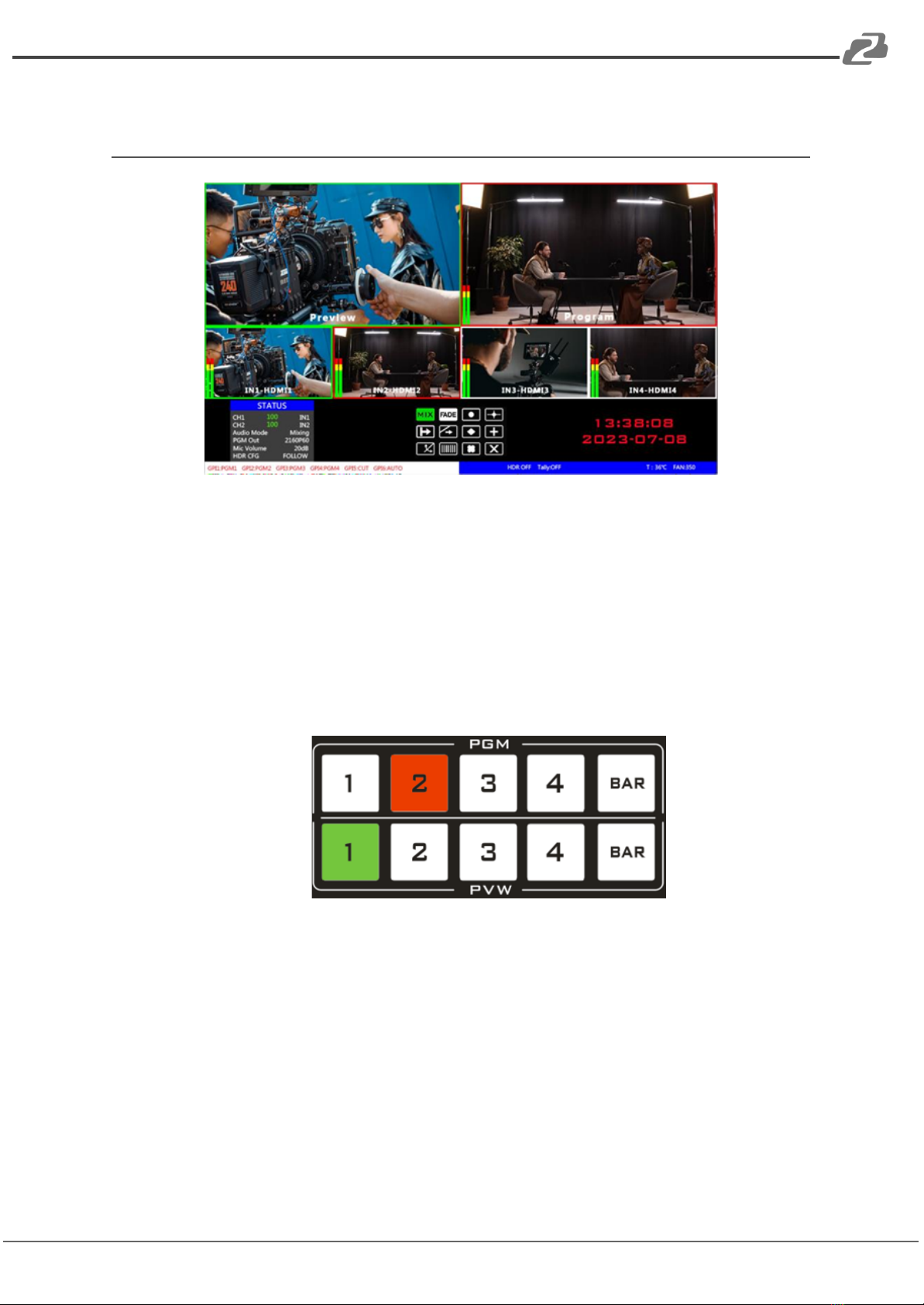

Multiview Window

●The selected preview (PVW) window is shown on the top left and highlighted in

green.

●The select program (PGM) window is shown on the top right and highlighted in red.

●The 4 windows below correspond to the input sources 1 - 4. Sources can be

toggled between the HDMI and DisplayPort connections for each input.

●This image below represents the corresponding button selection on the unit and will

illuminate to match the windows shown above on the multiview screen. PGM

buttons will illuminate red when selected while PVW buttons will illuminate green.
