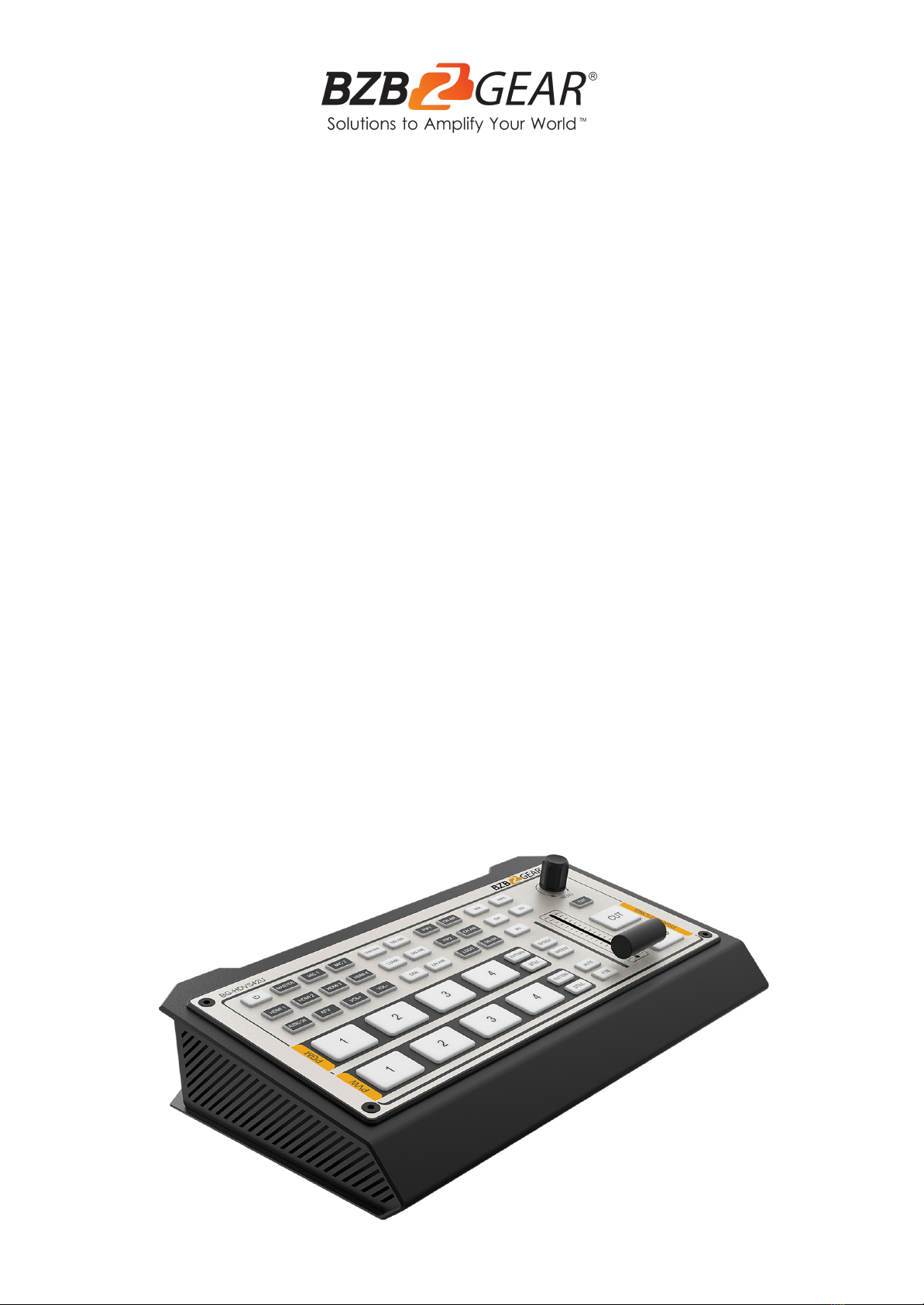

BZB Gear BG-HDVS42U Manuel utilisateur

BG-HDVS42U

4-Channel/Input HDMI Live Streaming Video/Audio Production

Switcher and Mixer with Integrated Capture Card

User Manual

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-HDVS42U PRODUCT MANUAL

TABLE OF CONTENTS

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Packing List 5

Speciﬁcations 6

Operation Controls and Functions 7

Multiview 9

PGM PVW Switching 14

Transition eﬀects 15

Upstream Key 16

DownStream Key 19

Output Setting 21

Audio Settings 24

Media Library 28

System setting 31

Application Example 33

Tech Support 34

Warranty 34

Mission Statement 35

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●To avoid damage from drops, make sure this unit is placed on a stable and solid surface.

●Only connect the unit with the included power supply.

●Disconnect power cord by connector only - Do not pull on the cable.

●Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can

cause ﬁre or electrical shock hazards. Regularly check power cord for excessive wear or

damage to avoid possible ﬁre / electrical hazards.

●Ensure the unit is properly always grounded to prevent electrical shock hazard.

●Turn oﬀ the unit if a malfunction occurs. Disconnect everything before moving the unit.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●Unplug this device during lightning storms

●Clean only with a soft dry microﬁber cloth.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

●Only use accessories speciﬁed by the manufacture

●Product speciﬁcations may be subject to technical upgrades without further notice.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Introduction

The BG-HDVS-42U is a 4-channel HDMI multi-format video Switcher with a compact metal

case design. It supports various functions including video switching, audio mixing, PGM/

Multiview/ Aux out, diﬀerent transition eﬀects, Luma Key, Chroma Key, DSK, LOGO, PIP/

POP, media library, pattern, and color generator, and more. Inputs support multi-formats

and the PGM output can be scaled, ensuring compatibility with a variety of equipment. The

unit supports streaming and presentations on PC via the USB-C port. User can also

customize diﬀerent settings and import or export the conﬁguration quickly for various

scenarios. Powerful and Portable this professional video switcher is an ideal choice for any

small-scale HDMI production.

Features

●4 channel auto-detected HDMI inputs

●1×HDMI PGM output,1×HDMI Multiview out, 1×USB type-C output

●AUX output conﬁgurable and assignable

●USB-C for capturing and streaming on PC

●Clear and uncluttered Multiview & status page

●Upstream key: Luma key, Chroma key, PIP×2/ POP

●Downstream key and LOGO overlay

●T-bar/ Auto/ Cut transitions; various eﬀects: WIPE (9×2 patterns) / MIX/ DIP

●Audio mixer: HDMI embedded audio and 2-Ch MIC/ line in; audio delay available

●Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color

generators

●LAN port for PC software remote control

●Custom conﬁguration import and export

●FTB/ MUTE/ STILL/ GPIO for tally

Packing List

●1x BG-HDVS42U

●1x Power supply (12V 2A)

●1x USB cable (type A-C)

●1x Tally connector (DB-15)

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Speciﬁcations

Connection

Video In

HDMI type-A x4

Video Out

HDMI type-A PGM ×1

HDMI type-A Multiview ×1

USB2.0 type C ×1 (Streaming on PC)

Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview

Audio In

MIC/ Line level (3.5mm stereo audio) x2

PC Control Port

LANxI

Media Library

USB type-A x1 (USB disk port for image import and ﬁrmware upgrade)

Tally Port

DB-15 x1

Power In

DC i2V x1

Functions

Transitions

T-Bar/AUTO/ CUT

Eﬀects

Wipe (9x2 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB

Layouts

2 styles of Multiview layout (6 windows and status)

Keys

Upstream Key: Luma Key xi / Chroma Key xi/ PiP x2/ POP

Downstream Key: DSK xi/ Logo xi

Audio Mixer

HDMI x4 and MIC/ Line level x2;

Audio delay: 0-500ms

Media

Default image: 49 preset patterns

Local image: up to i6 imported images

Capture image: up to i6 captured images

Generators

Pattern generator x1

Color generators x2

Standards

HDMI In Format Support

1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98

1080i 50/ 59.94/ 60

720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98

576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60

HDMI PGM Out

1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; i080i 60/ 59.94/ 50

HDMI Multiview Out

1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; i080i 60/ 59.94/ 50

HDMI Color Space

RGB/ YUV

USB Capture Out

MJPG, Up to i080p 60

Media Format

USB disk format support: FAT32, Ext3, Ext4, up to 256GB

Image format support: png, bmp, jpg

Logo format support: png, bmp, jpg

Logo size support: 10*10 pixel to 600*600 pixel

Others

Power

Wide voltage: 7~24V;

Operating power:12W (12V 1A)

Dimension (LWD)

244.5 * 143.2 * 44.5mm

Weight

Net: 1030g;

Gross: 1500g

Temperature

Working: -20°C~60°C,

Storage: -30°C~70°C

Accessories

Power supply (12V 2A) *1;

USB cable (type A-C) *1;

Tally connector (DB-15) *1

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Operation Controls and Functions

Interface Overview

NO.

Name

Function Description

2x MIC/Line level IN

3.5mm stereo mini line in microphone

4x HDMI IN

Connect to HDMI sources

MULTIVIEW (AUX) OUT

HDMI to display to simultaneous show all 4 inputs

PGM (AUX) OUT

HDMI to display, capture device, etc for selected output

USB OUT

Connect to a PC to view the PGM out image

LAN port

Connect to PC for access to control software

GPIO (for tally)

Connects to a tally light control system (not included)

DC 12V IN

Connect to provided power supply.

Earphone OUT

3.5mm stereo mini line out

USB type-A

Insert a usb disk to import images and LOGOs; ﬁrmware upgrades

Tally PIN Deﬁnition

Deﬁnition

PGM-IN1

PVW-IN1

PGM-IN2

PVW-IN2

PGM-IN3

PVW-IN3

PGM-IN4

PVW-IN4

GND

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Front Control panel

NO.

Name

Function Description

Power

Press the power to start the device; Press 3s to shut down the system

PGM:1-4

Select the signal source for Program.

PATTERN displays a test pattern to PGM output, STILL freezes the input source image.

Note: diﬀerent patterns can be set including Black/Color Bar/Color1 /Color2/ HDMI In1/HDMI In2/HDMI

In3/HDMI In4/Image. (Refer to Part 13.1)

PVW:1-4

Select the signal source for Preview.

PATTERN displays a test pattern to PVW (Refers to Part 13.1), STILL freezes the input source image (Refer

to Part 7.2).

AUDIO

Conﬁgure the audio of each channel, including AFV or audio mix mode, audio source selecting, volume + &

volume -

DSK

DSK: Enable the downstream key ON AIR: Put the DSK on air

CHROMA

KEY / LUMA

KEY

CHROMA: Enable the Chroma Key

LUMA: Enable the Luma Key

PIP1/PIP2: Enable two group of Picture in Picture. Size and position can be set via Menu.

LOGO: Add logo bin from USB ﬂash disk, enable the logo overlay

ON AIR: Put the corresponding Chroma/Luma/PIP/Logo on air.

MV: quickly switch between Multiview and the conﬁgured Multiview out (Refer to Part 11.2)

Transition

Eﬀects

WIPE: Transition from one source to another

INV: Invert the direction of selected wipe transition

MIX: Selects a basic A/B dissolve for the next transition

DIP: Gradual transition from one source to another.

MENU: For menu control, conﬁgure diﬀerent parameters

CUT/ AUTO

CUT: Performs a simple immediate switch between Program and Preview.

AUTO: Performs an automated switch between Program and Preview.

T-Bar

Switch the PVW and PGM using the T-Bar

MUTE/ FTB

MUTE: Mute the master audio FTB: Fade to Black

Speed

SPEED 1-2: Control transition rate, speed can be conﬁgured on Menu.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-HDVS42U PRODUCT MANUAL

Power ON / OFF

Connect your video sources, output devices, and simply

plug in the power adapter. Press the power button on the

front panel to power up the switcher.

Press the power button for about 3 seconds to power oﬀ

the switcher and select YES in the prompt box to shut

down the system.

Multiview

The switcher provides two HDMI outputs (PGM/Multiview). Both ports are assignable AUX

outputs that are user assignable as HDMI 1/ HDMI 2/ HDMI 3/ HDMI 4/ PGM/ Clean PGM/

PVW/ Color Bar/ Multiview output (Refers to Part 6). Connecting the HDMI Multiview out to

an additional monitor will provide the Multiview image. In Multiview there are windows of

PVW, PGM, HDMI 1, HDMI 2, HDMI 3, HDMI4 and Status/Menu page. See below image.

Status Page

In the status page, there is status information of FTB (Fade to Black), P-PVW (Pattern in

PVW row), PPGM (Pattern in PGM row), Logo, Still, Audio, Transition Eﬀect, Transition

Speed, USK (Upstream Key), DSK (Downstream Key), and System Time. See below image.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-HDVS42U PRODUCT MANUAL

The information of username, working time, USB connection, CPU working temperature,

system time keeps displaying in the bottom of the Status/Menu page.

The information on the status page will be updated in real time as the settings are changed.

Pressing the menu button on the switcher will open the menu page as shown in the image

below.

Layouts

There are two Multiview layouts which can be selected. Simply switch between the

horizontal layout and vertical layout from the menu as shown in the images below.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 10

Table des matières

Autres manuels BZB Gear Changer

BZB Gear

BZB Gear BG-QuadFusion-4K Manuel utilisateur

BZB Gear

BZB Gear BG-PS41-BYOD-4K-B Manuel utilisateur

BZB Gear

BZB Gear BG-PS21-4K Manuel utilisateur

BZB Gear

BZB Gear BG-HDVS42U Manuel utilisateur

BZB Gear

BZB Gear BZ-SC-51UHD Manuel utilisateur

BZB Gear

BZB Gear BG-8K-HS21 Manuel utilisateur

BZB Gear

BZB Gear BG-PSC11X2-HDBT Manuel utilisateur

BZB Gear

BZB Gear HDS-B41PA100 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41-KIT Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41A Manuel utilisateur

BZB Gear

BZB Gear BG-MFVS61-G2 Manuel utilisateur

BZB Gear

BZB Gear BG-PSC7X2 Manuel utilisateur

BZB Gear

BZB Gear BG-MFVS61 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41-KIT Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-MVS41A Manuel utilisateur

BZB Gear

BZB Gear BG-8K-88MA Manuel utilisateur

BZB Gear

BZB Gear BG-PSC6X2-4K Manuel utilisateur

BZB Gear

BZB Gear BG-8K-HS41 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM21A Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-QVP-4X2 Manuel utilisateur

BZB Gear

BZB Gear BZB-SW-41A Manuel utilisateur

BZB Gear

BZB Gear BZ-41S-PA100 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
