BZB Gear BG-UHD-MVS21A Manuel utilisateur

BG-UHD-MVS21A

4K60 2x1 Multiviewer Seamless UHD Video Switcher

User Manual

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

TABLE OF CONTENTS

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Packing List 5

Speciﬁcations 6

Operation Controls and Functions 7

IR Remote 9

EDID Settings 10

Video & Audio 10

Multiview 11

OSD Menu Navigation 11

RS-232 Command 12

Application Diagram 15

Tech Support 16

Warranty 16

Mission Statement 16

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

Introduction

The BG-UHD-MVS21A is a 4K@60 2x1 multiviewer and seamless UHD video switcher. It

was developed to support high output resolutions such as 4K@60 for multiple sources on a

single screen. It can combine two video signals onto a single UHD or HD display. Users can

manage each input and create various combinations of the two inputs on a single display as

well as adjust the position of either input.

The BG-UHD-MVS21A supports a full range of input video resolutions up to 4K@60 and

audio de-embedding via RCA and optical S/PDIF for external audio distribution systems.

The unit can be controlled via front panel buttons, IR remote, RS-232 commands.

Features

●HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

●18Gbps video bandwidth

●Input and output resolutions support up to 4K2K@60 4:4:4

●LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channels

●Seamless switching between input channels and combined multiple images on a

single UHD screen.

●Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)

●Audio de-embedding via analog and optical ﬁber audio ports

●Volume control and independent audio selection

●Advanced EDID management

●Control via front panel buttons, IR remote, RS-232 commands

●Compact design for easy and ﬂexible installation

Packing List

●1x 4K@60 2x1 UHD Video Switcher

●1x IR Remote

●1x 3 pin-3.81mm Phoenix Connector (male)

●1x 38KHz IR Receiver Cable (1.5m)

●2x Mounting Ears

●1x 12V/1A Power Adapter

●4x Machine Screws (KM3*4)

●1x User Manual

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

Speciﬁcations

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 / 1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@60 4:4:4

IR Level

5Vp-p

IR Frequency

38KHz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8bit

Audio Formats

HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res

Analog audio [3.5mm L/R]: PCM2.0;

SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.

Note: It does not support HBR audio.

ESD Protection

Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact

discharge)

Connection

Input ports

2 x HDMI IN [Type A, 19-pin female]

Output ports

1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT

[RCA]

1 x OPTICAL OUTPUT [S/PDIF]

Control ports

1 x RS-232 [3 pin-3.81mm phoenix connector] 1 x IR EXT

[3.5mm Stereo Mini-jack]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

175mm [W] x 100mm [D] x 30mm [H]

Weight

497g

Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A (US/EU standard, CE/FCC/UL certiﬁed)

Power Consumption

4.56W (Max)

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no-condensing)

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

Operation Controls and Functions

Front Panel

No.

Name

Function Description

Power button

▪ Short press this button to power on the device.

▪ Long press this button for (1 second) to enter the standby

mode.

Power LED

The Power LED will illuminate green when the product is powered

on and red when the product is in standby.

Input 1-2 LEDs

Input signal indicator lights. When the HD 1/2 port connects to an

active source device, the corresponding green LED will illuminate.

Note: Only the LED of the selected input channel will illuminate

green during single screen display mode; all LEDs will illuminate

green when multiview mode is activated.

IR Window

IR signal receiving window.

INPUT button

Input source switching button, only available during single screen

display mode.

Multiview button

Multiview display mode switching button.

▪ Short press this button to cyclically select:

SINGLE - PIP - PBP (1) - PBP (2) .

▪ Long press this button for 3 seconds to select the aspect

ratio for PBP (1) / PBP (2)

RES button

Output resolution switching button.

▪ Short press the RES button to cyclically switch the output

resolution of the HDMI OUTPUT port (Please refer to the output

resolution list in the “Video & Audio” section of this manual).

▪ Long press the RES button for 3 seconds to switch the output

resolution to 720P60.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

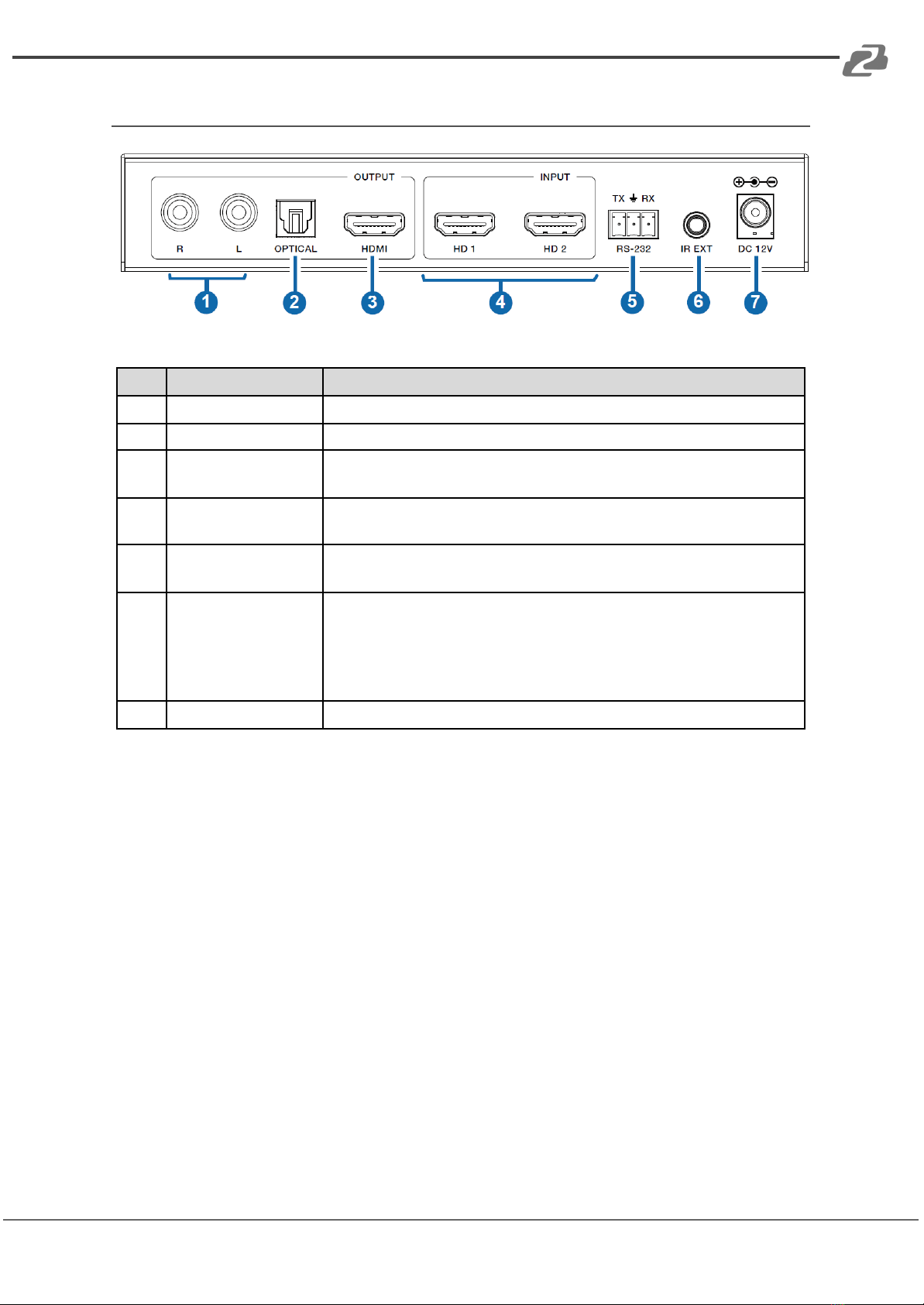

Rear Panel

No.

Name

Function Description

L/R port

PCM 2.0 Analog audio output port.

OPTICAL port

Optical ﬁber S/PDIF digital audio output port.

HDMI OUTPUT port

Connected to an HDMI display device such as a TV or Monitor with

an HDMI cable.

HD 1-2 INPUT ports

Connect to HDMI source devices such as Bluray players, Gaming

Consoles, or Set-top boxes with HDMI cables.

RS-232 port

3-pin phoenix connector, connected to a PC or control system for

serial port upgrade or RS-232 command control.

IR EXT port

Connect to an IR Receiver cable.

If the IR receiving window of the unit is blocked or the unit is

installed in a closed area out of infrared line of sight, the IR receiver

cable can be inserted to the “IR EXT” port to receive the IR remote

signal.

DC 12V

DC 12V/1A power input port.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

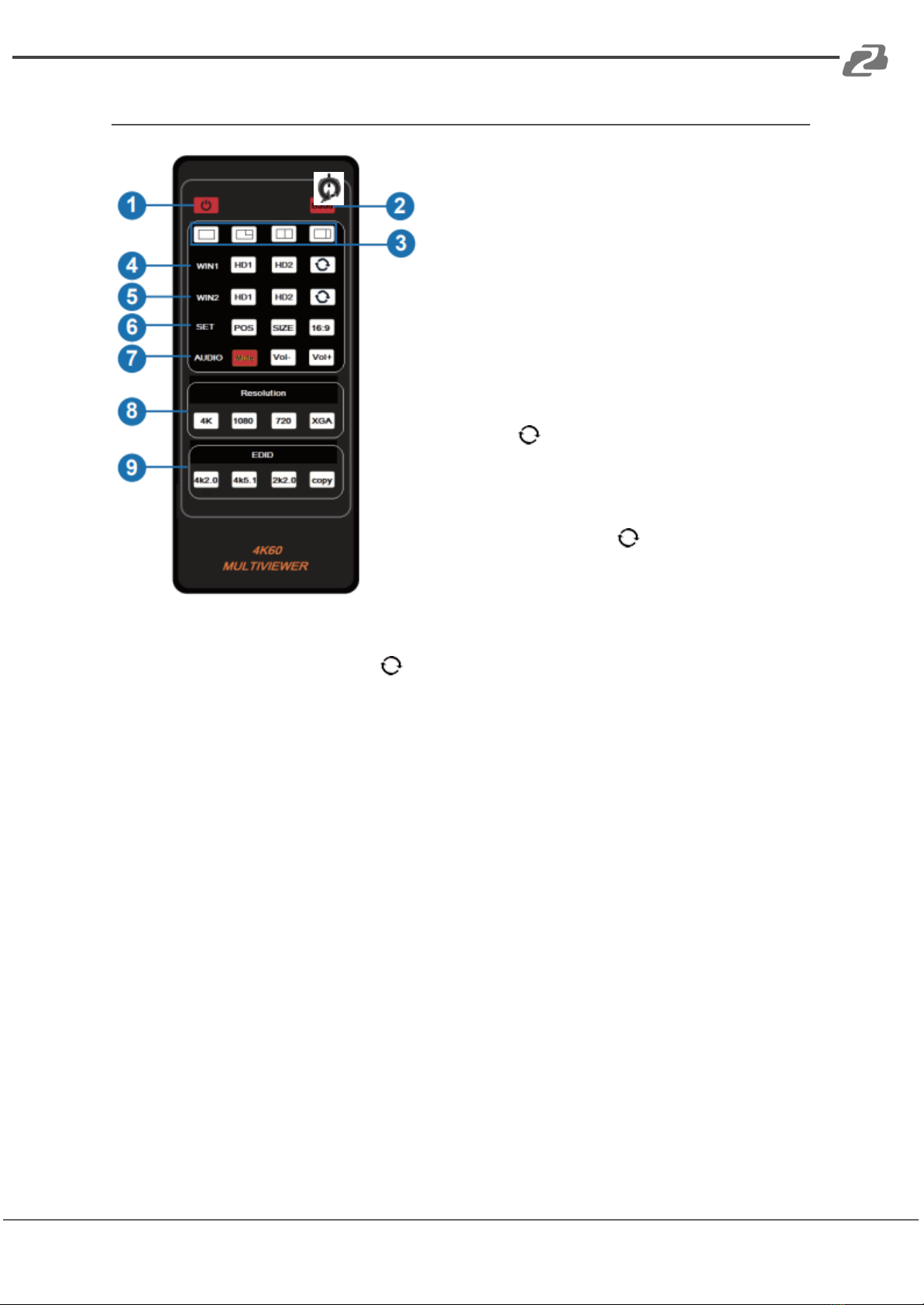

IR Remote

1. Power on or Standby: Press this button to

power on the unit or set it to standby mode.

2. Baud: Press this button to pop up the OSD

menu, then cycle through the serial port baud

rates: 115200, 57600, 38400, 19200, 9600

3. Multiview display mode buttons: Press

these buttons to select the display mode:

SINGLE - PIP - PBP (1) - PBP (2).

4. WIN1: These buttons are available in all

modes. On single screen display mode, press

HD1/HD2/ buttons to directly or cycle select

input sources for the WIN1 screen and the

corresponding input LED on the front panel will

illuminate green. On PIP / PBP(1) / PBP(2) display

mode, press HD1/HD2/ button to directly or

cycle select input sources for the WIN1 screen

and both input LEDs on the front panel will

illuminate green.

5. WIN2: These buttons are unavailable on single screen display modes. On PIP / PBP(1) /

PBP(2) mode, press HD1/HD2/ button to directly or cycle select input sources for

the WIN2 screen and both input LEDs on the front panel will illuminate green.

6. SET: On PIP mode, press POS to change the position of sub window ; press SIZE to

zoom in/out the size of sub window. On PBP(1) / PBP(2) mode, press 16:9 to switch the

aspect ratio between 16:9 and FULL.

7. AUDIO: Press Mute to mute / unmute the audio output; Press VOL- / VOL+ to increase /

decrease the audio output volume.

8. Resolution: Press 4K, 1080P, 720P or XGA to select output resolution.

9. EDID: Press 4K2.0, 4K5.1, 2K2.0 or COPY to select EDID mode.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL

EDID Settings

Users can select following EDID modes via RS-232 commands:

No.

EDID Mode

No.

EDID Mode

4K60-2.0CH

1920x1200-2.0CH

4K60-5.1CH

1680x1050-2.0CH

4K60-7.1CH

1600x1200-2.0CH

4K30-2.0CH

1440x900-2.0CH

4K30-5.1CH

1360x768-2.0CH

4K30-7.1CH

1280x1024-2.0CH

1080P-2.0CH

1024x768-2.0CH

1080P-5.1CH

720P-2.0CH

1080P-7.1CH

AUTO

Video & Audio

The switcher supports multiple resolutions for video input up to 3840x2160@60, and

supports multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, up to 7.1

channel pass through functionality via HDMI cable.

User can control the volume of audio in LPCM format.

The switcher supports the following video output resolutions:

No.

Output Resolution

No.

Output Resolution

4096x2160p 60Hz

1920x1080p 60Hz

4096x2160p 50Hz

1920x1080p 50Hz

3840x2160p 60Hz

1360x768p 60Hz

3840x2160p 50Hz

1280x800p 60Hz

3840x2160p 30Hz

1280x720p 60Hz

3840x2160p 25Hz

1280x720p 50Hz

1920x1200p 60Hz RB

1024x768 60Hz

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 10

Table des matières

Autres manuels BZB Gear Changer

BZB Gear

BZB Gear BZB-SW-41A Manuel utilisateur

BZB Gear

BZB Gear BZ-SC-51UHD Manuel utilisateur

BZB Gear

BZB Gear BG-PSC6X2-4K Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM21A Manuel utilisateur

BZB Gear

BZB Gear BG-PSC6X2-4K Manuel utilisateur

BZB Gear

BZB Gear BG-8K-HS41 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41 Manuel utilisateur

BZB Gear

BZB Gear BG-PS21-4K Manuel utilisateur

BZB Gear

BZB Gear BG-PS41-BYOD-4K-B Manuel utilisateur

BZB Gear

BZB Gear BZ-41S-PA100 Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-KVM41-KIT Manuel utilisateur

BZB Gear

BZB Gear BG-UHD-QVP-4X2 Manuel utilisateur

BZB Gear

BZB Gear BG-MFVS61-G2 Manuel utilisateur

BZB Gear

BZB Gear BG-HDVS42U Manuel utilisateur

BZB Gear

BZB Gear BG-UMV-HA41 Manuel utilisateur

BZB Gear

BZB Gear BG-8K-88MA Manuel utilisateur

BZB Gear

BZB Gear BG-PS21-4K Manuel utilisateur

BZB Gear

BZB Gear BG-MFVS61-G2 Manuel utilisateur

BZB Gear

BZB Gear BG-PHD4X1 Manuel utilisateur

BZB Gear

BZB Gear HDS-B41PA100 Manuel utilisateur

BZB Gear

BZB Gear BZBGEAR Manuel utilisateur

BZB Gear

BZB Gear BZ-MVS4X4-4K Manuel utilisateur

BZB Gear

BZB Gear BG-HDVS42U Manuel utilisateur

BZB Gear

BZB Gear BG-PSC7X2 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
