BWI Eagle AIR-EAGLE XLT Manuel utilisateur

AIR-EAGLE XLT

441-HH-4

900 MHz RF Transmitter

Document Date: 7/20/2022

Product Rev: 12

441-HH-4

WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly used and installed, will be free

from defects in material and workmanship for a period of 1 year after date of purchase. Said warranty to

include the repair or replacement of defective equipment. This warranty does not cover damage due to

external causes, including accident, problems with electrical power, usage not in accordance with product

instructions, misuse, neglect, alteration, repair, improper installation, or improper testing. This limited

warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of

the equipment, and last only for as long as such purchaser continues to own the equipment. This warranty

replaces all other warranties, express or implied including, but not limited to, the implied warranties or

merchantability and fitness for a particular purpose. BWI Eagle makes no express warranties beyond

those stated here. BWI disclaims without limitation, implied warranties of merchantability and fitness for a

particular purpose. Some jurisdictions do not allow the exclusion of implied warranties so this limitation

may not apply to you. To obtain warranty service, contact BWI Eagle for a return material authorization.

When returning equipment to BWI Eagle, the customer assumes the risk of damage or loss during

shipping and is responsible for the shipping costs incurred.

SIGNAL RANGE

Max range statements are estimates based on a clear line of sight with few interferences. Actual range will

vary based on transmitting power, orientation of transmitter and receiver, height of transmitting and

receiving antennas, weather conditions, electronic interference, terrain, and physical obstacles, including

but not limited to; walls, building structures, trees (foliage), metal objects, and landscape (hills, mountains).

WIRELESS STOP SYSTEMS WORK IN CONJUCTION WITH

HARD-WIRED SYSTEMS.

Wireless Stop and E-Stop devices must work in conjunction with a hard-wired

system. A wireless system should never be considered a primary life-saving device.

At least one hard-wired switch must be available in the event the wireless signal is

lost. Failure to comply may result in serious injury or death to personnel and

damage to equipment.

441-HH-4

INTRODUCTION

The Air-Eagle XLT TX is a handheld R.F. transmitter capable of sending up to four unique digital

commands to an Air-Eagle XLT Receiver located up to 2500 feet away. Any number of transmitters and

receivers can be combined to create a medium-range radio frequency system that operates hazardous or

hard-to-reach equipment from safe, convenient locations. Eight user-programmable frequencies allow

multiple systems to operate simultaneously in the same area without interference. This transmitter will

automatically go into “sleep” mode when no buttons are being depressed on the unit to dramatically

extend battery life.

INITIAL OPERATION SET-UP

This transmitter comes ready to operate, with batteries installed, and factory programmed to Frequency

#1. No setup is necessary unless you wish to change frequency or transmit mode. (See FREQUENCY

PROGRAMMING AND TRANSMITTING MODE SETUP)

CONTROLS & INDICATORS

TX LED

Illuminates RED when transmitting in standard mode or GREEN when in

repeater mode. When this LED blinks RED during or following a transmission,

the battery needs to be replaced. See Note #1

Note #1 –The low battery notification signals have been improved to provide more noticeable

indications and to safely disable communications BEFORE a low battery condition can corrupt internal

memory causing device failure. When a low battery is first detected, the TX LED will blink several times

after all buttons are released. If it is possible to replace the batteries now, please do so. If not, the

operator has approximately 15 more button activations. During this time, when a button is depressed

and held, the TX LED will blink SLOWLY. The slow blinking will continue several more times after all

buttons are released. Transmissions are still being sent to the receiver during this time. When a button

is depressed and the TX LED is RAPIDLY blinking, the RF output is disabled and NO signal will reach

the receiver. The batteries MUST NOW BE REPLACED to resume normal functions.

Pushbuttons 1 thru 4

Transmits individual button RF codes to the receiver

441-HH-4

FREQUENCY PROGRAMMING

Please read through these instructions completely before beginning programming procedure!

At any time, you can check the current frequency setting by depressing Buttons 3 & 4 simultaneously, for

approximately 5 seconds, until the TX LED is illuminated RED. Then release the buttons and watch as

the TX LED stays RED for about 8 seconds, goes out, then begins to blink. The TX LED will blink RED

one, two, three or four times for Frequencies 1 thru 4, or will blink GREEN one, two, three or four times

for Frequencies 5 thru 8 accordingly. See table below for clarification.

LED Flashes:

Indicates Unit is Operating On:

RED –one time

Frequency 1

RED –two times

Frequency 2

RED –three times

Frequency 3

RED –four times

Frequency 4

GREEN –one time

Frequency 5

GREEN –two times

Frequency 6

GREEN –three times

Frequency 7

GREEN –four times

Frequency 8

To change the setting, follow these steps:

To select from Frequencies 1 thru 4:

1. Depress Buttons 3 & 4 simultaneously until the TX LED is illuminated RED. (Approximately 5

seconds)

2. Release Buttons 3 & 4, then while the TX LED is still illuminated RED, depress Button 1 to select

“Frequency 1” or Button 2 to select “Frequency 2” etc. If the transmit LED goes out before you

have selected a network, no settings will have changed, and the LED will blink corresponding to

the frequency that the TX is currently set to. You must then begin again at step 1 if you wish to

change the current setting.

3. The TX LED will blink to confirm that your frequency selection has been accepted, and then will

go out. For instance, if you have selected Frequency 1, the TX LED will blink RED once to

confirm. If you have selected Frequency 4, the TX LED blinks REDfour times to confirm.

To select from Frequencies 5 thru 8:

1. Depress Buttons 3 & 4 simultaneously until the TX LED is illuminated GREEN. (Approximately 8

seconds)

2. Release Buttons 3 & 4, then while the TX LED is still illuminated GREEN, depress Button 1 to

select “Frequency 5” or Button 2 to select “Frequency 6” etc. If the transmit LED goes out before

you have selected a network, no settings will have changed, and the LED will blink corresponding

to the frequency that the TX is currently set to. You must then begin again at step 1 if you wish to

change the current setting.

3. The TX LED will blink to confirm that your frequency selection has been accepted, and then will

go out. For instance, if you have selected Frequency 5, the TX LED will blink GREEN once to

confirm. If you have selected Frequency 6, the TX LED blinks GREEN two times to confirm.

Programming is now complete, and the transmitter is active for normal operation.

You may repeat the above procedure if you wish to change the frequency at any time.

441-HH-4

TRANSMITTING MODE SET-UP

Please read through these instructions completely before beginning programming procedure!

The transmitter can be set to be in a standard transmission mode or in a repeater mode where all

receivers will repeat the transmission.

To select transmission mode:

1. Remove one battery from the transmitter

2. Press and hold Button 4 while inserting the battery

3. Continue holding Button 4 for 10 seconds until the LED starts flashing GREEN/RED quickly.

4. Press Button 1 for standard mode or button 2 for repeating mode.

5. LED will turn RED if standard mode selected or GREEN if repeater mode selected.

6. If no button is pressed for 10 seconds, the LED will illuminate to show the current

transmission mode.

Once the transmission mode has been selected, the LED will continue to illuminate RED (standard mode)

or GREEN (repeater mode) during all future transmissions.

NOTES ON TRANSMISSION MODE

The standard transmission mode is best for situations where quick button response is needed. This type

of transmission is typically used when you’ll be watching what you’re controlling, so repeating is not

necessary.

For repeating mode there is a short delay added to the button commands to allow the system to repeat

between multiple receivers without collision. This type of system is usually something where many units

spread out over a large area need to be controlled simultaneously and response speed isn’t a priority.

Both types of transmission can be used simultaneously in the same system although repeating

transmissions could cause some lag in the standard transmissions.

APPROVALS

United States (FCC)

MCQ-XB900HP

Canada (IC)

1846A-XB900HP

Australia

RCM

Brazil

ANATEL 3727-12-1209

441-HH-4

SPECIFICATIONS

Keypad

Durable Sealed Membrane Keypad –Eliminates Dust, Dirt and

Moisture Failures

Enclosure

ABS UL94 HB

Enclosure with ring is rated IP54 *Not

Waterproof

Protective Ring

SEBS (TPE)

Power Requirements

3.0 VDC

Battery Type

(2) 1.5V lithium each, size AAA, to equal 3.0VDC nominal.

***For best performance use ONLY Energizer Brand Lithium

Batteries

*Note: Current frequency settings are maintained in flash memory during battery

replacement. No reprogramming of frequency settings is necessary!

Battery Life(Active Usage)

Up to 6 months

Battery Life(Sleep Mode)

Up to 1 Year

Transmit Frequency

900MHz Spread Spectrum

RF Networks

Eight Independent Network Frequencies

RF Output Power

250 mW

Max Transmit Range

Up to 2500 Feet

Note: Range figures are estimates, based on free-air terrain with limited sources of interference. Actual range will vary

based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving

antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including, but

not limited to, indoor and outdoor structures such as walls, metal objects, trees, buildings, hills, and mountains.

Operating Temperature

-40oF to +185oF

Weight

Approx .22 lbs. (w/belt clip)

DIMENSIONS

Autres manuels pour AIR-EAGLE XLT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BWI Eagle Émetteur

BWI Eagle

BWI Eagle 461-1200-DC Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE XLT PLUS Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-SSB-R1/8-DC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel utilisateur

BWI Eagle

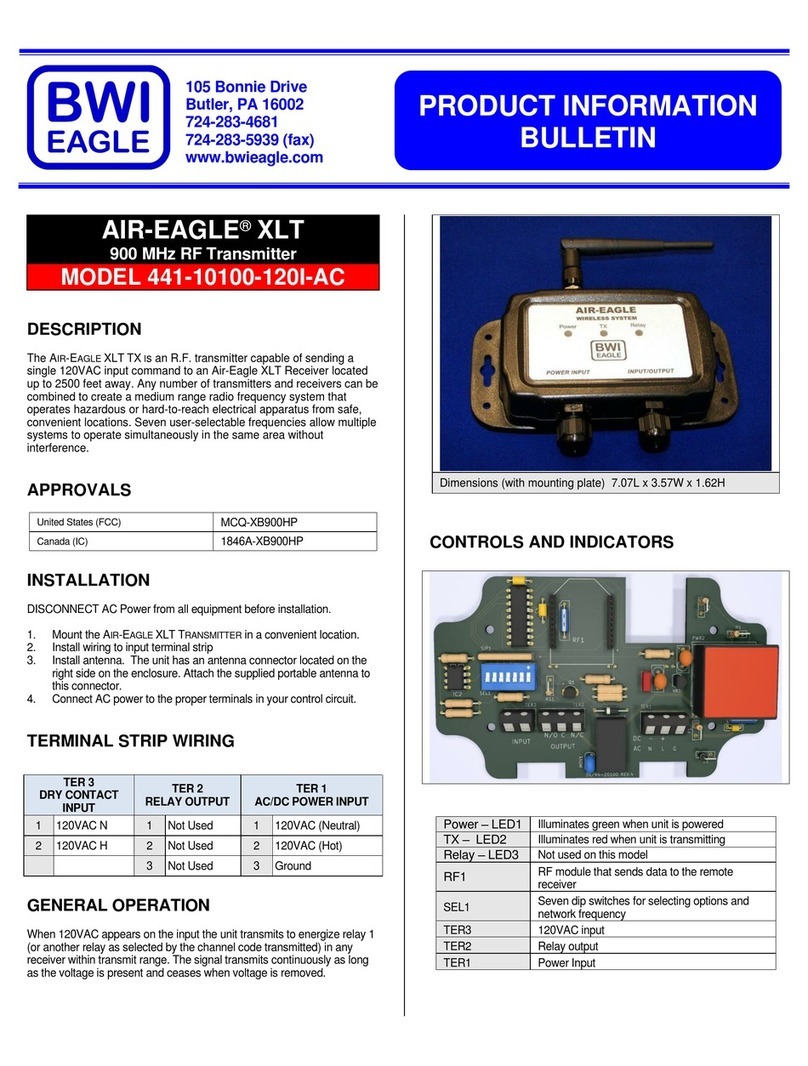

BWI Eagle AIR-EAGLE XLT 44-10100-120I-AC Manuel
