BWI Eagle AIR-EAGLE SR PLUS Manuel utilisateur

AIR-EAGLE SR PLUS

36-HH-1

2.4 GHz RF Transmitter

Document Date: 7/20/2022

Product Rev: 12

36-HH-1

WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly used and installed, will be free

from defects in material and workmanship for a period of 1 year after date of purchase. Said warranty to

include the repair or replacement of defective equipment. This warranty does not cover damage due to

external causes, including accident, problems with electrical power, usage not in accordance with product

instructions, misuse, neglect, alteration, repair, improper installation, or improper testing. This limited

warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of

the equipment, and last only for as long as such purchaser continues to own the equipment. This warranty

replaces all other warranties, express or implied including, but not limited to, the implied warranties or

merchantability and fitness for a particular purpose. BWI Eagle makes no express warranties beyond

those stated here. BWI disclaims without limitation, implied warranties of merchantability and fitness for a

particular purpose. Some jurisdictions do not allow the exclusion of implied warranties so this limitation

may not apply to you. To obtain warranty service, contact BWI Eagle for a return material authorization.

When returning equipment to BWI Eagle, the customer assumes the risk of damage or loss during

shipping and is responsible for the shipping costs incurred.

SIGNAL RANGE

Max range statements are estimates based on a clear line of sight with few interferences. Actual range will

vary based on transmitting power, orientation of transmitter and receiver, height of transmitting and

receiving antennas, weather conditions, electronic interference, terrain, and physical obstacles, including

but not limited to; walls, building structures, trees (foliage), metal objects, and landscape (hills, mountains).

WIRELESS STOP SYSTEMS WORK IN CONJUCTION WITH

HARD-WIRED SYSTEMS.

Wireless Stop and E-Stop devices must work in conjunction with a hard-wired

system. A wireless system should never be considered a primary life-saving device.

At least one hard-wired switch must be available in the event the wireless signal is

lost. Failure to comply may result in serious injury or death to personnel and

damage to equipment.

36-HH-1

INTRODUCTION

The Air-Eagle SR PLUS TX is a handheld R.F. transmitter capable of sending a single digital command to

an Air-Eagle SR Receiver located up to 600 feet away. Any number of transmitters and receivers can be

combined to create a medium-range radio frequency system that operates hazardous or hard-to-reach

equipment from safe, convenient locations. Eight user-programmable frequencies allow multiple systems

to operate simultaneously in the same area without interference. This transmitter will automatically go

into “sleep” mode when not in use to dramatically extend battery life.

INITIAL OPERATION SET-UP

This transmitter comes factory set to frequency 1, to operate relay 1 and transmitting at power level 4

(max range of 600 feet). If you wish to change the default settings, follow the instructions for

FREQUENCY PROGRAMMING, RELAY PROGRAMMING, AND POWER LEVEL PROGRAMMING

CONTROLS & INDICATORS

TX LED

LED illuminates “RED” continuously while button is depressed and unit is

transmitting. When this LED blinks briefly following a transmission, the

battery needs to be replaced. See Note #1

Note #1 –The low battery notification signals have been improved to provide more noticeable

indications and to safely disable communications BEFORE a low battery condition can corrupt internal

memory causing device failure. When a low battery is first detected, the TX LED will blink several times

after all buttons are released. If it is possible to replace the batteries now, please do so. If not, the

operator has approximately 15 more button activations. During this time, when a button is depressed

and held, the TX LED will blink SLOWLY. The slow blinking will continue several more times after all

buttons are released. Transmissions are still being sent to the receiver during this time. When a button

is depressed and the TX LED is RAPIDLY blinking, the RF output is disabled and NO signal will reach

the receiver. The batteries MUST NOW BE REPLACED to resume normal functions.

Pushbutton

Transmits an individual RF code to the receiver

36-HH-1

FREQUENCY PROGRAMMING

Please read through these instructions completely before beginning programming procedure!

All transmitters are set to Frequency 1 by default. The frequency can be changed at any time by following

the procedure below. Once changed, we recommend labeling the transmitter with the selected frequency

number. Frequency settings will not be changed during normal battery replacement.

The TX LED guides you through the programming procedure. To change the setting, follow these steps:

To select from Frequencies 1 thru 8:

1. Remove the battery cover from the back of the transmitter

2. Remove ONE of the batteries from the holder (be sure to note polarity so it is re-inserted properly

in the following steps)

3. Using one hand, depress and hold down Button 1 on the transmitter. While holding button down,

re-insert the battery into the holder.

4. With Button 1 still depressed and battery in holder, keep the button pressed for 5 seconds until

the LED turns RED.

5. Release Button 1 and the TX LED will begin to blink. As shown in chart below, the TX LED will

blink RED for frequencies 1 thru 4 and will blink GREEN for frequencies 5 thru 8.

6. To set the frequency, you must momentarily press Button 1 immediately after the LED has

blinked the number of times for the desired frequency. For example, to set to frequency 6, you

release Button 1 and watch as the LED blinks RED four times, then GREEN twice, THEN

quickly press the button to set the TX to frequency 6.

Press Button Immediately After:

To Set Unit To:

The First RED Flash

Frequency 1

The Second RED Flash

Frequency 2

The Third RED Flash

Frequency 3

The Fourth RED Flash

Frequency 4

The First GREEN Flash

Frequency 5

The Second GREEN Flash

Frequency 6

The Third GREEN Flash

Frequency 7

The Fourth GREEN Flash

Frequency 8

7. Once you have momentarily pressed the button to set the frequency, the TX LED will confirm

your selection by blinking the numbers of times for the frequency that was set. (Note, if the

confirmation shows the incorrect frequency, simply restart the programming from Step 1.

8. Once the proper selection has been confirmed, programming is complete. Replace battery cover

tightly.

NOTE –if you fail to select a frequency during the programming procedure the transmitter will blink the

frequency currently set in the transmitter as shown in the chart above. This can be used to view the

transmitter’s frequency without changing it.

Programming is now complete, and the transmitter is active for normal operation.

You may repeat the above procedure if you wish to change the frequency at any time.

36-HH-1

RELAY PROGRAMMING

Please read through these instructions completely before beginning programming procedure!

All transmitters are set to operate Relay 1 in the remote receiver by default. The relay to be operated can

be changed at any time by following the procedure below. Once changed, we recommend labeling the

transmitter with the selected relay number. If unsure of which relay the transmitter is set to operate,

follow steps 1 thru 6 below. Relay settings will not be changed during normal battery replacement.

To view which Relay unit is set to operate:

1. Remove the battery cover from the back of the transmitter.

2. Remove ONE of the batteries from the holder (be sure to note polarity so it is re-inserted properly

in the following steps).

3. Using one hand, depress and hold down Button 1 on the transmitter. While holding button down,

re-insert the battery into the holder.

4. With Button 1 still depressed and battery in holder, keep the button pressed for 5 seconds until

the LED turns RED.

5. Keep holding Button 1 in until the LED turns GREEN.(about 3 more seconds).

6. Release button and wait while the LED stays GREEN for about 8 seconds, goes out, then begins

to blink. The LED will then blink GREEN the number of times equal to the relay number it is set to

operate.

To select the Relay you wish to operate:

1. Remove the battery cover from the back of the transmitter.

2. Remove ONE of the batteries from the holder (be sure to note polarity so it is re-inserted properly

in the following steps).

3. Using one hand, depress and hold down Button 1 on the transmitter. While holding button down,

re-insert the battery into the holder.

4. With Button 1 still depressed and battery in holder, keep the button pressed for 5 seconds until

the LED turns RED.

5. Keep holding Button 1 in until the LED turns GREEN. (about 3 more seconds).

6. Release button and quickly press the number of times equal to the relay number you wish to

operate.

7. Once you stop pressing for three seconds, the LED will blink back GREEN the number of times of

the relay it’s now controlling to confirm your selection.

8. If you didn’t make the proper relay selection, you must repeat the procedure beginning at Step 3.

You may repeat the above procedure anytime you wish to change which relay the transmitter is to

operate.

36-HH-1

POWER LEVEL PROGRAMMING

Please read through these instructions completely before beginning programming procedure!

All transmitters are set to Power Level 4 (max range 600 ft) default. The power level can be changed at

any time by following the procedure below. Power level settings will not be changed during normal battery

replacement.

The TX LED guides you through the programming procedure. To change the setting, follow these steps:

To view the power level:

1. Remove the battery cover from the back of the transmitter

2. Remove ONE of the batteries from the holder (be sure to note polarity so it is re-inserted properly

in the following steps)

3. Using one hand, depress and hold down Button 1 on the transmitter. While holding button down,

re-insert the battery into the holder.

4. With Button 1 still depressed and battery in holder, keep the button pressed for 5 seconds until

the LED turns RED.

5. Keep holding Button 1 in until the LED turns GREEN (about 2 more seconds).

6. Keep holding Button 1 until the LED starts BLINKING GREEN (about 2 more seconds)

7. Release button and wait while LED continues BLINKING GREEN for about 8 seconds, then

stops, then blinks again. It will blink the number of times equal to the power level setting.

LED Flashes:

Indicates Unit is Set To:

GREEN –one time

Power Level 1 –Approx 100 Ft Range

GREEN –two times

Power Level 2 –Approx 250 Ft Range

GREEN –three times

Power Level 3 –Approx 400 Ft Range

GREEN –four times

Power Level 4 –Approx 600 Ft Range

To select the power level:

1. Remove the battery cover from the back of the transmitter

2. Remove ONE of the batteries from the holder (be sure to note polarity so it is re-inserted properly

in the following steps)

3. Using one hand, depress and hold down Button 1 on the transmitter. While holding button down,

re-insert the battery into the holder.

4. With Button 1 still depressed and battery in holder, keep the button pressed for 5 seconds until

the LED turns RED.

5. Keep holding Button 1 in until the LED turns GREEN (about 2 more seconds).

6. Keep holding Button 1 until the LED starts BLINKING GREEN (about 2 more seconds).

7. Release button and quickly press the number of times equal to the power level desired.

8. Once you stop pressing for three seconds, the LED will blink back GREEN the number of times of

the power level to confirm your selection.

9. If you didn’t make the proper power level selection, you must repeat the procedure beginning at

Step 3.

You may repeat the above procedure anytime you wish to change the power level of the transmitter.

36-HH-1

APPROVALS

United States (FCC)

MCQ-XBEE3

Canada (IC)

1846A-XBEE3

Europe (CE)

ETSI

Australia

RCM

Brazil

ANATEL 06329-18-01209

SPECIFICATIONS

Keypad

Durable Sealed Membrane Keypad –Eliminates Dust, Dirt and

Moisture Failures

Enclosure

ABS UL94 HB

Enclosure with ring is rated IP54 *Not

Waterproof

Protective Ring

SEBS (TPE)

Power Requirements

3.0 VDC

Battery Type

(2) 1.5V lithium each, size AAA, to equal 3.0VDC nominal.

***For best performance use ONLY Energizer Brand Lithium

Batteries

*Note: Current frequency settings are maintained in flash memory during battery

replacement. No reprogramming of frequency settings is necessary!

Battery Life(Active Usage)

Up to 6 months

Battery Life(Sleep Mode)

Up to 1 Year

Transmit Frequency

2.4GHz Spread Spectrum

RF Networks

Eight Independent Network Frequencies

RF Output Power

User Selectable from 1mW - 60 mW

Max Transmit Range

User-Selectable from 100 - 600 Feet

Note: Range figures are estimates, based on free-air terrain with limited sources of interference. Actual range will vary

based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving

antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including, but

not limited to, indoor and outdoor structures such as walls, metal objects, trees, buildings, hills, and mountains.

Operating Temperature

-40oF to +185oF

Weight

Approx .22 lbs. (w/belt clip)

36-HH-1

DIMENSIONS

Autres manuels pour AIR-EAGLE SR PLUS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BWI Eagle Émetteur

BWI Eagle

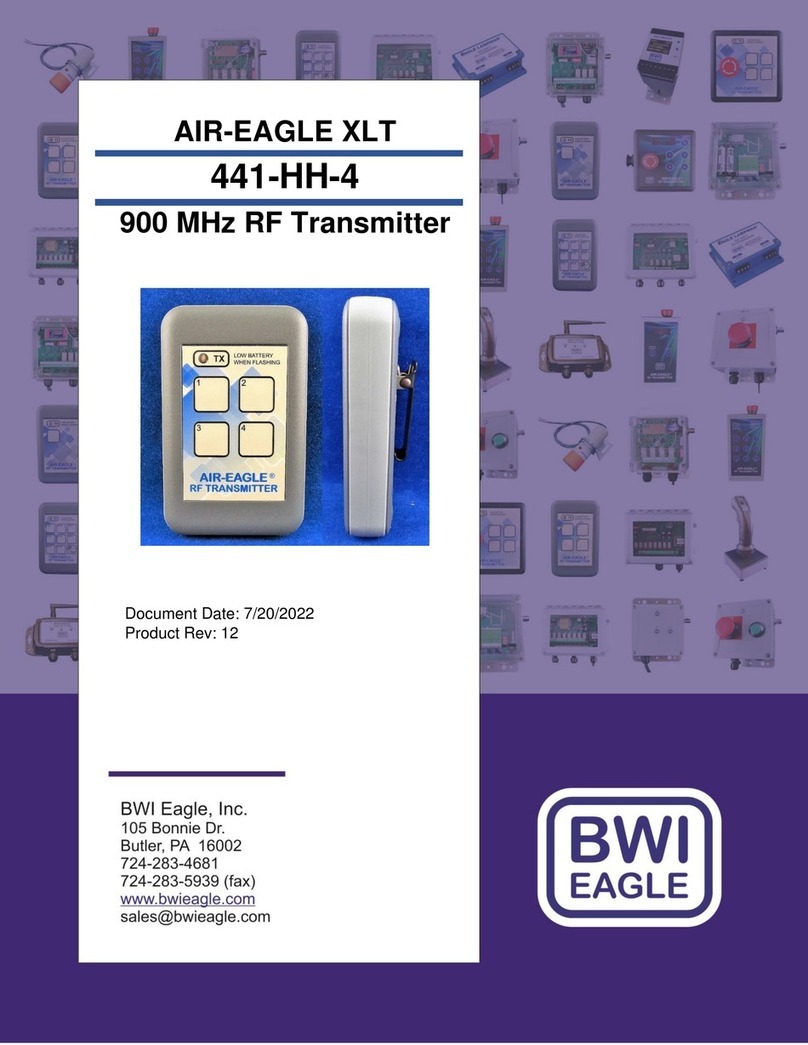

BWI Eagle AIR-EAGLE XLT Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1800-120VAC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1400-120VAC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS TX Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT 441-HH-1 Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-HH-4-VBR Manuel

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-SSB-120VAC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-HH-9 Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1400-4B-120VAC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR 38-1400-DC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-BAT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE SR 38-1400-BAT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-120VAC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-SSB-R1/8-DC Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle 36-HHE-4 Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT PLUS 465UEBD-HH Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE XLT Manuel

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1100R1-DC Manuel

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
