201740ASIA - Bushnell®Pro X2 - Laser Rangeﬁnder

Congratulations on your purchase of the Bushnell® Pro X Laser Rangender, our top of the line laser rangender for

golfers and used by more golf professionals than any other brand. e Pro X is a precision Laser Rangending optical

instrument designed to provide many years of enjoyment. is booklet will help you achieve optimum performance

by explaining its adjustments and features as well as how to care for this precise laser rangending optical instrument.

To ensure optimal performance and longevity, please read these instructions before using your Pro X.

INTRODUCTION

Your Bushnell® Pro X is an advanced premium laser rangender comprised of Digital Technology and turbo

processors allowing range readings from – yards / – meters, and combines the best of a premium compact

monocular with the new Dual Display Technology™. Measuring . x  x  inches, the -ounce Pro X with nd

Generation E.S.P.™ (Extreme. Speed. Precision.) delivers extremely fast acquisition and incredible ½ Yard accuracy

and / precision from – yards and +/-  yard Accuracy from – yards. e Pro X features PinSeeker™

technology with JOLT, allowing the golfer to easily and quickly “zero” in on the ag without acquiring background

targets, and Superb Optical Quality.

6x Magniﬁcation

Dual Display Technology™

Rubber Armored Metal Housing Adjustable Diopter Setting

Adjustable Diopter Setting

Posi-Thread™Battery Door

PinSeeker™with Jolt Mode

E.S.P.2™- Extreme. Speed. Precision.

• Gen 2 Turbo Processor Provides Faster Acquisition

• Provides 1/2 Yard Accuracy; 1/10 Precision from 5–125 Yards

Mode Button (“B”Logo)

Power Button

HOW OUR DIGITAL TECHNOLOGY WORKS

e Pro X emits invisible, eye safe, infrared energy pulses. e Pro X Advanced Digital microprocessor and ASIC

chip (Application-Specic Integrated Circuit) results in instantaneous and accurate readings every time. Sophisticated

digital technology instantaneously calculates distances by measuring the time it takes for each pulse to travel from the

rangender, to the target, and back.

RANGING ACCURACY

e ranging accuracy of the Pro X is plus or minus one yard / meter under most circumstances. e maximum range

of the instrument depends on the reectivity of the target. e maximum distance for most objects is  yards / 

meters while for highly reective objects the maximum is  yards /  meters.

Note: You will get both longer and shorter maximum distances depending on the reflective properties of the particular target and the environmental

conditions at the time the distance of an object is being measured. The color, surface finish, size and shape of the target all affect reflectivity and range.

The brighter the color, the longer the range. Red is highly reflective, for example, and allows longer ranges than the color black, which is the least reflective

color. A shiny finish provides more range than a dull one. A small target is more difficult to range than a larger target. The angle to the target also has

an effect. Shooting to a target at a  degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses) provides

good range while a steep angle on the other hand, provides limited ranging. In addition, lighting conditions (e.g. the amount of sunlight) will affect the

ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit’s maximum range will be. Conversely, very sunny days will decrease

the unit’s maximum range.

E.S.P.2™ (Extreme. Speed. Precision. 2nd generation), our advanced second generation ranging technology, provides the fastest, most accurate

ranging measurement based on target conditions. The laser analyzes multiple individual measurements to the target and calculates and displays the best

possible result. Target variations such as reflectance, shape and color can affect the accuracy of a laser measurement, but E.S.P.™ automatically assesses

the conditions and improves the measurement up to / Yard Accuracy whenever possible from – yards. When this occurs, display readout precision will

be refined to /th yard. For those who prefer their distances displayed in whole units (full yard or meters), E.S.P.™ can be disabled in the Setup Menu.

GETTING STARTED

OPERATIONAL SUMMARY

While looking through the Pro X, depress the power button once to activate the display. Place the aiming circle

(located in the center of the eld of view) upon a target at least  yards away, depress and hold the power button down

until the range reading is displayed near the bottom of the in-view display. Crosshairs surrounding the aiming circle

indicate that the laser is being transmitted. Once a range has been acquired, you can release the power button. e

crosshairs surrounding the aiming circle will disappear once the power button has been released (i.e. the laser is no

longer being transmitted).

Note: Once activated, the display will remain active and display the last distance measurement for  seconds. You can depress the power button again at

any time to distance to a new target. As with any laser device, it is not recommended to directly view the emissions for long periods of time with magnified

lenses. The maximum time the laser is transmitted (fired) is  seconds. To re-fire, press the button down again.

ADJUSTING THE EYEPIECE

e Pro X is equipped with an adjustable eyepiece (+/-  Diopter Adjustment) that allows you to focus the display

relative to the image. Simply rotate the eyepiece until the display is in focus.

DUAL DISPLAY (SELECTING RED OR BLACK DISPLAY)

e Pro X features Dual Display Technology, which lets you easily toggle between a

bright red display featuring VDT (Vivid Display Technology) or a crisp black display,

based on lighting conditions or your preference. To toggle between red and black displays,

briey press and release the round “B” logo plate on the left side of the unit.

DUAL DISPLAY

TECHNOLOGY

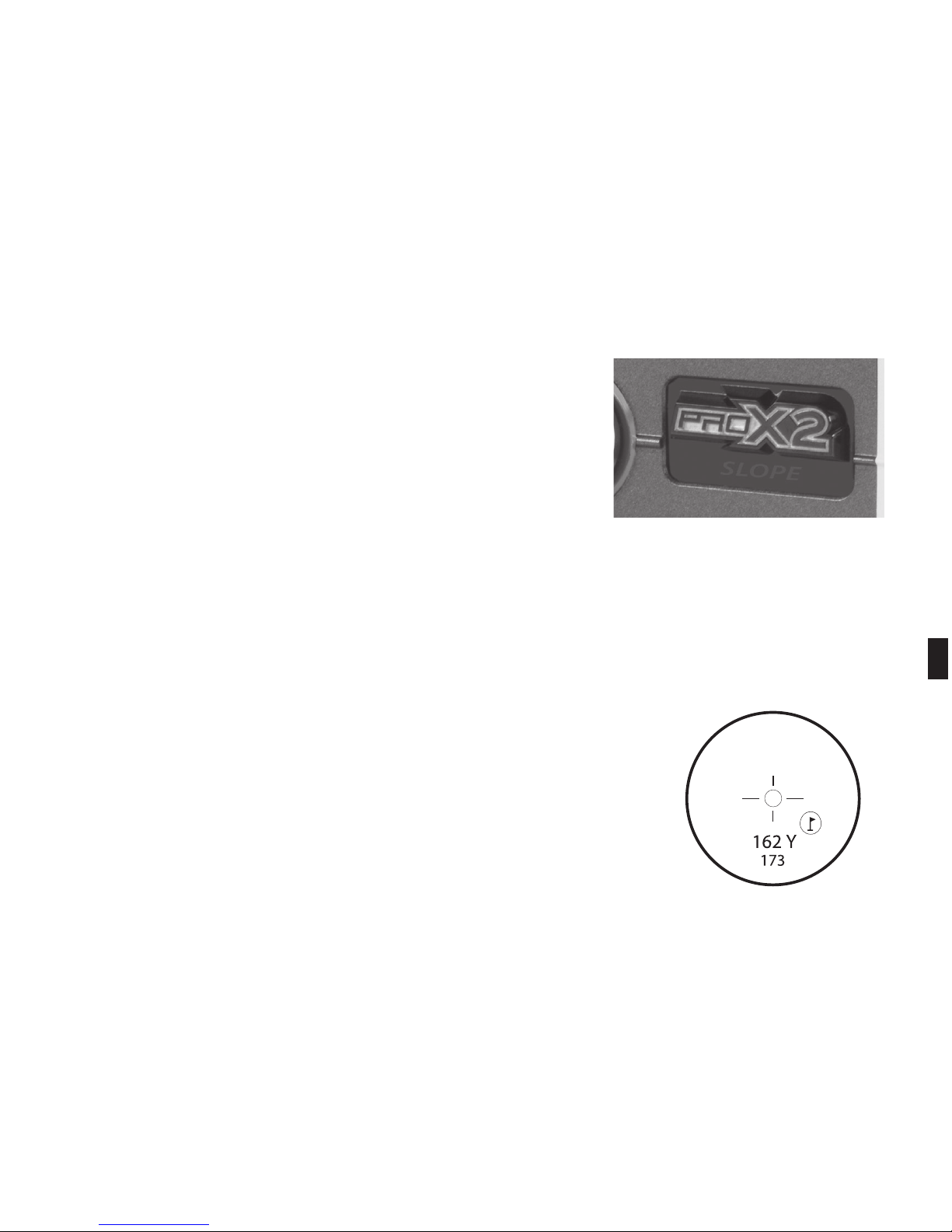

SLOPE-SWITCH TECHNOLOGY

Slope-Switch Technology lets the golfer easily turn Bushnell’s patented Slope function on and o. is allows the

golfer to conveniently utilize Slope to get compensated distances around the course when they want it and have a

USGA conforming device that is legal for tournament play when they need it.

DISPLAY INDICATORS

Your Pro X display incorporates the following illuminated indicators:

PinSeeker™ Indicator (1)

Aiming Reticle (2)

Battery Life Indicator (3)

Active Laser (4)

Distance Displayed in Yards/Meters ()

Slope Compensated Distance ()

BATTERY LIFE INDICATOR

Battery Indicator:

Full charge

/ battery life remaining

/ battery Life remaining

Battery Indicator Blinks - Battery needs to be replaced and unit will not be operable.

103

PinSeeker beyond E.S.P range— 20196, 205107, 205108

PinSeeker & E.S.P—201960

PinSeeker & E.S.P“Play-As”PinSeeker Slope & E.S.P

110

INSERTING THE BATTERY

Remove the Posi-read™ battery door by lifting the battery door tab and then rotating counter clockwise.

Insert a CR2 3-volt lithium battery into the compartment negative end rst, then replace the Posi-read™

battery door.

Note: It is recommended that the battery be replaced at least once every 6 months.

ACTIVE LASER

Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired,

you can release the power button. e crosshairs surrounding the circle will disappear once the power button has been

released (i.e. the laser is no longer being transmitted).

PINSEEKER™WITH JOLT®

Ever have trouble getting distance to the ag? is advanced mode allows easy acquisition of the ag without

inadvertently getting distances to background targets (i.e. trees) that have stronger signal strength.

For ease of use, the device will always be in PinSeeker™Mode.

To use, align the aiming circle reticle onto the ag that you want distance to. Next, press and hold the power button

and move the laser slowly over the ag or desired object until a circle surrounds the ag indicator. If the laser beam

recognized more than one object (i.e. ag and background trees), distance of the ag will be displayed and a circle will

surround the PinSeeker™ indicator informing the user that distance to the ag (i.e. closer object) is being displayed.

e Jolt Technology provides two short bursts of vibration to conrm that the distance displayed is to the ag. ere

may be times when only the laser beam only sees one object in its path. In this case, the distance will be displayed, but

because more than one object was not acquired, a circle will not surround the ag indicator.

Tip: While pressing the Power button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that

you are only displaying the closest of the objects recognized by the laser. Once the device has shut off, the unit will always default back to the last mode used.

PINSEEKER™WITH SLOPE +/-™

When slope is enabled by sliding the slope switch on the side of the unit up

until “SLOPE” is visible, Bushnell’s patented Slope Technology is displayed.

e Slope +/- mode will automatically compute an angle compensated range

based upon distance and slope angle determined by the laser rangender and

built-in inclinometer. is data is then combined with internal algorithmic

formulas dealing with average club use and ball trajectories. e angle

compensated range provides direction on how to play the shot (i.e. add

distance if an incline, subtract distance if a decline). Slide the slope switch

back down out of slope mode, and your Pro X now conforms to USGA Rule

-, with the slope angle compensated ranging feature removed.

HOW TO USE SLOPE +/-™

Once in this mode, you will see a “ - - - ” in the eld of view informing you that you are in the Slope +/- Mode. Press

the Power button to obtain distance to the ag or other objects. Once the range is displayed, release the Power button.

Once you have released the power button, a degree of angle and compensated range will be displayed beneath the

standard distance.

In the example on the next page, the true distance is  yards, slope is + degrees,

and the compensated (“play-as”) range is  yards. e display would show this:

THE ADVANTAGE OF SLOPE +/-™

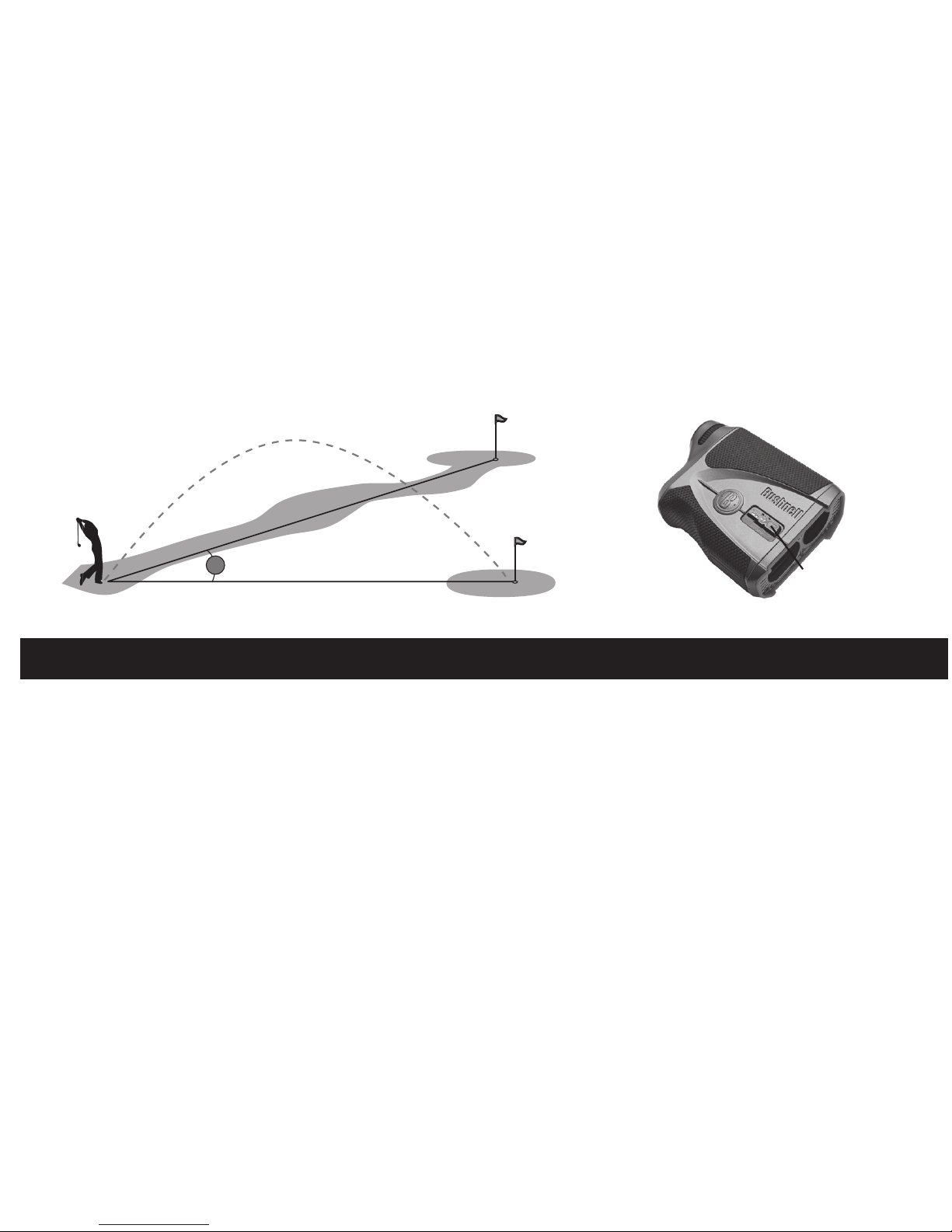

e distance to ag A in the drawing below is  yards. It is also  yards to ag B although it is on a slope. However, if you

were to play this hole as  yards, the ball (X) would fall short of the hole/ag because you did not take slope into account.

DISPLAY BRIGHTNESS (V.D.T.)

e Pro X has Vivid Display Technology. is bright red LED display dramatically improves contrast, clarity, and

light transmission while increasing brightness of the digital readout, making distance readings legible in low light

environments. ere are four intensity settings to choose from and this is the rst setting within the SETUP menu.

Hold the Mode button (“B” logo on side of device) for  seconds to get into the SETUP menu. e existing brightness

setting will be ashing (i.e. BRT1, BRT2, BRT3, or BRT4). Pressing the Mode (“B” logo) button will toggle between

the four brightness settings. “BRT1” is the lowest intensity while “BRT4” is the brightest. Simply press the Mode

button until the desired brightness setting is displayed, then press and release the Power button to save the setting.

162 YARDS

4° Slope-Switch

Technology

SETUP MENU / MODE BUTTON

UNIT OF MEASURE OPTIONS

e Pro X can be used to measure distances in yards or meters. e

unit of measure indicators are located in the lower right portion of

the display. ere are two measuring settings to choose from and this

is the second setting within the SETUP menu. Look through the

eyepiece, depress the Mode button (“B” logo) and hold it down for

approximately  seconds to get into the SETUP menu. Brief presses

of the Mode button will toggle through the brightness settings if

the bright red LED display is selected. Press the Power button to go

to the Unit of Measure options, and again briey press the Mode

button to select your preference. A change in unit of measure will be

indicated by the illumination of the Mfor meter indicator while the

Yfor Yard indicator is turned o. If you are changing from meters to

yards, the opposite will occur. e Pro X will return to the last unit

of measure setting used each time the unit is turned on.

E.S.P.2™ ON/OFF

e Pro X distance readout to a tenth of a yard/meter (E.S.P. feature) can be enabled/disabled per user preference.

With “ESP O” selected (E.S.P. disabled), distances will be indicated only in whole yards/meters. With“ESP On”

selected (E.S.P. enabled), distances will be indicated to a tenth of a yard/meter.

MENU OPTION SETTINGS

Display Brightness BRT1

BRT2

BRT3

BRT4

Unit of Measure Y (Yards)

M (Meters)

ESP (1/10 units) ESP On

ESP Off

Enter SETUP menu: long press on Mode (“B”) button

While in the SETUP menu:

• Select setting for option: short press on Mode button

• Save setting: short press & release of Power button

• Select next menu option: short press on Power button

Exit SETUP menu: long press on Mode button, or let power

time out
