Buffalo LinkStation Pro Manuel utilisateur

Package Contents:

Main Unit (LinkStation)

Ethernet Cable

Power Cable

LinkNavigator Installation CD

Quick Setup Guide (this manual)

Warranty Card

www.buffalotech.com

Quick Setup Guide

LinkStation Pro

v1.4

Step 1: Connect your Cables

Plug LinkStation’s power cord and Ethernet cable into the back of

the LinkStation.

Connect the power plug to a surge protector or power outlet. Plug

the other end of the Ethernet cable into a hub, switch, or router

on your local network.

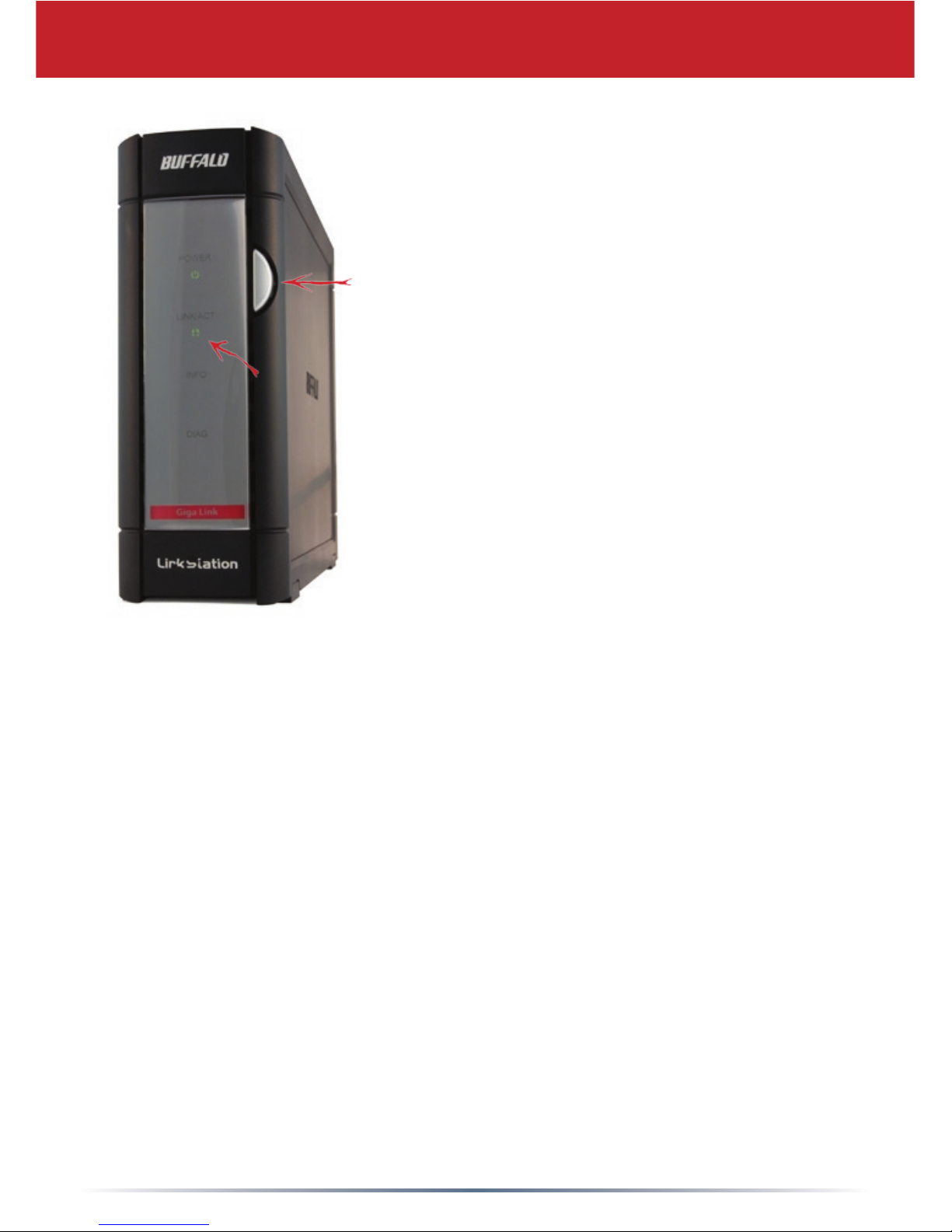

Press the power button on the front panel

to turn your LinkStation on.

Check the LINK/ACT LED on the front

of the LinkStation. If it’s lit, then your

LinkStation is connected properly. Please

turn to page 4 to continue setup.

If the LINK/ACT LED on the front of

LinkStation is not lit, your LinkStation is

not properly connected to your network.

Make sure that:

• both LinkStation and the hub, switch, or PC are powered on,

• the Ethernet cable is securely fastened to both devices, and

• the Ethernet cable is not damaged. To verify, try using another

Ethernet cable.

Step 2: Check your Connection

If problems persist, contact our technical support.

Insert the LinkNavigator CD

into your computer’s CD-

ROM drive. If Setup doesn’t

launch automatically, you

can launch it manually by

clicking Start, then Run....

When the Run dialog

opens, type d:\setup.exe

(where “d” is the drive letter

of your CD-ROM). Press OK to continue. If you are

installing the software on a Mac, open the cd and click

LinkNavigator to begin installation.

If you’re installing on a Mac,

skip to the next page.

If you’re installing on a PC,

click on Connect this PC

to LinkStation (the green,

lower button).

Click Next to step through

the installation.

Step 3: Installing Software

Press the Begin

Installation button to

begin.

Continue pressing Next to

step through the installation.

When installation is

complete, you may close the

installation window.

Congratulations! Your LinkStation is ready to use. Turn to page

6 for more on using your LinkStation with a PC, or page 7 for

more on using your LinkStation with a Mac.

Please see the LinkStation User Manual on your LinkStation

cd for more help and conguration options.

The LinkStation shortcut will take directly to the

folders on your LinkStation.

Share is the main folder that you can put les

and folders in. Info contains a copy of your user

manual.

Using your LinkStation with a Windows PC

The Buffalo NAS Navigator icon opens

the LinkStation’s client utility. This

lets you easily view system information

for your LinkStation(s). If you click

Setup and choose Conguration

Settings, it will take you to the settings

conguration GUI, where you may

change your LinkStation’s settings.

Until you change it, the GUI’s username

is “admin” and the password is

“password”. Consult your user manual

for more information on the Buffalo NAS Navigator and the Settings

Conguration GUI.

Another way to access folders and

data on your LinkStation is through

the mapped driveletter ‘L’. When the

installation program ran, it added your

LinkStation’s main “share” folder to your

“My Computer” folder as drive ‘L’. Use

this virtual hard drive like any other hard

drive on your computer. You may add

additional shares and mapped drive letters to your LinkStation and PC;

consult your user manual for more information.

If you’re using a Windows PC, two new

icons will be on your desktop: Shortcut for

LinkStation and Buffalo NAS Navigator.

After installing the LinkNavigator software,

your Mac will have two new icons on the

desktop.

The Share folder is the main folder

that you can put les and folders in. NASNavigator is the

LinkStation’s client utility.

Using your LinkStation with a Mac

Clicking NASNavigator

icon opens the

LinkStation’s client utility.

This lets you easily view

system information for

your LinkStation(s). If you

click Setup and choose

Browser Management,

it will take you to the

settings conguration GUI,

where you may change

your LinkStation’s settings. Until you change it, the GUI’s

username is “admin” and the password is “password”. Consult

your user manual for more information on the Buffalo NAS

Navigator and the Settings Conguration GUI.

Clicking Share opens

the main folder on the

LinkStation. You may add

additional shares to your

LinkStation; consult your

user manual for more

information.

Technical Support

Buffalo Technology offers free technical support. See the back page of

this quick start guide for contact information. Please also visit the web

site at http://www.buffalotech.com.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Technical Specications

LAN Standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

Transmission: 1000BASE-T: 8B1Q4, PAM5; 100BASE-TX: 4B5B

MLT-3, MLT-3; 10BASE-T Manchester Coding

Access Media: CSMA/CD

Media Interface: RJ-45

USB Standard: USB 2.0

Hi-Speed (HS)

Full-Speed (FS)

Low-Speed (LS)

USB Connector: USB A Connector (2)

Data Transmission Speed: Max: 480 Mbps (HS Mode)

Max: 12 Mbps (FS Mode)

Electric Current: 120V A/C

Power Consumption: ~21W

Dimensions: 2.4“ x 6.3“ x 8.5“ (60 x 160 x 216 mm.)

Weight: ~3.5 lbs

Operating Temperature:  41-95˚F;20-80%non-condensing

USA/Canada Technical Support is available 24 hours a day, 7 days a week

Toll-Free: 866-752-6210

email: [email protected]

Europe Technical Support is available between 9am-6pm (Monday-Thursday) (GMT)

and 9am-4:30pm on Fridays.

email: helpdesk@buffalo-technology.ie

http://www.buffalotech.com
