If a drive in the TeraStation fails, the Error LED will glow red. Open the front cover and check the Status

LEDs. The malfunctioning drive's Status LED will be glowing red. This drive may be hot-swapped. Replace

with a Buffalo OP-HD series drive of the same size.

・Only failed drives may be hot-swapped. If you need to remove a drive that has not failed and

whose Status LED is not glowing red, either shut down the TeraStation, or dismount the drive in

RAID Builder. Once the TeraStation is shut down, or the drive is dismounted, then it is safe to

replace the drive.

・If the TeraStation is off, drives may be replaced without dismounting them first.

・Installing or removing a hard drive while the system is still running is referred to as a hot-swap.

Status LEDs

1 ~ 4

Error LED

Enter the username and password,

then click [OK].

The default settings are:

Username: Administrator

Password: password

Right-click the TeraStation icon (in

Mac OS, click while holding down

the Control key), then select

[Open Remote Desktop].

Windows Storage Server will open in a Remote Desktop window.

・The TeraStation is fragile. Handle it with care. Do not drop or bump the TeraStation.

・Use caution when handling the unit in order to avoid personal injury.

・Never disassemble any parts while you are replacing a hard drive unless instructed to do so in this manual. Any malfunction or damage caused by

disassembling the TeraStation will void your warranty.

・To avoid damaging the TeraStation with static electricity, ground yourself by touching something made of metal before handling any sensitive

electronic parts.

・Replacement drives should be Bualo OP-HD drives of the same capacity as the originals. These drives are available from www.bualotech.com.

・Do not use any hard drive that has been used in another TeraStation/LinkStation or another computer as a replacement drive. If you do, data on

the unit may be damaged or lost.

・Do not change the order of the hard drives in the TeraStation. For example, pulling out drive 1 and replacing it with drive 2 may cause data to be

corrupted or lost.

・In a RAID 1 conguration, the boot drive (C:) consists of the rst and second hard drives from the top. Do not replace both of these hard drives at

the same time.

・If a hard drive is replaced while saving a le, the le can be corrupted. Be sure that the saving operation is completed before replacing the hard

drive.

>> Please read the back of this sheet

Open NAS Navigator2.

・In Windows, double-click the Bualo NAS Navigator2 icon on the

Desktop.

・In Mac OS, click NAS Navigator2 icon in the Dock.

1In Windows Storage Server, navigate to [Start] - [All Programs] -

[BUFFALO] - [RAID Builder] - [Launch RAID Builder].

with cover opened

Drive Failures

Hard Drive Replacement Examples

When the message “The Hard Disk is ready to remove.” is

displayed, click [OK].

If the TeraStation is on, begin from step 1. If the TeraStation is off, begin from step 7 on the back side.

Select [Remove Hard Disk], then

select the hard drive to be

removed and click [OK].

In this example, drive 3 is being

dismounted.

35012034 ver.01

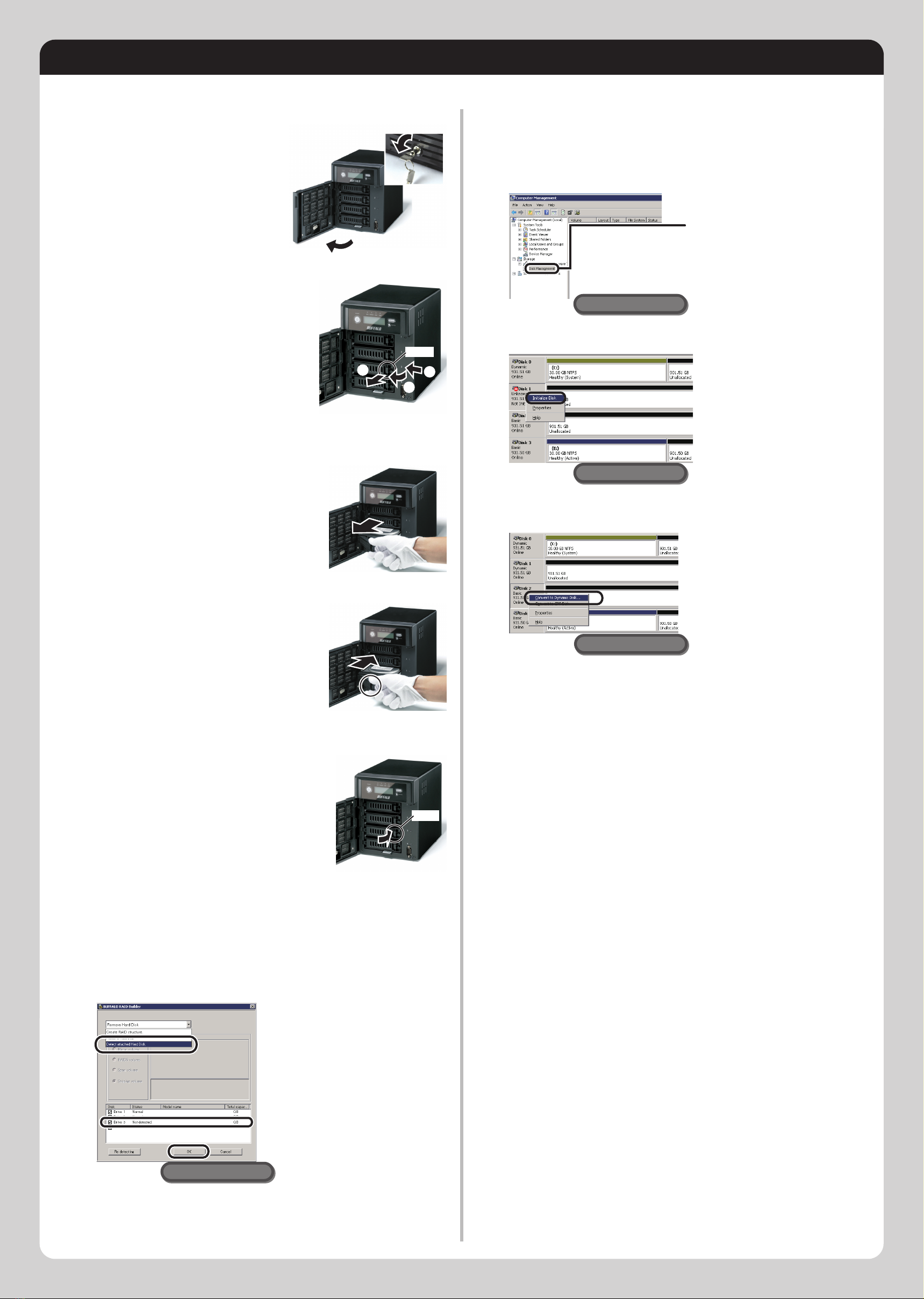

Hard Drive Replacement Procedure

English

Remote Desktop

①

②

③

Hard Drive Replacement Examples

Push the locking tab of the failed

hard drive to the left and swing the

lock around to the left.

The photo here shows an example of replacing

drive 3.

Open the front cover with the included key.

Insert the OP-HD series hard drive into the

empty slot from Step 9.

Slide the drive in with the locking mechanism open.

Slide the drive into the TeraStation, then

swing the lock back down until it clicks

into place.

Pull out the hard drive cartridge and remove

it from the TeraStation.

You have now completed the hard drive replacement process.

＞＞Continued from front page

Click [Detect attached Hard

Disk], select the new drive, and

click [OK].

Previously detected drives are grayed out.

When “Detected Hard Disk” is displayed, click [OK].

Click [Disk Management].

Right-click the initialized hard

drive and select [Convert to

Dynamic Disk].

A RAID array cannot be built unless the

hard drive is converted to a dynamic

disk.

Follow the instructions on the

screen to convert to a

dynamic disk.

To create a new volume:

Right-click the new dynamic disk and select [New Volume].

Follow the instructions on the screen to create a new volume.

To restore a RAID 5 volume (RAID resynchronization):

(1) Right-click the volume labeled “Failed Redundancy”, then click

[Restore Volume].

(2) When “Select the disk from the following list” is displayed,

select the drive to restore and click [OK].

Note: Perform steps (1) to (2) once for each volume that requires

RAID resynchronization.

(3) Right-click the volume labeled “Missing”and select [Delete

Disk].

To restore a Mirrored volume (RAID resynchronization):

(1) Right-click the volume labeled “Failed Redundancy”, then click

[Remove Mirror].

(2) When “Remove Mirror” is displayed, select the drive where the

mirror will be removed (Missing status), then click [OK].

Note: Perform steps (1) to (2) once for each volume that requires

RAID resynchronization.

(3) Select the new volume where mirroring will be performed,

then select [Add Mirror].

(4) When [Add Mirror] is displayed, select the drive where

mirroring will be performed with the selected volume, then

click [Add Mirror].

(5) When [Disk Management] is displayed, click [OK].

Right-click the new drive

and select [Initialize Disk].

Follow the on-screen instructions to

initialize the drive.

In Windows Storage Server, navigate to [Start] - [All Programs] -

[Administrative Tools] - [Computer Management].

Replace the front cover.

If the hard drive was replaced while the TeraStation power was turned off,

press the power button on the TeraStation to turn on the power and start

RAID Builder by performing steps 1 to 4 on the front page.
