Buffalo LinkStation 200 Series Manuel utilisateur

LinkStation 200

User Manual

www.buffalotech.com

35020312-02

2014-03

Contents

Chapter 1 Installation ........................................................7

Diagrams ...............................................................................................7

Turning the LinkStation On and Off ...................................................8

Chapter 2 Configuration ...................................................9

Opening Settings from a Computer ...................................................9

Opening Easy Admin ......................................................................................9

Opening Advanced Settings .............................................................12

Opening Settings from a Smartphone .............................................13

iPhone, iPad, and iPod touch .......................................................................13

Android Smartphones and Tablets ..............................................................14

Chapter 3 Remote Access ................................................17

WebAccess ..........................................................................................17

Configuring from a Smartphone .................................................................17

Configuring from a Computer .....................................................................25

FTP .......................................................................................................28

Chapter 4 Access Restrictions .........................................30

Configuring Access Restrictions on Users and Groups ...................30

Adding Shared Folders .................................................................................30

Adding Users .................................................................................................33

Adding Groups ..............................................................................................36

Access Restrictions ........................................................................................36

Active Directory .................................................................................38

NT Domains ........................................................................................40

Delegating Authority to an External SMB Server ............................42

Chapter 5 Managing Storage..........................................45

RAID Arrays .........................................................................................45

Working with RAID Arrays .................................................................45

Using JBOD ....................................................................................................45

Changing RAID Mode ...................................................................................46

RMM (RAID Mode Manager) .........................................................................47

RAID Scanning...............................................................................................48

Adding an External Hard Drive .........................................................49

Connect an External Drive............................................................................49

Compatibility ................................................................................................49

Dismounting Drives ...........................................................................49

Dismounting with the Function Button ......................................................49

Dismounting from Settings .........................................................................50

Checking Drives .................................................................................51

Formatting Drives ..............................................................................52

Erase Data on the LinkStation Completely ......................................54

Disk Quotas ........................................................................................55

Quotas for Users ............................................................................................55

Quotas for Groups ........................................................................................55

Hard Drive Replacement ...................................................................56

Hard Drive Replacement Examples .............................................................56

Chapter 6 Backup ............................................................62

Back Up from the LinkStation ...........................................................62

Preparing a Backup Destination ..................................................................62

Configuring a Backup Job ............................................................................63

Backing Up Your Mac with Time Machine ........................................65

Copying from a USB Device ...............................................................68

Configuring Direct Copy ...............................................................................68

Starting Direct Copy .....................................................................................70

Chapter 7 Multimedia .....................................................71

DLNA ...................................................................................................71

Configuration from Smartphone .................................................................71

Configuration from Easy Admin ..................................................................72

Configuration from Advanced Settings ......................................................72

Play Files ........................................................................................................73

Connected DLNA-compatible Devices ........................................................73

Streaming to DLNA-compatible Devices ....................................................74

Disabling Playback from Specific Devices ..................................................74

iTunes Server ......................................................................................75

BitTorrent ............................................................................................76

Configuring BitTorrent .................................................................................76

Opening Download Manager ......................................................................78

Downloading Files ........................................................................................79

Connecting a Printer ..........................................................................80

Setting up a Printer from a Smartphone .....................................................80

Setting up a Printer with Windows 8.1, Windows 8, Windows 7, or

Windows Vista ...............................................................................................81

Setting Up a Printer with Windows XP ........................................................82

Chapter 8 Advanced Features ........................................83

Email Notification ..............................................................................83

Sleep Mode .........................................................................................84

Encrypting Data Transmission ..........................................................85

Encrypting Settings Data .............................................................................85

Encrypting FTP Transfer Data ......................................................................85

SSL Encryption ..............................................................................................85

Restoring Factory Defaults ................................................................86

Initializing from Settings .............................................................................86

Initializing with the Function Button ..........................................................86

Online Update ....................................................................................86

Name, Date, Time, and Language .....................................................87

Jumbo Frames ....................................................................................89

Changing the IP Address ...................................................................90

Chapter 9 Utilities ............................................................91

NAS Navigator2 for Windows ............................................................91

Mount as Network Drive...............................................................................93

Changing the IP Address ..............................................................................94

NAS Navigator2 for Mac OS ...............................................................94

Mount as Network Drive...............................................................................95

Changing the IP Address ..............................................................................96

Chapter 10 Appendix ......................................................98

When the Power LED Blinks ...............................................................98

Default Settings .............................................................................. 100

Specifications .................................................................................. 100

Models ........................................................................................................ 101

Chapter 11 Regulatory Compliance Information ........103

The United States ............................................................................ 103

Europe .............................................................................................. 103

Chapter 1 Installation

Diagrams

LS210D

LS220D/LS220DE

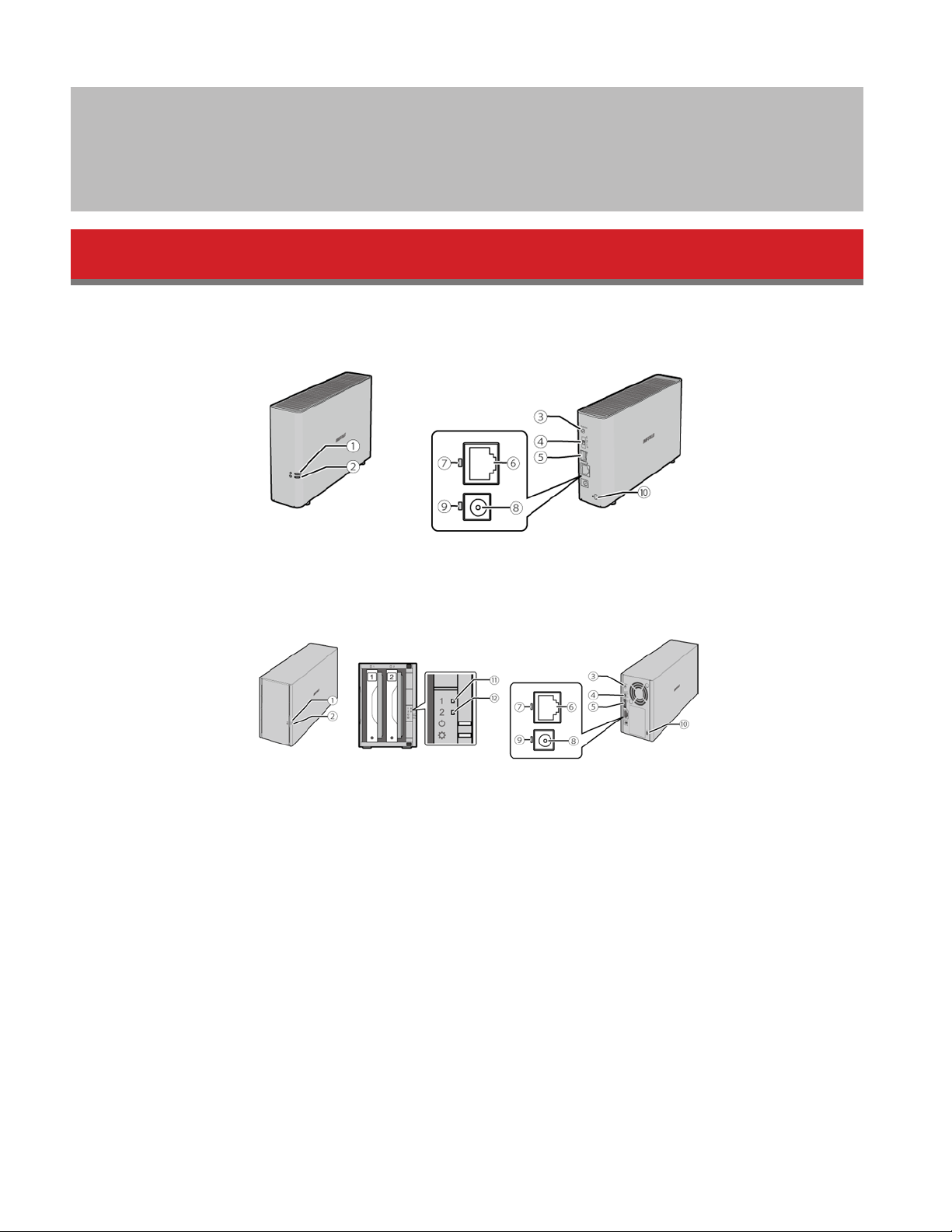

1 Power LED

The white power LED will light up while the LinkStation is on.

The white power LED blinks while booting or shutting down.

The red power LED blinks when an error occurs.

If there is a status message, the power LED blinks amber.

If there is new firmware available, the power LED glows amber.

2 Function LED

This LED glows white while the LinkStation is being initialized and while dismounting USB devices. It blinks white

while Direct Copy.

For enclosure model, the red function LED glows when turning the LinkStation on to the initial hard drive

installation and it blinks after pushing the function button.

3 Function Button

Use this button for Direct Copy, dismounting USB devices, and initializing settings.

4 Power Switch

Move the switch up and down to power on and off.

5 USB 2.0 Port

Compatible Buffalo USB hard drives, USB flash drives, digital cameras, and USB printers can be connected. USB

hubs are not supported.

6 LAN Port

Connect to a router, hub, or switch on your Ethernet network with the included Ethernet cable.

7 Link and Activity LED

This LED shows network activity. It blinks green when the LinkStation is accessed over the network.

8 Power Connector

Use the included power cable to connect to a surge protector or outlet.

9 Power Status LED

The LED glows green when the power cable is connected.

10 Anti-Theft Security Slot

Use this slot to secure your LinkStation with a cable lock (not included).

11 Drive 1 Error LED (LS220D/LS220DE only)

If there is an error on drive 1, this LED will light.

12 Drive 2 Error LED (LS220D/LS220DE only)

If there is an error on drive 2, this LED will light.

Turning the LinkStation On and Off

Move the power switch on the back of the LinkStation to the “on” position to turn it on. To turn it off, move the switch

to the “off” position and wait for the unit to fully shut down before unplugging it. Never unplug the AC adapter without

properly shutting down the LinkStation first.

When all the LEDs on the front of the LinkStation turn off, the shutdown process is complete.

Chapter 2 Configuration

Configure and administer your LinkStation using the Settings interface, accessible from a browser window. Open the

interface using the procedure below or type the LinkStation’s IP address in the URL field of your browser. Within Settings,

the Easy Admin page gives you quick access to commonly used settings.

Opening Settings from a Computer

Note: Internet Explorer 9, Firefox 18, Google Chrome 24, Safari 5, and later are supported. If you have difficulty

viewing Settings, check the following:

• If you have a proxy server enabled in the browser settings, disable the proxy server.

• With Internet Explorer, set security to Local intranet. On Windows Server 2012 or Windows Server 2008, higher-

level security is configured by default. Set the security to a lower level temporarily.

Opening Easy Admin

The Easy Admin page makes it easy to change common settings. Follow the steps below to open Easy Admin.

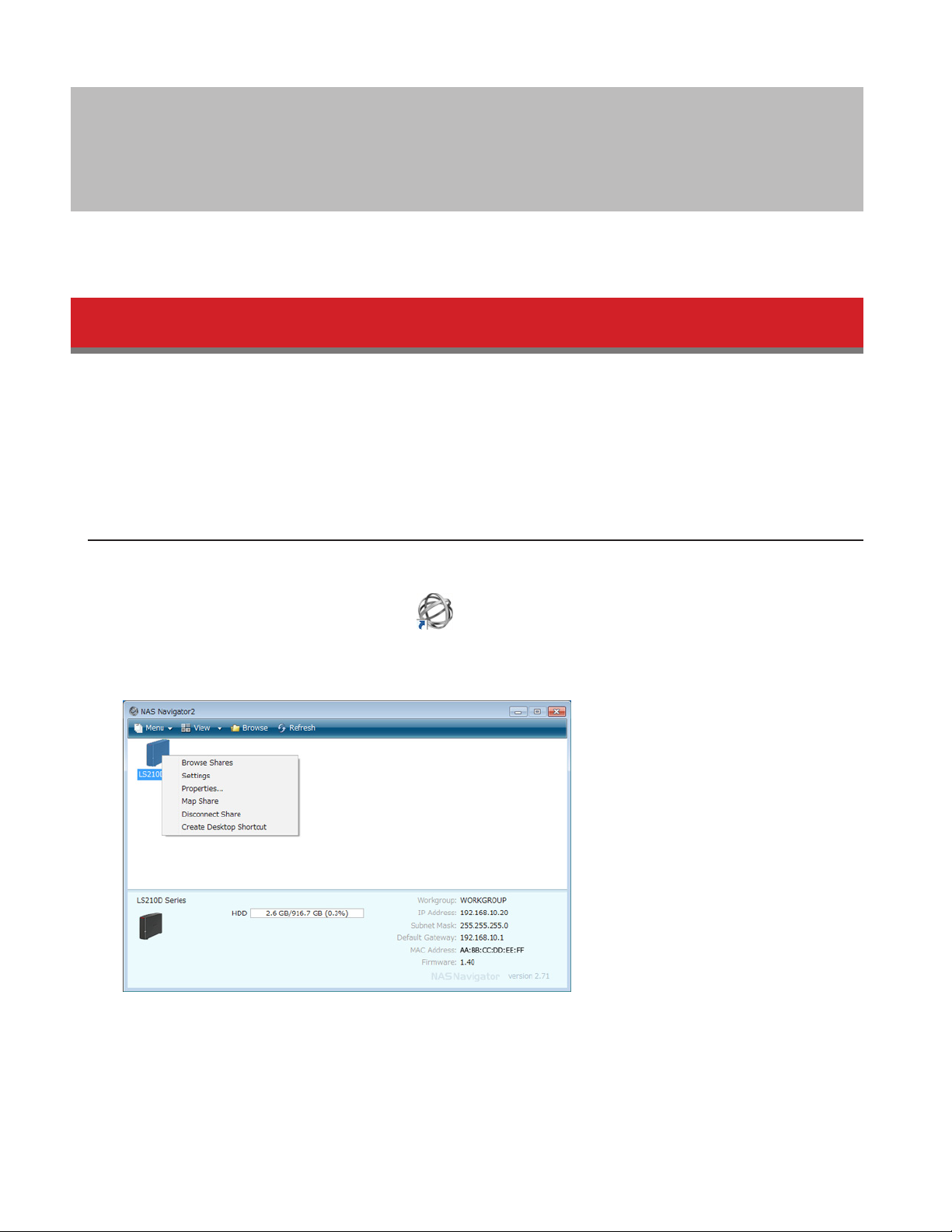

1 Open NAS Navigator2 by double-clicking the icon.

2 Right-click on your LinkStation’s icon and choose Settings. For Mac OS, click your LinkStation’s icon while holding

down the control key, then select Settings.

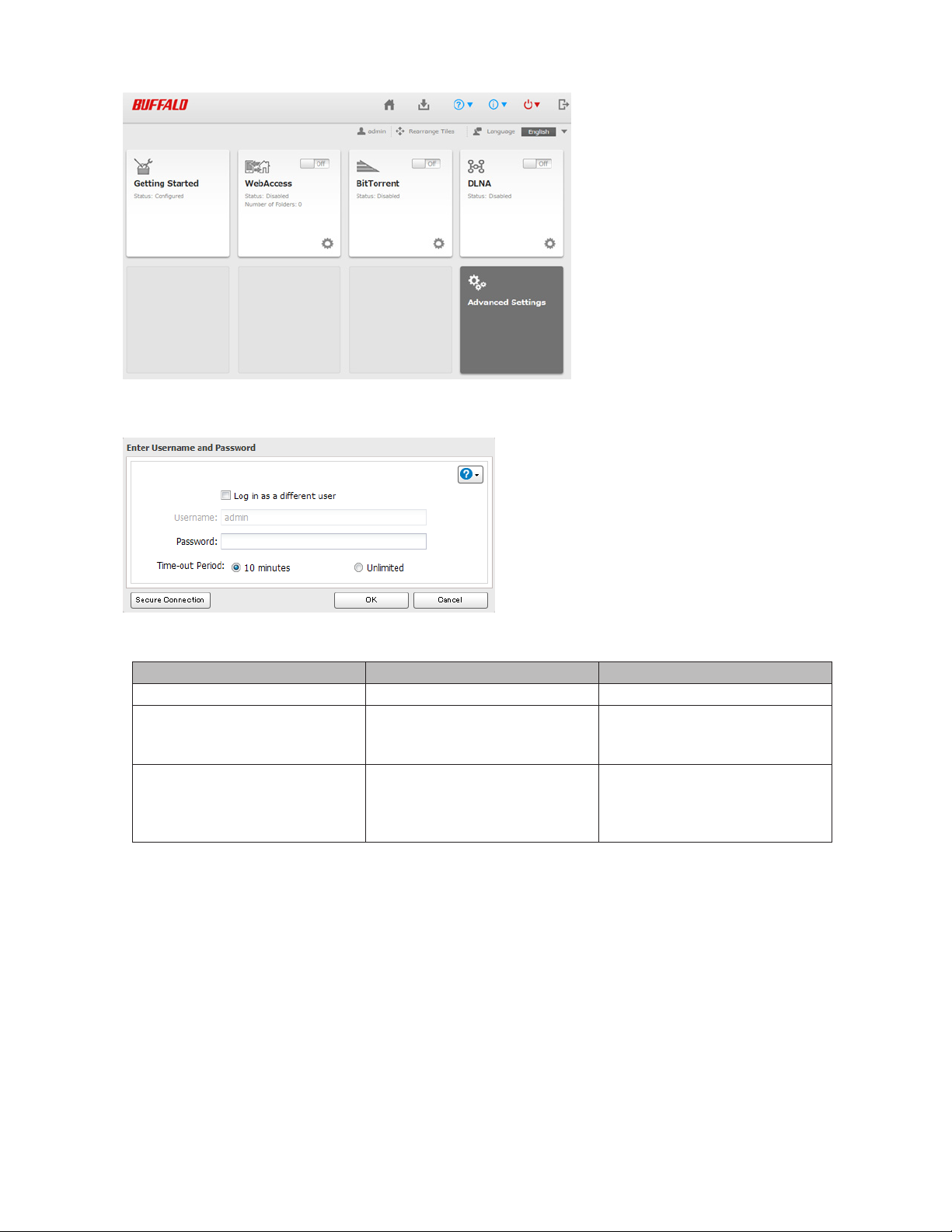

3 The Easy Admin screen will open.

Notes:

• If you click any buttons, you will need to enter a username and password.

• Username/Password Combinations:

Username Password Settings Available

admin password All

guest blank

LinkStation’s name, IP address,

workgroup, drive status,

firmware version

your username your password

LinkStation’s name, IP address,

workgroup, drive status,

firmware version, and your

password.

• If the time-out period is set to “10 minutes”, you will be logged out of Settings after 10 minutes of inactivity. You

will also be logged out when you reboot the LinkStation or close the web browser, even if you select “Unlimited”.

• Click Secure Connection to log in with an encrypted connection.

• You can also use Bonjour to log in to Settings from Mac OS. In Safari, click View - Show Bookmarks Bar. From Book-

marks, click Bonjour - LinkStation name.

Getting Started

The wizard lets you configure the following settings:

• Changing administrator password

• Creating shared folders

• Access restrictions

Autres manuels pour LinkStation 200 Series

Table des matières

Autres manuels Buffalo Stockage

Buffalo

Buffalo CloudStor CS-WV/1D Manuel utilisateur

Buffalo

Buffalo USB Hard Drive with Encryption HDS-PHU2... Manuel utilisateur

Buffalo

Buffalo DriveStation HD-HBU2 Series Manuel utilisateur

Buffalo

Buffalo HD-PHU2/BST Manuel utilisateur

Buffalo

Buffalo ELFSAFE Manuel utilisateur

Buffalo

Buffalo DriveStation HD-HC160U2 Manuel utilisateur

Buffalo

Buffalo TS-XEL Series Manuel d'utilisation et d'entretien

Buffalo

Buffalo DriveStation HD-HB160U2 Manuel utilisateur

Buffalo

Buffalo LinkStation LS-XL/E Manuel utilisateur

Buffalo

Buffalo iSCSI TeraStation Pro Manuel utilisateur

Buffalo

Buffalo LinkStation 200 Series Manuel utilisateur

Buffalo

Buffalo TeraStation TS5800D Manuel utilisateur

Buffalo

Buffalo HD-PH100U2 Manuel utilisateur

Buffalo

Buffalo LinkStation Pro Duo LS-WTGL/R1 Manuel utilisateur

Buffalo

Buffalo DriveStation HD-CEU2 Manuel utilisateur

Buffalo

Buffalo MiniStation HD-PEU3 Manuel utilisateur

Buffalo

Buffalo MicroStation SHD-PE Manuel utilisateur

Buffalo

Buffalo LINKSTATION HD-HLAN Manuel utilisateur

Buffalo

Buffalo DriveStation HD-CX1.5TU2 Manuel utilisateur

Buffalo

Buffalo HD-PGDU3 Manuel utilisateur

Buffalo

Buffalo HDW-PDU3 MiniStation Air Manuel utilisateur

Buffalo

Buffalo MiniStation SSD-PUT Manuel utilisateur

Buffalo

Buffalo MiniStation HD-PEU2 Manuel utilisateur

Buffalo

Buffalo LinkStation Pro LS-XHL Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
