Buffalo ISCSI TeraStation Pro Manuel utilisateur

QUICK SETUP GUIDE

www.bualotech.com

EN DE FR IT ES PT NL SV NO DA FI

iSCSI TeraStation Pro

TS-IGL/R5

Bualo iSCSI TeraStation Pro (TS-IGL/R5)

Package contents includes:

• iSCSI TeraStation Pro

• Ethernet Cable

• Power Cable

• TeraStation Installation CD

• Quick Setup Guide

• Warranty Statement

Thank you for purchasing a Bualo iSCSI TeraStation Pro.

Package Contents

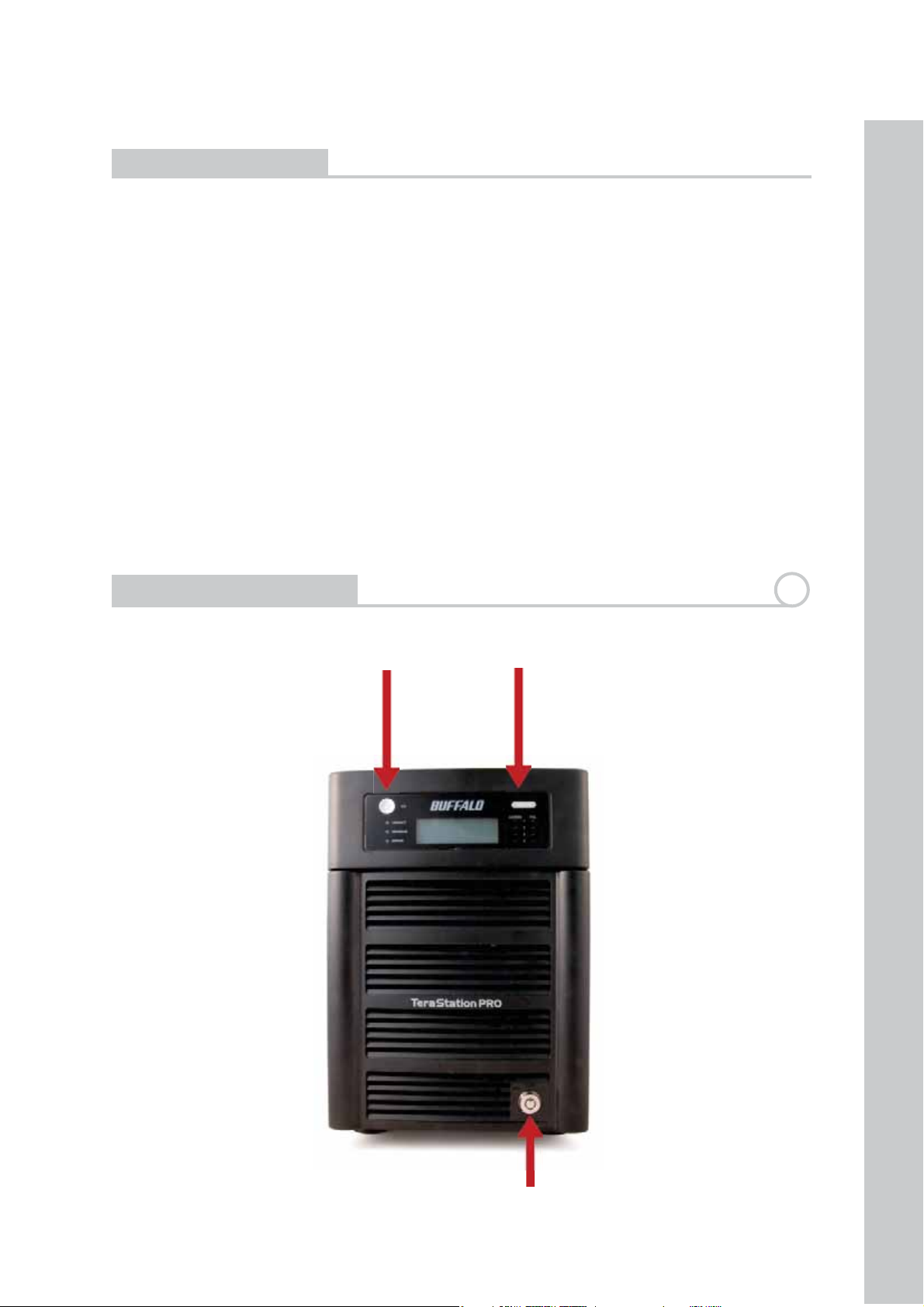

TeraStation Layout 1

Fig: 1

Power Switch Display Mode Switch

Front Panel lock

(Turn counter-clockwise to release)

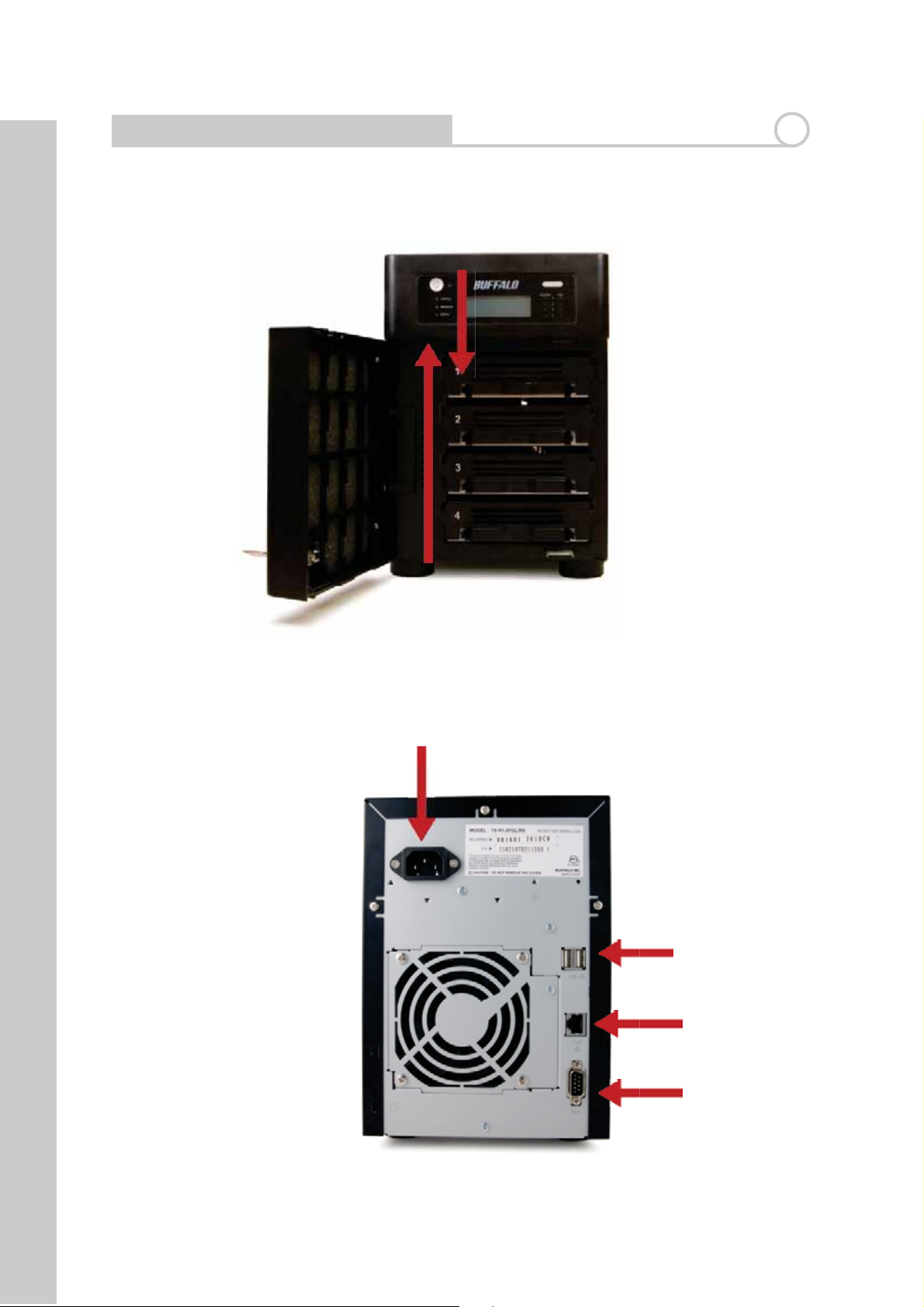

TeraStation Layout 1

Fig: 3

Init Button

(Hold down to reset all settings)

Hard Drives

(Squeeze tabs to release)

Fig: 2

USB in

Ethernet

(to router)

UPS

Power Cable

Front With Panel Removed

Back Panel

Installation 2

Fig: 4

Fig: 5

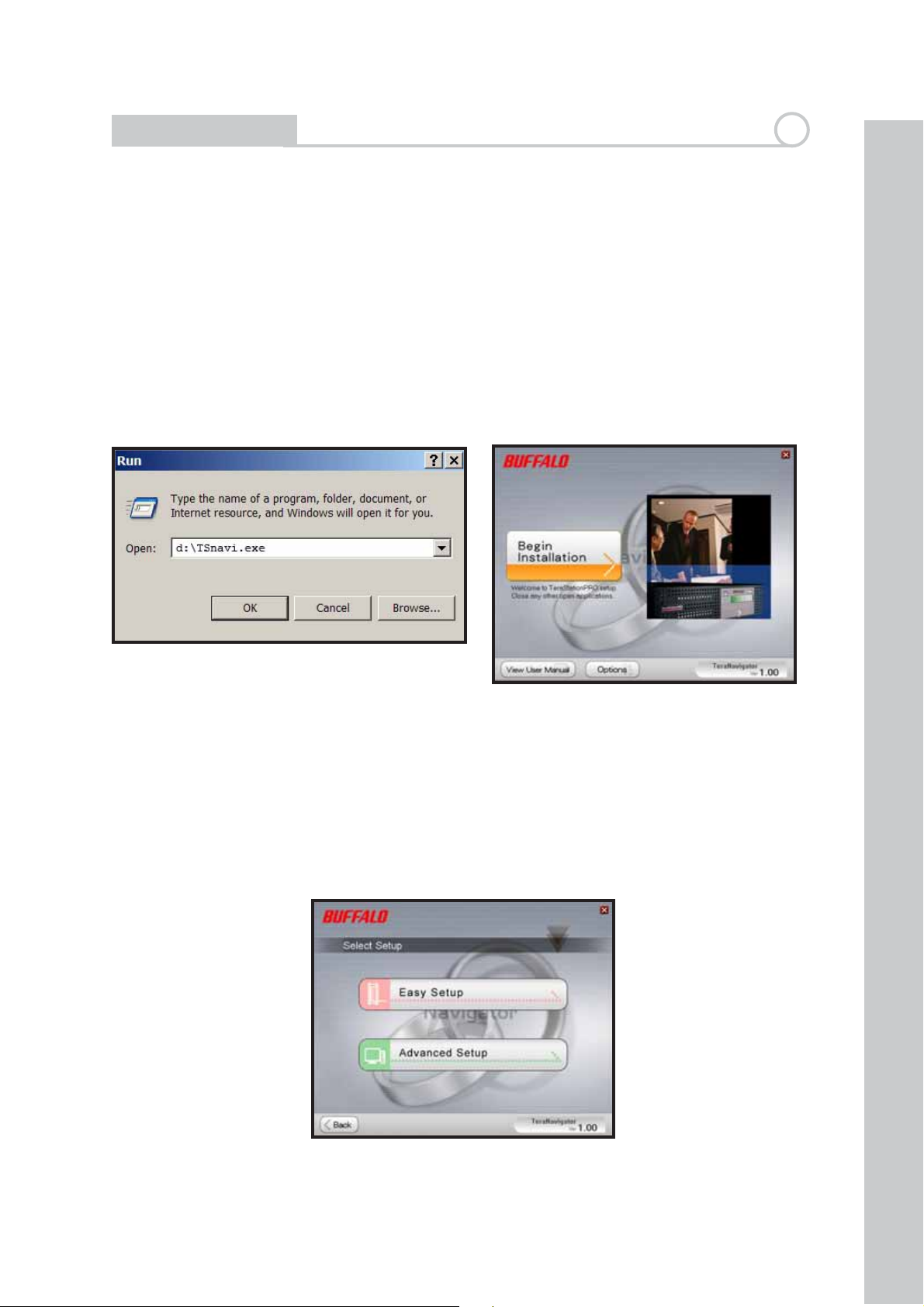

Insert the TeraNavigator CD into your computer’s CD-ROM drive.

On a PC, setup should launch automatically. If it does not, manually launch

TSnavi.exe by pressing Start and selecting the Run... option. When the Run

dialog opens, type d:\TSnavi.exe (where d is the drive letter of your CD-ROM

drive). Press OK to continue. (Fig: 4)

Then press the Begin Installation button to start. (Fig: 5)

Fig: 6

Easy Setup will step you through physically connecting your TeraStation. It

will then install software.

Advanced Setup skips the connection tutorial and goes directly to installing

software. (Fig: 6)

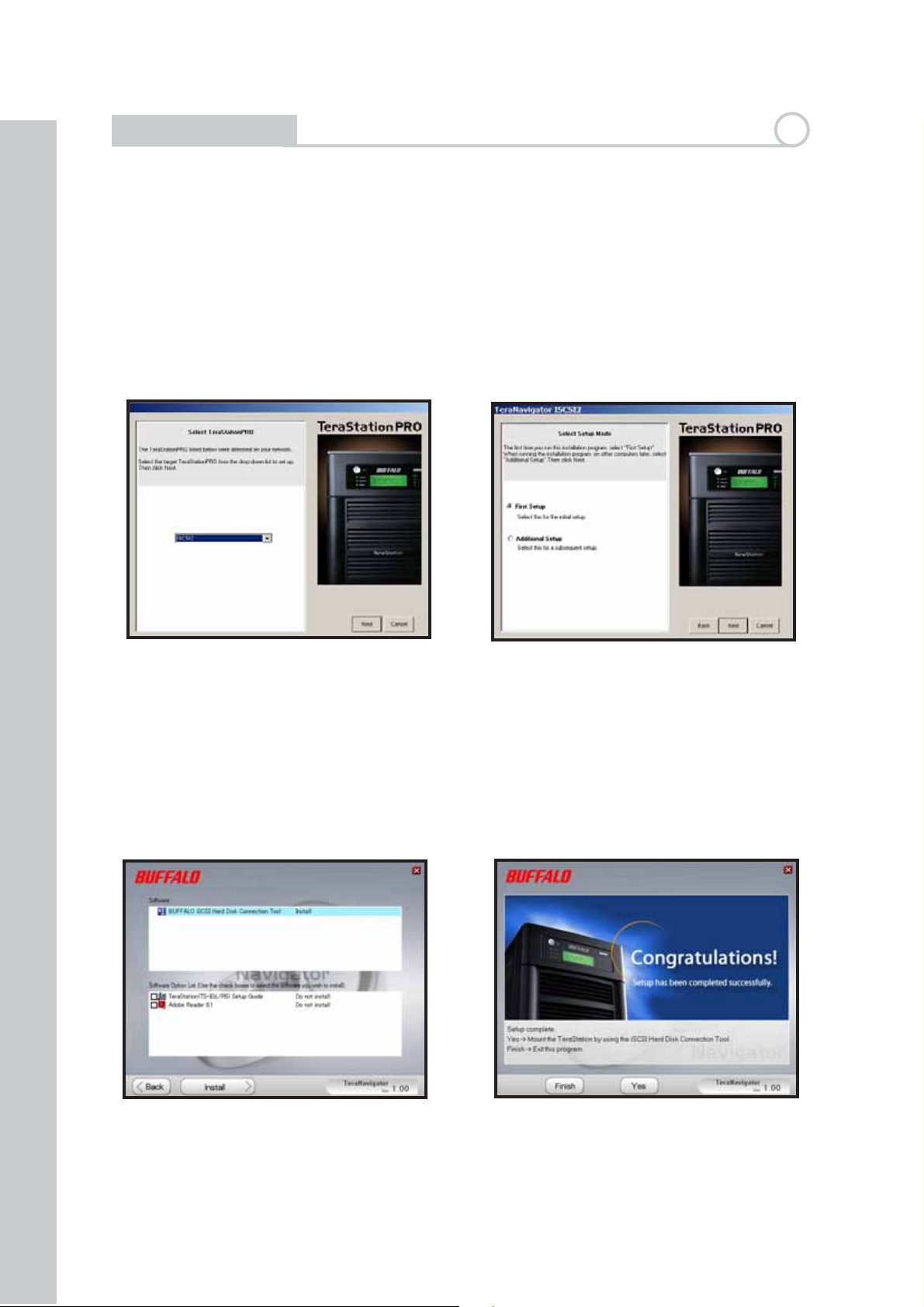

If your TeraStation is connected correctly, it will be highlighted in the drop-

down list. If you have multiple units to set up, select the correct TeraStation

from the list. (Fig: 7)

Installation 2

Fig: 7 Fig: 8

Select First Setup for the initial installation.

To install the software on additional computers, chose Additional Setup.

(Fig: 8)

Once the TeraStation is installed, you’ll need to install the iSCSI connection

tool. Click Next, and step through the wizard until the iSCSI connection tool

is installed. (Fig: 9)

Fig: 9 Fig: 10

Click Yes to launch the iSCSI connection tool. (Fig: 10)

Installation 2

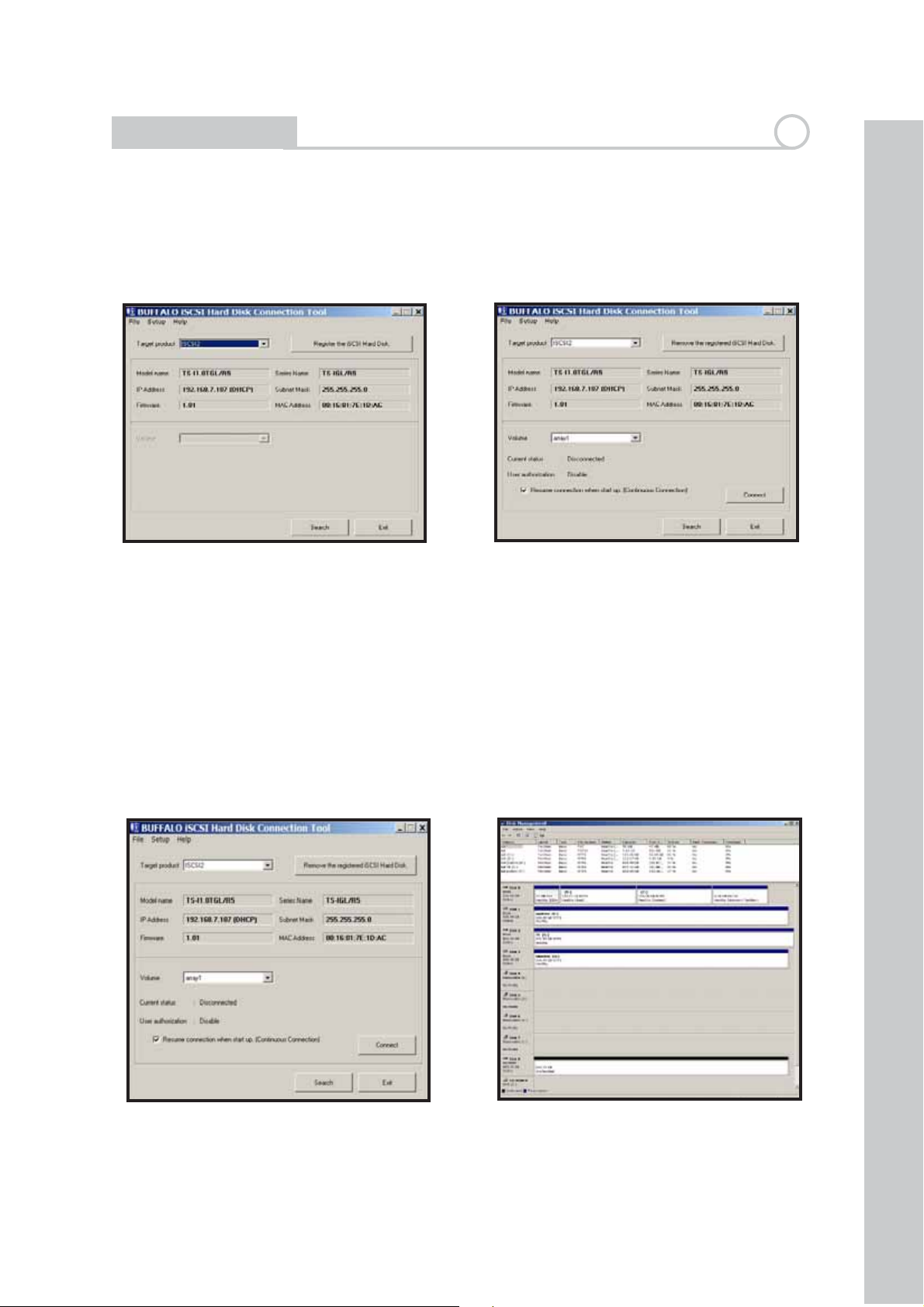

Click Register the iSCSI Hard Disk, and then OK. (Fig: 11)

Fig: 11 Fig: 12

Check Resume connection at start up and then click Connect.(Fig: 12)

Fig: 13 Fig: 14

If Disk Management does not open automatically, you may launch it

manually. From the Setup menu at the top of the window, choose Launch

Disk Management. (Fig: 13)

Your iSCSI TeraStation now appears as a hard drive in Disk Management.

Double-click on the black bar above it. (Fig: 14)

Installation 2

Fig: 15 Fig: 16

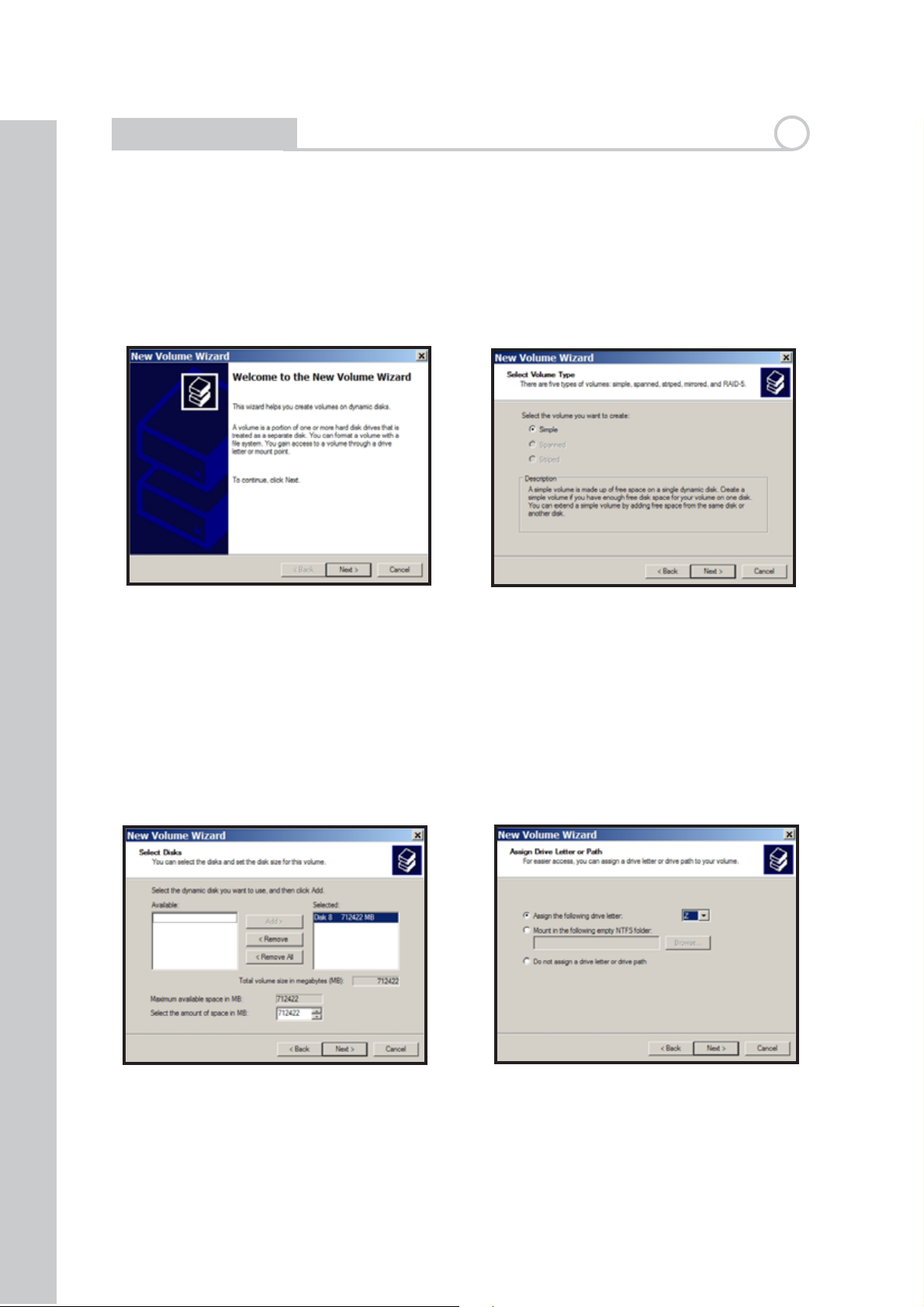

The New Volume Wizard will open. Click Next. (Fig: 15)

Choose your desired volume type. Click Next. (Fig: 16)

Fig: 17 Fig: 18

Add all dynamic disks that will be included in the volume to the Selected

column. (Fig: 17)

Choose your desired drive letter. Click Next. (Fig: 18)

Installation 2

Fig: 19 Fig: 20

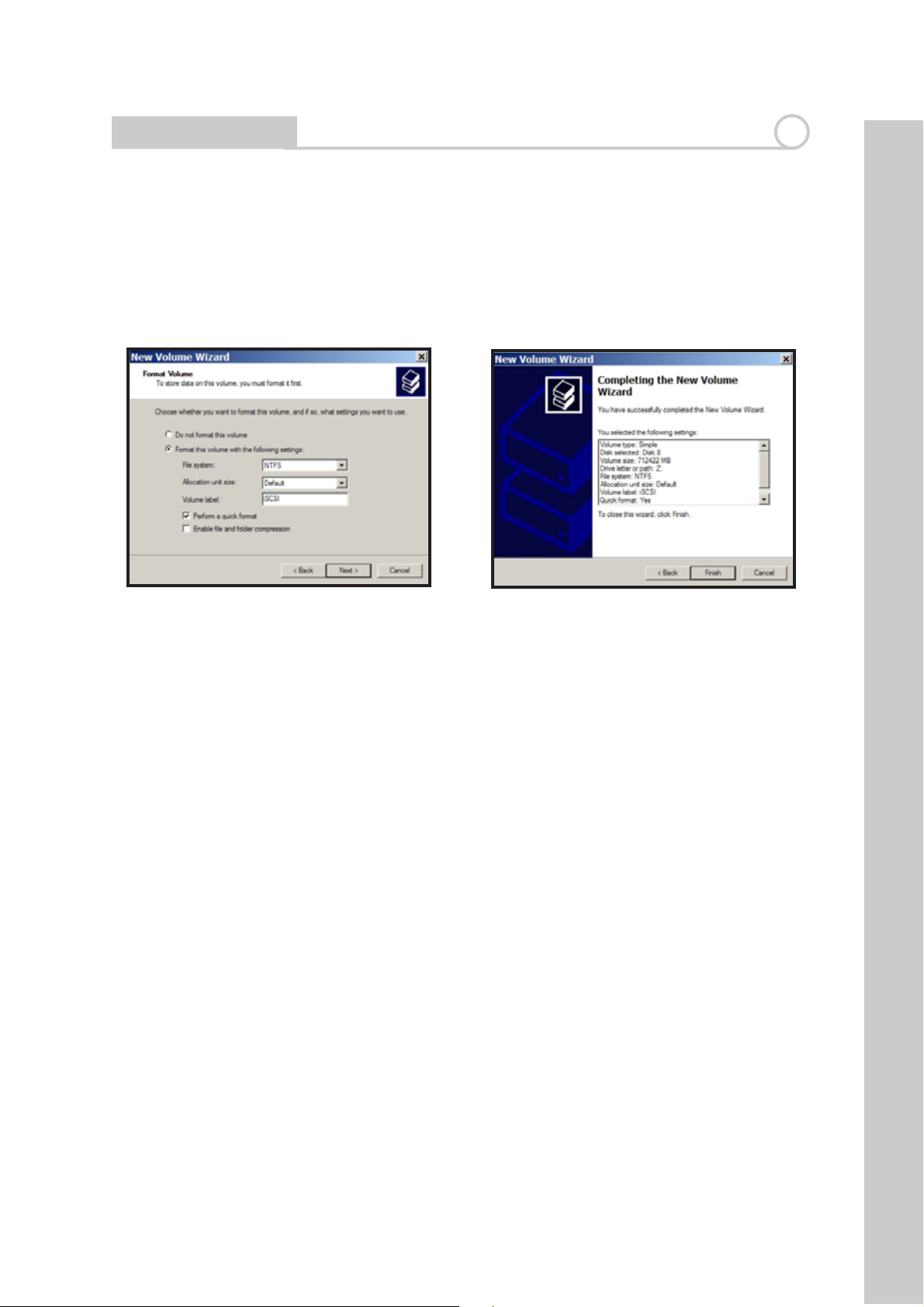

Choose your desired format and volume label. Click Next. (Fig: 19)

Your new volume is installed and ready to use. (Fig: 20)

Technical Specications

This is a Class B product. In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures.

CE Mark Warning

LAN Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3 10BASE-T

Transmission: 1000/100Mbps/10 Mbps, 1000BASE-T: 8B1Q4,

X 4B/5B, MLT-3; 10BASE-T Manchester Coding

Access Media: CSMA/CD

Media Interface: RJ-45

USB Standard: USB 2.0

Hi-Speed (HS)

Full-Speed (FS)

Low-Speed (LS)

USB Connector: USB A Connector (2)

Data Transmission Speed: Max: 480 Mbps (HS Mode)

Max: 12 Mbps (FS Mode)

Electric Current: 100-240V A/C

Power Consumption: ~86W (Varies with size)

Dimensions: 170 x 235 x 310 mm

Weight: 8 Kg (Weight varies with size)

Operating Temperature: 0-45˚ C; 20-80% non-condensing

ata Transm

on Speed: Max

bps

(

Mode

)

Mbps

(

FS Mode

)

Power Consumpt

on: ~86W

(

Var

with

)

ccess

edia:

CSMA/CD

LAN Standards

IEEE

802.3

00BASE-TX

;

IEEE

02.

0BASE-
