Introduction

Congratulations on your new LinkStation Pro! This user manual is intended to assist you

in conguring it.

Because we’re constantly updating our products, the images and text in this manual may vary

slightly from the images and text displayed by your LinkStation. These changes are minor

and should not affect the ease of setup adversely. As time passes, future user interfaces,

updated software, and later versions of this manual may be freely available for download at

our web site www.buffalotech.com.

For best results, attach the LinkStation to an uninterruptable power supply (UPS). Back

up all your stored les regularly. See the ‘Backup Jobs’ page for instructions using the

LinkStation’s built-in backup utility. If you run into difculties or need additional help, feel

free to contact our technical support. Contact information for Buffalo Technology and our

technical support is available on pages 62 and 63.

Table of Contents

Introduction

Diagrams and Layout 4

Power Switch 5

Installing Software 6

Using your LinkStation

Using your LinkStation with a PC 7

Using your LinkStation with a Mac 8

Finding LinkStation’s IP address 12

Settings and Conguration

Web Admin Tool 13

Users/Groups

Adding Users 15

Adding Groups 16

Network

Settings 17

Workgroup/Domain 18

System

Settings 20

Disks

USB Hard Drives 21

Formatting Hard Drives 22

Mapping Additional Shares 23

Maintenance 25

Notication 26

Backup Jobs 27

Initialization 28

UPS 30

Extensions

Sleep Timer 31

Print Server 32

Time Machine 37

DLNA Media Server 42

iTunes Server 44

BitTorrent Client 45

Direct Copy 47

Remote Access

WebAccess 48

FTP 53

Troubleshooting

Troubleshooting Multiple Shares 55

Disk Errors 57

Status LED Flash Codes 57

Fan Replacement 59

Appendix

Specications 60

Factory Defaults 61

Contact Information (USA) 62

Contact Information (Europe) 63

GPL Source Code Information 64

Front Panel Layout

Layout

USB

Power Mode

Switch

Power Plug

Ethernet

(to Router)

AUTO

OFF

Function

Button

Status LED

Replaceable

Fan

Power Switch

Power

Mode

AUTO

OFF

The “Power Mode” switch on the back of the unit

has three positions: “Auto”, “On”, and “Off”. The

“Auto” position automatically powers the unit on

or off with your PC. If your PC is turned on the

LinkStation will power up; if the PC is turned off

the LinkStation will power down.

You must have installed the NAS Navigator2

software on your PC for this feature to work.

Otherwise, if you move the switch to “auto”, your

unit will power down by itself and you will have to

manually turn it back on.

Also note that the unit needs to be powered on to

use either Web Access or BitTorrent. If you use

either of these features regularly, it is best to leave

the Power Mode switch set to “On”.

Move the switch to the “Off” position to turn the

LinkStation off. It will take about 35 seconds to

shut down. Do not unplug or interrupt power to

the unit until shutdown is complete and the Status

LED is no longer lit.

Installing Software

Insert the Link Navigator CD into your computer’s CD/DVD drive. On

a PC, the setup wizard will launch automatically. Select your preferred

language to continue.

Alternately, you can launch the program manually. Open your

LinkNavigator CD and click on “Lang.exe”.

If you are installing the software on a Mac, open the CD and click on the

LinkNavigator icon to begin installation.

Step through the wizard to install your software.

After installation, you’ll have a new shortcut to Buffalo NAS Navigator2 on your

desktop. Click it to open the NAS Navigator2 client utility.

Using your LinkStation with a PC

Double-click on your NAS

device’s icon to open it. Or,

right-click on it for more

options.

From NAS Navigator2, you

can easily browse the shares

on your LinkStation, open its

Web Admin Tool, map a drive

letter to a share, or make a

desktop shortcut to the main

share on the LinkStation.

Using your LinkStation with a MacUsing your LinkStation with a Mac

After installing the LinkNavigator software, your Mac will have “NAS

Navigator2” in the dock.

Clicking on NAS Navigator2 opens NAS Navigator2, the LinkStation’s

client utility. Click on the “gear” symbol to drop down available

commands.

Open Web opens the Web Admin Tool. Congure opens the menu

on the next page. Color Label lets you color-code your NAS devices

in NAS Navigator2. Show View Options lets you choose the size and

order of icons in the NAS Navigator2 display.

Using your LinkStation with a Mac

In NAS Navigator2, choose Congure from the drop-down menu to get

to the Web page. Click Open Web Page to go the Web Cong Tool, or

click IP Address to change the LinkStation’s IP Address settings.

The IP Address page lets you change the LinkStation’s IP address

settings.

If you have more than one NAS on your network, Show View Options

can be useful. It lets you choose the order of icons in the NAS

Navigator2 display. You may also adjust the size of the icons from

here.

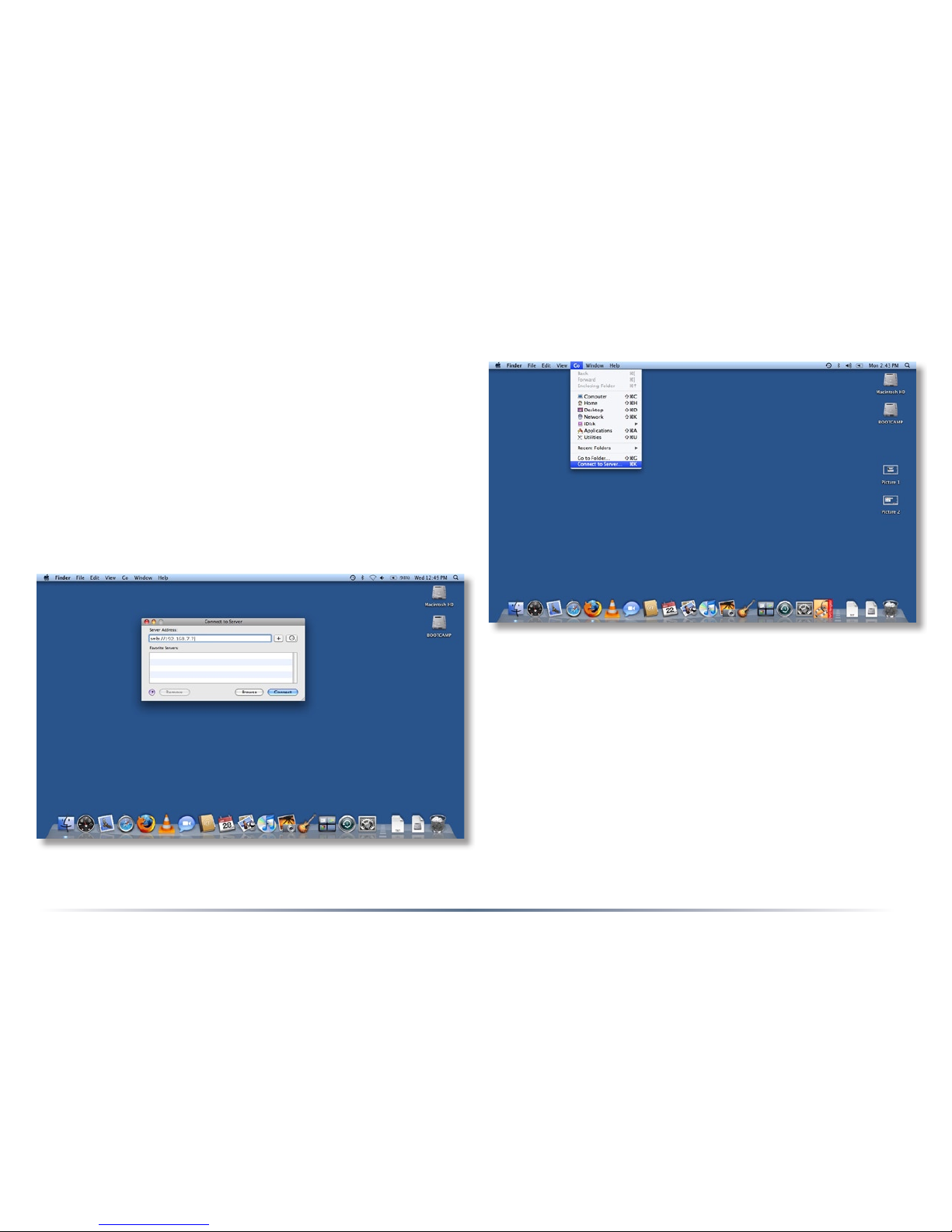

You can manually add LinkStation shares

(folders) to your desktop by adding them to the

Mac’s server list. Begin by clicking Go, and

then choose Connect to Server.

In the Server Address eld, enter your

LinkStation’s IP address in the form smb://

ipaddress (where “ipaddress” is your

LinkStation’s IP address), and click Connect.

If you don’t know your LinkStation’s IP

address, see page 12.
