Color Printer HS-5000/5300

Quick Setup Guide

Read this guidebook first to set up your printer and

prepare your computer for the printer.

Save all packing materials and the outer carton.

TrueType is a trademark of Apple Computer, Inc.

Hewlett Packard is a registered trademar and LaserJet, Color LaserJet, DeskJet, PCL 5C and PCL5e are trademarks of

Hewlett-Packard Company.

Microsoft and MS-DOS are registered trademarks of Microsoft Corporation.

Windows, Windows 3.1 and Windows 95 are registered trademarks of Microsoft in the U.S. and other countries.

The product names in this guidebook are trademarks or registered trade marks of each manufacturer. The specifications are

subject to change without notice.

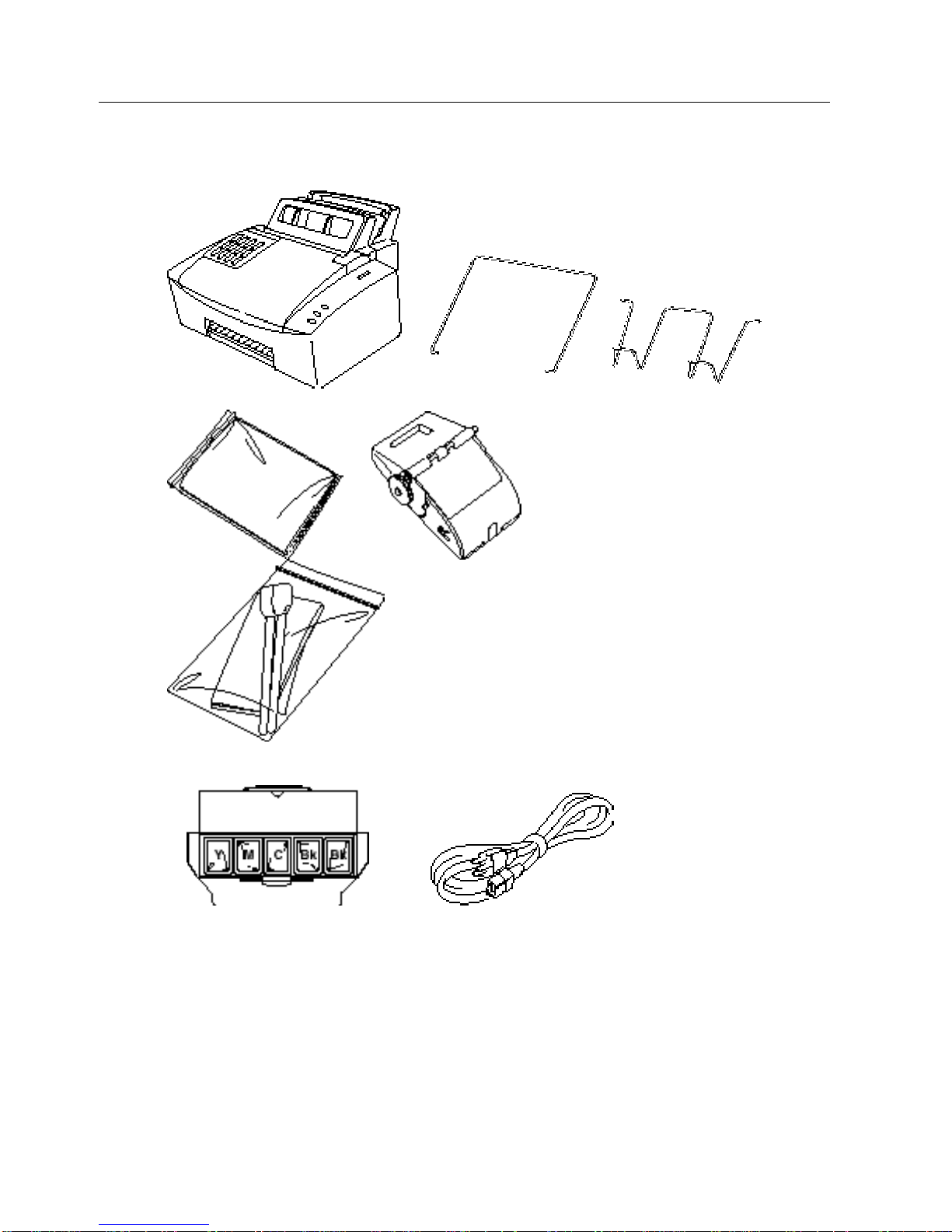

Action 1: Check the Supplied Items

After taking the printer out of the carton and removing the packing materials, make sure that the

following items are not damaged and none are missing:

1Printer

2Wires attached to the printer-- A:Paper Support Wire, B: Output Wire

(HS-5300 has two paper support wires.)

35 sheets of transparencies

4Maintenance Cassette

5Cleaning Kit

6Ink Holders

7Power Cord (The shape of the Power Cord varies depending on the country.)

•3.5” floppy disks for DOS/Windows®printer driver and fonts

•Quick Setup guide (this guidebook)

•User’s guide

2NOTE

You will need to purchase an interface cable that complies with the IEEE 1284 standard and

matches the interface of your computer. If you do not know what cable you need, consult your

dealer.

Action 2: Install the Ink Cassette

Remove the tapes, and 2 pieces of

Styrofoam supporting the print head then

open the ink reservoir cover.

Hold the ink holder by the sides and insert it

into the top of the matching color ink

reservoir. Be sure to add the correct color

ink holder to the correct reservoir. The ink

holders are keyed to prevent incorrect

insertion of the ink holder. Do not force the

ink holder into the top of the ink reservoir.

2NOTE

Do not touch the surface of the ink blocks.

Push the center of the ink holder to drop the

ink blocks into the ink reservoir.

Install each color ink by using the same

procedure.

Close the ink reservoir cover.

Repeat steps 1 to 3 to add further holders of

ink blocks as required.

Action 3: Install the Maintenance Cassette

Remove the sheet feeder from the printer.

2Slide the maintenance cassette into the right

hand side of the printer.

3Push it all the way in until it clicks fully into

position to avoid paper jams.

2NOTE

You need to remove two pieces of Styrofoam holding the print head down before turning the

printer ON. Do not throw away the Styrofoam, keep them for future re-packing.

Action 4: Load Paper into Your Printer

Replace the sheet feeder onto the printer.

Insert the paper support wire into the holes

located at the top of the sheet feeder.

2Pull the sheet feeder cover forward.

3Load paper in the sheet feeder with the

printing surface face up.

2NOTE

The feeder can hold up to 200 sheets of

plain paper or up to 10envelopes. Excessive

sheets may cause paper jams. The paper

should be stacked below the tmark.

4Adjust the paper guide to the paper width.

5Close the sheet feeder cover.

6Pull the output tray out from the bottom of

the printer and set the attached Output wire.

7Pull out the Output Tray and adjust the tray

position for the loaded paper as follows:

LGL: Legal paper

A4: A4 size paper

LTR: Letter paper

(1) (2)

The printer can handle paper that has the following specifications.

See “CHAPTER 2 PAPER HANDLING” in the User’s Guide for more detailed

information.

Feeder Paper Size Capacity

Manual

Feed A4, Letter, Legal, Custom size, Envelope (DL,

COM-10,), C5,Transparencies (A4, Letter)

(70-229 x 127-356 mm, 2.75-9 x 5-14 inches

60 - 157 g/m2, 16 - 42 lbs)

sheet by sheet

First sheet

feeder A4, Letter, Legal, Custom size, Envelope (DL,

COM-10, C5, Transparencies (A4, Letter)

(70-229 x 127-356 mm, 2.75-9 x 5-14 inches

60 - 157 g/m2, 16 - 42 lbs)

22 mm (0.87 inch)

200 sheets of 80g/m2

100 sheets of Legal size

10 envelopes,

50 transparencies

Second

sheet

feeder

(HS-5300

only)

A4, Letter, Legal, Custom size

(70-229 x 250-356 mm, 2.75-9 x 9.8-14 inches

60 - 135 g/m2, 16 - 36 lbs)

22 mm (0.87 inch)

200 sheets of 80g/m2

100 sheets of Legal size

Action 5: Connect Your Printer and Computer

You must connect the printer to your computer using an interface cable. A parallel cable that is

compliant with IEEE 1284 should be used for this connection.

1Make sure that the power switch is turned

off before connecting or disconnecting the

interface cable.

Also, make sure that the computer is turned

off.

2NOTE

The shape of the power cord varies

depending on the country where the printer

was purchased.

2Connect the parallel interface cable to the

parallel interface port of the printer. ( ¬)

Secure the connection with the wire clips.

( -)

Connect the interface cable to the printer

port of your computer.

2NOTE

For the location of your computers parallel printer port, see your computers User’s Guide.

(1) (2)

Action 6: Plug in and Turn on Your Printer

1Plug the power cord into the printer inlet

and the AC power outlet.

2Turn on the Power button that is located

on the left hand side of your printer.

3Make sure that the Ready LED comes on

after the printer has warmed up (about 9

minutes).

CAUTION!

When moving the printer, only move it after waiting 30 minutes with the power off to allow

the printer to cool down and be careful not to tilt the printer. Moving the printer with ink

melted will cause severe damage to the Printer and will VOID THE WARRANTY.It

takes 30 minutes for the printer ink to become completely solid.
