BOXLIGHT P12 Manuel utilisateur

P12 Projector

User Guide

mimio.boxlight.com

Table of Contents ............................2

Usage Notice...................................3

Safety Information...............................3

Precautions.........................................4

Introduction......................................6

Package Overview..............................6

Product Overview ...............................7

Main Unit.............................................. 7

Control Panel ....................................... 8

Interface............................................... 9

Remote Control.................................. 10

Installation ..................................... 11

Connecting the Projector ..................11

Connect a Desktop/Laptop Computer 11

Powering the Projector On / Off........13

Powering On the Projector................. 13

Powering Off the Projector................. 14

Warning Indicator............................... 14

Adjusting the Projected Image..........15

Adjusting the Projector�s Height ........ 15

Adjusting the Projector�s Focus ......... 16

Adjusting Projection Image Size

(Diagonal) .......................................... 17

User Controls ................................19

Control Panel & Remote Control ......19

Control Panel ..................................... 19

Remote Control.................................. 20

On-screen Display Menus ................22

How to operate ................................. 22

Picture................................................ 23

Screen ............................................... 25

Setting................................................ 27

Volume............................................... 29

Options .............................................. 30

Options | Lamp Settings .................... 32

3D ...................................................... 33

Interactive .......................................... 34

LAN.................................................... 35

Replace the Lamp.............................41

Appendices....................................41

Installing and Cleaning the Optional

Dust Filter .........................................43

Compatibility Modes .........................44

VGA Analog ....................................... 44

HDMI Digital....................................... 45

List of specifications..........................48

Wall Mount Installation......................50

Regulation & Safety Notices .............51

Table of Contents

Safety Information

The lightning ash with arrow head within an equilateral triangle is

intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufcient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH

VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE

CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of

the projector,and to protect from over heating, it is recommended to

install the projector in a location that does not block ventilation. As an

example, do not place the projector on a crowded coffee table, sofa,

bed, etc. Do not put the projector in an enclosure such as a book case

or a cabinet that restricts air flow.

2. Do not use the projector near water or moisture. To reduce the risk

of fire and/or electric shock, do not expose the projector to rain or

moisture.

3. Do not install near heat sources such as radiators, heaters, stoves or

any other apparatus, such as amplifiers, that emits heat.

4. Clean only with dry cloth.

5. Only use attachments/accessories specified by the manufacturer.

6. Do not use the unit if it has been physically damaged or abused.

Physical damage/abuse would be (but not limited to):

Unit has been dropped.

Power supply cord or plug has been damaged.

Liquid has been spilled on to the projector.

Projector has been exposed to rain or moisture.

Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers

may expose you to dangerous voltages or other hazards.

7. Do not let objects or liquids enter the projector. They may touch

dangerous voltage points and short out parts that could result in fire or

electric shock.

8. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions,and

maintenance as recommended in this user�s

manual.

▀■Warning- Do not look into the projector’s lens when the lamp is

on. The bright light may hurt and/or damage your eyes.

▀■Warning- To reduce the risk of re or electric shock, do not

expose this projector to rain or moisture.

▀■Warning- Please do not open or disassemble the projector as

this may cause electric shock.

▀■Warning- Before replacing the lamp, please have the projector

completely cooled down. Operate as described on

Pages 48-49.

▀■Warning- This projector will automatically detect the service life

of its lamp. When the projecor shows a warning mes-

sage, the lamp must be replaced “immediately”.

▀■Warning- After replacement of the lamp module, please reset

the lamp hour counter (see Page 49).

▀■Warning- When switching the projector off, please ensure

the cooling cycle has been completed before

disconnecting power. Allow 90 seconds for the

projector to cool down.

▀■Warning- When service life of the lamp is about to expire, the

“Lamp Warning: Exceed Service Life” message will

be shown on the screen. Please contact the local

dealer or service center to replace the lamp as soon

as possible.

When service

life of the lamp

expires, the lamp

module must

be replaced.

Otherwise, the

projector cannot

be switched on.

To replace the

lamp, please

follow the

steps stated in

“Replace the

Lamp” on Pages

48-49.

Do:

Turn off and unplug the power plug from the AC outlet before

cleaning the product.

Use a soft, dry cloth with mild detergent to clean the display

housing.

Disconnect the power plug from AC outlet if the product is not

being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:

- In extremely hot, cold, or humid environments.

 Ensure that the ambient room temperature is within 5 - 40°C.

 Relative Humidity is 5 - 40°C, 80% (Max.), non-condensing.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- In direct sunlight.

Power Cord

Package Overview

Unpack and inspect the box contents to ensure

all parts listed below are in the box. If something

is missing, please contact your nearest customer

service center.

2 × AAA Batteries

Projector VGA Cable

IR Remote Control CD-ROM

(User’s Manual)

Product Overview

Main Unit

1. Control Panel

2. Focus Switch

3. Ventilation (inlet)

4. IR Receiver

5. Ventilation (outlet)

6. Speaker

7. Power Socket

8. Input / Output

Connections

9. Lens

10. IR Camera

The interface

is subject to

model’s

Control Panel

1. Power LED

2. Enter

3. Temp LED

4. Lamp LED

5. Menu

6. Signal source

7. Four Directional Select Keys

8. Power/Standby button

9. IR Receiver

21 4

Interface

Monitor loop

through only

support in VGA

IN1-In/YPbPr.

1. USB Connector (For FW upgrade and interactive function)

2. VGA-Out/VGA-In2 Connector

3. RS-232 Connector (9-pin DIN Type)

4. VGA-In1/YPbPr Connector (PC Analog Signal/Component

Video Input/HDTV/YPbPr)

5. Composite Video Input Connector

6. HDMI2 Input Connector

7. HDMI1 Input Connector

8. Audio Input Connector (3.5mm mini jack)

9. Composite Audio Input (right) Connector

10. Composite Audio Input (left) Connector

11. Audio Input Connector (microphone connector)

12. Audio Output Connector (3.5mm mini Jack)

13. Power Socket

14. KensingtonTM Lock Port

15. RJ45 Connector

16.

17.

ECP

Laser Curtain (Optional)

RJ45

USB

ECP

3567 8 910 11 12

17 16

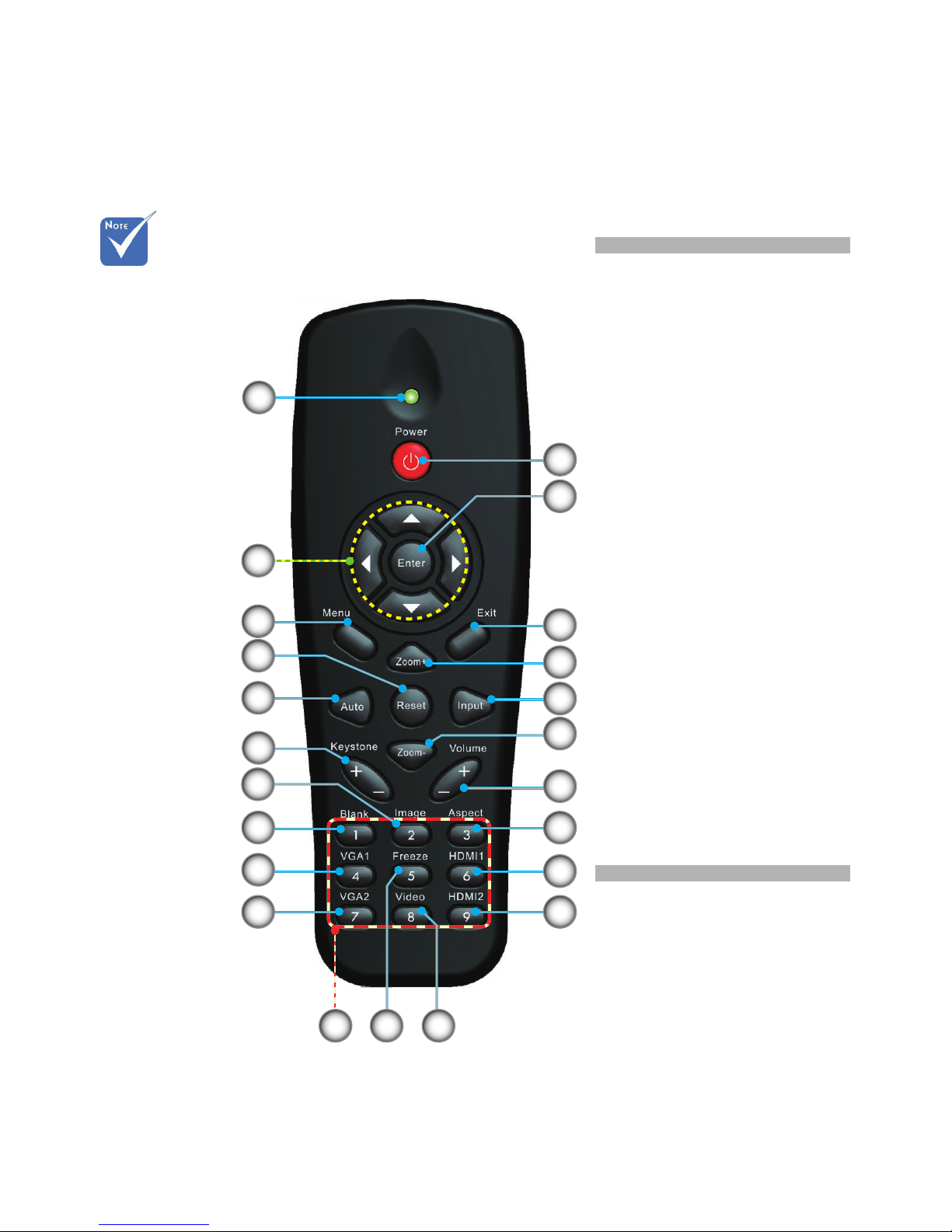

Remote Control

The specic inter-

faces are selected

in terms of the

specications of

types.

1. LED Indicator

2. Power On/Off

3. Enter

4. Four Directional Key

5. Menu

6. Exit

7. Zoom +

8. Reset

9. Auto

10. Input

11. Zoom -

12. Volume +/-

13. Keystone +/-

14. Image

15. Blank

16. Aspect ratio

17. VGA1

18. HDMI1

19. VGA2

20. HDMI2

21. Video

22. Freeze

23. Numbered keypad

(for password input)

2122

14 12
