Seattle X30N
About the Owner’s Manual
Features
Please read the owner’s manual thoroughly to ensure correct usage of the projector and its
features.
After reading, store the owner’s manual in a safe place for future reference.
1. Dress up Design
2. Designed for tough environment
3. Side change lamp
6LGHFKDQJH¿OWHU
5. Quick off
6. Advanced Anti-theft features
7. Five auto features (Auto Search, Auto Sync, Auto Ceiling, Auto Keystone and Auto
Filter Alert)
8. Seven display modes (Natural, Cinema, User, Green board, White Board, Black Board
and Daylight)
9. Built-in 8W speaker
10. Logo capture
11. Image freeze function
12. Digital zoom adjustment
The content of this manual is subject to change without previous notice.
All rights reserved.
Issue of edition 0809.10_01
Projector
3OHDVHFOLFNKHUHLI\RXUSURMHFWRULVZLWKKLJKHI¿FLHQF\¿OWHU
Contents
1
Contents
About Owner’s Manual
Contents .....................................................................................................................1
Contents of Your Box ............................................................................................3-A
Safety Instructions ....................................................................................................4
Safety Labels..............................................................................................................5
Part Names ................................................................................................................6
Projector.................................................................................................................. 6
Control Panel .......................................................................................................... 7
Rear......................................................................................................................... 8
Setting Up ..................................................................................................................9
Arrangement ............................................................................................................9
Power ON / OFF....................................................................................................10
Setting Up The Projector ....................................................................................... 11
Ceiling Mounted Installation Guide ......................................................................12
Adjusting The Projector’s Elevation .....................................................................13
How To Connect ....................................................................................................14
Remote Control .......................................................................................................16
Remote Control (Optional) ....................................................................................19
Menu Operation......................................................................................................23
How To Operate On-Screen Display ......................................................................23
MENU (PC Mode)...................................................................................................24
Picture Menu (PC Mode)........................................................................................ 24
Audio Menu (PC Mode)......................................................................................... 25
Setting Menu (PC Mode)........................................................................................ 26
MENU (Video Mode) ..............................................................................................27
Picture Menu (Video Mode) .................................................................................... 27
Audio Menu (Video Mode) ..................................................................................... 28
Setting Menu (Video Mode) .................................................................................... 29
2
Contents
MENU ......................................................................................................................30
Advanced Menu.....................................................................................................30
Presentation Menu .................................................................................................33
Security Menu........................................................................................................35
PIN Key In Operation............................................................................................38
Network Control Software Application ................................................................39
Before Use ................................................................................................................40
Before To Use Network Control Software ............................................................40
Projector Auto Search............................................................................................41
Modify the Projector Setting .................................................................................43
5HJLVWHULQJ$QG&RQ¿JXULQJWKH3URMHFWRU..........................................................44
Delete..................................................................................................................... 44
Projector Setting .................................................................................................... 45
System Setting / Monitor / Default Setting / Auto Detect Optimal Setting........... 47
Link........................................................................................................................ 48
Control Panel Window Introduction.....................................................................49
Power Control / Input Source / Function Key ........................................................49
Function Key / Projector Status..............................................................................50
Network Control Window Introduction..................................................................51
Maintenance Of Projector......................................................................................52
Air Filter / Replacing the Air Filter ........................................................................ 52
Lamp / Replacing New Lamp................................................................................. 53
Other Care / Cleaning the Lens .............................................................................. 55
Troubleshooting.......................................................................................................56
Indicator.................................................................................................................. 56
Error For Machine Defects ..................................................................................... 57
List of Supported Monitor Displays ....................................................................... 59
Appendix
Interactive Function Operation(Optional)
Contents of Your Box
Safety InstructionsContents of Your Box
- VOL +
INPUT
ESC
MENU
Auto
K
Still Blank

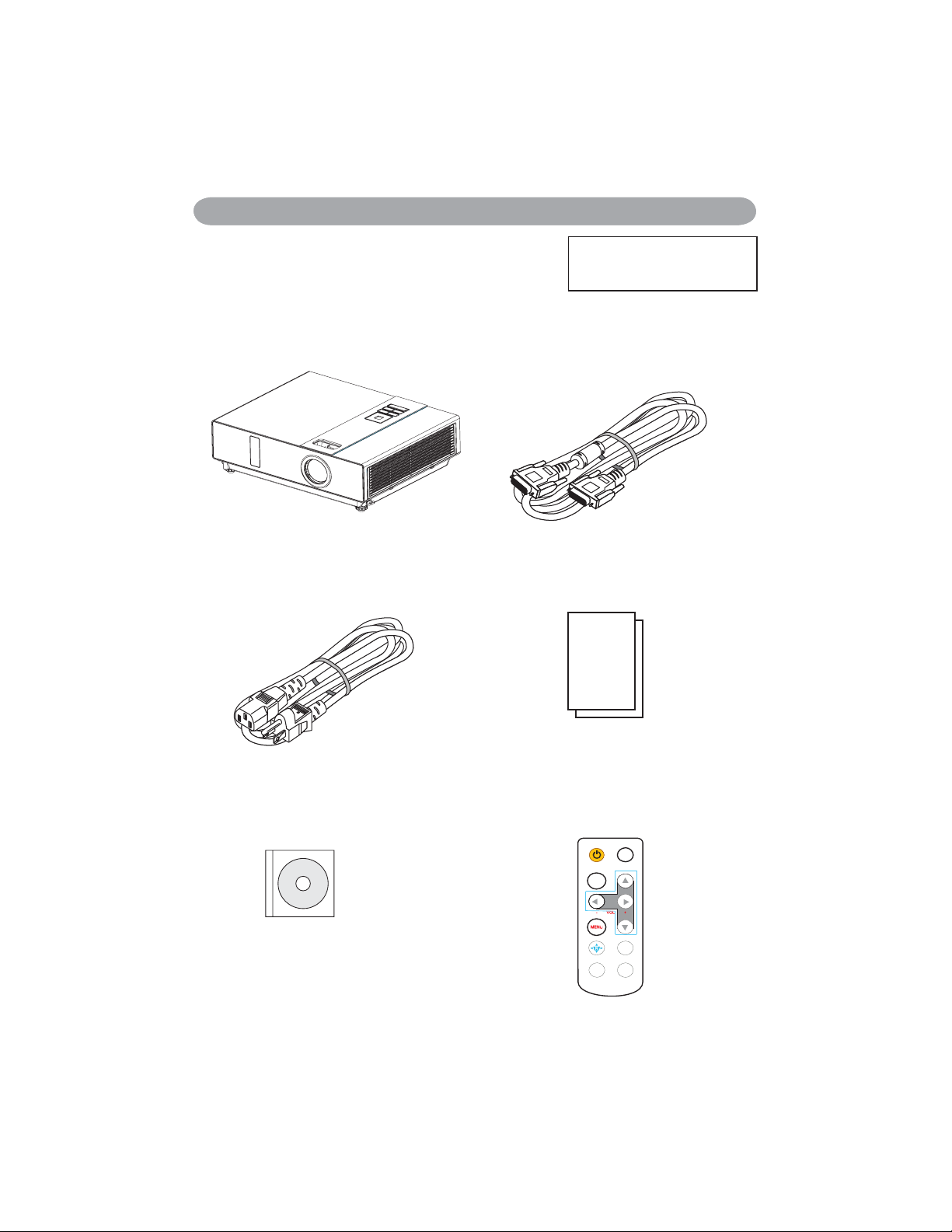

Check-list of your accessories
Please make sure that following items are included in the box,
along with the main.
If any items missing, contact your dealer.
1.Projector
6.Remote control
2. Computer cable
3.Power cord 4.Quick Start Guide
5.Owner’s Manual CD
3-A
(Please click here if your
SURMHFWRULVZLWKKLJKHI¿FLHQF\
¿OWHU
Safety InstructionsContents of Your Box
Optional
FRemote control FRemote control
FUSB Cable (1.5M) F
Network Control Application CD
FSoft Bag FRS232 Cable
POWER
LASER
MOUSE-L
AUTO BLANK
MOUSE-R
MUTE
MENU
INPUT
LASER
INDICATOR
3-B
Safety Instructions
4
Safety Instructions
The projector is designed and tested to meet the latest standards for safety of information technology
equipment. However, to ensure safe use of this product, it is important that you follow the
instructions mentioned in this manual and marked on the product.
WARNING / CAUTION
1. If a problem occurs
-If smoke or trange odors arise, continued use
FRXOGUHVXOWLQ¿UHRUHOHFWULFDOVKRFN
-If there is no image or sound, or the sound
is distorted in the projector. In some cases,
immediately remove the power cable from the
power outlet. After making sure that the unit has
stopped, contact your dealer for repairs.
Never attempt to repair by yourself because this
is dangerous.
2. Do....
-Place the projector in a stable horizontal
position.
-Put the projector in a cool place, and ensure that
WKHUHLVVXI¿FLHQWYHQWLODWLRQ
-To consult with your dealer before a special
installation such as suspending from a ceiling.
3. Do not....
-Do not place the projector on an unstable,
slanted or vibrating surface such as a wobbly or
inclined stand.
-Do not cover the projector's vents. Keep a space
of 20 cm or more between the projector and
other objects such as walls.
-Do not place the projector on metallic goods.
-Do not place the projector on carpet, cushions
or bedding. Do not place the projector in direct
sunlight or near hot objects such as heaters.
-Do not place anything near the projector lens or
vents, or on top of the projector.
-Do not place anything that may be sucked into
or stick to the vents beside of the projector.
-Do not use this projector if there is no image or
sound, or if the sound is distorted.
-Do not place this projector in a container
containing liquid.
4. While connecting, make sure that the shape
RIWKHFDEOH¶VFRQQHFWRU¿WVWKHSRUWWR
connect with. Be sure to tighten the screws
on connectors with screws.
5. Do not disassemble or modify the projector
and accessories.
6. Be careful not to damage the cables, and do
not use damaged cables.
7. Use appropriate accessories or otherwise
designed cables. Ask your dealer about non-
accessory cables that may have other lengths.
8. Make sure that devices are connected to the
correct ports. An incorrect connection may
result in malfunction or damage to the device
and the projector.
9. Do not look through the lens when the lamp
is on.
Do not look through the lens when the lamp is
on. The powerful light could adversely affect
vision. Use special caution in households where
children are present.
10. A strong light is emitted when the projector’
s power on. Do not look into the lens of the
projector or look inside of the projector.
Do not place the projector upon either side
to project an image.
NO SIDEWARD
Do not point the projector down to
project an image.
NO DOWNWARD
Safety Labels
5
Safety Labels
Safety labels are used on or within the projector to
alert you to items or areas requiring your attention.
WARNING LABEL
EMI LABEL
LAMP DOOR WARNING LABEL
(Please click here if your
SURMHFWRULVZLWKKLJKHI¿FLHQF\
¿OWHU
Part Names
6
Part Names
1
2
3
7
8
4
5
6
7
8
Projector
1Control panel
Operating system.
12 Lens cover
Attach when not using to protect the lens
from becoming dirty or damaged.
3Filter cover
Prevents dust and other foreign particles
from being drawn into projector.
5HPRYHWKH¿OWHUFRYHUWRFOHDQWKHDLU
¿OWHU
14 Focus ring
Use the focus ring to focus the projector
image.
Rotate the focus ring until the image is
clear.
15 Zoom ring
Use the zoom ring to adjust the size of the
projected image.
Rotate the zoom ring until the image is the
desired size.
16 Lamp door
The lamp unit is inside.
17 Foot adjust button
Lock / unlock the adjustable foot.
18 Front adjustable foot
Extend and retract to adjust the projection
angle.
Front IR
receiver
Outlet ventilation
(Please click here if your projector
LVZLWKKLJKHI¿FLHQF\¿OWHU
7
Part Names
Control Panel
9
10 10
11
13
12
14
15
16 17
LAMP INDICATOR POWER INDICATOR
9KEYSTONE
Adjust the vertical keystone with menu-up,
menu-down.
110 VOLUME + / -
Sound louder or lower.
11 INPUT
Select input source:
112 MENU
Display or hide the OSD main menu page.
113 BLANK
Blanks the projected image. If the projector
is left in blank mode for more than 15
minutes, the projector will automatically
shut down.
1
14 AUTO
Automatically adjust the setting to match
the current input.
115 (POWER)
Power on / operation mode, Standby mode,
Cooling-down mode.
116 LAMP INDICATOR
Indicates a status in the internal projector
temperature, lamp door properly closed or
cooling down.
1
17 POWER INDICATOR
/LJKWRQRUÀDVKWRLQGLFDWHWKHRSHUDWLQJ
status of the projector.
Autres manuels pour Seattle X30N
1
Table des matières
Autres manuels BOXLIGHT Projecteur
BOXLIGHT
BOXLIGHT MP-36t Manuel utilisateur
BOXLIGHT
BOXLIGHT CP-14t Manuel utilisateur
BOXLIGHT
BOXLIGHT S65EA Manuel utilisateur
BOXLIGHT
BOXLIGHT MP-37t Manuel utilisateur
BOXLIGHT
BOXLIGHT Projector Manuel utilisateur
BOXLIGHT
BOXLIGHT P9 WX33NST Manuel utilisateur
BOXLIGHT
BOXLIGHT Beacon CP720e Manuel utilisateur
BOXLIGHT
BOXLIGHT SP-50m Manuel utilisateur
BOXLIGHT
BOXLIGHT CP-12t Manuel utilisateur
BOXLIGHT
BOXLIGHT XP-5t Manuel utilisateur
BOXLIGHT
BOXLIGHT Cinema 13HD Manuel utilisateur
BOXLIGHT
BOXLIGHT Cinema 12SF Manuel utilisateur
BOXLIGHT
BOXLIGHT 6000 Manuel utilisateur
BOXLIGHT
BOXLIGHT Beacon CP720e Manuel utilisateur
BOXLIGHT
BOXLIGHT PhoenixX30 Manuel utilisateur
BOXLIGHT
BOXLIGHT XP-56d Manuel utilisateur
BOXLIGHT
BOXLIGHT XD-16n Manuel utilisateur
BOXLIGHT
BOXLIGHT XD-15c Manuel utilisateur
BOXLIGHT
BOXLIGHT Seattle X35N Manuel utilisateur
BOXLIGHT
BOXLIGHT MP-355m Manuel utilisateur
Manuels Projecteur populaires d'autres marques
Panasonic
Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur
NEC
NEC NP600S EDU Manuel utilisateur
BenQ
BenQ SH753P Manuel utilisateur
Eiki
Eiki EK-623U series Manuel utilisateur
Epson
Epson PowerLite Pro Cinema 6020UB Manuel utilisateur
Epson
Epson PowerLite Home Cinema 705HD Manuel utilisateur
