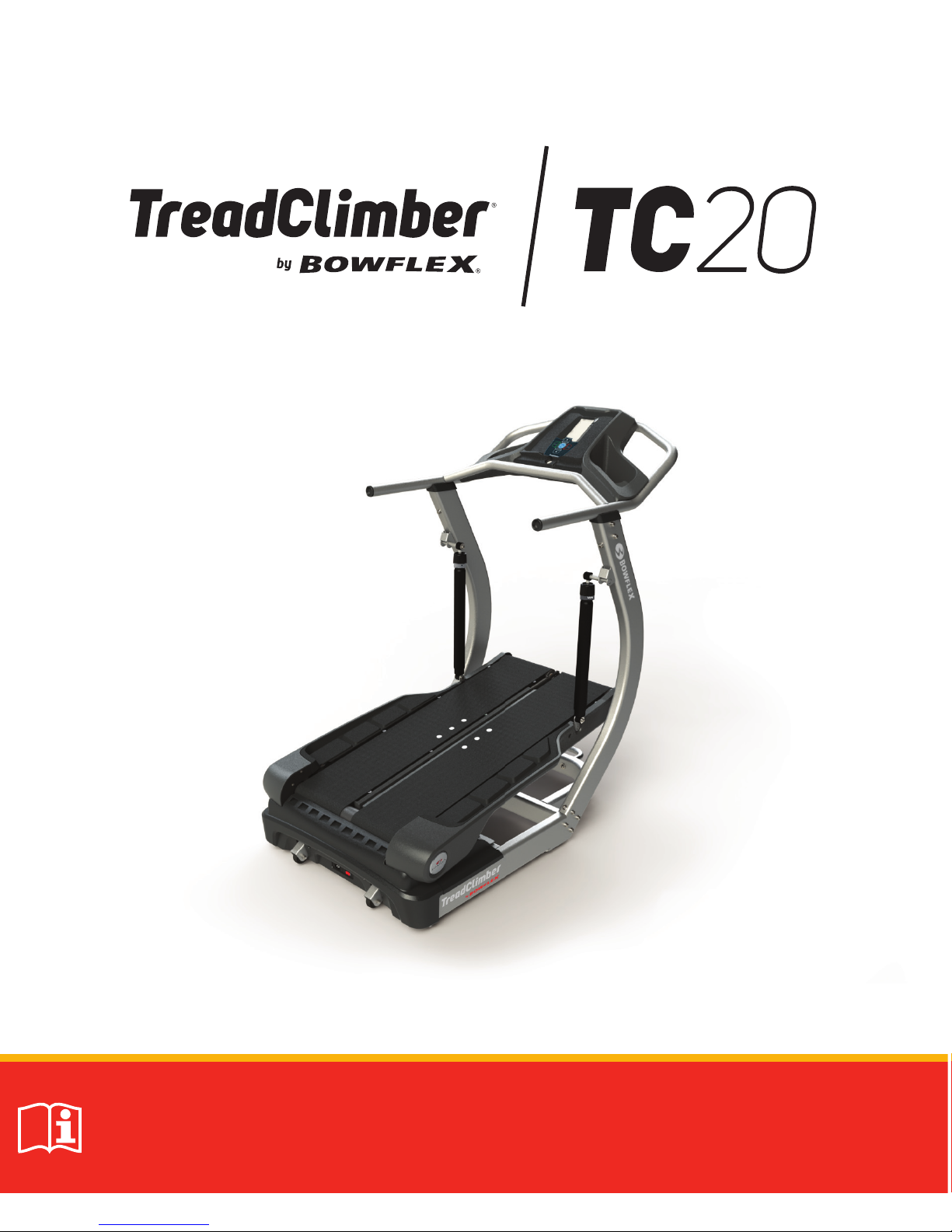

Bowflex TreadClimber TC20 Manuel utilisateur
Manual en Español Latino Americano: http://support.nautilus.com Assembly Manual
2
Important Safety Instructions .................................................................................................3
Specifications and Tools..........................................................................................................4
Before Assembly......................................................................................................................5
Parts .......................................................................................................................................6
Hardware ................................................................................................................................8
Assembly.................................................................................................................................9
Adjustments..........................................................................................................................23
If you have questions or problems with your product, please call 1 (800) 605–3369.
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-
2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered trademark. Nautilus, Inc. (www.
NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®, TreadClimber® and UNIVERSAL® and
respective logos. Other trademarks are the property of their respective owners.
Table of Contents
3
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
Read and understand all Warnings on this machine.
Carefully read and understand the Assembly Manual.
• Keep bystanders and children away from the product you are assembling at all times.
• Do not connect power supply to the machine until instructed to do so.
• Do not assemble this machine outdoors or in a wet or moist location.
• Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.
• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Set up this machine on a solid, level, horizontal surface.
• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine
and will void the warranty.
• If replacement parts are necessary, use only genuine replacement parts and hardware supplied by Nautilus. Failure
to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the
Owner’s Manual.
• Read and understand the complete Owner’s Manual supplied with this machine before first use. Keep the Owner’s and
Assembly Manuals for future reference.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or malfunctioning of the machine.
Important Safety Instructions
4

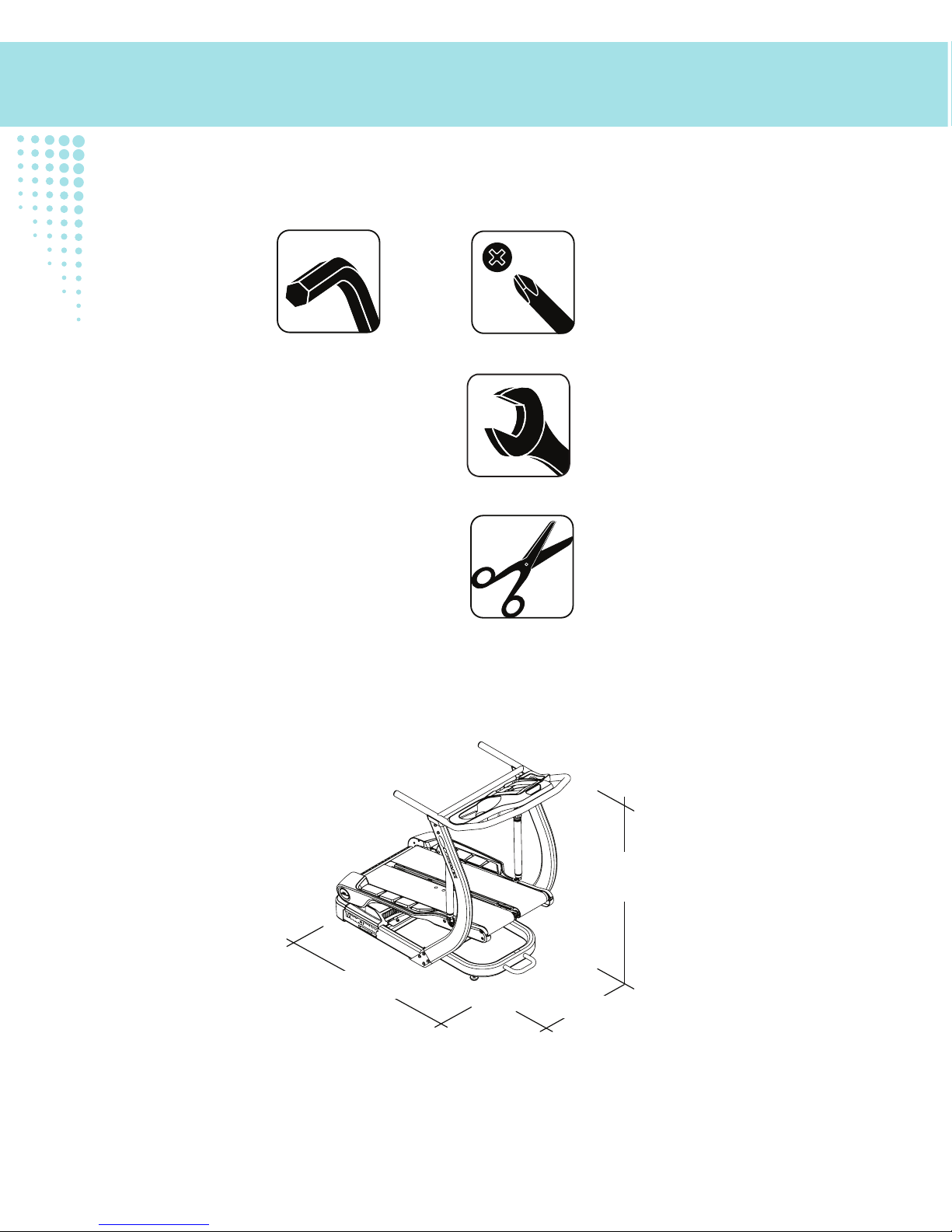

55.2”
(140.3 cm)
55” (139.7 cm)
31.5” (80 cm)
Included Not Included
5 mm #2
13 mm
(recommended)
Specifications and Tools
5
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard, level surface. Allow a minimum workout area of 70.5” x 134” (179.1 cm x 340.4 cm).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
• Read and understand the “Important Safety Instructions” before assembly.
• Collect all the pieces necessary for each assembly step.
• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the
left (counterclockwise) to loosen, unless instructed otherwise.
• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the
holes.
• The assembly requires 2 people.
• Do not use any power tools for assembly.
Note: The TreadClimber®fitness machine is designed to plug into a grounded, non-GFI outlet only.
To determine if your outlet or circuit breaker is GFI, look for a test and reset button on them. If they
have the test and reset button, it is a GFI outlet or circuit breaker.
Machine Mat
The Bowflex®TreadClimber®Machine Mat is an optional accessory that helps keep your workout area clear and adds
a layer of protection to your floor. The rubber machine mat provides a non-slip, rubber surface which limits static
discharge and reduces the possibility of display or running errors. If possible, put your Bowflex®TreadClimber®
Machine Mat in your selected workout area before you begin assembly.
To order the optional machine mat, go to: www.bowflex.com, or call 1 (800) 605–3369.
Before Assembly
6

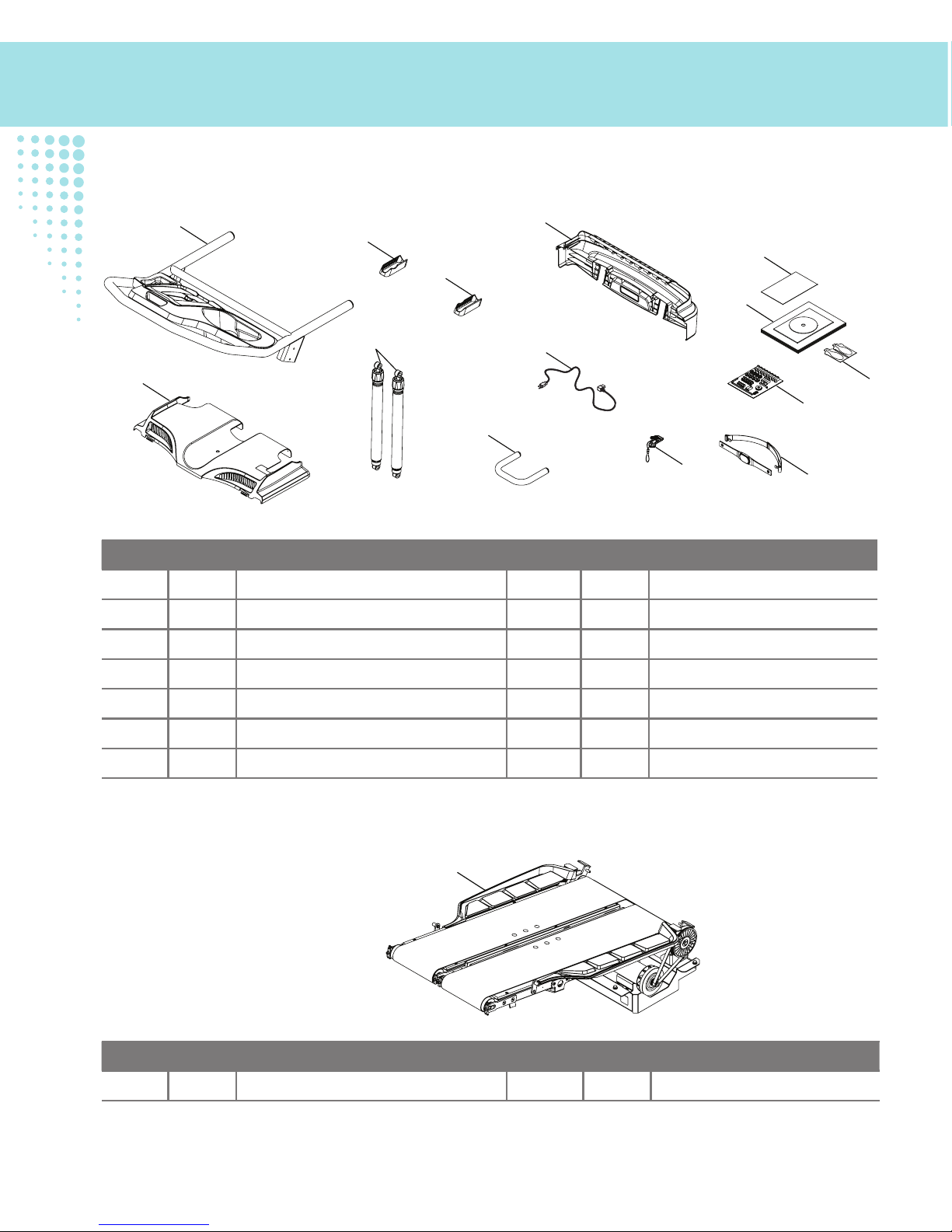

( 4 BOXES )
BOX 1
Item Qty Description Item Qty Description
1 1 Console / Handlebar Assembly 8 1 Hardware Card
2 1 Junction Cover, Right 9 1 Heart Rate Strap
3 1 Junction Cover, Left 10 1 Safety Key
4 1 Rear Cover 11 1 Power Cord
5 1 Bowflex®Weight Loss Plan 12 1 Transport Handle
6 1 Document Kit 13 2 Cylinder
7 1 Lubrication Kit 14 1 Motor Cover
BOX 2
Item Qty Description Item Qty Description
15 1 Treadle Assembly
1
2
4
11
14
13
3
12
5
6
7
8
10 9
15
16
17 18
19
20
21
1
2
4
11
14
13
3
12
5
6
7
8
10 9
15
16
17 18
19
20
21
Parts
7

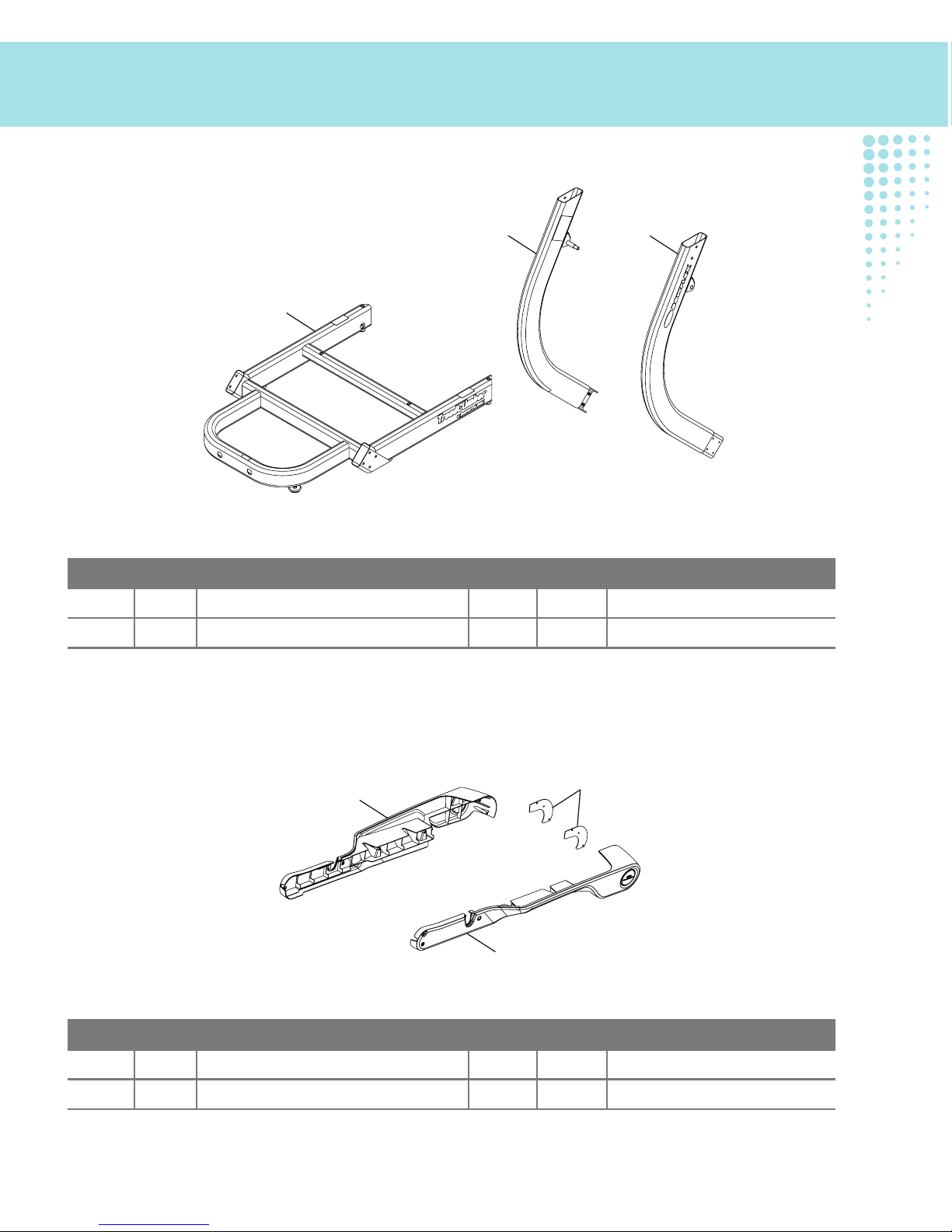

BOX 3
Item Qty Description Item Qty Description
16 1 Base Assembly 18 1 Upright, Left
17 1 Upright, Right
BOX 4
Item Qty Description Item Qty Description
19 1 Side Cover, Right 21 1 Side Cover, Left
20 2 Pivot Cover
Hardware
1
2
4
11
14
13
3
12
5
6
7
8
10 9
15
16
17 18
19
20
21
1
2
4
11
14
13
3
12
5
6
7
8
10 9
15
16
17 18
19
20
21
Parts
8

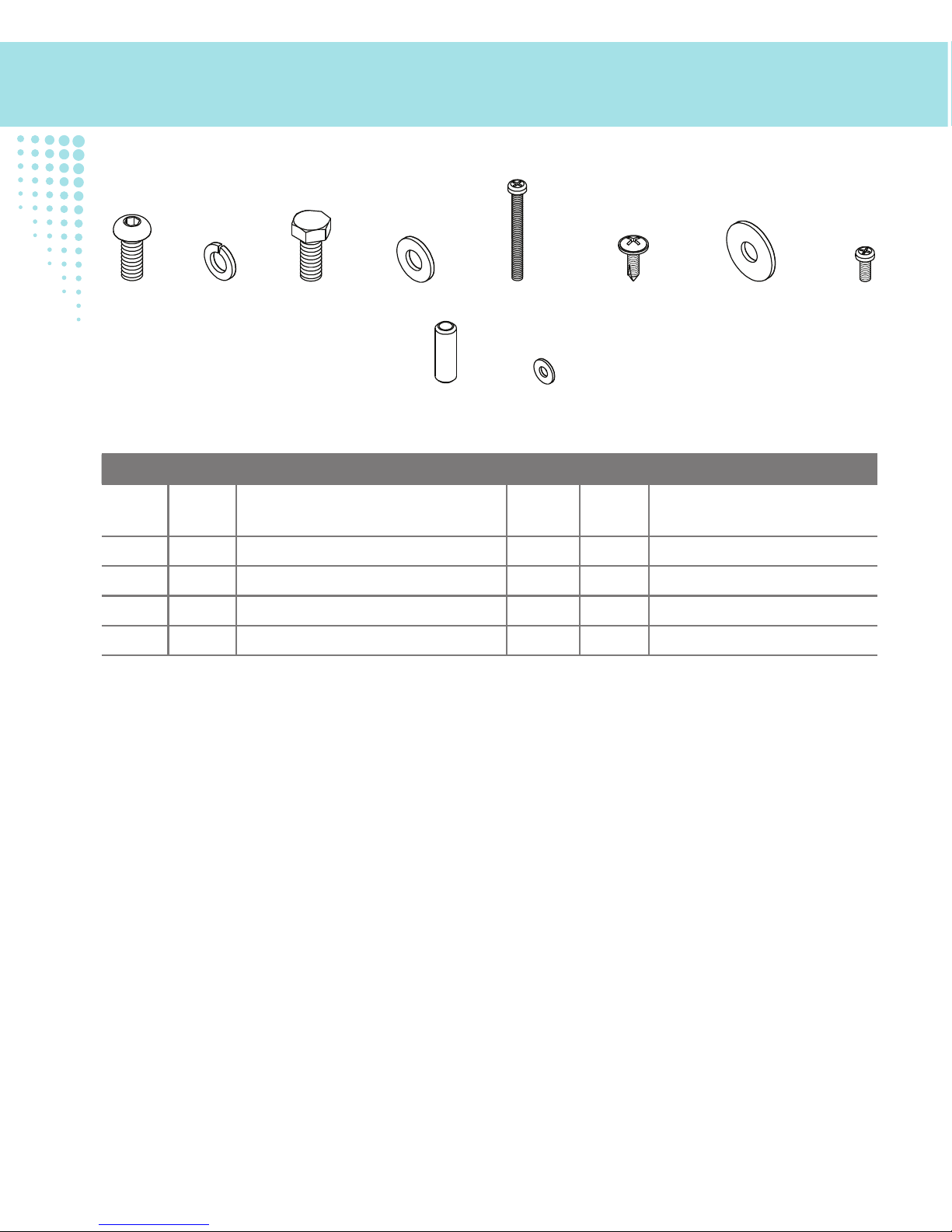

Item Qty Description Item Qty Description
A 16 Button Head Hex Screw, M8x20 F 8 Phillips Head Screw, Self Tap-
ping M4x16
B 20 Lock Washer, M8x14 G 4 Flat Washer, M8x24
C 4 Hex Head Screw, M8x20 H 10 Phillips Head Screw, M4x10
D 16 Flat Washer, M8x18 I 2 Spacer
E 2 Phillips Head Screw, M4x40 J 10 Flat Washer, M4x10
ABCDEFGH
JI
ABCDEFGH
JI
Hardware
9
Some components of the machine can be heavy or awkward. Use a second person when doing the assembly
steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

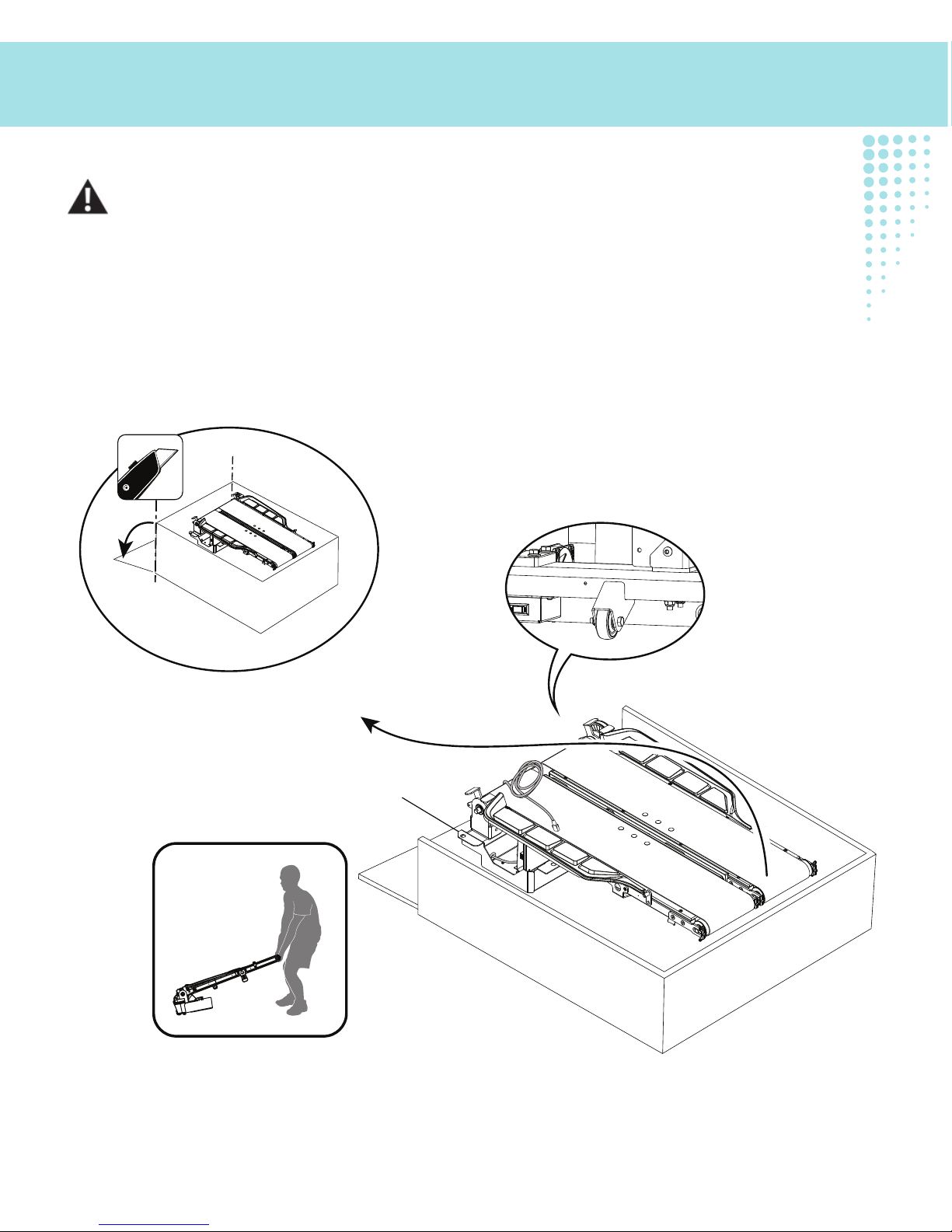

1. Cut open the end of Box 2 and move the Treadle Assembly into your new fitness area
Note: Do not cut the Shipping Zip-Tie until instructed.
15
Assembly
10

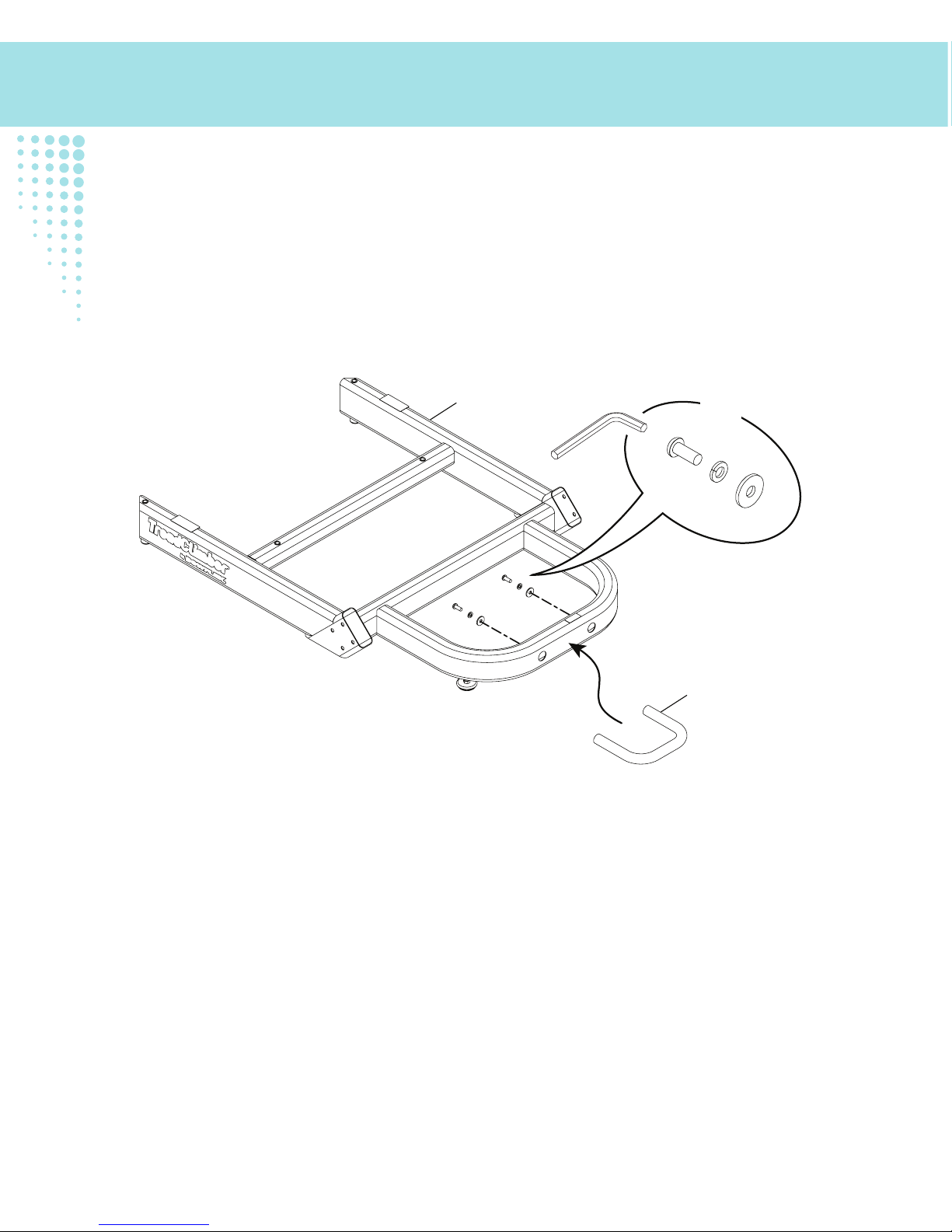

2. Attach the Transport Handle to the Base Assembly
Note: Hardware is pre-installed and not on Hardware Card (*).
16
12
*
*
*
X2
5 mm
Assembly
