Bowflex SelectTect BDS1642 Manuel utilisateur

2-In-1 Stand

Assembly Instructions

Model: BDS1642





















































  



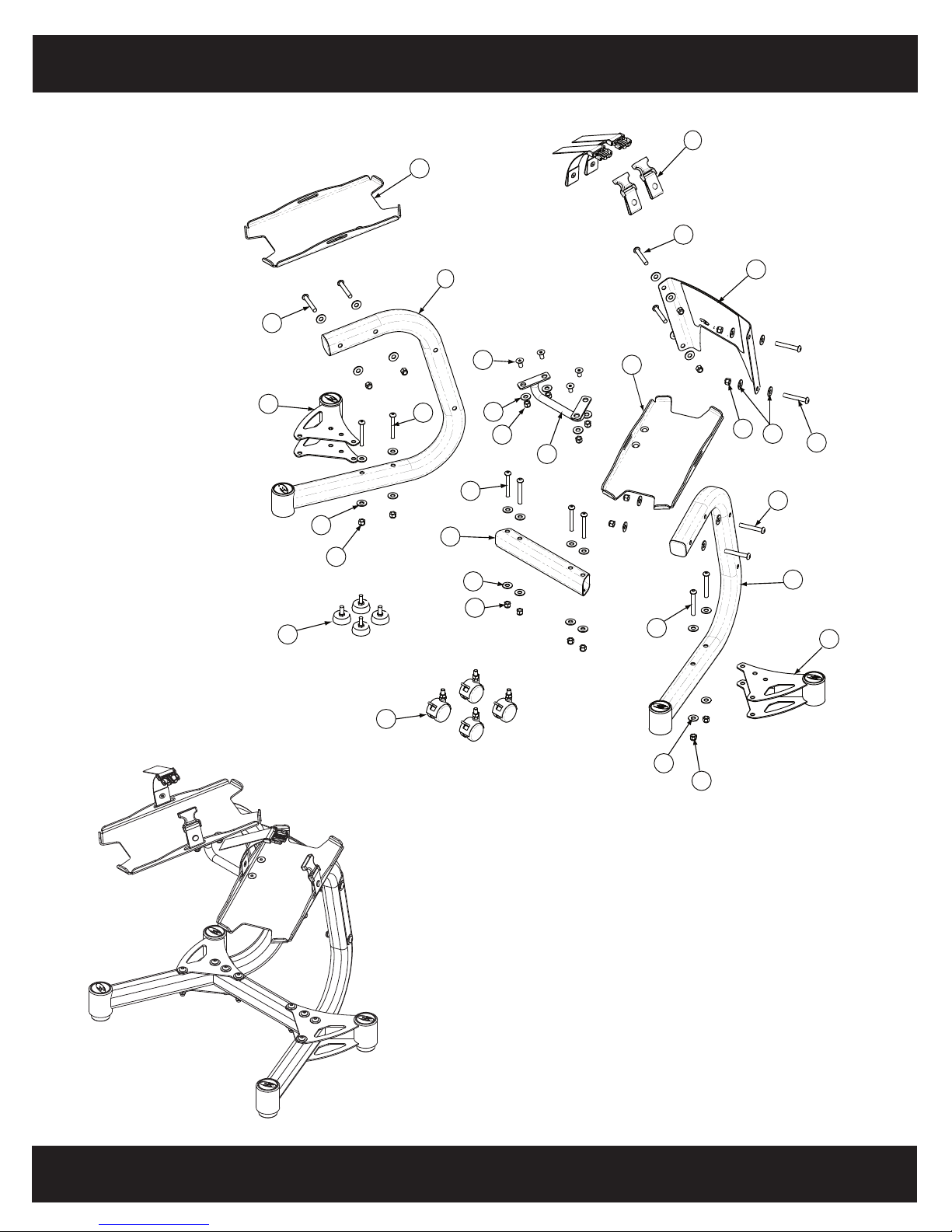

Complete Stand Component Diagram

Tools Required

7/32" Allen Wrench (included)

You will also need:

9/16" Socket

9/16" Wrench or Adjustable Wrench

Utility knife or scissors to cut nylon ties

Parts

# Qty. Description

1 1 TUBE, BOTTOM CROSS BRACE

2 1 ASSEMBLY, REAR LEFT STABILIZER

3 1 ASSEMBLY, REAR RIGHT STABILIZER

4 2 ASSY, STAND LEG

5 1 WELDMENT, LEFT DUMBBELL PLATFORM

6 1 WELDMENT, RIGHT DUMBBELL PLATFORM

7 1 WELDMENT, TOWEL BAR

8 1 FOOT PEGS, SET OF FOUR

9 1 HOLD DOWN STRAPS, 2F 2M

10 20 NUT-NL 0.375-16 G2-BlkZ

11 36 WASHER-FLAT 0.375 REGULAR BLKZ

12 8 SCREW-BHCS 0.375-16x3.0 G2-BlkO

13 4 SCREW-BHCS 0.375-16x2.75 G2-BlkO

14 4 SCREW-BHCS 0.375-16x2.5 G2-BlkO

15 4 SCREW-FHCS 0.375-16x1.0 G2-BlkO

16 1 WHEELS, CASTER SET OF FOUR

17 1 PLATE, CENTER W/ LOGO

2.5"

2.75"

3.0"

Flat Head

Button Head

Lock Nut Flat Washer

Button Head

Hardware

Qty

Hardware Card A:

2.75" Screw, Button Head 4

2.5" Screw, Button Head 4

1.0" Screw, Flat Head 4

Nut, Lock 12

Washer, Flat 20

Hardware Card B:

3.0" Screw, Button Head 8

Nut, Lock 8

Washer, Flat 16

7/32" Allen Wrench

step

Parts:

• Stand Leg (#4)

• Rear Left Stabilizer (#2)

Hardware Qty

• 3" Screws (#12) 2

• Washers (#11) 4

• Nuts (#10) 2

Tools:

• Hex Key (7/32”)

1-1 Attach the Rear Left Stabilizer (#2) to the Stand Leg (#4) using the hardware shown in Figure 1.

Note: Do not tighten hardware.

Figure 1











step

Figure 2

Parts:

• Stand Leg (#4)

• Rear Right Stabilizer (#3)

Hardware Qty

• 3" Screws (#12) 2

• Washers (#11) 4

• Nuts (#10) 2

Tools:

• Hex Key (7/32”)

2-1 Attach the Rear Right Stabilizer (#3) to the Stand Leg (#4) using the hardware shown in Figure 2.

Note: Do not tighten hardware.











Parts:

• Cross Brace (#1)

• Left Stand Leg assembly from Step 1

• Right Stand Leg assembly from Step 2

Hardware Qty

• 3" Screws (#12) 4

• Washers (#11) 8

• Nuts (#10) 4

Tools:

• Hex Key (7/32”)

3-1 Attach the Bottom Cross Brace (#1) to the Rear Left Stabilizer (#2) and Rear Right Stabilizer (#3)

using the hardware shown in Figure 3. Make sure that the narrower edge of the Cross Brace

(#1) is closer to the Stand Leg (#4) uprights.

Note: Do not tighten hardware.

step















Figure 3

step

Parts:

• Stand Leg and Cross Brace assembly from Step 3

• Center Plate (#17)

Hardware Qty

• 2.5" Screws (#14) 4

• Washers (#11) 8

• Nuts (#10) 4

Tools:

• Hex Key (7/32”)

• Wrench/Socket (9/16”) or Adjustable Wrench

4-1 Install the Center Plate (#17) to both Stand Legs (#4) using the hardware shown in Figure 4.

Note: Make sure that the Center Plate edges are on the outer sides of the legs, and that the logo

on the Plate is right side up.

4-2 Tighten all hardware from Steps 1, 2 and 3 securely.













Figure 4

step

Parts:

• Stand base assembly from Step 4

• Left Dumbbell Platform (#5)

Hardware Qty

• 2.75" Screws (#13) 2

• Washers (#11) 4

• Nuts (#10) 2

Tools:

• Hex Key (7/32”)

• Wrench/Socket (9/16”) or Adjustable Wrench

5-1 Secure the Left Dumbbell Platform (#5) to left Stand Leg (#4) using the hardware shown in

Figure 5.

Note: Make sure the screw holes in the Platform are toward the center of the stand.









Figure 5

step

Parts:

• Stand base assembly from Step 5

• Right Dumbbell Platform (#6)

Hardware Qty

• 2.75" Screws (#13) 2

• Washers (#11) 4

• Nuts (#10) 2

Tools:

• Hex Key (7/32”)

• Wrench/Socket (9/16”) or Adjustable Wrench

6-1 Secure the Right Dumbbell Platform (#6) to right Stand Leg (#4) using the hardware shown in

Figure 6.

Note: Make sure the screw holes in the Platform are toward the center of the stand.









Figure 6

step

Parts:

• Stand assembly from Step 6

• Towel Bar (#7)

Hardware Qty

• 1" Screws (#15) 4

• Washers (#11) 4

• Nuts (#10) 4

Tools:

• Hex Key (7/32”)

• Wrench/Socket (9/16”) or Adjustable Wrench

7-1 Attach the Towel Bar (#7) to the Left Dumbbell Platform (#5) and the Right Dumbbell Platform

(#6) using hardware shown in Figure 7. Hand tighten screws in a cross pattern, to ensure

even ﬁt.

7-2 Tighten all screws securely.



 



 



Figure 7
