Communications Systems | PVA-1EB Call station emergency button

PVA-1EB Call station emergency button

www.boschsecurity.com

uAlarm button for call station

uEN 54-16 and ISO 7240-16 system certification

The PVA-1EB is an optional emergency button for

installation in the PAVIRO call stations. For more

information, refer to the call station manual.

Certifications and approvals

Emergency standard certifications

Europe EN 54‑16

International ISO 7240‑16

Environmental directive compliance

Immunity EN 50130-4

Emissions EN 61000-6-3

ICES-003

FCC-47 part 15B class A

Environment EN 50581

Maritime EN 60945

Conformity

Europe CE/CPR

Australia RCM

Environment RoHS

Installation/configuration notes

Labeling

1. Remove button ➊from housing ➋

2. Remove red diffusor ➌from lens ➎using a sharp tool

(such as a knife)

3. Label the film insert ➍

4. Re-assemble the button including the film insert and

mount into the housing ➋

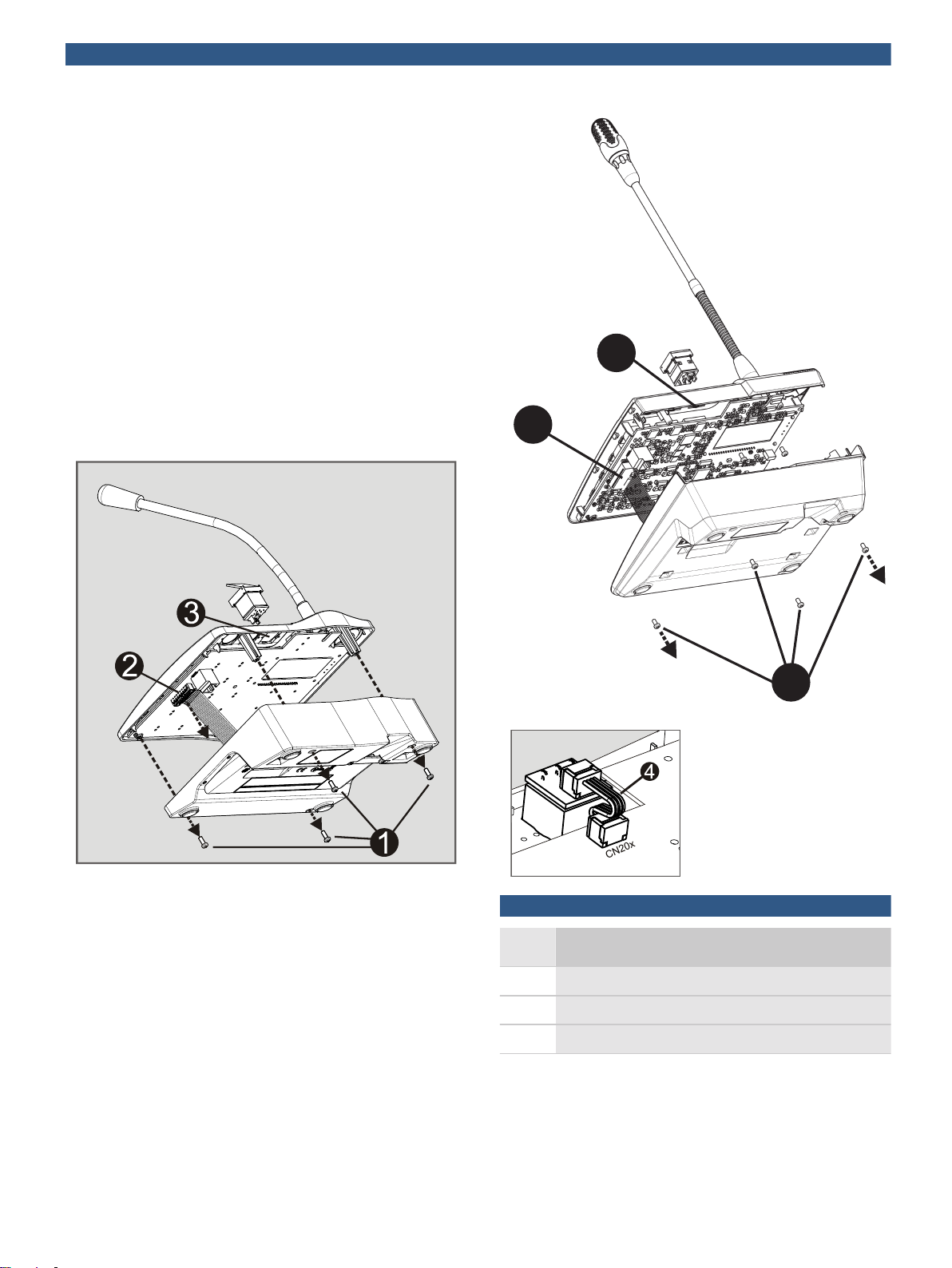

Assembly in call station

1. Disconnect the call station from all connectors.

2. Unscrew the call station baseplate (4 screws ➊).

3. Carefully remove the baseplate from the upper part,

start on the top left corner of the call station.

4. Unplug the connecting cable from the CN1 plug

connector ➋.

5. Prepare installation location ➌: Use a sharp object

(scriber or similar) to carefully punch through and cut

out the pre-cut rectangle on the inside of the housing.

Perform any follow-up work that may be required to

the installation location (e.g. filing, trimming).

6. Mount the button into the installation location, and

press in evenly (it must be possible for the cover cap

to open upward).

7. Depending on whether the right/middle/left

installation location is used, plug the ribbon cable ➍

into plug connector CN201/CN202/CN203 on the

circuit board.

8. Plug the connecting cable into CN1 again.

9. Carefully re-attach the call station baseplate.

10. Re-connect the connections.

11. Configure the button using the software.

Parts included

Quan

tity

Component

1Button element with cover

1 Preconfigured 4-pin connecting cable

1 Installation note

2| PVA-1EB Call station emergency button

Technical specifications

Mechanical

Product dimensions

(Height x Width x Depth)

30 mm x 21 mm x 21 mm

Net weight 0.01 kg

Shipping weight 0.02 kg

Environmental

Operating temperature -5 °C to +45 °C (+23 °F to

+113 °F)

Storage and transport

temperature

-25 °C to +70 °C (-13 °F to

+158 °F)

Humidity (non-

condensing)

5% to 90%

Altitude Up to 2000 m

Ordering information

PVA-1EB Call station emergency button

Optional emergency button that can be installed in the

PVA-15CST Call station.

Order number PVA-1EB

3| PVA-1EB Call station emergency button

Represented by:

Europe, Middle East, Africa: Germany: North America: Asia-Pacific:

Bosch Security Systems B.V.

P.O. Box 80002

5600 JB Eindhoven, The Netherlands

Phone: + 31 40 2577 284

[email protected]

emea.boschsecurity.com

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5

85630 Grasbrunn

Germany

www.boschsecurity.com

Bosch Security Systems, Inc.

130 Perinton Parkway

Fairport, New York, 14450, USA

Phone: +1 800 289 0096

Fax: +1 585 223 9180

[email protected]

www.boschsecurity.us

Robert Bosch (SEA) Pte Ltd, Security Systems

11 Bishan Street 21

Singapore 573943

Phone: +65 6571 2808

Fax: +65 6571 2699

[email protected]

www.boschsecurity.asia

18675264011 | en, V10, 17. Apr 2020
