Bosch Solution 16i Manuel utilisateur

Solution 16i

Security System

Quick Start Guide



2Bosch Security Systems 09/07 BLCC500R FTR1.02

Warnings



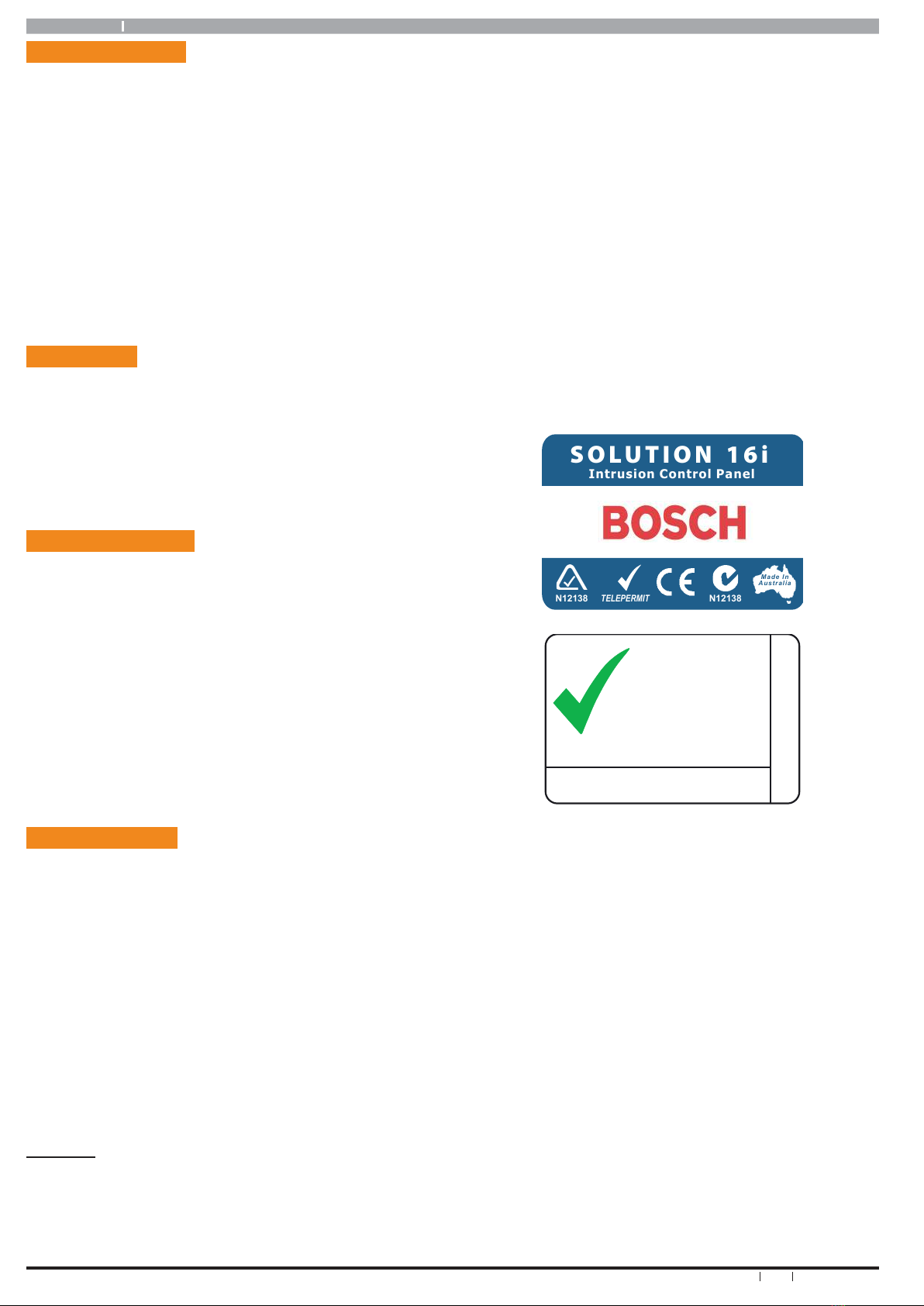

TELEPERMIT N12138

Intrusion Control Panel

N12138

M a d e I n

A u s t r a l i a

฀



PTC 211 / 07 / 076

RN = 0.5

TELEPERMIT

This Bosch Solution 16i

CC500B Alarm System

may be connected to the

Telecom Network

฀



3
Bosch Security Systems   09/07   BLCC500R  FTR1.02 Copyright © 2007    E&OE 

4Bosch Security Systems 09/07 BLCC500R FTR1.02

     





For ease, it is recomended that the PCB mounting clips are installed from the rear of the enclosure before mounting it to the wall.



Figure 1: PCB and Mounting Clip Installation DiagramFigure 2: Tamper Bracket InstallationTable 1: Expansion Options

6Bosch Security Systems 09/07 BLCC500R FTR1.02





The supplied mounting clips are designed to use the 3mm machine screws supplied with the enclosure. The use of self tapping screws will damage the clips.

320 mm

260 mm



Figure 3: MW700 - Small Enclosure DetailsFigure 4: PCB Mounting Clip









Figure 5: MW700 Conﬁguration Examples

320 mm

520 mm



Figure 6: MW710 - Large Enclosure Details



Figure 7: MW710 Conﬁguration Examples

8Bosch Security Systems 09/07 BLCC500R FTR1.02





For permanently connected equipment, a readily accessible disconnect device such as an A.C. Mains power outlet or mains switch shall be installed in a location near the equipment, for connection of the mains power cord. 

TRANSFORMER

FUSE

220 - 240V A.C.

50 - 60Hz 24VA

8AG - 250V

250mA MAX

NEUTRAL

EARTH

ACTIVE







Figure 8: Internal Transformer Connection DiagramTable 2: Dialler Indicator LEDTable 3: Status Indicator LED



During factory defaulting the Status and Dialler LED indicators will ﬂash alternatively for approximately 15 seconds.



ZONE 2

N/C

ZONE 1



Figure 9: N/C No EOL Zone

ZONE 2

ZONE 1

N/C



ALARM



Figure 10: N/C Single EOL Zone

(6K8 EOL)

(3K3 EOL)

N/C



ALARM



ZONE 1

ZONE 9

Figure 11: N/C Split EOL Zone

TAMPER

(6K8 EOL)

TAMPER

(3K3 EOL)

N/C





ALARM ZONE 1

Figure 12: N/C Zone With Tamper



The Above diagrams display zone conﬁgurations using Normally-Closed Alarm contacts and Normally-Open Alarm Contacts. When using Normally-Open Alarm Contacts you must select Inverted Seal for each zone in MENU 3-1-8. A shorted loop is a tamper condition for all EOL zone conﬁgurations.

ZONE 2

N/O

ZONE 1



Figure 13: N/O No EOL Zone

ZONE 2

ZONE 1

N/O



ALARM



Figure 14: N/O Single EOL Zone

(6K8 EOL)

(3K3 EOL)

N/O



ALARM



ZONE 9

ZONE 1

Figure 15: N/O Split EOL Zone

TAMPER

(6K8 EOL)

TAMPER

(3K3 EOL)

N/C

N/O





ALARM ZONE 1

Figure 16: N/O Zone With Tamper

Orange

Blue

Red

Orange

Grey

3K3

6K8

Brown (+/- 1%)

3K3 =

6K8 =

Orange

Blue

Figure 17: EOL Resistor Colour Chart

10 Bosch Security Systems 09/07 BLCC500R FTR1.02







ICON



Figure 18: Solution 16i Board Layout
