English

Safety Notes

Read and observe all instructions. SAVE THESE

INSTRUCTIONS FOR FUTURE REFERENCE.

Have the measuring tool repaired only through qualified special-

ists using original spare parts. This ensures that the safety of the

measuring tool is maintained.

Do not operate the measuring tool in explosive environments,

such as in the presence of flammable liquids, gases or dusts.

Sparks can be created in the measuring tool which may ignite the dust

or fumes.

OBJ_BUCH-1913-002.book Page 15 Monday, September 23, 2013 12:33 PM

16 | English

2 609 140 996 | (23.9.13) Bosch Power Tools

Product Description and Specifications

Intended Use

The measuring tool is intended for the detection of ferrous metals (e.g.

reinforced steel), non-ferrous metals (e.g. copper pipes) as well as “live”

wires/conductors in walls, ceilings and floors.

Product Features

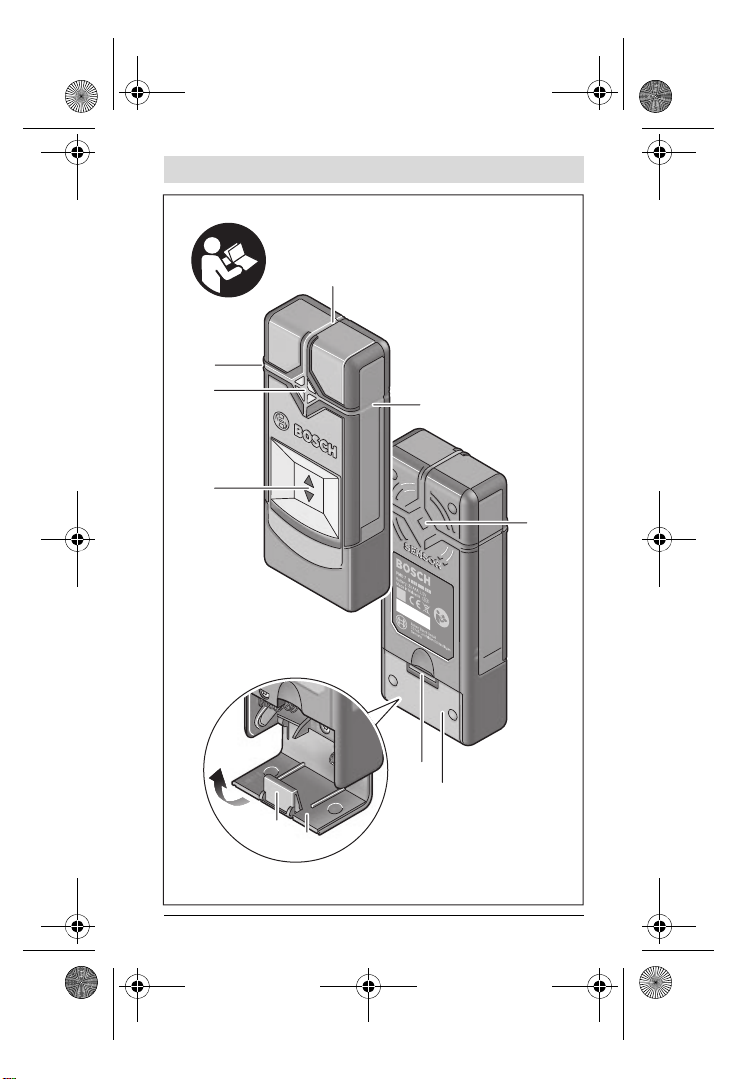

The numbering of the product features shown refers to the illustration of

the measuring tool on the graphic page.

1Marking aid

2Signal LED

3On/Off switch

4Latch of battery lid

5Battery lid

6Sensor area

Technical Data

Digital Detector PMD 7

Article number 3 603 F81 100

Maximum scanning depth*:

– Ferrous metals

– Non-ferrous metals (copper pipe)

– Copper conductors (live)**

70 mm

60 mm

50 mm

Calibration automatic

Automatic switch-off after approx. 10 min

Operating temperature 0°C...+40°C

Storage temperature –20 °C...+70 °C

Relative air humidity, max. 80 %

Batteries 3x1.5VAAA

Operatinglifetime(alkali-manganese batteries) approx. 5h

Weight according to EPTA-Procedure 01/2003 0.1 kg

* depending on material and size of the objects as well as material and condition of the

base material (walls, ceilings, floors)

** less scanning depth for wires/conductors that are not “live”

In terms of accuracy and scanning depth, the measurement result can be infe-

rior in case of unfavourable surface quality of the base material.

OBJ_BUCH-1913-002.book Page 16 Monday, September 23, 2013 12:33 PM

English | 17

Bosch Power Tools 2 609 140 996 | (23.9.13)

Declaration of Conformity

We declare under our sole responsibility that the product described un-

der “Technical Data” is in conformity with the following standards or

standardisation documents:

EN 61010-1:2010-10, EN 61326-1:2006-05,

EN 301489-3:2002-08, EN 301489-1:2011-09,

EN 300330-1:2010-02, EN 300330-2:2010-02 according to the provi-

sions of the directives 2011/65/EU, 1999/5/EC.

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Leinfelden, 26.08.2013

Assembly

Inserting/Replacing the Batteries

Alkali-manganese batteries are recommended for the operation of the

measuring tool.

To open the battery lid 5, press on the latch 4and fold the battery lid up.

Insert the batteries. When inserting, pay attention to the correct polarity

accordingto the representationon the insideof the battery compartment.

Ifthemeasuring tool isnotused for longerperiodsof time,remove

the batteries. The batteries can corrode or self-discharge after pro-

longed storage.

Operation

Initial Operation

Protect the measuring tool against moisture and direct sun light.

Do not subject the measuring tool to extreme temperatures or var-

iations in temperature. As an example, do not leave it in vehicles for

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

OBJ_BUCH-1913-002.book Page 17 Monday, September 23, 2013 12:33 PM

18 | English

2 609 140 996 | (23.9.13) Bosch Power Tools

long time. In case of large variations in temperature, allow the measur-

ing tool to adjust to the ambient temperature before putting it into op-

eration. In case of extreme temperatures or variations in temperature,

the accuracy of the measuring tool can be impaired.

Avoid heavy impact to or falling down of the measuring tool.

Switching On and Off

Beforeswitching the measuringtool on, makesure thatthe sensor

area 6 is not moist. If required, dry the measuring tool using a soft

cloth.

To switch on the measuring tool, slide the On/Off switch 3

downwards.

After a short self-test, the tool is ready for use. The readiness of use is in-

dicated when the signal LED 2illuminates. If the signal LED 2fails to illu-

minate after switching on the tool, you must replace the batteries.

To switch off the measuring tool, slide the On/Off switch 3up-

wards.

When no measurements are carried out for approx. 10 minutes, the

measuring tool switches off automatically in order to extend the service

life of the batteries.

Note: If the measuring tool has automatically switched off, then the

On/Off switch 3will still be in the “On” position. To switch the measuring

toolbackon,firstslidethe On/Off switch 3intotheposition“Off”and then

back into the position “On”.

Operating Modes

The measuring tool detects objects below the sensor area 6.

Before drilling, sawing or routing into a wall, protect yourself

against hazards by using other information sources. As the accura-

cy and scanning depth of the measuring tool can be reduced due to en-

vironmental conditions or the wall material, there is a risk that objects

may be within the sensor range, even if the displaydoesnot indicate an

object (the signal LED 2illuminates green).

OBJ_BUCH-1913-002.book Page 18 Monday, September 23, 2013 12:33 PM

English | 19

Bosch Power Tools 2 609 140 996 | (23.9.13)

Detecting Metal Objects

After switching on, the signal LED 2lights up green.

Position the measuring tool on/against the surface being detected and

move it sideways.

– If no metal object is visible in the base material, then the signal LED 2

continues to illuminate green and no signal tone sounds.

– When the measuring tool comes closer to a metal object, the signal LED

2firstlightsupyellowandchanges to red thecloseritcomesto the metal

object. As soon as the signal LED lights up red, a signal tone is also emit-

ted, the pitch of which rises the closer it comes to the metal object.

– Over a metal object, the signal LED 2illuminates red and a signal tone

is emitted at maximum pitch.

EvenwithayellowsignalLED2,ametalobjectmaybelocatedbelow

thesensorarea.Small orlow-lyingmetal objectsarelocatedinthe vicin-

ity of the sensor or the wall material impairs the measurement results.

After moving over the surface the first time, the posi-

tionof the metal object is only roughly indicated. If you

move the measuring tool over the metal object several

times, the object detection will become increasingly

precise. After moving over the metal object several

times (without lifting the measuring tool from the base

material), its position can be indicated very accu-

rately: if thesignal LED 2illuminates red and the signal

tone sounds, the metal object is below the sensor area. When the pitch of

the signal tone is highest, the metal object is located below the centre of

the sensor.

Signal LED Explanation

green no object detected

yellow – metal object in the vicinity of the sensor

– small or low-lying metal object within

the sensor area or

– impairment of the sensor due to unfa-

vourable wall material

red and continuous tone metal object detected in the sensor area

red flashing (fast) and inter-

mittent sound “live” wire/conductor detected

OBJ_BUCH-1913-002.book Page 19 Monday, September 23, 2013 12:33 PM

20 | English

2 609 140 996 | (23.9.13) Bosch Power Tools

Scanning for “Live” Wires

The measuring tool indicates wires, which carry voltage between 110 V

and 240 V and a frequency corresponding to the widely used standard

(AC with 50 or 60 Hz). Other wires (carrying DC, higher/lower frequency

or voltage) as well as non-“live” wires/conductors cannot be found relia-

bly, but are possibly indicated as metal objects.

The detection for “live” wires/conductors takes place automatically with

every measurement. When a “live” wire/conductor is detected, the signal

LED 2flashes red and an intermittent signal tone sounds with rapid tone

sequence. Move the measuring tool repeatedly over the surface to locate

the “live” wire/conductor more precisely. After moving over the surface

several times, the position of the “live” wire/conductor can be indicated

very accurately.

“Live” wires/conductors can be detected more easily when power con-

sumers (e.g. lamps, appliances) are connected to the wire being sought

and switched on.

Note: Always ensure that you hold the measuring tool firmly without

gloves to enable a good grounding. Also ensure that ladders/scaffolding

must be grounded. Avoid ladders/scaffolding whose supports have plas-

tic caps underneath them. Do not wear insulating footwear.

Under certain conditions (e.g. below metal surfaces or behind surfaces

with high water content), “live” wires/conductors cannot be securely de-

tected. When the signal LED 2illuminates yellow or red over a larger area,

then the material is screening-off electrically and the detection for “live”

wires/conductors is not reliable.

Working Advice

Measuring values can be impaired through certain ambient condi-

tions. These include, e.g., the proximity of other equipment that

produce strong magnetic or electromagnetic fields, moisture, me-

tallic building materials, foil-laminated insulation materials or

conductive wallpaper or tiles. Therefore, please also observe other

information sources (e.g. construction plans) before drilling, sawing

or routing into walls, ceilings or floors.

Note: Do not hold the device in the area of the sensor, so as not to affect

the measurement. This achieves more accurate measurement results.

OBJ_BUCH-1913-002.book Page 20 Monday, September 23, 2013 12:33 PM

English | 21

Bosch Power Tools 2 609 140 996 | (23.9.13)

Marking Objects

Detectedobjectscan be markedas required. The outeredges of anobject

are indicated by the colour change of the signal LED 2from yellow to red.

The centre of the metal object can be determined by the pitch. Using a

pen, mark the sought after location at the top and the side marker aids 1.

Continuous Flashing Green/Yellow/Red

Ifthe signal LED 2flashes alternately green, yellow and red, even whenno

metal object or no “live” cable is in thevicinity, the measuringdevice must

be sent in for service.

Maintenance and Service

Manual Calibration

If the signal LED 2illuminates red or yellow, even when no metal is in the

vicinity of the measuring tool, the tool must be recalibrated.

– To do this, switch the measuring device on using the On/Off switch 3.

– Remove a battery from the switched on measuring device.

– While the battery is removed, switch the measuring device off using

the On/Off switch 3.

– Reinsert the batteries into the measuring device (pay attention to the

polarity!)

– Now remove all objects in the vicinity of the measuring device (includ-

ing wrist watches or rings of metal) and hold the measuring tool up in

the air.

– SwitchthemeasuringdeviceonusingtheOn/Offswitch3and off again

within 3 seconds. The signal LED 2of the measuring device will flash

red in slow succession during the 3 seconds to indicate that it is ready

to calibrate.

– Switch the measuring device back on within 0.5 seconds. The calibra-

tion is initiated and takes about 6 seconds. The signal LED 2will flash

green for 6 seconds in quick succession, the calibration is being per-

formed. Now the device is once more ready for operation and the sig-

nal LED 2illuminates solid green.

Note:If the sequence of switching off thenon againis notfollowed, no cal-

ibrationis performed. The signal LED 2remains either yellow or red, even

though no metal is located within the vicinity. In this case, repeat the cal-

ibration.

OBJ_BUCH-1913-002.book Page 21 Monday, September 23, 2013 12:33 PM

22 | English

2 609 140 996 | (23.9.13) Bosch Power Tools

Troubleshooting –Causes and Corrective Measures

Cause Corrective Measure

Signal LED 2 does not illuminate

Measuringtoolis not

switched on

Slide the On/Off switch into position “On”.

Measuring tool has

switched itself off

Slidethe On/Off switch first intoposition “Off” and

then into position “On”.

Batteries have not

been inserted or

been inserted incor-

rectly

Insert batteries. Pay attention to the polarity.

Flat or rechargeable

batteries inserted

Replace batteries. Do not use rechargeable

batteries.

Signal LED 2 illuminates yellow or red, even though no metal is

located within the vicinity (warning of metal objects)

Ambient tempera-

ture is too high/too

low

Only use the measuring tool within the specific

temperature range of 0 °C –40 °C .

Severe temperature

change

Wait until the measuring tool acclimates to the

ambient temperature.

Auto calibration not

successful

Perform a manual calibration.

Signal LED 2 lights yellow or red over large measuring area on the

wall (warning of metal objects)

Many, closely

spaced metal ob-

jects

Pay attention to the pitch of the signal sound to dif-

ferentiate between individual metal objects. Metal

objects that are too closely spaced, cannot be de-

tected separately.*

Metal as building

material

A reliable detection is not possible with metallic

building materials (e.g. foil-laminated insulation

materials, heat sinks).*

Auto calibration not

successful

Perform a manual calibration.

OBJ_BUCH-1913-002.book Page 22 Monday, September 23, 2013 12:33 PM

Autres manuels pour PMD 7

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Capteur de sécurité

Bosch

Bosch Professional Series Manuel utilisateur

Bosch

Bosch DS720I Manuel utilisateur

Bosch

Bosch MX934i Manuel utilisateur

Bosch

Bosch ISC-BPQ2-W12 Manuel utilisateur

Bosch

Bosch Smart Home RFPR-ZB-SH-EU Manuel utilisateur

Bosch

Bosch FCP-O 500 Manuel utilisateur

Bosch

Bosch ZX835 Manuel utilisateur

Bosch

Bosch RF940E Series Manuel utilisateur

Bosch

Bosch Blue Line P1 Manuel utilisateur

Bosch

Bosch Blue Line D1-P Manuel utilisateur

Bosch

Bosch TriTech DS970 Series Manuel utilisateur

Bosch

Bosch FCP-320 Series Manuel utilisateur

Bosch

Bosch DS835I Series Manuel utilisateur

Bosch

Bosch ISC-BDL2-WP12 Manuel utilisateur

Bosch

Bosch D-tect 150 Manuel utilisateur

Bosch

Bosch CRS-WM-TA869 Manuel utilisateur

Bosch

Bosch Blue Line Gen2 ISC-BPR2 Manuel utilisateur

Bosch

Bosch GMS 120 Professional Manuel utilisateur

Bosch

Bosch TriTech+ ISC-PDL1-WA18G Manuel utilisateur

Bosch

Bosch D-tect 150 Professional Manuel utilisateur

Bosch

Bosch WEU PDO Multi Manuel utilisateur

Bosch

Bosch Blue Line P1 Manuel utilisateur

Bosch

Bosch ISC-CDL1-W15G Manuel utilisateur

Bosch

Bosch DMF 10 Zoom Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur

Solinst

Solinst 301 Manuel utilisateur
