Bosch GPL100-30G Instructions de montage
Operating / Safety Instructions
Consignes d’utilisation / de sécurité
Instrucciones de funcionamiento y seguridad
GPL100-30G
GPL100-50G
IMPORTANT:
Read Before Using
IMPORTANT :
Lire avant usage
IMPORTANTE:
Leer antes de usar
English Version
See page 6
Version française
Voir page 29
Versión en español
Ver la página 55
1-877-BOSCH99 (1-877-267-2499) www.boschtools.com
GPL100-50G
GPL 100-30G
GPL100-30G 50G 11-20.indd 1 4/23/21 5:27 PM
-2-

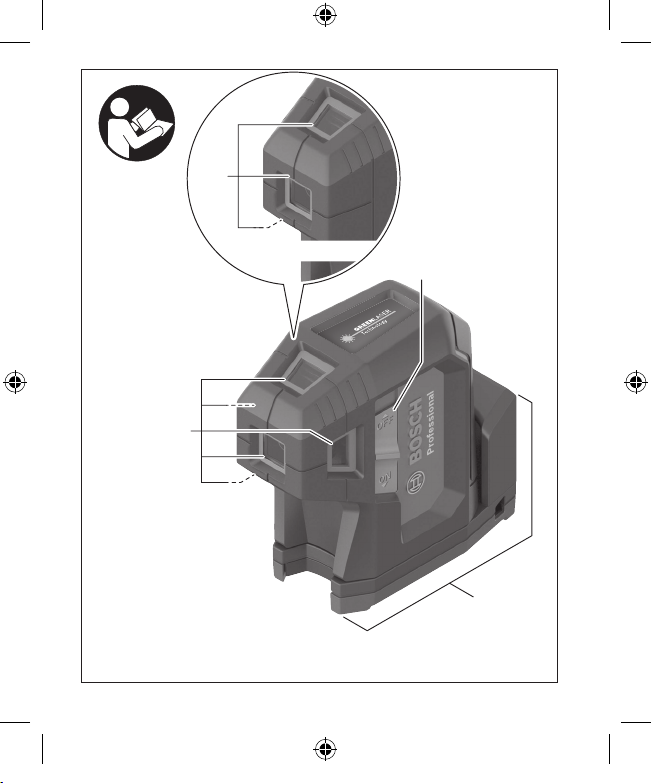

GPL100-50G
GPL100-50G
GPL100-30G
(1)
(1)
(2)
(3)
GPL100-30G 50G 11-20.indd 2 4/23/21 5:27 PM
-3-
(1) (4)
(5)
(6)
(7)
(8)(9)(1)
GPL100-50G
GPL100-30G 50G 11-20.indd 3 4/23/21 5:27 PM
-4-
GPL 100-50G
GPL 100-50G
click!
A
B
C
GPL100-30G 50G 11-20.indd 4 4/23/21 5:27 PM
-5-
D
E
(10)
1 608 M00 05J
(11)
BT 150
0 601 096 B00
(12)
6 082 762 2ZX
GPL100-30G 50G 11-20.indd 5 4/23/21 5:27 PM
-6-
Safety Symbols
The definitions below describe the level of severity for each signal
word. Please read the manual and pay attention to these symbols.
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety
messages that follow this symbol to
avoid possible injury or death.
Read manual symbol - Alerts user to
read manual.
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
GPL100-30G 50G 11-20.indd 6 4/23/21 5:27 PM
-7-
Read all instructions. Failure to follow all
instructions listed below may result in
hazardous radiation exposure, electric shock, fire and/or serious
injury. The term “tool” in all of the warnings listed below refers to your
mains-operated (corded) tool or battery-operated (cordless) tool.
The following
labels are on
your laser tool for your
convenience and safety. They
indicate where the laser light is
emitted by the tool. ALWAYS BE
AWARE of their location when
using the tool.
Do not direct the laser beam at persons or
animals and do not stare into the laser beam
yourself. This tool produces laser class 2 laser
radiation and complies with 21 CFR 1040.10 and
1040.11 except for conformance with IEC 60825-1
Ed. 3., as described in Laser Notice No. 56, dated
May 8, 2019. This can lead to persons being blinded.
DO NOT remove or deface any warning or caution labels.
Removing labels increases the risk of exposure to laser radiation.
Use of controls or adjustments or performance of procedures
other than those specified in this manual, may result in hazardous
radiation exposure.
ALWAYS make sure that any bystanders in the vicinity of use
are made aware of the dangers of looking directly into the laser
tool.
DO NOT place the laser tool in a position that may cause
General Safety Rules
GPL100-30G 50G 11-20.indd 7 4/23/21 5:27 PM
-8-
anyone to stare into the
laser beam intentionally or
unintentionally. Serious eye
injury could result.
ALWAYS position the laser
tool securely. Damage to the
laser tool and/or serious injury to
the user could result if the laser
tool fails.
ALWAYS use only the
accessories that are
recommended by the
manufacturer of your laser
tool. Use of accessories that
have been designed for use with
other laser tools could result in
serious injury.
DO NOT use this laser tool for
any purpose other than those
outlined in this manual. This
could result in serious injury.
DO NOT leave the laser tool
“ON” unattended in any
operating mode.
DO NOT disassemble the
laser tool. There are no user
serviceable parts inside. Do
not modify the product in any
way. Modifying the laser tool
may result in hazardous laser
radiation exposure.
DO NOT use the laser viewing
glasses as safety goggles.
The laser viewing glasses are
used for improved visualization
of the laser beam, but they
do not protect against laser
radiation.
DO NOT use the laser viewing
glasses as sun glasses or
in traffic. The laser viewing
glasses do not afford complete
UV protection and reduce color
perception.
DO NOT use any optical tools
such as, but not limited to,
telescopes or transits to view
the laser beam. Serious eye
injury could result.
DO NOT stare directly at the
laser beam or project the
laser beam directly into the
eyes of others. Serious eye
injury could result.
Work area safety
Keep work area clean and well
lit. Cluttered or dark areas invite
accidents.
DO NOT operate the laser
tool around children or
allow children to operate
the laser tool. Serious
eye injury could result.
GPL100-30G 50G 11-20.indd 8 4/23/21 5:27 PM
-9-
DO NOT use laser tools,
attachments and accessories
outdoors when lightning
conditions are present.
Do not operate the measur-
ing tool in explosive environ-
ments, such as in the presence
of flammable liquids, gases or
dusts. Sparks can be created in
the measuring tool which may ig-
nite the dust or fumes.
Electrical safety
Batteries
can
explode or leak, cause injury
or fire. To reduce this risk,
always follow all instructions and
warnings on the battery label and
package.
DO NOT short any battery
terminals.
DO NOT charge alkaline
batteries.
DO NOT mix old and new
batteries. Replace all of them at
the same time with new batteries
of the same brand and type.
DO NOT mix battery chemistries.
Dispose of or recycle batteries
per local code.
DO NOT dispose of batteries
in fire.
Keep batteries out of reach of
children.
Remove batteries if the device
will not be used for several
months.
Personal safety
If laser radiation strikes your
eye, you must deliberately
close your eyes and imme-
diately turn your head away
from the beam.
Do not make any modifica-
tions to the laser equipment.
Stay alert, watch what you
are doing and use common
sense when operating a tool.
Do not use a tool while you are
tired or under the influence of
drugs, alcohol or medication.
A moment of inattention while
operating a tool may result
in serious personal injury or
incorrect measurement results.
Use safety equipment.
Always wear eye protection.
Safety equipment such as dust
mask, non-skid safety shoes,
hard hat, or hearing protection
used for appropriate conditions
GPL100-30G 50G 11-20.indd 9 4/23/21 5:27 PM
-10-
will reduce personal injuries.
Use caution when using laser
tools in the vicinity of electrical
hazards.
Magnets
Keep the tool and
mounting bracket
away from
implants or other
medical devices such as
pacemaker or insulin pumps.
The magnets generate a field
that can impair the function of
implants or medical devices,
which may lead to serious
personal injury.
Keep the tool and mounting
bracket away from magnetic
data storage medium and
magnetically sensitive
equipment. The effect of
the magnets can lead to
irreversible data loss.
Use and care
Use the correct tool for
your application. The correct
tool will do the job better
and safer.
Do not use the tool if the
switch does not turn it on
and off. Any tool that cannot
be controlled with the switch
is dangerous and must be
repaired.
Store idle tool out of the
reach of children and do
not allow persons unfamiliar
with the tool or these
instructions to operate the
tool. Tools are dangerous in
the hands of untrained users.
Maintain tools. Check for
misalignment or binding
of moving parts, breakage
of parts and any other
condition that may affect the
operation. If damaged, tool
repaired before use. Many
accidents are caused by poorly
maintained tools.
Use the tool, accessories,
etc., in accordance with
these instructions and in
the manner intended for the
particular type of tool, taking
into account the working
GPL100-30G 50G 11-20.indd 10 4/23/21 5:27 PM
