Blendtec Ez Blender Manuel utilisateur

operations manual

BRAWN. BRAINS. BLENDTEC.™

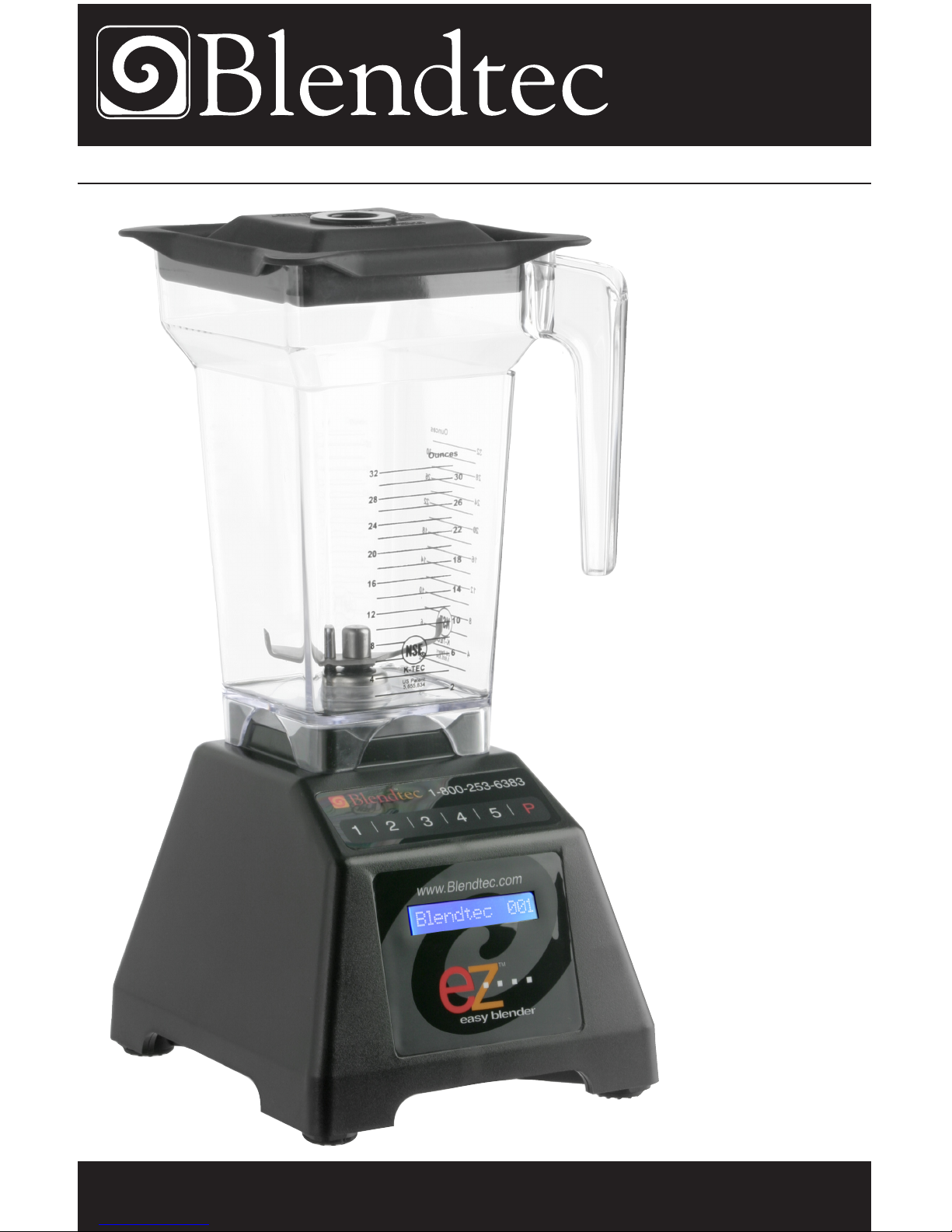

ez Blender

Page 1

Table Of Contents

Section Page

Section 1.....Important Safeguards 2

Section 2.....Component Overview 4

Section 3.....Unpacking 6

Section 4.....Installation 7

Section 5.....Operating Instructions 8

Section 6.....Warranty and Service 12

Page 2

SECTION 1 – IMPORTANT SAFEGUARDS

Read all instructions carefully before using your Blendtec machine.

1.1 SAFETY CERTIFICATION

The ez Blender and accessories are certied by

ETL to UL standard 763 and by CE Standards.

1.2 HEALTH CERTIFICATION

The ez Blender and accessories are certied by

NSF International.

1.3 AVOID CONTACT WITH MOVING PARTS

● Keep ngers, hands, hair and clothing away from all moving parts.

● Keep all utensils away from the drive socket and blender blades during

operation. Metal utensils will damage blades.

● NEVER put hands into blender jar or add substances by hand when

blender is operating.

● NEVER place jar into drive socket if blender motor is operating.

● Do not rock the blender when it is operating. Keep the blender jar

straight up until the operation is complete.

● These precautions will prevent personal injury and/or damage to the

blender.

1.4 POWER CORD PRECAUTIONS

● Do not operate with a damaged cord or plug.

● If the supply cord is damaged, it must be replaced by the manufacturer

or its service agent in order to avoid a hazard.

● Do not let the cord hang over the edge of the work surface.

● Never use an extension cord with the unit.

● Unplug the blender motor before changing blender locations or

cleaning.

1.5 NEVER ATTEMPT TO REPAIR THE POWER UNIT

Never remove the blender base cover. The blender base does not

contain self-adjustable or serviceable parts. All service and adjustments

must be made by a qualied service agent. Removing the cover or

attempting to service the blender will void the warranty.

1.6 TURN THE UNIT OFF WHEN NOT IN USE

Page 3

1.7 THE 110/120 VOLT RECEPTACLE FOR EACH POWER UNIT MUST BE

PROTECTED BY A SEPARATE 15 AMP CIRCUIT BREAKER OR FUSE.

Do not use any other electrical equipment on the same circuit as

the blender or you risk overloading the circuit and either damaging

the blender electronics or blowing the circuit protection.

1.8 NEVER OPERATE IF THE UNIT APPEARS DAMAGED

If the blender malfunctions call the service agent rst. If it is dropped

or damaged in any way, return the blender to a Blendtec service agent

immediately for examination, repair, electrical or mechanical adjustment,

or possible replacement.

1.9 NEVER OPERATE IN LIQUID

Do not operate the blender motor in water or any other liquid. Avoid

any contact between the motor and water. Deliberate use of machine

outdoors in conditions where precipitation is present will void the

warranty.

1.10 NEVER PUT ITEMS SUCH AS METAL, ROCKS, OR OTHER

HARD MATERIALS INTO BLENDER JAR

Metal utensils and other hard materials are dangerous. They can cause

injury or damage. Damage caused by such foreign objects will void the

warranty.

1.11 NEVER OPERATE USING ATTACHMENTS NOT SOLD BY

BLENDTEC

The use of unauthorized attachments voids the warranty and may cause

re, electric shock, or injury.

1.12 ALWAYS SECURE THE BLENDER LID BEFORE STARTING THE

MACHINE

Even if you have a sound enclosure, make sure you place a lid on the

blender jar before you close the cover.

1.13 AVOID TOUCHING THE METAL BASE AFTER EXTENSIVE USE

The metal base of the blender may become hot after numerous cycles.

1.14 BLADES ARE SHARP! HANDLE CAREFULLY

1.15 When blending HOT LIQUIDS, remove center plug of lid.

SAVE THESE INSTRUCTIONS

Page 4

SECTION 2: COMPONENT OVERVIEW

2.1 BLENDER MOTOR

The blender motor consists of the blender base, touch pad control, and

Liquid Crystal Display (LCD) information center. (See Figures 1 and 2.)

● Motor housing: Houses the power unit in a plastic casing. Never

remove the motor cover. Removal of the motor cover will void the

warranty.

● Touch Pad: Consists of six buttons which contain pre-programmed

settings as well as a pulse for selective blender control.

● LCD Information Center: When a cycle is completed, the display

increments the cumulative cycle for warranty purposes. It also indicates

overload or over-temperature conditions.

● Blender Motor: This unit is located within the motor housing and

contains the machinery which runs the blender, including the electric

motor, drive train, and computerized control board.

2.2 BLENDER JAR ASSEMBLY

The blender jar assembly consists of the blender jar, blade assembly,

and lid. The blender jar assembly integrates these components to

ensure consistently blended drinks and greater operator safety.

● Jar: Made from polycarbonate to provide maximum performance as

well as clear visibility of blender performance.

● Blade Assembly: Stainless steel, designed to ensure fast, consistent

blending.

● Lid: Designed to provide ease of handling and quick removal for high

speed operations.

2.5 POWER SPECIFICATIONS

The ez Blender is certied for use on 110/120 volt circuits and is limited

to 13 amps. It is required that this unit be installed with a 15 amp

protected circuit. Recommended protection for this unit is a 20 amp

dedicated circuit.

Page 5

Page 6

SECTION 3: UNPACKING

Save the two foam inserts and all packaging for future storage or

shipping. Save these instructions for future reference.

3.1 UNPACKING YOUR BLENDER

1. You should have received the following items:

● Model ES3 Blender Base

● One or more blender jar with lids

2. Remove blender motor,blender jars and lids from carton.

3. Unwind the power cord.

4. Check for and remove any packing material which may have blocked

ventilation holes in either the power unit or the black motor stand.

5. Inspect all items to ensure no damage occurred in shipment.

6. If any damage has occurred contact your Blendtec service agent

immediately.

3.2 RECORDING YOUR SERIAL NUMBER AND DATE OF SHIPMENT

Record your blender base serial number and date of purchase in the

space below. You will need these when contacting Blendtec for service.

Blender Serial # __________________________

Date of Purchase __________________________

Refer to these whenever contacting your Blendtec service agent.

Page 7

SECTION 4: INSTALLATION

4.1 ez Blender Installation

1. Place blender base on a at, clean, dry surface.

2. Make sure plug outlet is available within four feet of the motor base.

3. Plug the unit into a 120 volt receptacle with 15 amp protection. Make

sure switch is turned off befor plugging in. Failure to use a dedicated line

may result in damage to the blender. Lack of adequate power causes

the motor to overheat (which shortens the life of the blender electronics.)

Operating the blender in this manner will void the warranty.

4. Ensure that the blender vents are unobstructed to allow for proper

cooling during use.

Page 8

SECTION 5: OPERATING INSTRUCTIONS

5.1 OPERATIONAL OVERVIEW

1. Turn on the main power switch located on the back of the blender.

2. Place the properly lled blender jar on the motor, making sure the jar is

seated all the way down and jar lid is secured tightly on the jar.

3. Press the button on the touchpad of your desired blender cycle.

5.2 AUTOMATIC CYCLE OPERATION

If not otherwise specied, Blendtec blenders are programmed to

the default Multipurpose blender program. See the Blendtec Cycle

Chart included with this manual for details regarding programming

and operation of your blender. This chart can also be found online at

blendtec.com.

5.3 MANUAL OPERATION

Pulse Button: Blends mixture at a constant HIGH speed (70 percent

power) while button is depressed. Generally this is the last button on the

far right of the blender touchpad and is indicated by the letter “P”. This

button is normally used for additional blending once a programmed cycle

has already been used.

5.4 TROUBLESHOOTING SUGGESTIONS

BLENDER MOTOR WILL NOT TURN ON: If the blender motor will not

turn on, try the following:

● Make sure the main power switch on the lower-front panel is turned on.

● Check the house current breaker switch or fuse to make sure it is set to

the on position.

● Unplug, then re-plug in the power cord.

● Determine if the numbers on the Liquid Crystal Display (LCD) indicator

are lighted. An absence of lighted LCD indicates a lack of power to the

microprocessor.

● Check the LCD:

A reading of “OVERTEMP” indicates an overheated condition has

been detected and the motor has been disabled until the unit cools to

operating temperatures. Unplug motor and allow motor to cool for at

least 20 minutes.
