Blendtec Xpress Blender Manuel utilisateur
Page 1
Table Of Contents
Section Page
Section 1.....Important Safeguards 2
Section 2.....Component Overview 4
Section 3.....Unpacking 6
Section 4.....Installation 7
Section 5.....Operating Instructions 8
Section 6.....Warranty and Service 13
Page 2
SECTION 1 – IMPORTANT SAFEGUARDS
Read all instructions carefully before using your Blendtec machine.
1.1 SAFETY CERTIFICATION
The Xpress and accessories are certied by ETL to
UL standard 763 and by CE Standards.
1.2 HEALTH CERTIFICATION
The Xpress and accessories are certied by NSF
International.
1.3 AVOID CONTACT WITH MOVING PARTS
● Keep ngers, hands, hair and clothing away from all moving parts.
● Keep all utensils away from the drive socket and blender blades during
operation. Metal utensils will damage blades.
● NEVER put hands into blender jar or add substances by hand when
blender is operating.
● NEVER place jar into drive socket if blender motor is operating.
● Do not rock the blender when it is operating. Keep the blender jar
straight up until the operation is complete.
● These precautions will prevent personal injury and/or damage to the
blender.
1.4 POWER CORD PRECAUTIONS
● Do not operate with a damaged cord or plug.
● If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent in order to avoid a hazard.
● Do not let the cord hang over the edge of the work surface.
● Never use an extension cord with the unit.
● Unplug the blender motor before changing blender locations or
cleaning.
1.5 NEVER ATTEMPT TO REPAIR THE POWER UNIT
Never remove the blender base cover. The blender base does not
contain self-adjustable or serviceable parts. All service and adjustments
must be made by a qualied service agent. Removing the cover or
attempting to service the blender will void the warranty.
1.6 TURN THE UNIT OFF WHEN NOT IN USE
R
Page 3
1.7 THE 220/240 VOLT RECEPTACLE FOR EACH POWER UNIT MUST BE
PROTECTED BY A SEPARATE 7.5 AMP OR GREATER CIRCUIT BREAKER
OR FUSE.
Do not use any other electrical equipment on the same circuit as
the blender or you risk overloading the circuit and either damaging
the blender electronics or blowing the circuit protection.
1.8 NEVER OPERATE IF THE UNIT APPEARS DAMAGED
If the blender malfunctions call the service agent rst. If it is dropped
or damaged in any way, return the blender to a Blendtec service agent
immediately for examination, repair, electrical or mechanical adjustment,
or possible replacement.
1.9 NEVER OPERATE IN LIQUID
Do not operate the blender motor in water or any other liquid. Avoid
any contact between the motor and water. Deliberate use of machine
outdoors in conditions where precipitation is present will void the
warranty.
1.10 NEVER PUT ITEMS SUCH AS METAL, ROCKS, OR OTHER
HARD MATERIALS INTO BLENDER JAR
Metal utensils and other hard materials are dangerous. They can cause
injury or damage. Damage caused by such foreign objects will void the
warranty.
1.11 NEVER OPERATE USING ATTACHMENTS NOT SOLD BY
BLENDTEC
The use of unauthorized attachments voids the warranty and may cause
re, electric shock, or injury.
1.12 ALWAYS SECURE THE BLENDER LID BEFORE STARTING THE
MACHINE
Make sure you place a lid on the blender jar before you close the cover.
1.13 AVOID TOUCHING THE BASE AFTER EXTENSIVE USE
The base of the blender may become hot after numerous cycles.
1.14 BLADES ARE SHARP! HANDLE CAREFULLY
1.15 When blending HOT LIQUIDS, remove center plug of lid.
SAVE THESE INSTRUCTIONS
Page 4
SECTION 2: COMPONENT OVERVIEW
2.1 BLENDER MOTOR

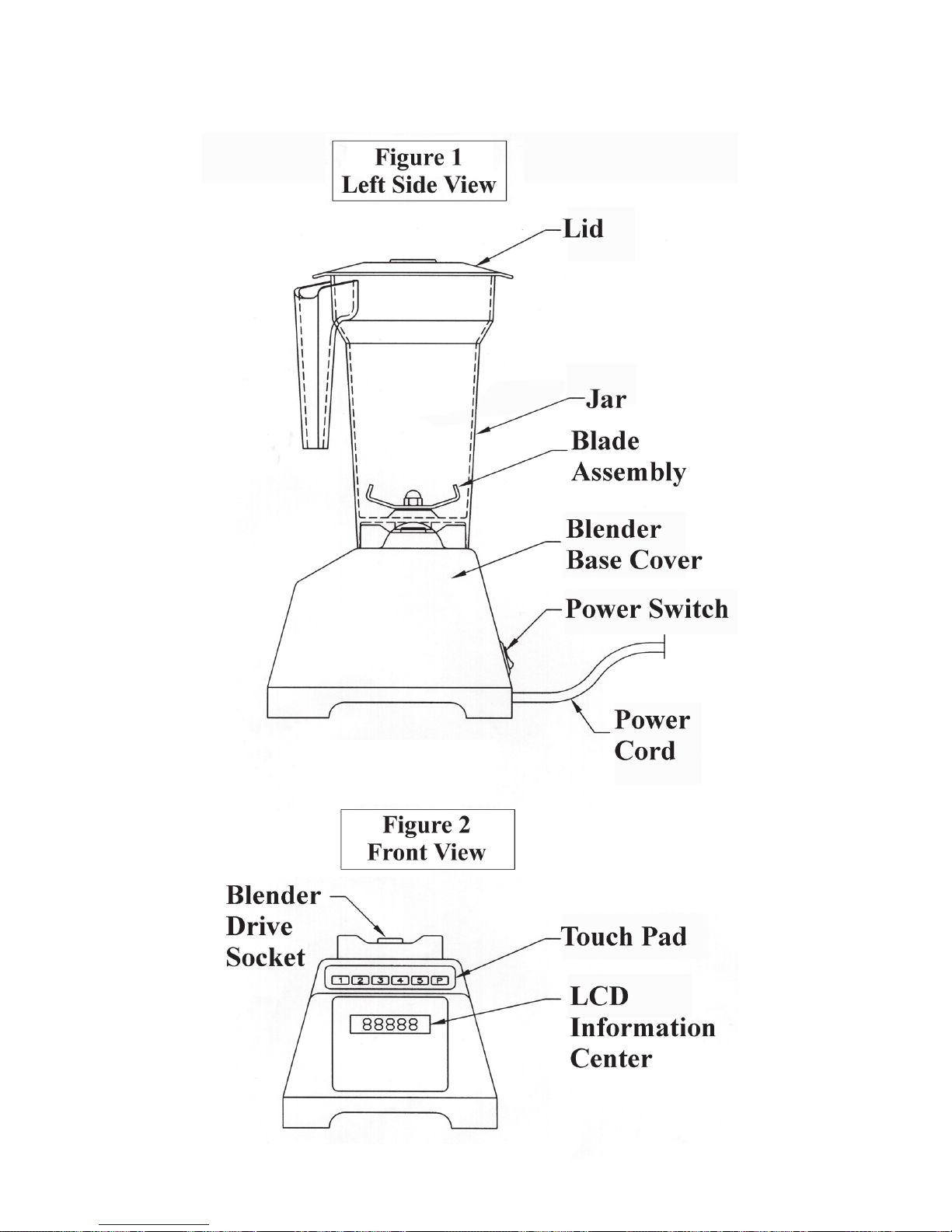

The blender motor consists of the motor, touch pad control, and Liquid
Crystal Display (LCD) information center. (See Figures 1 and 2.)
● Motor housing: Houses the power unit in a plastic casing. Never
remove the motor cover. Removal of the motor cover will void the
warranty.
● Blender Motor: This unit is located within the motor housing and
contains the machinery which runs the blender, including the electric
motor, drive train, and computerized control board.
● Touch Pad: Consists of six buttons which contain pre-programmed
settings as well as a pulse for selective blender control.
● LCD Information Center: When a cycle is completed, the display
increments the cumulative cycle for warranty purposes. It also indicates
overload or over-temperature conditions.
2.2 BLENDER JAR ASSEMBLY
The blender jar assembly consists of the blender jar, blade assembly,
and lid. The blender jar assembly integrates these components to
ensure consistently blended drinks and greater operator safety.
● Jar: Made from polycarbonate to provide maximum performance as
well as clear visibility of blender performance.
● Blade Assembly: Stainless steel, designed to ensure fast, consistent
blending.
● Lid: Designed to provide ease of handling and quick removal for high
speed operations.
2.5 POWER SPECIFICATIONS
The Xpress is certied for use on 220/240 volt circuits and is limited
to 6.5 amps. It is required that this unit be installed with a 7.5 amp or
greater circuit breaker or fuse.
Page 5
Page 6
SECTION 3: UNPACKING
Save the two foam inserts and all packaging for future storage or
shipping. Save these instructions for future reference.
3.1 UNPACKING YOUR BLENDER
1. You should have received the following items:
● Model ES3 Blender Base
● One or more blender jar with lids
2. Remove blender motor,blender jars and lids from carton.
3. Unwind the power cord.
4. Check for and remove any packing material which may have blocked
ventilation holes in either the power unit or the black motor stand.
5. Inspect all items to ensure no damage occurred in shipment.
6. If any damage has occurred contact your Blendtec service agent
immediately.
3.2 RECORDING YOUR SERIAL NUMBER AND DATE OF SHIPMENT
Record your blender serial number and date of purchase in the space
below. You will need these when contacting Blendtec for service.
Blender Serial # __________________________
Date of Purchase __________________________
Refer to these whenever contacting your Blendtec service agent.
Page 7
SECTION 4: INSTALLATION
4.1 Xpress Installation
1. Place blender on a at, clean, dry surface.
2. Make sure plug outlet is available within four feet of the motor base.
3. Plug the unit into a 220/240 volt receptacle with 7.5 amp protection.
Make sure switch is turned off before plugging in. Failure to use a
dedicated line may result in damage to the blender. Lack of adequate
power causes the motor to overheat (which shortens the life of the
blender electronics.) Operating the blender in this manner will void the
warranty.
4. Ensure that the blender vents are unobstructed to allow for proper
cooling during use.
Page 8
SECTION 5: OPERATING INSTRUCTIONS
5.1 OPERATIONAL OVERVIEW
1. Turn on the main power switch located on the back of the blender.
2. Place the properly lled blender jar on the motor, making sure the jar is
seated all the way down and jar lid is secured tightly on the jar.
3. Press the button on the touchpad of your desired blender cycle.
5.2 AUTOMATIC CYCLE OPERATION
Buttons 1-5 are programmed cycles designed for various drink
combinations.
Button 1: Runs at low speed for 30 seconds and automatically shuts off.
Button 2: Runs at high speed for 30 seconds and automatically shuts
off.
Button 3: Features changing blade speeds for 14 seconds and
automatically shuts off.
Button 4: High energy cycle running 23 seconds. Used for easy to blend
smoothies.
Button 5: High energy cycle running 35 seconds. Used for easy to blend
fruit smoothies
5.3 MANUAL OPERATION
Pulse Button: Blends mixture at a constant HIGH speed (70 percent
power) while button is depressed. Generally this is the last button on the
far right of the blender touchpad and is indicated by the letter “P”. This
button is normally used for additional blending once a programmed cycle
has already been used.
5.4 TROUBLESHOOTING SUGGESTIONS
BLENDER MOTOR WILL NOT TURN ON: If the blender motor will not
turn on, try the following:
● Make sure the main power switch on the rear panel is turned on.
● Check the house current breaker switch or fuse to make sure it is set to
