BIXOLON SRP-383 Manuel d'instructions

Network Connection Manual

SRP-383

THERMAL RECEIPT PRINTER

Ver. 1.00

http://www.bixolon.com

Ver. 1.00

- 2 -

SRP-383

■

Table of Contents

1. Manual Information........................................................................................................3

2. Specifications ................................................................................................................4

3. How to Connect..............................................................................................................5

4. Ethernet Test by using Windows Test Page..............................................................14

5. Factory Reset...............................................................................................................21

6. Troubleshooting...........................................................................................................24

Ver. 1.00

- 3 -

SRP-383

1. Manual Information

This manual provides information on the connection of wireless network with the printer.

This document contains proprietary information of BIXOLON and its affiliates.

You may utilize the information solely for the purpose of facilitating authorized sales and

service of, or developing software and similar products for authorized use with, BIXOLON

products, provided that such proprietary information may not be used, reproduced, or

dis-closed to any other parties for any other purpose without the prior written permission of

BIXOLON.

BIXOLON has no liability for loss or damage arising from or relating to your use of the

information in the document.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Precautions

2-1 The printer has to be within 100m(Outdoor) from AP(Access point) to connect

WLAN. Although 35m is able to communicate in door, WLAN could be affected by

environment to be shorten.

2-2 The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present.

2-3 If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

Ver. 1.00

- 4 -

SRP-383

3. Specifications

CATEGORIES FEATURE IMPLEMENTATION

LAN

Specification Interface 10/100 Base-T All in one(Auto detection)

Protocol DHCP Client, HTTP, ARP, ICMP, IPv4, TCP, UDP

WLAN

Specification

Operation Mode

Infrastructure, Soft AP, Ad-hoc, Wi-Fi Direct

Wireless

Standard IEEE 802.11b/g/n, IEEE 802.11a/b/g/n

Range

Up to 100m free space (Outdoor)

Security

WEP64/128

WPA1/2 – PSK

WPA 1/2 – Enterprise

(EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST)

Management WLAN Configuration tool, HTTP,

Smart connection APP

Ver. 1.00

- 5 -

SRP-383

4. How to Connect

WLAN can be configured through the printer’s WLAN interface. Likewise, WLAN can also

be configured though the printer’s USB interface.

4-1 Connecting Printer

4-1-1 USB cable

Connect USB cable to Printer, PC device.

Use the “Net Configuration Tool” to adjust the settings.

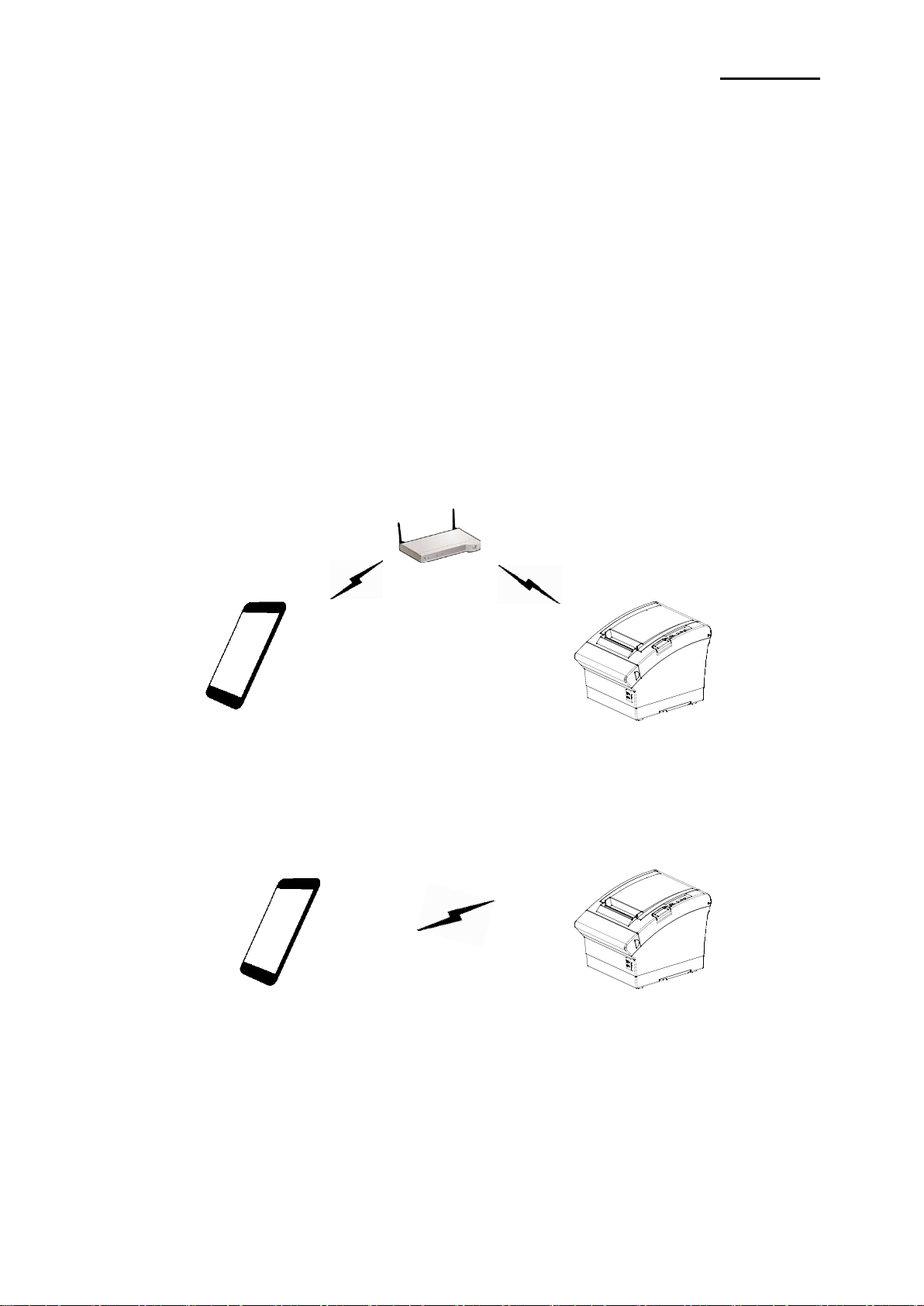

4-1-2 WLAN

Connect to the AP (Access Point) configured in Infrastructure mode in order to connect to

the LAN/wireless network

Infrastructure mode

In order to configure the network between the wireless host device and the printer, set the

printer to Soft AP Mode.

Soft AP mode

* Soft AP mode is only supported on IFJ-WD.

A P

Ver. 1.00

- 6 -

SRP-383

4-2 Checking Network Setting

4-2-1 LAN

When the printer is booted, press the function button to output the network setting value.

It takes about 10 seconds to apply the LAN setting after turning on the power.

LAN SETTING

MAC ADDRESS :

00:15:94:C2:6B:A8

IPADDRESS : 192.168.0.48

SUBNET MASK: 255.255.255.0

GATEWAY : 192.168.0.1

PORT : 9100

INACT. TIME : 0

Function key

Ver. 1.00

- 7 -

SRP-383

4-2-2 WLAN

After the printer has finished booting, open the printer cover and press and hold the FEED

Button for 5 seconds. This will cause the interface setting confirmation mode.

Then add the paper, close the cover, and check that the following message is printed.

If the above message is printed, select Mode 1, and you will see the following WLAN data.

(To select Mode 1, press the Feed button once quickly/ once long.)

Checking Interface Setting

0: Exit

1: WLAN Information Print

2: WLAN Factory Reset and Reboot Printer

3 or more: None

Select Modes by Feed button control

as below.

Step 1. Short-press as many times as

The mode number to choose.

Step 2. Long-press over 1 second.

*e.g. To choose Mode 2, press Feed

Button 3 times(short-short-long)

FEED Button

Cover Open Button

Ver. 1.00

- 8 -

SRP-383

WLAN SETTING

WLAN F/W VERSION : 02.00(3930)

SYSTEM NAME : SRP-383

NETWORK MODE : SOFT AP

FREQUENCY : (Priarity) 2.4GHz/5GHz

AUTHENTICATION : OPEN

ENCRYTION : NONE

ESSID : PRINTER_B03223

DHCP : ENABLED

IPADDRESS : 192.168.1.1

SUBNET MASK: 255.255.255.0

GATEWAY : 192.168.1.2

PORT : 9100

WLAN MACADDRESS :

0 0 1 5 9 4 B 0 3 2 2 3

Ver. 1.00

- 9 -

SRP-383

4-3 LAN Setting Values

Classification Item Description Input Range

Network

Inactivity Time

TCP connection hold time

0~3600 integer

IP Assignment

Method IP Assignment Method DHCP/Manual

IP Address Printer IP IP Address

Subnet Mask Subnet mask IP Address

Gateway Default Gateway IP Address

4-4 WLAN Setting Values

Classification Item Description Input Range

Home WLAN setting status display

Network

Network Mode Wireless LAN operating mode Infrastructure/Adhoc

Adhoc Channel Channel when creating Adhoc

network 1~14

SSID ID of the AP to connect 1~32 letters

Inactivity Time TCP connection hold time 0~3600 integer

IP Assignment

Method IP Assignment Method DHCP/Manual

IP Address Printer IP IP Address

Subnet Mask Subnet mask IP Address

Gateway Default Gateway IP Address

DNS Domain name server IP IP Address

Authentication

Authentication Wireless LAN authentication

method

open, shared,

wpa1/2-psk, wpa1/2

Cryptograph Wireless LAN encryption method none, WEP64/128,

TKIP, AES

EAP Mode Authentication method none, PEAP, TLS,

LEAP, FAST

WEP Key Key for WEP encryption method

WEP64 (5 Ascii, 10

Hex)

WEP128 (13 Ascii, 26

Hex)

PSK Key Key for PSK encryption method 1~64 letters

Authentication ID ID for EAP Authentication 1~32 letters

Authentication PW Password for EAP Authentication 1~32 letters

For changing network setting values using Net configuration tool,

Refer to ‘Net configuration tool manual’.

Ver. 1.00

- 10 -

SRP-383

4-5 Android Soft AP mode

1) Select “Wi-Fi”. 2) Select the printer to connect.

3) Select “CONNECT”. 4) Wi-Fi communication is available.
