BIXOLON SRP-350IIOBE Manuel utilisateur

Bluetooth Connection Manual

SRP-350IIOBE

Thermal Printer

Rev. 1.00

http://www.bixolon.com

Rev. 1.00

- 2 -

SRP-350IIOBE

■Table of Contents

1. Manual Information........................................................................................................3

2. Precautions ....................................................................................................................3

3. General Sequence for Bluetooth Connections ...........................................................3

4. Bluetooth Connection Instructions..............................................................................4

4-1 Connecting with an HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)4

4-2 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) .........................................8

Rev. 1.00

- 3 -

SRP-350IIOBE

1. Manual Information

This Bluetooth Connection Manual provides information on the connection of Bluetooth-

enabled devices (PDAs, PCs, etc.) with the printer.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Precautions

2-1 To connect the printer with another device via Bluetooth, the devices must be within

100m of one another. The connection is broken if the distance between devices

exceeds 100m.

2-2 The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present.

2-3 If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

3. General Sequence for Bluetooth Connections

Bluetooth connection methods vary by device. The following is the general sequence for

Bluetooth connections, provided for reference purposes.

3-1 Turn on power of each device

- PDAs, PCs (Bluetooth Dongle), Printers, etc.

3-2 Run a Bluetooth connection program on the PDA or PC.

3-3 Search for the peripheral with which to establish the connection.

- Search for the printer.

3-4 Register this Printer form the search results.

- If a security setting is enabled, register after entering the PIN Code.

(PIN Code=Pass Key: password of the Bluetooth device, Default code: 0000)

3-5 Test the connection.

- When connected, confirm the designated COM port of fixed COM port and print.

Rev. 1.00

- 4 -

SRP-350IIOBE

4. Bluetooth Connection Instructions

This manual focuses on the use of the following devices.

Please use this manual as a guide when using devices other than those listed here.

- HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)

- Bluetooth Dongle (BlueSoleil IVT Stack)

- Bluetooth Dongle (Widcomm Stack)

After turning on the power of all Bluetooth devices, perform the connection process.

- PDAs, PCs (Bluetooth Dongle), Printers, etc.

4-1 Connecting with an HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)

1) To run Bluetooth, first click the 2) Click the Bluetooth logo button

icon at the lower right of the screen. to activate the Bluetooth function.

Rev. 1.00

- 5 -

SRP-350IIOBE

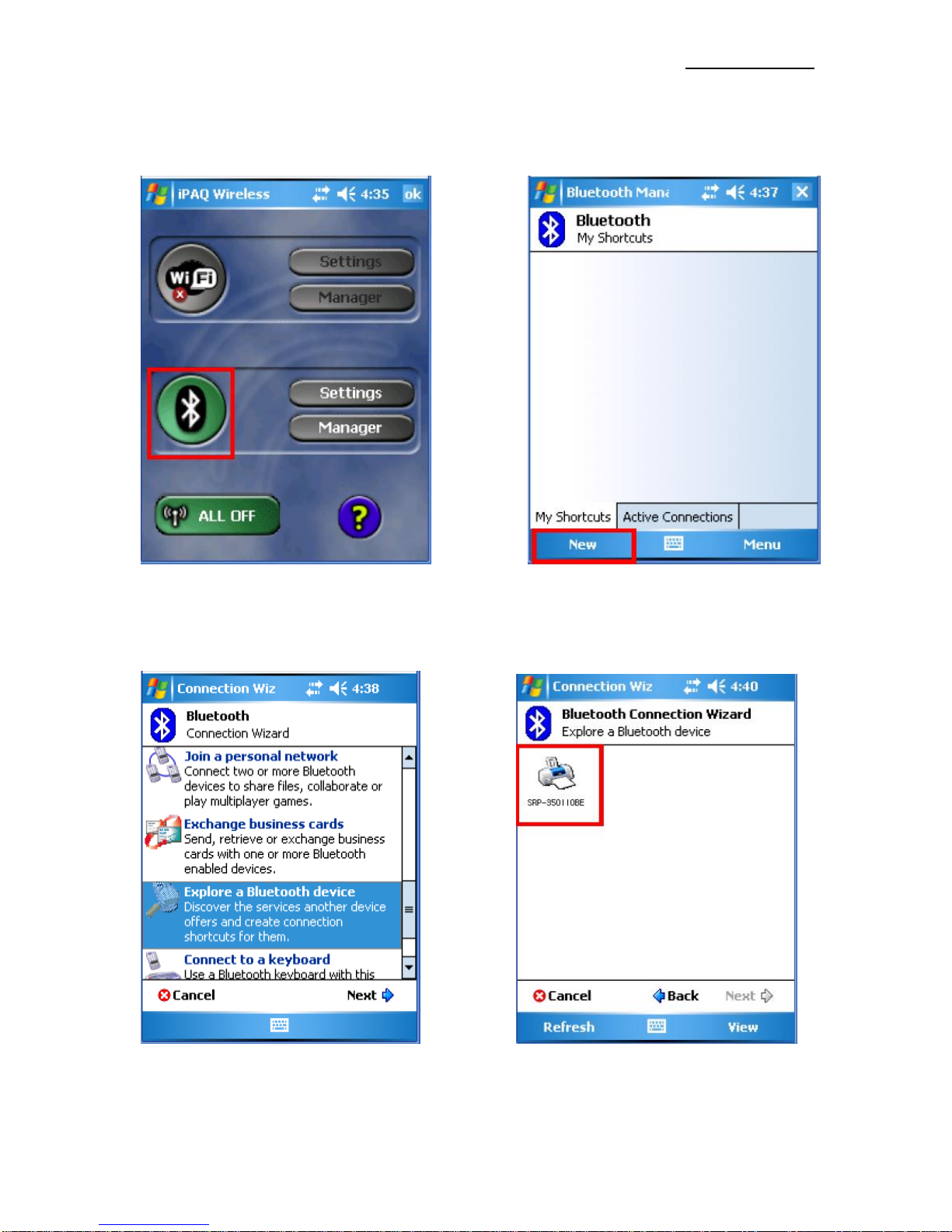

3) When activated, the Bluetooth button 4) Click “New”.

turns green. Click the “Manager” button

to connect to the printer.

5) Click “Explore a Bluetooth device”, 6) Click the printer icon from the

Bluetooth devices displayed in the

search results.

Rev. 1.00

- 6 -

SRP-350IIOBE

7) Select “Serial Port Profile” and click 8) Click “Finish”.

“Next”

9) The printer shortcut is produced 10) Clicking the shortcut for 2 seconds

brings up the function folder.

Click “Connect”.

Rev. 1.00

- 7 -

SRP-350IIOBE

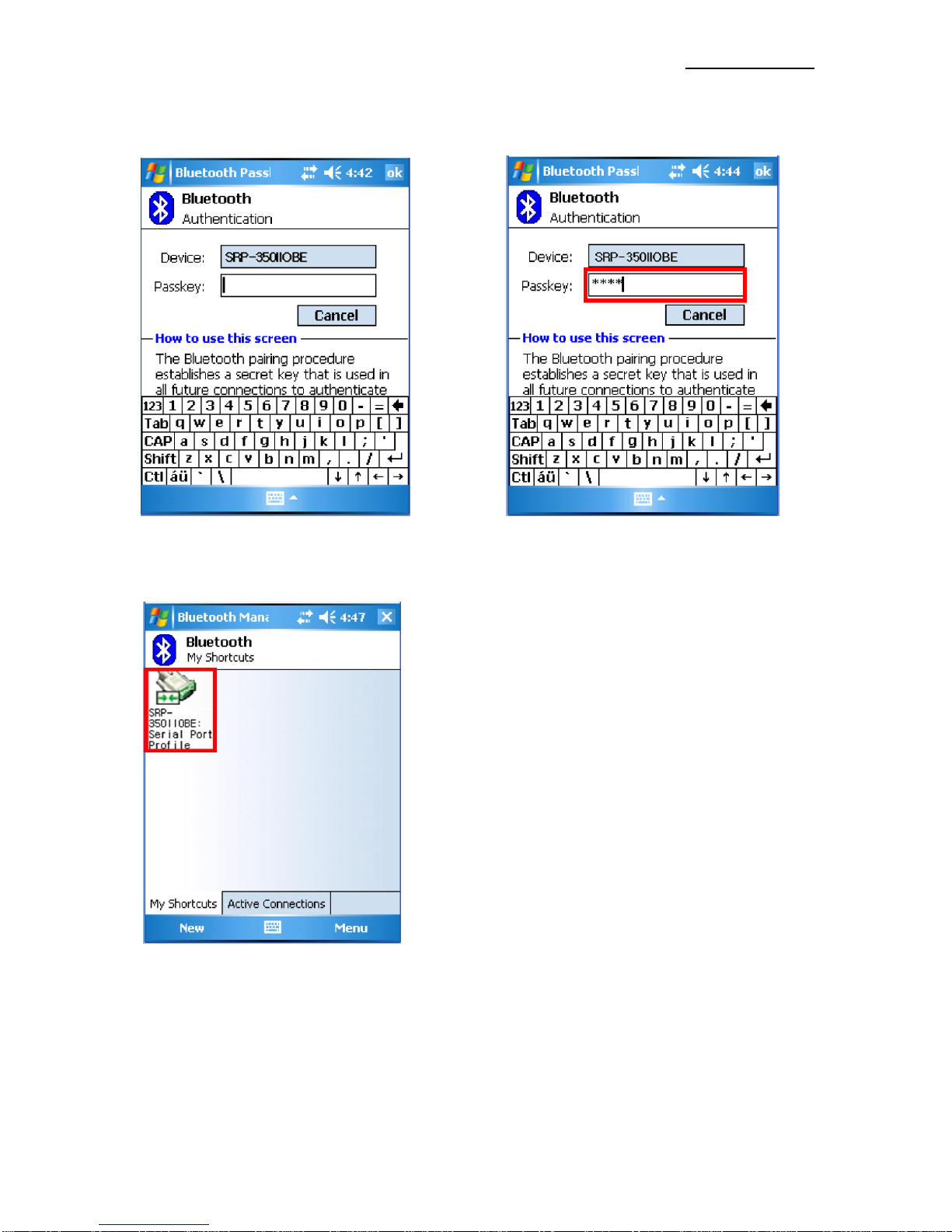

11) The Pass Key window appears (if the 12) Input the Pass Key and click ”Enter”

printer security function is enabled). (Default Pass Key: 0000)

13) The shortcut changes to show a

green indicator as shown below.

Rev. 1.00

- 8 -

SRP-350IIOBE

4-2 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack)

1) After purchasing Bluetooth Dongle, insert the CD in the PC and install BlueSoleil.

2) Connect Bluetooth Dongle to the USB port of the PC.

3) Click the BlueSoleil icon on the PC screen top.

4) Click the red sphere at the center of the BlueSoleil main screen.

5) The program initiates a search for Bluetooth devices in the proximity.

Rev. 1.00

- 9 -

SRP-350IIOBE

6) Click right button of the mouse above the “Printer Icon” and select the “Pair Device”.

7) Enter the PIN Code in the Bluetooth Pass Key window.

(Default Pass Key: 0000)

8) If the Pass Key (PIN Code) is correct and pairing is completed, a green check symbol

appears next to the printer icon.

Rev. 1.00

- 10 -

SRP-350IIOBE

9) Click right button of the mouse above the “printer icon” and

select “Connect -> Bluetooth Serial Port Service”.

10) When the connection is established, the icon turns green and a dotted line appears as

shown in the image below.

11) When the connection is complete, the message pictured below appears at the bottom

right of the PC screen.
