BIXOLON SRP-370 - Two-color Direct Thermal Printer Manuel utilisateur

User’s Manual

SRP-370

Thermal Printer

Rev. 1.00

http://www.samsungminiprinters.com

Rev. 1.00 - 2 -

SRP-370/372

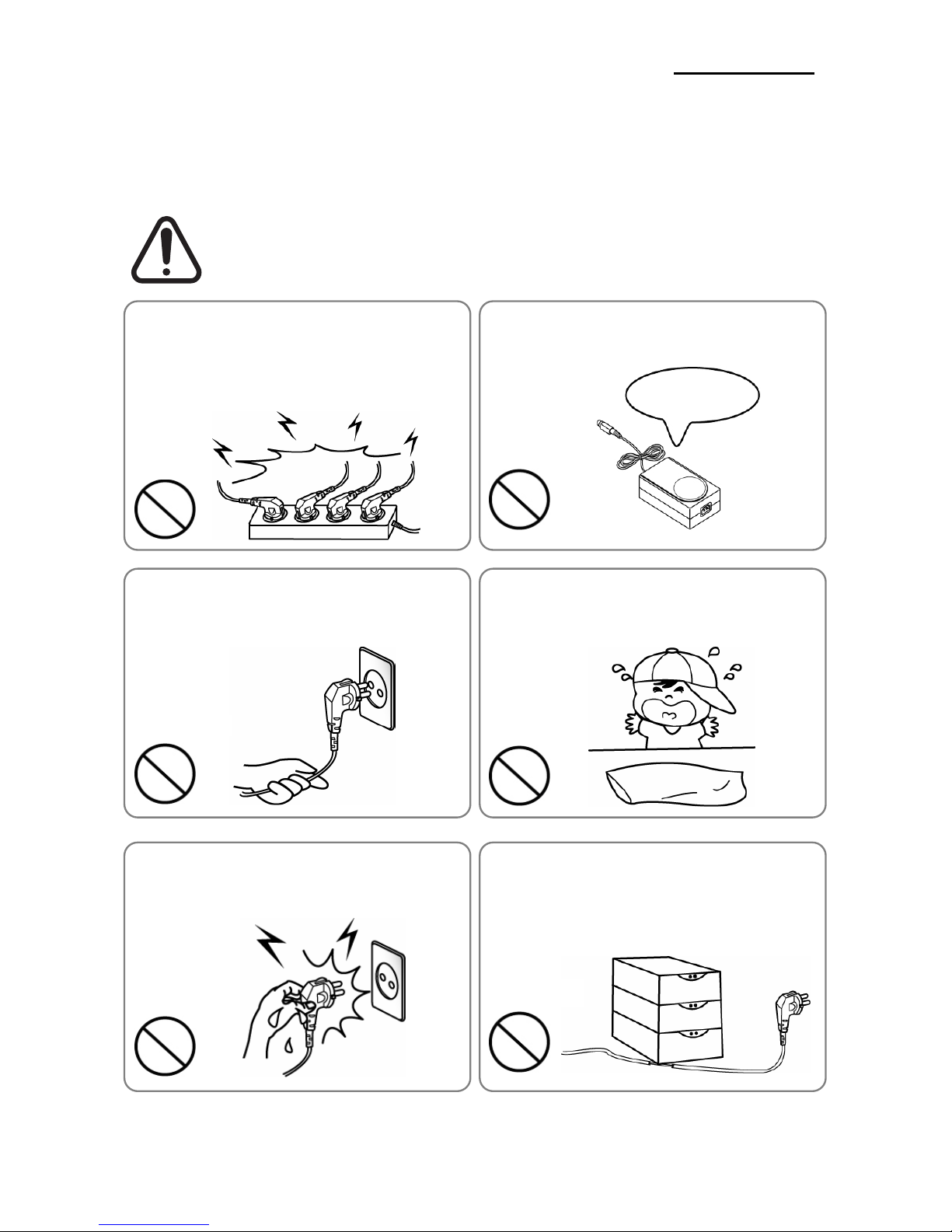

■Safety Precautions

In using the present appliance, please keep the following safety regulations in order to

prevent any hazard or material damage.

WARNING

Violating following instructions can cause serious injury or death.

Do not plug several products in one multi-outlet.

• This can provoke over-heating and a fire.

• If the plug is wet or dirty, dry or wipe it before usage.

• If the plug does not fit perfectly with the outlet, do not plug in.

•Be sure to use only standardized multi-outlets.

PROHIBITED

You must use only the supplied adapter.

•It is dangerous to use other adapters.

PROHIBITED

ONLY SUPPLIED ADAPTER

Do not pull the cable to unplug.

•This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

PROHIBITED

Keep the plastic bag out of children’s reach.

•If not, a child may put the bag on his head.

PROHIBITED

Do not plug in or unplug with your hands wet.

•You can be electrocuted.

PROHIBITED

Do not bend the cable by force or leave it under any

heavy object.

• A damaged cable can cause a fire.

PROHIBITED

Rev. 1.00 - 3 -

SRP-370/372

CAUTION

Violating following instructions can cause slight wound or damage the appliance.

If you observe a strange smoke, odor or noise from

the printer, unplug it before taking following

measures.

• Switch off the printer and unplug the set from the mains.

•After the disappearance of the smoke, call your dealer to

repair it.

PRINTER

TO UNPLUG

Keep the desiccant out of children’s reach.

•If not, they may eat it.

PROHIBITED

Install the printer on the stable surface.

•If the printer falls down, it can be broken and you can hurt

yourself.

PRINTER

PROHIBITED

Use only approved accessories and do not try to

disassemble, repair or remodel it for yourself.

•Call your dealer when you need these services.

• Do not touch the blade of auto cutter.

PRINTER

DISASSEMBLING

PROHIBITED

Do not let water or other foreign objects in the

printer.

•If this happened, switch off and unplug the printer before

calling your dealer.

PRINTER

PROHIBITED

Do not use the printer when it is out of order. This

can cause a fire or an electrocution.

•Switch off and unplug the printer before calling your dealer.

PRINTER

DEALER

TO UNPLUG

Rev. 1.00 - 4 -

SRP-370/372

■Warning - U.S.A

This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

■Notice - Canada

This Apparatus complies with class “A” limits for radio interference as specified in the

Canadian department of communications radio interference regulations.

Get appareil est conforme aux normes class “A” d’interference radio tel que specifier par

ministre canadien des communications dans les reglements d’interference radio.

■Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer “OFF”, before you connect or remove the cables on the rear side, in order to guard

the printer against the static electricity. If the printer is damaged by the static electricity, you

should turn the printer “OFF”.

■Waste Electrical and Electric Equipment (WEEE)

This marking shown on the product or its literature, indicates that is should not

be disposed with other household wastes at the end of its working life, To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources. Household

users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product should not be mixed with other

commercial wastes for disposal.

■Label Material

* Control Label: PC

* Other Labels: PET

Rev. 1.00 - 5 -

SRP-370/372

■Introduction

The SRP-370/372 Roll Printer are designed for use with electronic instruments such as

system ECR, POS, banking equipment, computer peripheral equipment, etc.

The main features of the printer are as follows:

1. High speed printing : 47(1/6” Feed) lines per second.

2. Low noise thermal printing.

3. RS-232, Parallel, USB

4. The data buffer allows the unit to receive print data even during printing.

5. Peripheral units drive circuit enables control of external devices such as cash drawer.

6. Characters can be scaled up to 64 times compared to it’s original size.

7. Bar code printing is possible by using a bar code command.

8. Different print densities can be selected by DIP switches.

Please be sure to read the instruction in this manual carefully before using your

new SRP-370/372.

※NOTE

The socket-outlet shall be near the equipment and it shall be easy accessible.

※All specifications are subjected to change without notice.

Rev. 1.00 - 6 -

SRP-370/372

■Table of Contents

1. Setting Up the Printer ................................................................................................... 7

1-1 Unpacking.................................................................................................................. 7

1-2 Connecting the Cables .............................................................................................. 8

1-2-1 Serial Interface (RS-232C) ............................................................................ 8

1-2-2 Parallel Interface (IEEE1284) ........................................................................ 9

1-2-3 USB Interface .............................................................................................. 10

1-3 Connecting the Drawer ............................................................................................ 10

1-4 Setting the Dip Switches.......................................................................................... 11

1-4-1 Serial Interface .............................................................................................11

1-4-2 Parallel & USB Interface.............................................................................. 12

1-4-3 Auto Cutter Enable / Disable selection ........................................................ 12

1-5 Setting the Memory Switches .................................................................................. 13

1-6 Installing or Replacing the Paper Roll...................................................................... 15

1-7 Adjustments and Settings ........................................................................................ 17

1-8 Using the Printer...................................................................................................... 18

1-9 Connecting the computer......................................................................................... 18

1-10 Connecting the Power Supply ............................................................................... 19

2. Self Test....................................................................................................................... 20

3. Hexadecimal Dumping ............................................................................................... 21

4. Specification ............................................................................................................... 22

5. Appendix ..................................................................................................................... 23

5-1 Cleaning Printer....................................................................................................... 23

Rev. 1.00 - 7 -

SRP-370/372

1. Setting Up the Printer

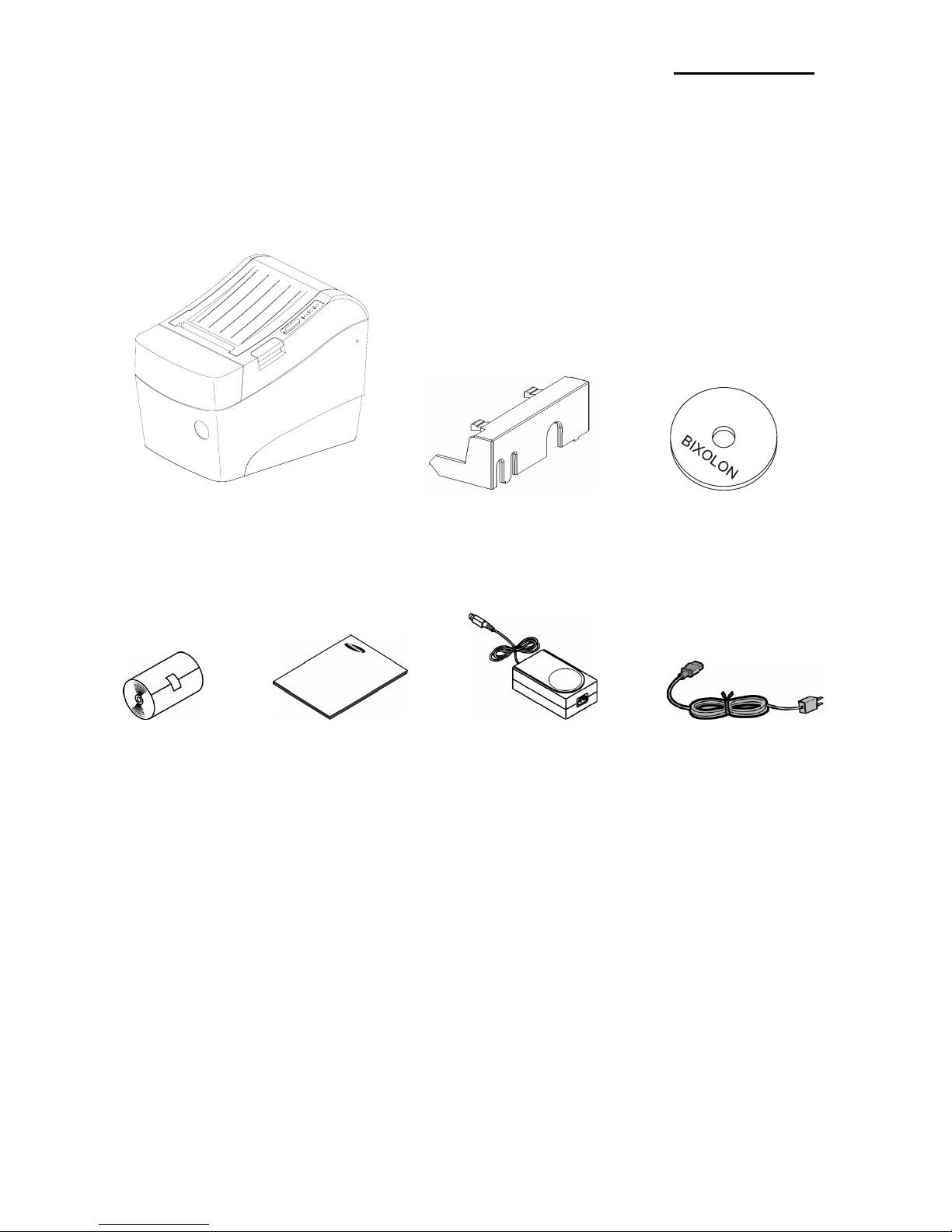

1-1 Unpacking

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

SRP-370/372 Cover Cable CD

Roll Paper Manual AC Adapter Power Cord

Rev. 1.00 - 8 -

SRP-370/372

1-2 Connecting the Cables

You can connect up the three cables to the printer. They all connect to the connector panel

on the back of the printer, which is shown below:

※NOTE

Before connecting any of the cables, make sure that both the printer and the host are

turned off.

1-2-1 Serial Interface (RS-232C)

RS-232

POWER DK

Power supply

connector

Drawer kick-out

connector

Interface connector

※When the Dip Switch is “ON” on the Serial Interface Board,

DTR and RTS are connected each other.

PRINTER

SIDE (25P)

HOST

SIDE (25P)

PRINTER

SIDE (25P)

HOST

SIDE (9P)

Pin No. Signal name Direction Function

1 FG - Frame Ground

2 TxD Output Transmit Data

3 RxD Input Receive Data

4 RTS Output Ready To Send

5 CTS Input Clear To Send

6 DSR Input Data Set Ready

7 SG - Signal Ground

20 DTR Output Data Terminal Ready

Rev. 1.00 - 9 -

SRP-370/372

1-2-2 Parallel Interface (IEEE1284)

POWER DK

PARALLEL

Drawer kick-out

connector

Interface connector

Power supply

connector

Pin No. Source Compatibility Mode Nibble Mode Byte Mode

1 Host nStrobe HostClk HostClk

2 Host / Printer Data 0 (LSB) - Data 0 (LSB)

3 Host / Printer Data 1 - Data 1

4 Host / Printer Data 2 - Data 2

5 Host / Printer Data 3 - Data 3

6 Host / Printer Data 4 - Data 4

7 Host / Printer Data 5 - Data 5

8 Host / Printer Data 6 - Data 6

9 Host / Printer Data 7 (MSB) - Data 7 (MSB)

10 Printer nAck PtrClk PtrClk

11 Printer Busy PtrBusy /Data3,7 PtrBusy

12 Printer Perror AckDataReq/Data2,6 AckDataReq

13 Printer Select Xflag /Data1,5 Xflag

14 Host nAutoFd HostBusy HostBusy

15 NC NC NC

16 GND GND GND

17 FG FG FG

18 Printer Logic-H Logic-H Logic-H

19~30 GND GND GND

31 Host nInit nInit nInit

32 Printer nFault nDataAvail /Data0,4 nDataAvail

33 GND ND ND

34 Printer DK_Status ND ND

35 Printer +5V ND ND

36 Host nSelectIn 1284-Active 1284-Active

Rev. 1.00 - 10 -

SRP-370/372

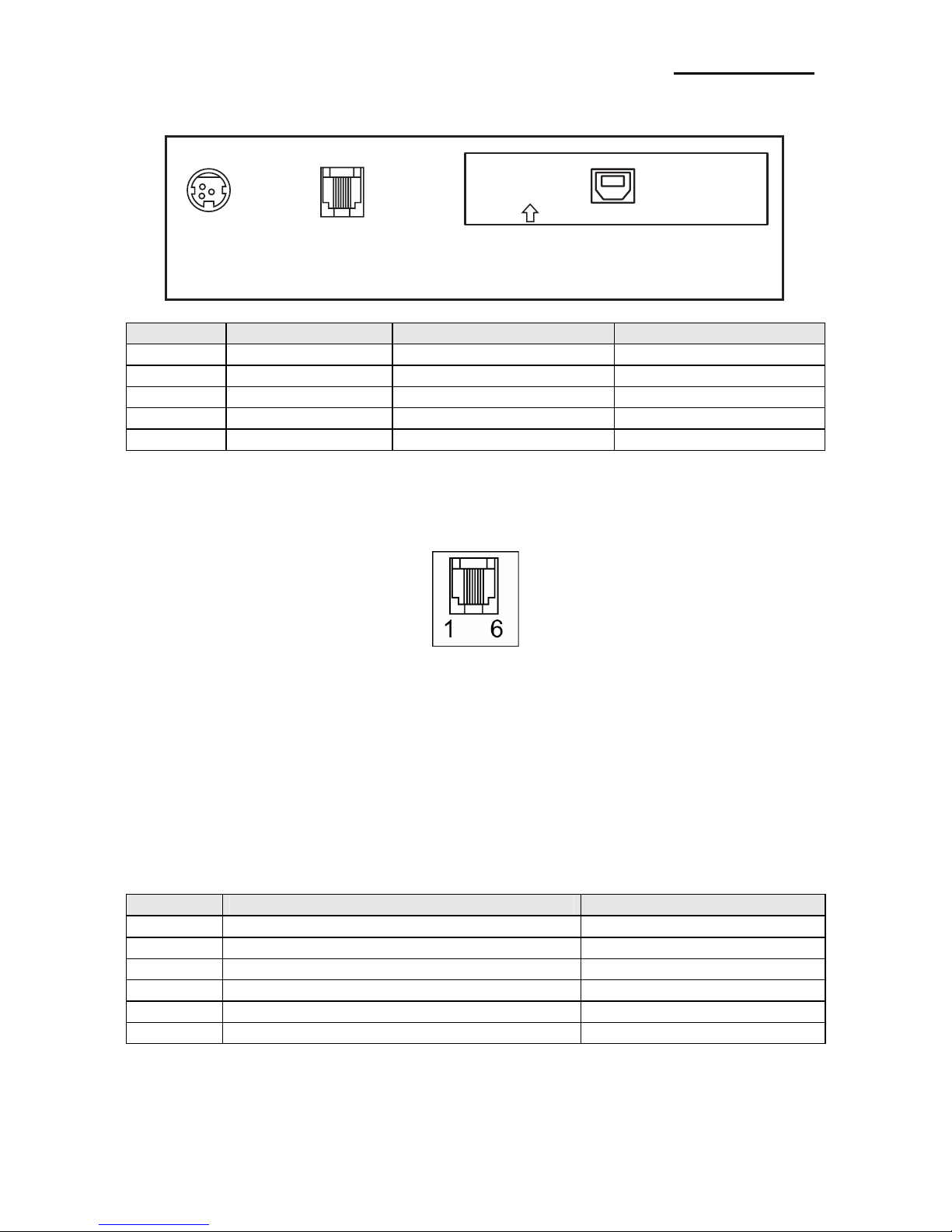

1-2-3 USB Interface

POWER DK

USB

Drawer kick-out

connector

USB connector

Power supply

connector

Pin No. Signal Name Assignment (Color) Function

Shell Shield Drain Wire Frame Ground

1 VBUS Red Host Power

2 D- White Data Line(D-)

3 D+ Green Data Line(D+)

4 GND Black Signal Ground

1-3 Connecting the Drawer

※WARNING

Use a drawer that matches the printer specification.

Using an improper drawer may damage the drawer as well as the printer.

※CAUTION

Do not connect a telephone line to the drawer kick-out connector; otherwise the printer and

the telephone line may be damaged.

Plug the drawer cable into the drawer kick-out connector on the back of the printer next to

the power supply connector.

Pin No. Signal name Direction

1 Frame ground -

2 Drawer kick- out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick- out drive signal 2 Output

6 Signal ground -

Autres manuels pour SRP-370 - Two-color Direct Thermal Printer

Table des matières

Autres manuels BIXOLON Imprimante

BIXOLON

BIXOLON Bixolon SRP-270 Manuel utilisateur

BIXOLON

BIXOLON SRP-QE302 Manuel d'instructions

BIXOLON

BIXOLON SRP-350 PlusA Manuel utilisateur

BIXOLON

BIXOLON SRP-352III Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusIII Note de version

BIXOLON

BIXOLON SRP-330III Manuel d'installation et d'exploitation

BIXOLON

BIXOLON STP-103 Instructions d'installation

BIXOLON

BIXOLON SRP-330III Manuel d'instructions

BIXOLON

BIXOLON SRP-350plusIIA Manuel utilisateur

BIXOLON

BIXOLON SPP-R300 Manuel utilisateur

BIXOLON

BIXOLON SRP-350 PlusA Manuel utilisateur

BIXOLON

BIXOLON SRP-380 Manuel utilisateur

BIXOLON

BIXOLON SPP-R200 Manuel utilisateur

BIXOLON

BIXOLON SPP-R220 Manuel utilisateur

BIXOLON

BIXOLON SRP-S300 Manuel utilisateur

BIXOLON

BIXOLON STP-131 Manuel utilisateur

BIXOLON

BIXOLON SRP-350PG - SRP 350 B/W Direct Thermal... Manuel utilisateur

BIXOLON

BIXOLON BK3-31 Manuel utilisateur

BIXOLON

BIXOLON SPP-R400 Manuel d'installation et d'exploitation

BIXOLON

BIXOLON 275C - SRP Two-color Dot-matrix Printer Manuel utilisateur

BIXOLON

BIXOLON SPP-R200 Mode d'emploi

BIXOLON

BIXOLON SRP-330III Manuel utilisateur

BIXOLON

BIXOLON SPP-R200II Manuel utilisateur

BIXOLON

BIXOLON SRP-350plusIII SRP-352plusIII Instructions d'installation

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
