BIXOLON SRP-350 PlusA Manuel utilisateur

User’s Manual

SRP-350/352plusIIA&C

Thermal Printer

Rev. 1.00

http://www.bixolon.com

Rev. 1.00 - 2 -

SRP-350/352plusIIA&C

■Safety Precautions

In using the present appliance, please keep the following safety regulations in order to

prevent any hazard or material damage.

WARNING

Violating following instructions can cause serious injury or death.

Do not bend the cable by force or leave it under any

heavy object.

• A damaged cable can cause a fire.

Do not plug in or unplug with your hands wet.

•You can be electrocuted.

Keep the plastic bag out of children’s reach.

•If not, a child may put the bag on his head.

Do not pull the cable to unplug.

•This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

You must use only the supplied adapter.

•It is dangerous to use other adapters.

Do not plug several products in one multi-outlet.

• This can provoke over-heating and a fire.

• If the plug is wet or dirty, dry or wipe it before usage.

• If the plug does not fit perfectly with the outlet, do not plug in.

•Be sure to use only standardized multi-outlets.

PROHIBITED

PROHIBITED PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

Rev. 1.00 - 3 -

SRP-350/352plusIIA&C

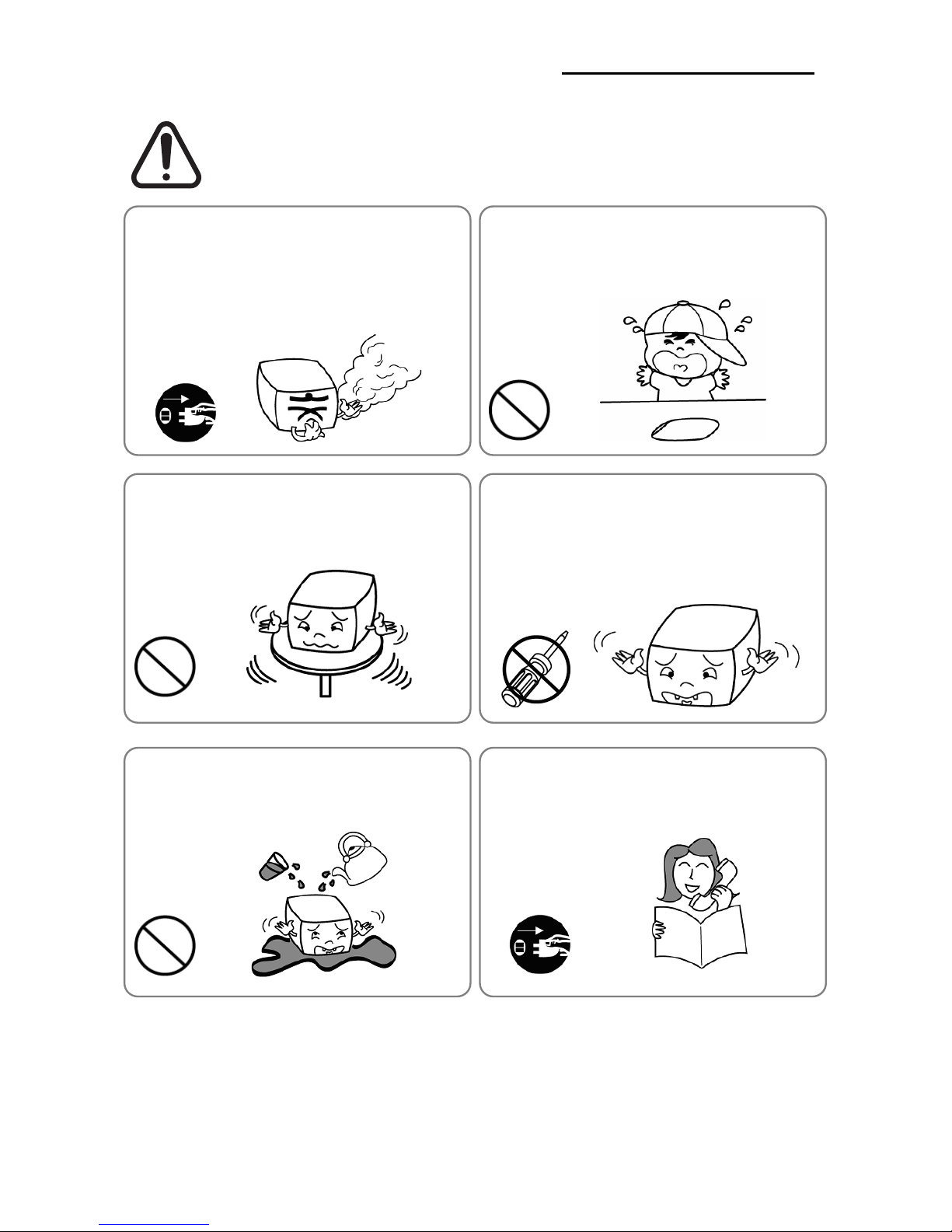

CAUTION

Violating following instructions can cause slight wound or damage the appliance.

Do not use the printer when it is out of order. This

can cause a fire or an electrocution.

•Switch off and unplug the printer before calling your dealer.

Do not let water or other foreign objects in the

printer.

•If this happened, switch off and unplug the printer before

calling your dealer.

Use only approved accessories and do not try to

disassemble, repair or remodel it for yourself.

•Call your dealer when you need these services.

• Do not touch the blade of auto cutter.

Install the printer on the stable surface.

•If the printer falls down, it can be broken and you can hurt

yourself.

Keep the desiccant out of children’s reach.

•If not, they may eat it.

If you observe a strange smoke, odor or noise from

the printer, unplug it before taking following

measures.

• Switch off the printer and unplug the set from the mains.

•After the disappearance of the smoke, call your dealer to

repair it.

TO UNPLUG

PROHIBITED

DISASSEMBLING

PROHIBITED

TO UNPLUG

PRINTER

DEALER

PRINTER

Rev. 1.00 - 4 -

SRP-350/352plusIIA&C

■Warning - U.S.A

This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

■Notice - Canada

This Apparatus complies with class “A” limits for radio interference as specified in the

Canadian department of communications radio interference regulations.

Get appareil est conforme aux normes class “A” d’interference radio tel que specifier par

ministre canadien des communications dans les reglements d’interference radio.

■Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer “OFF”, before you connect or remove the cables on the rear side, in order to guard

the printer against the static electricity. If the printer is damaged by the static electricity, you

should turn the printer “OFF”.

■Waste Electrical and Electric Equipment (WEEE)

This marking shown on the product or its literature, indicates that is should not

be disposed with other household wastes at the end of its working life, To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources. Household

users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product should not be mixed with other

commercial wastes for disposal.

■Label Material

* Control Label: PC

* Other Labels: PET

Rev. 1.00 - 5 -

SRP-350/352plusIIA&C

■Introduction

The SRP-350/352plusII Roll Printer are designed for use with electronic instruments such

as system ECR, POS, banking equipment, computer peripheral equipment, etc.

The main features of the printer are as follows:

1. High speed printing : 59 (1/6” Feed) lines per second.

2. Low noise thermal printing.

3. The data buffer allows the unit to receive print data even during printing.

4. Peripheral units drive circuit enables control of external devices such as cash drawer.

5. Characters can be scaled up to 64 times compared to it’s original size.

6. Bar code printing is possible by using a bar code command.

7. Different print densities can be selected by DIP switches.

Please be sure to read the instruction in this manual carefully before using your new

SRP-350/352plusII.

※NOTE

The socket-outlet shall be near the equipment and it shall be easy accessible.

※All specifications are subjected to change without notice.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

Rev. 1.00 - 6 -

SRP-350/352plusIIA&C

■Table of Contents

1. Setting Up the Printer ..................................................................................................7

1-1 Unpacking.................................................................................................................7

1-2 Connecting the Cables .............................................................................................8

1-2-1 Serial Interface (RS-232C) ...........................................................................8

1-2-2 Parallel Interface (IEEE1284) .......................................................................9

1-2-3 USB2.0 Interface ........................................................................................10

1-3 Connecting the Drawer ...........................................................................................10

1-4 Setting the Dip Switches.........................................................................................11

1-4-1 Serial Interface (RS-232C) ......................................................................... 11

1-4-2 Parallel & USB2.0 Interface ........................................................................ 11

1-4-3 Auto Cutter Enable / Disable selection .......................................................12

1-5 Setting the Memory Switches .................................................................................13

1-6 Installing or Replacing the Paper Roll.....................................................................16

1-7 Adjustments and Settings .......................................................................................18

1-8 Using the Printer.....................................................................................................18

1-9 Connecting the computer........................................................................................19

1-10 Connecting the Power Supply ..............................................................................19

2. Self test.......................................................................................................................20

3. Hexadecimal Dumping ..............................................................................................21

4. Specification ..............................................................................................................22

5. Appendix ....................................................................................................................23

5-1 Cleaning Printer......................................................................................................23

5-2 Using Wall Mount....................................................................................................23

Rev. 1.00 - 7 -

SRP-350/352plusIIA&C

1. Setting Up the Printer

1-1 Unpacking

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

SRP-350/352plusIIC SRP-350/352plusIIA Cover Cable

Roll Paper Manual AC Adapter Power Cord

CD USBA-ACABLE

Rev. 1.00 - 8 -

SRP-350/352plusIIA&C

1-2 Connecting the Cables

You can connect up the three cables to the printer. They all connect to the connector panel

on the back of the printer, which is shown below:

※NOTE

Before connecting any of the cables, make sure that both the printer and the host are

turned off.

1-2-1 Serial Interface (RS-232C)

※When the Dip Switch is “ON” on the Serial Interface Board,

DTR and RTS are connected each other.

Pin No. Signal Name Signal Direction Function

BODY Frame GND - Frame Ground

2 TXD Output Transmit Data

3 RXD Input Receive Data

6 DSR Input

This signal indicates whether the host computer can receive

data. (H/W flow control)

1) MARK(Logic1) : The host can receive a data.

2) SPACE(Logic0) : The host can not receive a data.

3) The printer transmits a data to the host, after confirming

this signal.

4) When XON/XOFF flow control is selected, the printer

does not check this signal.

7 Signal GND - Signal Ground

20 DTR Output

This signal indicates whether the printer is busy. (H/W flow

control)

1) MARK(Logic1) : The printer is busy.

2) SPACE(Logic0) : The printer is not busy.

3) The host transmits a data to the printer, after confirming

this signal.

4) When XON/XOFF flow control is selected, the host does

not check this signal.

Shield Frame GND - Frame Ground

Drawer

kick-out

connector

Power

supply

connector

Interface connector

PRINTER

SIDE (25P)

HOST

SIDE (25P)

PRINTER

SIDE (25P)

HOST

SIDE (9P)

PRINTER

SIDE (9P)

HOST

SIDE (9P)

Rev. 1.00 - 9 -

SRP-350/352plusIIA&C

1-2-2 Parallel Interface (IEEE1284)

Pin No. Source Compatibility Mode Nibble Mode Byte Mode

1 Host nStrobe HostClk HostClk

2 Host / Printer Data 0 (LSB) - Data 0 (LSB)

3 Host / Printer Data 1 - Data 1

4 Host / Printer Data 2 - Data 2

5 Host / Printer Data 3 - Data 3

6 Host / Printer Data 4 - Data 4

7 Host / Printer Data 5 - Data 5

8 Host / Printer Data 6 - Data 6

9 Host / Printer Data 7 (MSB) - Data 7 (MSB)

10 Printer nAck PtrClk PtrClk

11 Printer Busy PtrBusy /Data3,7 PtrBusy

12 Printer Perror AckDataReq/Data2,6 AckDataReq

13 Printer Select Xflag /Data1,5 Xflag

14 Host nAutoFd HostBusy HostBusy

15 NC NC NC

16 GND GND GND

17 FG FG FG

18 Printer Logic-H Logic-H Logic-H

19~30 GND GND GND

31 Host nInit nInit nInit

32 Printer nFault nDataAvail /Data0,4 nDataAvail

33 GND ND ND

34 Printer DK_Status ND ND

35 Printer +5V ND ND

36 Host nSelectIn 1284-Active 1284-Active

Drawer

kick-out

connector

Power

supply

connector

Interface connector

Rev. 1.00 - 10 -

SRP-350/352plusIIA&C

1-2-3 USB2.0 Interface

Pin No. Signal Name Assignment (Color) Function

Shell Shield Drain Wire Frame Ground

1 VBUS Red Host Power : DC5[V] / 500[mA]

2 D- White Differential Data Line

3 D+ Green Differential Data Line

4 GND Black Signal Ground

1-3 Connecting the Drawer

※WARNING

Use a drawer that matches the printer specification. Using an improper drawer may

damage the drawer as well as the printer.

※CAUTION

Do not connect a telephone line to the drawer kick-out connector; otherwise the printer and

the telephone line may be damaged.

Plug the drawer cable into the drawer kick-out connector on the back of the printer next to

the power supply connector.

Pin No. Signal name Direction

1 Frame ground -

2 Drawer kick- out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick- out drive signal 2 Output

6 Signal ground -

※Drawer Port is 24Vdc/2.5A Output rating, Class 1.

Drawer

kick-out

connector

Power

supply

connector

USB2.0 connector

Autres manuels pour SRP-350 PlusA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BIXOLON Imprimante

BIXOLON

BIXOLON SRP-370 - Two-color Direct Thermal Printer Manuel utilisateur

BIXOLON

BIXOLON SRP-350plusV Manuel d'instructions

BIXOLON

BIXOLON SPP-C200 Instructions d'installation

BIXOLON

BIXOLON SPP-R300 Manuel d'installation et d'exploitation

BIXOLON

BIXOLON Srp-275III Manuel utilisateur

BIXOLON

BIXOLON SRP-275II Manuel utilisateur

BIXOLON

BIXOLON SRP-370 - Two-color Direct Thermal Printer Manuel utilisateur

BIXOLON

BIXOLON SPR-350III Manuel d'installation et d'exploitation

BIXOLON

BIXOLON SRP-E302 Instructions d'installation

BIXOLON

BIXOLON SRP-F310 Manuel utilisateur

BIXOLON

BIXOLON SRP-Q300 Manuel utilisateur

BIXOLON

BIXOLON SRP-382II Manuel d'installation et d'exploitation

BIXOLON

BIXOLON STP-103II Manuel utilisateur

BIXOLON

BIXOLON SRP-350III Instructions d'installation

BIXOLON

BIXOLON SRP-QE302 Manuel d'instructions

BIXOLON

BIXOLON SRP-350 PlusA Manuel utilisateur

BIXOLON

BIXOLON SPP-R400 Manuel d'installation et d'exploitation

BIXOLON

BIXOLON BGT-100P Manuel utilisateur

BIXOLON

BIXOLON SRP-350 PlusA Manuel utilisateur

BIXOLON

BIXOLON SRP -350 Manuel utilisateur

BIXOLON

BIXOLON SPP-C200 Manuel d'instructions

BIXOLON

BIXOLON SPP-R220 Manuel d'instructions

BIXOLON

BIXOLON XT5-40NR Series Manuel utilisateur

BIXOLON

BIXOLON SRP-500 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
