BIXOLON SRP-350IIOBE Manuel utilisateur

User's Manual

SRP-350IIOBE

Thermal Printer

Rev. 1.01

http://www.bixolon.com

Rev. 1.01

- 2 -

SRP-350IIOBE

■Safety Precautions

In using the present appliance, please keep the following safety regulations in order to

prevent any hazard or material damage.

WARNING

Violating following instructions can cause serious injury or death.

Do not bend the cable by force or leave it under any

heavy object.

•A damaged cable can cause a fire.

Do not plug in or unplug with your hands wet.

•You can be electrocuted.

Keep the plastic bag out of children’s reach.

•If not, a child may put the bag on his head.

Do not pull the cable to unplug.

•This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

You must use only the supplied adapter.

•It is dangerous to use other adapters.

Do not plug several products in one multi-outlet.

•This can provoke over-heating and a fire.

•If the plug is wet or dirty, dry or wipe it before usage.

•If the plug does not fit perfectly with the outlet, do not plug in.

•Be sure to use only standardized multi-outlets.

PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

Rev. 1.01

- 3 -

SRP-350IIOBE

CAUTION

Violating following instructions can cause slight wound or damage the appliance.

Do not use the printer when it is out of order. This

can cause a fire or an electrocution.

•Switch off and unplug the printer before calling your dealer.

Do not let water or other foreign objects in the

printer.

•If this happened, switch off and unplug the printer before

calling your dealer.

Use only approved accessories and do not try to

disassemble, repair or remodel it for yourself.

•Call your dealer when you need these services.

•Do not touch the blade of auto cutter.

Install the printer on the stable surface.

•If the printer falls down, it can be broken and you can hurt

yourself.

Keep the desiccant out of children’s reach.

•If not, they may eat it.

If you observe a strange smoke, odor or noise from

the printer, unplug it before taking following

measures.

•Switch off the printer and unplug the set from the mains.

•After the disappearance of the smoke, call your dealer to

repair it.

TO UNPLUG

PROHIBITED

DISASSEMBLING

PROHIBITED

TO UNPLUG

PRINTER

DEALER

PRINTER

Rev. 1.01

- 4 -

SRP-350IIOBE

■Warning - U.S.A

1) NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

2) Changes or modifications not expressly approved by the manufacturer could void the

user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

■Notice - Canada

This Apparatus complies with class “B” limits for radio interference as specified in the

Canadian department of communications radio interference regulations.

Get appareil est conforme aux normes class “B” d’interference radio tel que specifier par

ministre canadien des communications dans les reglements d’interference radio.

■Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer “OFF”, before you connect or remove the cables on the rear side, in order to guard

the printer against the static electricity. If the printer is damaged by the static electricity, you

should turn the printer “OFF”.

Rev. 1.01

- 5 -

SRP-350IIOBE

■Waste Electrical and Electric Equipment (WEEE)

This marking shown on the product or its literature, indicates that is should not

be disposed with other household wastes at the end of its working life, To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources. Household

users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product should not be mixed with other

commercial wastes for disposal.

■Label Material

* Control Label: PC

* Other Labels: PET

Rev. 1.01

- 6 -

SRP-350IIOBE

■Introduction

The SRP-350IIOBE Roll Printer is designed for use with electronic instruments such as

system ECR, POS, banking equipment, computer peripheral equipment, etc.

The main features of the printer are as follows:

1. High speed printing: 47.28 (1/6” Feed) lines per second.

2. Low noise thermal printing.

3. USB / Ethernet / Bluetooth On-board Type

4. The data buffer allows the unit to receive print data even during printing.

5. Peripheral units drive circuit enables control of external devices such as cash drawer.

6. Characters can be scaled up to 7 times compared to its original size.

7. Bar code printing is possible by using a bar code command.

8. Different print densities can be selected by DIP switches.

Please be sure to read the instruction in this manual carefully before using your new

SRP-350IIOBE.

※NOTE

1) The socket-outlet shall be near the equipment and it shall be easy accessible.

2) This Bluetooth mark and QD ID B020575 apply to the authorized printers of Bluetooth

SIG certification.

※All specifications are subjected to change without notice.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

Rev. 1.01

- 7 -

SRP-350IIOBE

■Table of Contents

1. Setting Up the Printer..................................................................................................8

1-1 Unpacking.................................................................................................................8

1-2 Connecting the Cables .............................................................................................9

1-2-1 Ethernet Communication..................................................................................9

1-2-2 USB Communication......................................................................................10

1-2-3 Bluetooth Communication..............................................................................10

1-3 Connecting the Drawer...........................................................................................11

1-4 Setting the Dip Switches.........................................................................................11

1-5 Installing or Replacing the Paper Roll.....................................................................12

1-6 Paper Jam ..............................................................................................................14

1-7 Adjustments and Settings.......................................................................................15

1-8 Using the Printer.....................................................................................................15

1-9 Connecting the Power Supply ................................................................................16

2. Self-Test......................................................................................................................17

3. Hexadecimal Dumping ..............................................................................................18

4. Specification ..............................................................................................................19

5. Appendix ....................................................................................................................20

5-1 Cleaning Printer......................................................................................................20

5-2 Printing speed.........................................................................................................20

5-3 Using Wall Mount....................................................................................................20

Rev. 1.01

- 8 -

SRP-350IIOBE

1. Setting Up the Printer

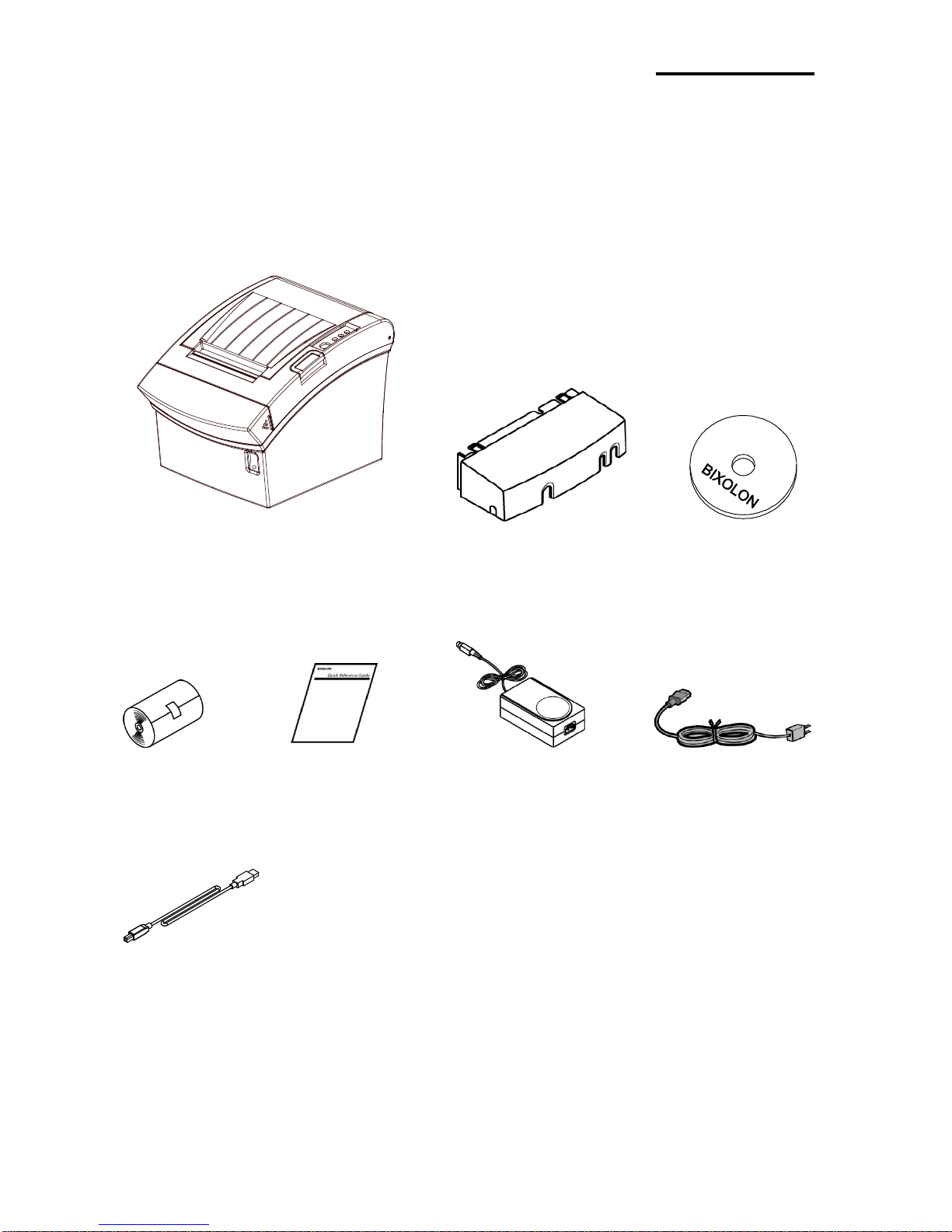

1-1 Unpacking

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

SRP-350IIOBE Cover Cable CD

Roll Paper Manual AC Adapter Power Cord

USB A-B Cable

Rev. 1.01

- 9 -

SRP-350IIOBE

1-2 Connecting the Cables

You can connect up the three cables to the printer. They all connect to the connector panel

on the back of the printer, which is shown below:

※NOTE

Before connecting any of the cables, make sure that both the printer and the host are

turned off.

1-2-1 Ethernet Communication

1) Ethernet Communication specifications

Item

Description

Remark

Network Interface

10/100 Base-TAll in one type (Auto detection)

Protocol

TCP, UDP, IP, ICMP, ARP

IP mode

Static IP, DHCP(Dynamic Host Configuration Protocol)

RX buffer

2 KByte

Flow control

Hardware (RTS/CTS)

2) Ethernet Interface cable

Drawer kick-out

Connector

Power supply

Connector

Ethernet

Connector

USB

Connector

Rev. 1.01

- 10 -

SRP-350IIOBE

3) Ethernet Communication signal descriptions

Pin No.

Signal

name

Assignment(Color)

Function

TD+

White Orange

Transmit +

TD-

Orange

Transmit -

TCT

White Green

Receive +

Blue

White Blue

RCT

Green

Receive -

RD+

White Brown

RD-

Brown

* For more information, refer to the Ethernet User Manual in Bixolon Web Site.

1-2-2 USB Communication

Pin No.

Signal Name

Assignment (Color)

Function

Shell

Shield

Drain Wire

Frame Ground

VBUS

Red

Host Power : DC5[V] / 500[mA]

D-

White

Differential Data Line

D+

Green

Differential Data Line

GND

Black

Signal Ground

1-2-3 Bluetooth Communication

1) Bluetooth Communication specifications

Title

Description

Frequency

2.402 ~ 2.480 GHz

Version

2.1 + EDR

Module Type

Class 1

2) Bluetooth Connection

The printer can be connected to devices equipped with Bluetooth communication

capacity. (PDAs, PCs, Smart Phone, Tablet PCs, etc.)

* Refer to the Bluetooth Manual for detailed information on its connection.

Drawer kick-out

Connector

Power supply

Connector

USB

Connector

Autres manuels pour SRP-350IIOBE

Table des matières

Autres manuels BIXOLON Imprimante

BIXOLON

BIXOLON SRP-F310 Manuel utilisateur

BIXOLON

BIXOLON SRP-350II Manuel utilisateur

BIXOLON

BIXOLON Bixolon SRP-270 Manuel utilisateur

BIXOLON

BIXOLON SPP-R310 Manuel utilisateur

BIXOLON

BIXOLON SRP-330II Manuel utilisateur

BIXOLON

BIXOLON SRP-F310 Manuel utilisateur

BIXOLON

BIXOLON Bixolon SRP-270 Manuel utilisateur

BIXOLON

BIXOLON SRP -350 Manuel utilisateur

BIXOLON

BIXOLON XQ-840II Series Manuel utilisateur

BIXOLON

BIXOLON STP-103 Manuel utilisateur

BIXOLON

BIXOLON SRP-F310 Manuel d'installation et d'exploitation

BIXOLON

BIXOLON SRP-275 Manuel utilisateur

BIXOLON

BIXOLON SRP-350II Manuel d'installation et d'exploitation

BIXOLON

BIXOLON STP-103III Manuel utilisateur

BIXOLON

BIXOLON SPP-C200 Instructions d'installation

BIXOLON

BIXOLON SRP-E300 Manuel d'installation et d'exploitation

BIXOLON

BIXOLON SPR-350III Manuel d'installation et d'exploitation

BIXOLON

BIXOLON SRP-330II Manuel d'installation et d'exploitation

BIXOLON

BIXOLON SRP-350 PlusA Manuel utilisateur

BIXOLON

BIXOLON SRP-E300 Manuel d'instructions

BIXOLON

BIXOLON BGT-100P Manuel utilisateur

BIXOLON

BIXOLON SPP-R200III Manuel utilisateur

BIXOLON

BIXOLON XM7-40 Manuel utilisateur

BIXOLON

BIXOLON SLP-DX420B Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
