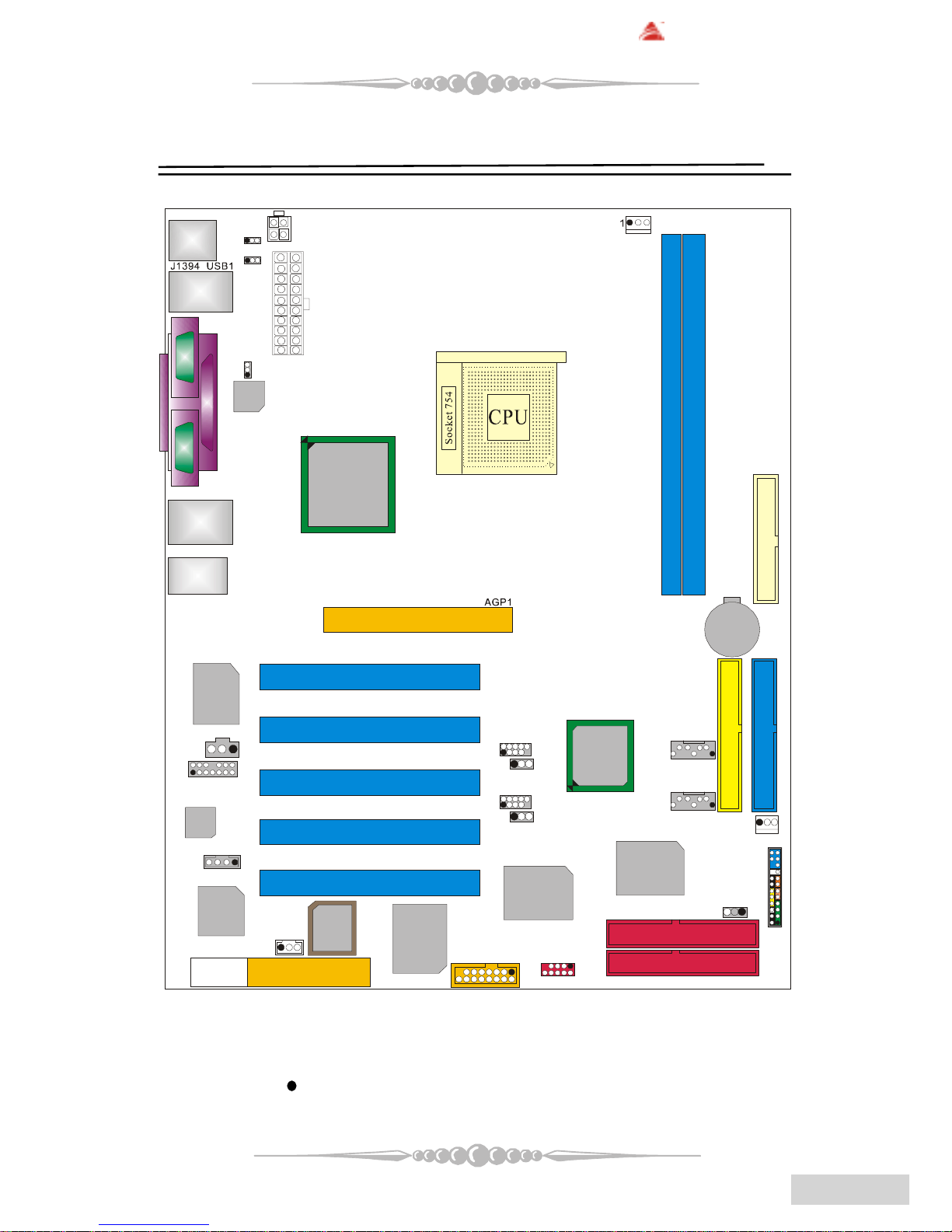

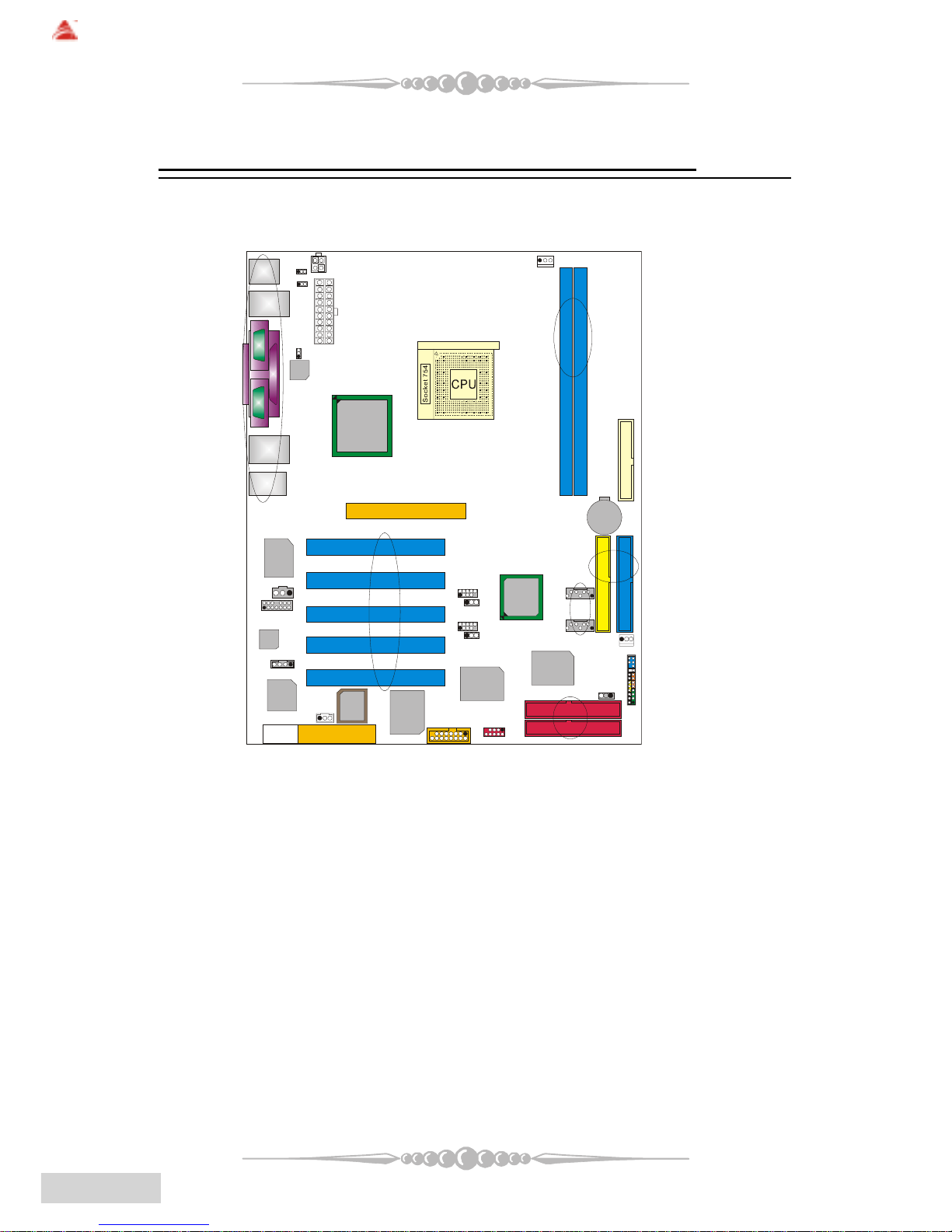

Section 1. Layout of K8VHA Pro

NOTE: “ ” represents the first pin.

JKBMS1

K/B

Mouse

Parallel Port

JCOM2

JPRNT1

COM2

COM1

JUSBLAN1

USB

LAN

JCOM1

JAUDIO

USB

1394

JATXPWR2

JKBV1

JUSBV2 JATXPWR1

K8T800

CPU1

AGPSLOT

PCI1

PCI2

PCI SLOT

PCI4

PCI5

PCI3

PCI SLOT

SPDIF_OUT

JAUDIO1

213

Codec

JCDIN11

JWOL1

CNR1

JGAME11

16 2

J1394B1

IEEE 1394

CHIP

JCMOS1

JPANEL1

FLOPPY DISK CONN.

FDD1

DIMM1

DIMM2

JCFAN1

JUSB4

110

JUSBV4

JUSB3

291 10

JUSBV3

T8237

JSFAN1

PRIMARYIDE CONN.

SECONDARYIDE CONN.

BAT1

IDE1

IDE2

JSATA2

17 4

JSATA1

17 4

Winbond

I/O

IDE RAID

Chip

(optional)

IDE4

IDE3

LAN

Phy

(op tion al)

Wireless

LAN Chip

(optional)

LAN Chip

CNR SLOT

Wireless

LAN SLOT

BIOS

JUSBV1

EnglishEnglish

English

BIOSTAR Motherboard

Section 2. Component Index

This section helps you to locate the components in the motherboard and to find

the details about them.

A. ATXPowerConnector(JATXPWR1) B. ATXPowerConnector(JATXPWR2)

C. PowerSourceSelectionforKeyboardandMouse(JKBV1) D. PowerSourceSelectionforUSB(JUSBV2)

E. PowerSourceSelectionforUSB(JUSBV1) F. BackPanelConnectors

G. CPUFanConnector(JCFAN1) H. AcceleratedGraphicsPortSlot(AGP1)

I. PCIBUSSlots(PCI1-5) J. DigitalAudioConnector(SPDIF_OUT)

K. FrontAudioHeader(JAUDIO1) L. CD-ROMAudio-InHeader(JCDIN1)

M. WakeOnLANHeader(JWOL1) N. WirelessLANSlot(optional)

O. CommunicationNetworkRiserSlot(CNR1) P. GamePortHeader(JGAME1)

Q. Front1394header(J1394B1) R. IDE-RaidConnectors(IDE3-4)(optional)

S. ClearCMOSFunction(JCMOS1) T. FrontPanelConnector(JPANEL1)

U. SystemFANHeader(JSFAN1) V. PowerSourceSelectionforUSB(JUSBV3)

W. FrontUSBHeader(JUSB3) X. PowerSourceSelectionforUSB(JUSBV4)

Y. FrontUSBHeader(JUSB4) Z. SerialATAConnectors(JSATA1-2)

A1. IDEConnectors(IDE1-2) B1. FloppyDiskConnector(FDD1)

C1. DIMMModules(DIMM1/DIMM2)

K8T800

Codec

IEEE 1394

CHIP

VT8237

Winbond

I/O

SATA-Raid

Chip

(optional)

LAN

Phy

(optional)

Wireless

LAN Chi

(

tional

)

LANChip

BIOS

XYZ

BAT1

3EnglishEnglish

EnglishEnglish

English

BIOSTAR Motherboard

Section 3. K8VHA Pro Features

In this section, you shall find all the information about the

motherboard in your computer, including its features, layout,

component index, various jumpers, headers, connectors, and also

the installation guide to help you a quick and correct installation

of your system.

A. Hardware

CPU * Supports Socket 754.

* Supports AMD AthlonTM 64 K8/ ClawHammerTM processor with 6.4 GB.

* Processor interface via Hyper-TransportTM Technology.

* 800/ 600/ 400/ 200 clock rates with “DoubleData Rate” style operation for

1600/ 1200/ 800/ 400 MT/s in both directions simultaneously.

Chipset

* North Bridge: VIA K8T800.

* South Bridge: VIA VT8237.

Main Memory

* Supports 72-bit (64-bits + 8-bits ECC) DDR SDRAM.

* Supports 266, 333, 400 and 200 MHz DDR technologies.

* Maximum memory size is 2 GB.

Super I/O

Chip: Winbond W83697HF.

- Low Pin Count Interface.

- Integrate hardware monitor functions.

Slots * Five 32-bit PCI bus master slots.

* One CNR slot.

* One AGP 4X/ 8X slot.

* One wireless LAN slot. (optional)

EnglishEnglish

English

BIOSTAR Motherboard

On Board IDE

* Supports four IDE disk drives.

* Supports PIO Mode 5, Bride Mode and Ultra DMA 33/ 66/ 100/ 133 Bus

Master Mode.

LAN Chip (optional)

* Chip: Realtek RTL8100C/ RTL8110S.

* Supports 10 Mb/s, 100 Mb/s auto-negotiation operation. (1000Mb/s only

for RTL8110S.)

* Half/ Full duplex capability.

* Supports ACPI, PCI power management.

LAN PHY (optional)

* Chip: Realtek RTL8201BL.

* Supports 10/ 100 Mb/s operation. (1000Mb/s operation only for

RTL8110s)

* Half/ Full duplex operation.

* Supports MII interface.

Wireless LAN - Air LinkTM (optional)

* Chip: Realtek RTL8180.

* Full compliance with IEEE802.11b specifications.

* Supports Advanced Configuration Power management Interface (ACPI) and

PCI power management system for modern operating systems.

* Supports remote wake-up in both ACPI and APM environments.

* Keeps network maintenance costs low and eliminates usage barriers.

* Uses one RF card for Wireless LAN.

IEEE 1394 Chip

* Chip: VIA VT6307.

* Support 2 ports with transfer up to 400 mb/s.

* Compliant with PCI specification v2.2.

On Board AC'97 Sound Codec

* Chip: CMI9739A.

* Compliant with AC'97 specification.

* AC97 2.2 interface.

* Supports 6 channels.

5EnglishEnglish

EnglishEnglish

English

BIOSTAR Motherboard

IDE RAID Chip (optional)

* Supports RAID Level 0, RAID Level 1, RAID Level 0+1 and JBOD.

* Complies with PCI Local Bus Specification Revision 2.2.

*Dual channel master mode hard disk controller supporting four Enhanced IDE

devices.

* Transfer rate up to 22 MB/s to cover PIO mode 4, multi-word DMA mode 2

drivers and beyond.

* Extension to UltraDMA-133 interface for up to 133 MB/s transfer rate.

* Supports UltraDMA-mode0.

On Board Peripherals

a. Rear side

- 2 serial ports, 1 parallel port. (SPP/EPP/ECP mode)

- Audio ports in vertical position.

- 1 RJ-45 LAN jack. (optional)

- PS/2 mouse and PS/2 keyboard.

- 4 USB2.0 ports.

- 1 IEEE1394 (FirewireTM) connector. (optional)

b. Front Side

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88

Mbytes.

- 4 USB2.0 ports.

- 1 front audio header, 1 S/PDIF Out header.

- 1 IEEE1394 (FirewireTM) port. (optional)

Dimensions

ATX Form Factor: 24.4 cm x 30.5 cm (W X L)

B. BIOS & Software

BIOS *Award legal BIOS.

* APM1.2.

* ACPI.

* USB Function.

Software

* Supports WarpspeederTM, 9th TouchTM, BootBlockerTM, WinFlasherTM,

FLASHERTM and StudioFunTM (optional).

* Offers the highest performance for Windows 98 SE, Windows 2000,

Windows Me, Windows XP, SCO UNIX, etc.

EnglishEnglish

English

BIOSTAR Motherboard

Section 4. Package contents

Checkwhat youhave boughtbefore youstart yourDIY action.

If there are anything missing, please contact your dealer

immediately.

* HDD Cable x 1

* FDDCable x 1

* User's Manual x 1

* Fully SetupDriver CD x 1

* StudioFun! Application CD x 1 (optional)

* USB 2.0 Cable x 1 (optional)

* S/PDIF Cable x 1 (optional)

* Rear I/O Panel for ATX Case x 1

* SerialATA Cable x 1 (optional)

* Serial ATA Power Switch Cable x 1 (optional)

* Front IEEE 1394 Cable x 1 (optional)

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar P4TSG PRO Manuel utilisateur

Biostar

Biostar TPOWER X58 - BIOS Manuel utilisateur

Biostar

Biostar P4 TGS Manuel utilisateur

Biostar

Biostar I915G-M7 Guide de l'utilisateur

Biostar

Biostar A770E3+ Guide de l'utilisateur

Biostar

Biostar M7NCD Ultra Manuel utilisateur

Biostar

Biostar A780L3B Guide de l'utilisateur

Biostar

Biostar H110MLC Manuel utilisateur

Biostar

Biostar G31-M7 TE - BIOS Guide de l'utilisateur

Biostar

Biostar A780L3L Guide de l'utilisateur

Biostar

Biostar M7VIB Manuel utilisateur

Biostar

Biostar Hi-Fi A85W Guide de l'utilisateur

Biostar

Biostar K8NHA Grand Manuel

Biostar

Biostar M6SBA Manuel utilisateur

Biostar

Biostar A880G Guide de l'utilisateur

Biostar

Biostar TA890FXE - BIOS Manuel utilisateur

Biostar

Biostar N68S3B Manuel

Biostar

Biostar Z170GT5 Manuel utilisateur

Biostar

Biostar P4 TSE-D2 Instructions d'utilisation et d'installation

Biostar

Biostar B660GTQ Manuel utilisateur

Biostar

Biostar G41D3C Manuel utilisateur

Biostar

Biostar TA790GXE 128M Guide de l'utilisateur

Biostar

Biostar H510MX/E 2.0 Manuel utilisateur

Biostar

Biostar M7VKB Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
