Biostar Z170GT5 Manuel utilisateur

BIOS Update �� 2

UEFI BIOS Setup �� 6

1� Main Menu �� 7

2� Advanced Menu�� 8

3� Chipset Menu��18

4� Boot Menu��22

5� Security Menu��25

6� O�N�E Menu��28

7� Exit Menu��37

BIOS User Guide

Z170GT5 & B150GT5

2 | BIOS Update

BIOS Update

The BIOS can be updated using either of the following ulies:

• BIOSTAR BIOS Flasher: Using this ulity, the BIOS can be updated from a le on a hard disk, a

USB drive (a ash drive or a USB hard drive), or a CD-ROM.

• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows

environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB

drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the Web.

BIOSTAR BIOS Flasher

Note

» This ulity only allows storage device with FAT32/16 format and single paron.

» Shung down or reseng the system while updang the BIOS will lead to system boot failure.

Updang BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS le for the motherboard.

2. Then, copy and save the BIOS le into a USB ash (pen) drive.

3. Insert the USB pen drive that contains the BIOS le to the USB port.

4. Power on or reset the computer and then press <F12> during the POST process.

5. Aer entering the POST screen, the BIOS-

FLASHER ulity pops out. Choose <fs0> to search

for the BIOS le.

6. Select the proper BIOS le, and a message asking

if you are sure to ash the BIOS le. Click “Yes” to

start updang BIOS.

BIOS Update | 3

Z170GT5 & B150GT5

7. A dialog pops out aer BIOS ash is completed,

asking you to restart the system. Press the <Y> key

to restart system.

8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the

computer. Then the BIOS Update is completed.

BIOS Update Ulity (through the Internet)

1. Installing BIOS Update Ulity from the DVD Driver.

2. Please make sure the system is connected to the internet before using this funcon.

3. Launch BIOS Update Ulity and click the

“Online Update” buon on the main screen.

4. An open dialog will show up to request your

agreement to start the BIOS update. Click “Yes”

to start the online update procedure.

5. If there is a new BIOS version, the ulity will

ask you to download it. Click “Yes” to proceed.

6. Aer the download is completed, you will be

asked to program (update) the BIOS or not. Click

“Yes” to proceed.

4 | BIOS Update

7. Aer the updang process is nished, you

will be asked you to reboot the system. Click

“OK” to reboot.

8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes> and <Reset> to restart the

computer. Then, the BIOS Update is completed.

BIOS Update Ulity (through a BIOS le)

1. Installing BIOS Update Ulity from the DVD Driver.

2. Download the proper BIOS from hp://www.biostar.com.tw/

3. Launch BIOS Update Ulity and click the “Update

BIOS” buon on the main screen.

4. A warning message will show up to request your

agreement to start the BIOS update. Click “OK” to

start the update procedure.

5. Choose the locaon for your BIOS le in the

system. Please select the proper BIOS le, and

then click on “Open”. It will take several minutes,

please be paent.

UEFI BIOS Setup | 5

Z170GT5 & B150GT5

6. Aer the BIOS Update process is nished, click

on “OK” to reboot the system.

7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the

computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS buon on the main screen

for the backup of BIOS, and select a proper

locaon for your backup BIOS le in the system,

and click “Save”.

6 | UEFI BIOS Setup

UEFI BIOS Setup

Introducon

The purpose of this manual is to describe the sengs in the AMI UEFI BIOS Setup program on this

motherboard. The Setup program allows users to modify the basic system conguraon and save

these sengs to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a disk. This

system controls most of the input and output devices such as keyboard, mouse, serial ports and

disk drives. BIOS acvates at the rst stage of the boong process, loading and execung the

operang system. Some addional features, such as virus and password protecon or chipset

ne-tuning opons are also included in UEFI BIOS.

The rest of this manual will to guide you through the opons and sengs in UEFI BIOS Setup.

Plug and Play Support

This AMI UEFI BIOS supports the Plug and Play Version 1.0A specicaon.

EPA Green PC Support

This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specicaon.

ACPI Support

AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Conguraon and Power interface

specicaon (ACPI). It provides ASL code for power management and device conguraon

capabilies as dened in the ACPI specicaon, developed by Microso, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconnect)

local bus specicaon.

Using Setup

When starng up the computer, press <Del> during the Power-On Self-Test (POST) to enter the

UEFI BIOS setup ulity.

In the UEFI BIOS setup ulity, you will see General Help descripon at the top right corner, and

this is providing a brief descripon of the selected item. Navigaon Keys for that parcular menu

are at the boom right corner, and you can use these keys to select item and change the sengs.

Note

The default UEFI BIOS sengs apply for most condions to ensure opmum performance of the

motherboard. If the system becomes unstable aer changing any sengs, please load the default

sengs to ensure system’s compability and stability. Use Load Setup Default under the Exit Menu.

For beer system performance, the UEFI BIOS rmware is being connuously updated. The UEFI BIOS

informaon described in this manual is for your reference only. The actual UEFI BIOS informaon and

sengs on board may be slightly dierent from this manual.

The content of this manual is subject to be changed without noce. We will not be responsible for any

mistakes found in this user’s manual and any system damage that may be caused by wrong-sengs.

1. Main Menu | 7

Z170GT5 & B150GT5

1� Main Menu

Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing

an overview of the basic system informaon.

BIOS Informaon

It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date

and etc.

Total Memory

Shows system memory size, VGA shard memory will be excluded.

System Language

Choose the system default language.

System Date

Set the system date. Note that the ‘Day’ automacally changes when you set the date.

System Time

Set the system internal clock.

8 | 2. Advanced Menu

2� Advanced Menu

The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,

and other system devices.

Note

Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

ACPI Sengs

Enable ACPI Auto Conguraon

This item enables or disables BIOS ACPI auto conguraon funcon.

Opons: Disabled (Default) / Enabled

2. Advanced Menu | 9

Z170GT5 & B150GT5

Enable Hibernaon

This item enables or disables system ability to hibernate (0S/S4 sleep state). This opon may be

not eecve with some OS.

Opons: Enabled (Default) / Disabled

ACPI Sleep State

This item selects the highest ACPI sleep state the system will enter when the SUSPEND buon is

pressed.

Opons: S3 only (Suspend to RAM) (Default) / Suspend Disabled

Lock Legacy Resources

The item enables or disables Lock of Legacy Resources.

Opons: Disabled (Default) / Enabled

S3 Video Repost

The item enables or disables S3 Video Repost.

Opons: Disabled (Default) / Enabled

PS2 Keyboard PowerOn

This item allows you to control the keyboard power on funcon.

Opons: Disabled (Default) / Any Key / Stroke Key / Specic Key

Stroke Keys

This item will show only when Keyboard PowerOn is set “Stroke Key.”

Opons: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 / Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specic Key

This item will show only when Keyboard PowerOn is set “Specic Key.” Press Enter to set Specic

key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on funcon.

Opons: Disabled (Default) / Enabled

Restore AC Power Loss

Specify what state to go to when power is re-applied aer a power failure.

Opons: Power O (Default) / Power On / Last State

PME Wake up from S5

The item enables the system to wake from S5 using PME event.

Opons: Disabled (Default) / Enabled

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. When this item is enabled,

the system will wake on the hr::min::sec specied.

Opons: Disabled (Default) / Enabled

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choose the system boot up me, input hour, minute and second to specify.

10 | 2. Advanced Menu

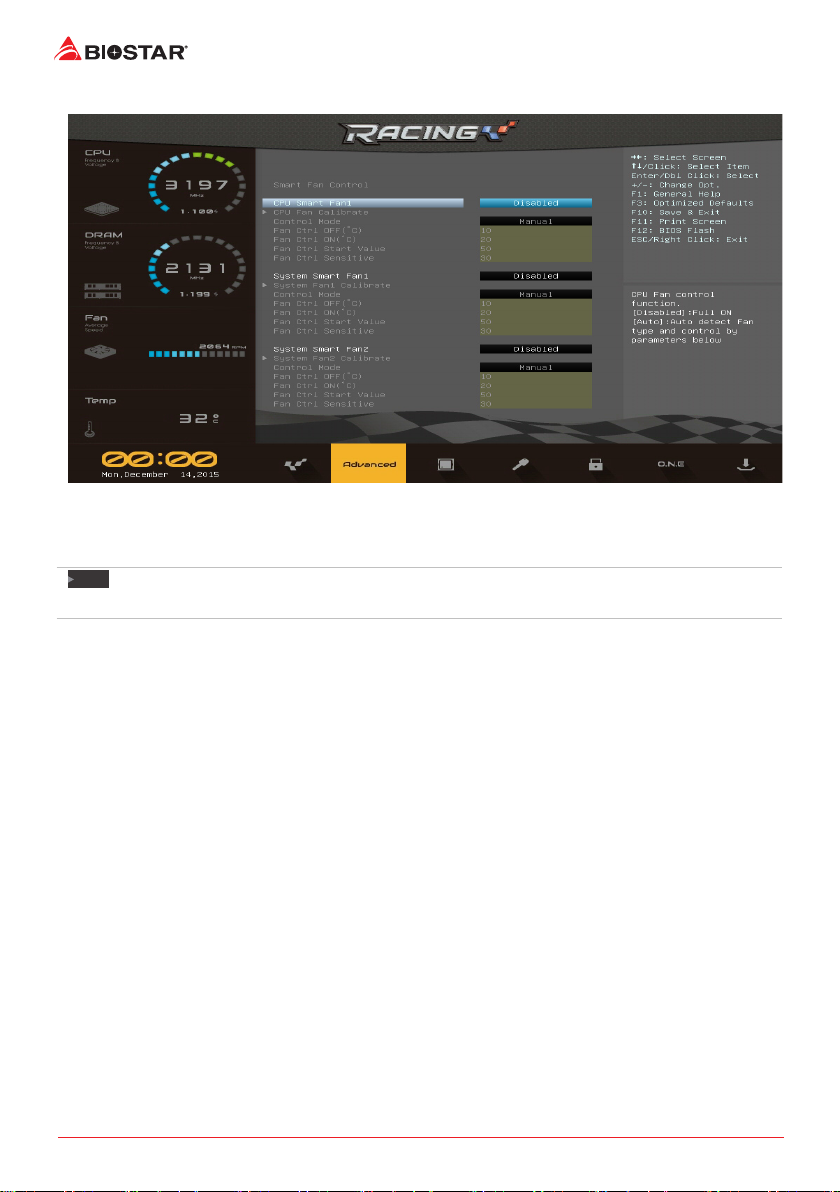

SMART FAN Control

CPU Smart FAN1 & System Smart FAN1/2

This item allows you to control the CPU/System Smart Fan funcon.

Opons: Disabled (Default) / Auto

Note

The following items appear only when you set the Smart Fan funcon to [Auto].

CPU Fan Calibrate

Press [ENTER] to calibrate CPU Fan speed.

Control Mode

This item provides several operaon modes of the fan.

Opons: Quiet / Aggressive / Manual

Fan Ctrl OFF(°C)

When CPU temperature is lower than this value, the CPU fan will keep lowest RPM.

Opons: 10 (°C) (default)

Fan Ctrl On(°C)

When CPU temperature is higher than this value, the CPU fan controller will turn on.

Opons: 20 (°C) (Default)

Fan Ctrl Start Value

This item sets CPU FAN Start Speed Value.

Opons: 50 (Default)

Fan Ctrl Sensive

The bigger the numeral is, the higher the FAN speed is.

Opons: 30 (Default)
