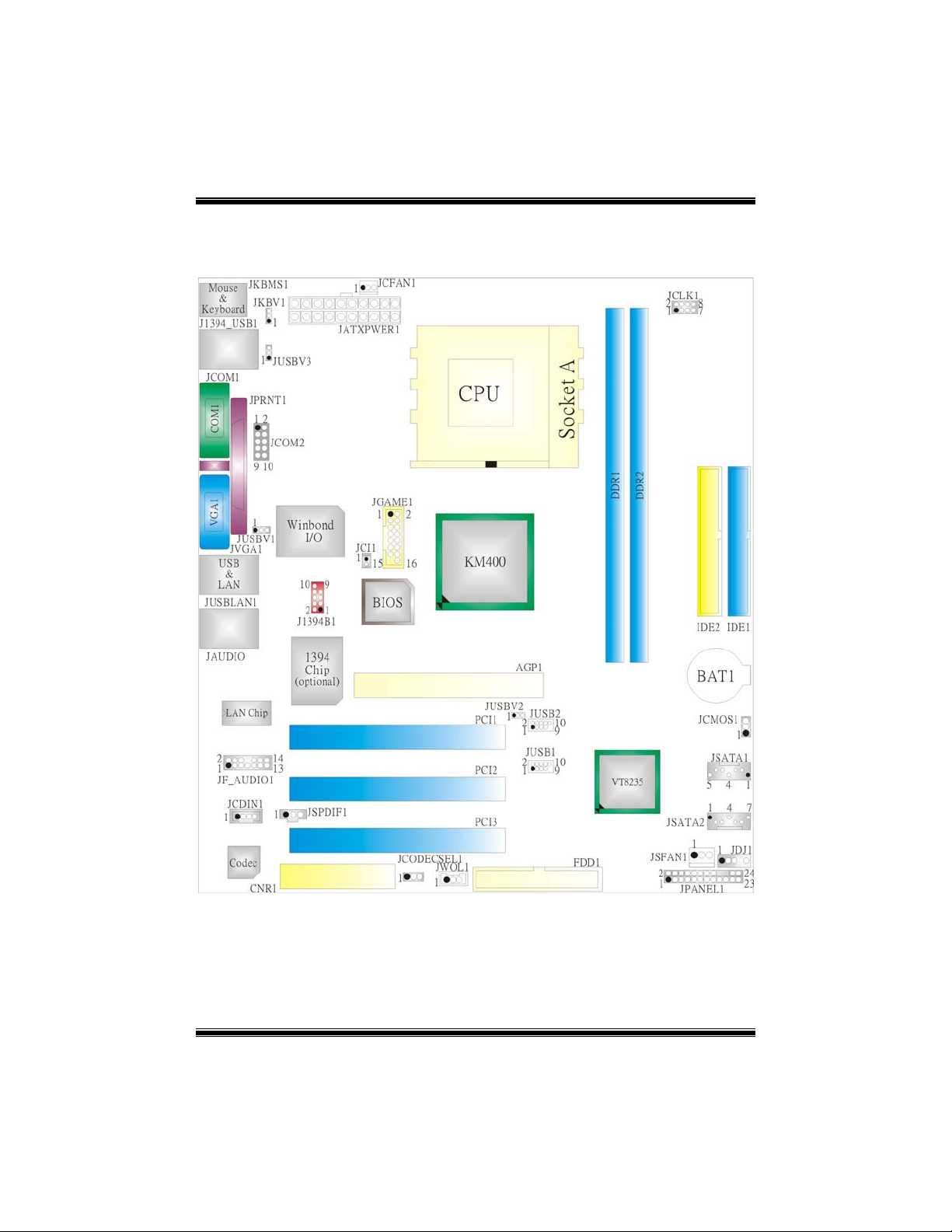

Layout of M7VIZ400

NOTE: ●represents the first pin.

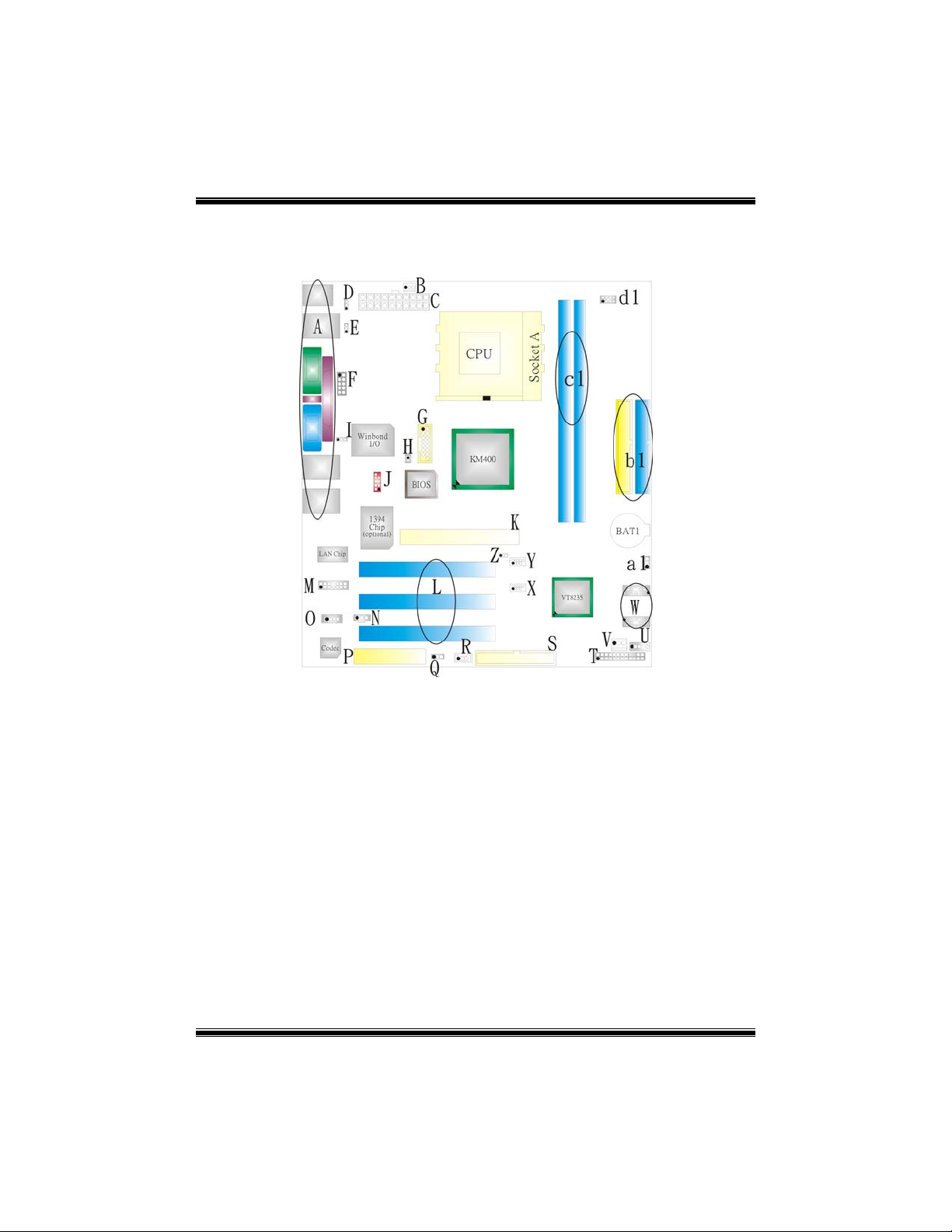

M7VIZ400 Component Index

A. Back Panel Connector P. Communication Network Riser Slot (CNR1)

B. CPU Fan Connector (JCFAN1) Q. CNR Codec/ Onboard Selection

(JCODECSEL1)

C. ATX Power Connector (JATXPWR1) R. Wake On LAN Header (JWOL1)

D. Power Source Selection for Keyboard and

Mouse (JKBV1)

S. Floppy Disk Connector (FDD1)

E. Power Source Selection for USB (JUSBV3) T. Front Panel Connector (JPANEL1)

F. COM2 Header (JCOM2) U. Audio DJ Header (JDJ1)

G. Game Port Header (JGAME1) * V. System FAN Header (JSFAN1)

H. Case Open Connector (JCI1) W. Serial ATA Connector (JSATA1-2)

I. Power Source Selection for USB (JUSBV1) X. Front USB Header (JUSB1)

J. Front 1394 Header (J1394B1) * Y. Front USB Header (JUSB2)

K. Accelerated Graphics Port Slot (AGP1) Z. Power Source Selection for USB (JUSBV2)

L. PCI BUS Slots (PCI 1-3) a1. Clear CMOS Function (JCMOS1)

M. Front Audio Header (JF_AUDIO1) b1. IDE Connectors (IDE1-2)

N. Digital Audio Connector (JSPDIF1) c1. DDR Modules (DDR1-2)

O. CD-ROM Audio-In Header (JCDIN1) d1. Frequency Selection (JCLK1)

* optional

English

M7VIZ400 Features

A. Hardware

CPU

Provides Socket A.

Supports single AMD® Athlon/Duron Family processor.

Front Side Bus at 200/266/333 MHz.

Chipset

North Bridge: VIA KM400.

South Bridge: VIA VT8235.

Main Memory

Supports up to 2 DDR devices.

Supports SPD DDR 200/266/333/400 MHz (without ECC) DDR devices.

Maximum memory size is 2GB.

Super I/O

Chip: Winbond W83627HF.

Meet Low Pin Count (LPC) Spec. 1.0

Integrate Hardware Monitor functions.

Support Device Power Management (DPM) and ACPI.

Slots

Three 32-bit PCI bus master slots.

One CNR slot. (only Type B)

One AGP 8X slot.

On Board IDE

Supports four IDE disk drives.

Supports PIO Mode 4, Master Mode and Ultra DMA 33/66/100/133 Bus Master

Mode.

LAN PHY

Chip: VIA VT6103.

Supports 10 Mb/s and 100 Mb/s auto-negotiation

Half/Full duplex capability.

IEEE 1394 Chip (optional)

Chip: VIA VT6307.

Supports 2 IEEE 1394 ports.

Detects connected device types and automatically configures data speed to 100,

200 or 400 Mbps.

On Board AC’97 Sound Codec

Chip: CMI9739A.

Compliant with AC’97 specification.

Supports 6 channels.

On Board Peripherals

a. Rear side

1 serial port.

1 VGA port.

1 parallel port. (SPP/EPP/ECP mode)

Audio out ports in vertical position.

1 RJ-45 LAN jack.

PS/2 mouse and PS/2 keyboard.

2 USB2.0 ports.

1 1394A Firewire ports. (optional)

b. Front Side

1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

4 USB2.0 ports.

1 front audio header.

1 S/PDIF out header.

1 1394A Firewire ports. (optional)

Dimensions

ATX Form Factor: 22.4cm X 24.3cm (W X L)

B. BIOS & Software

BIOS

Award legal BIOS.

Supports APM1.2.

Supports ACPI.

Supports USB Function.

Software

Supports Warpspeeder™, 9th Touch™, and FLASHER™.

Offers the highest performance for Windows 98 SE, Windows 2000, Windows Me,

Windows XP, UNIX, and Linux Red Hat etc.

Package contents

HDD Cable X 1

FDD Cable X 1

User’s Manual X 1

Fully Setup Driver CD X 1

USB 2.0 Cable X 1 (optional)

S/PDIF Cable X 1 (optional)

Rear I/O Panel for Micro ATX Case X 1 (optional)

IEEE 1394 Cable X 1 (optional)

How to set up Jumper

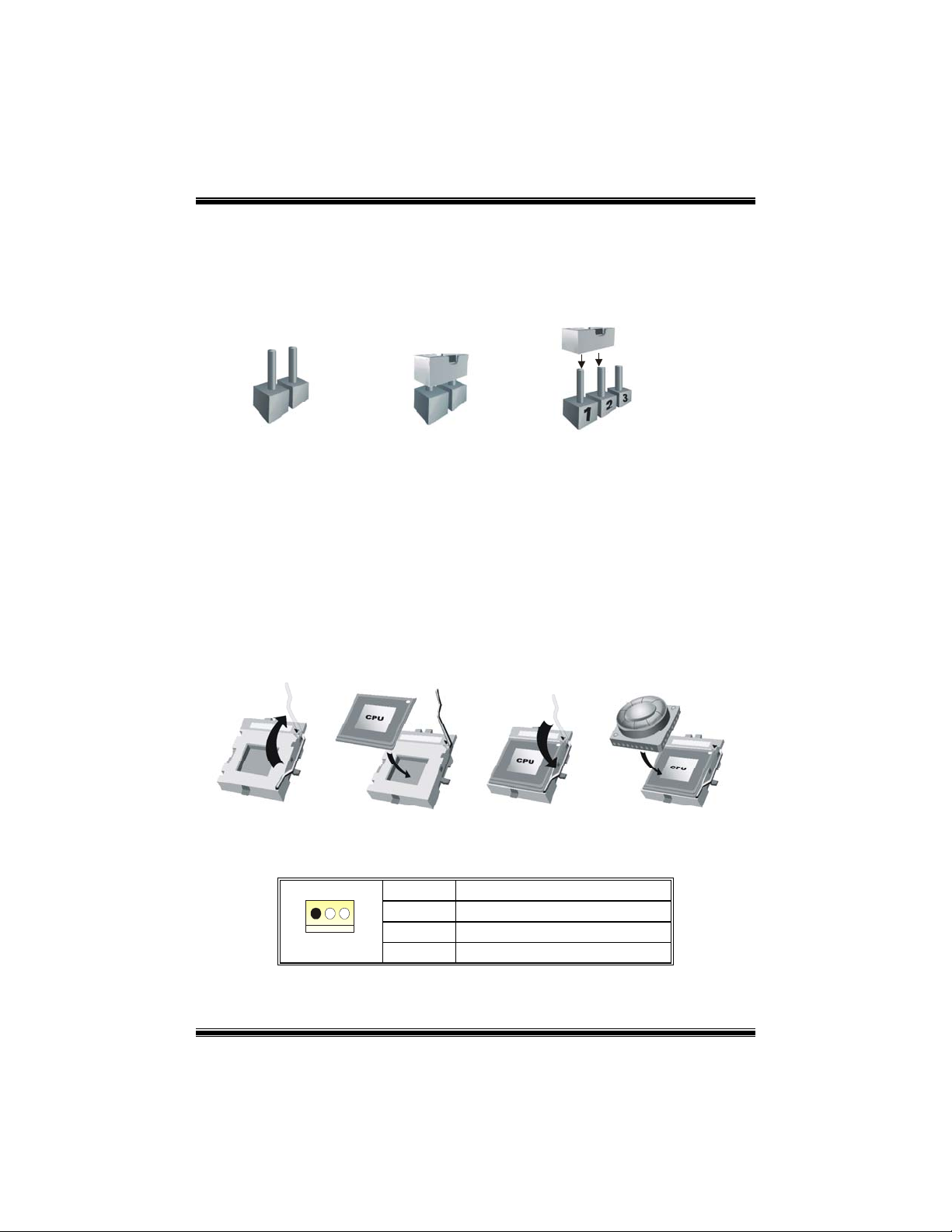

The illustration shows to how set up jumper. When the Jumper cap is placed on pins, the

jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The

illustration shows a 3-pin jumper whose pin1and 2 are “close” when jumper cap is placed

on these 2 pins.

Jumper open Jumper close Pin1-2 close

CPUInstallation

Step1: Pull the lever sideways away from the socket and then raise the lever up to a

90-degree angle.

Step2: Look for the white dot/cut edge. The white dot/cut edge should point wards the lever

pivot. The CPU will fit only in the correct orientation.

Step3: Hold the CPU down firmly, and then close the lever to complete the installation.

Step4: Put the CPU Fan on the CPU and buckle it. Connect the CPU fan power cable to

the JCFAN1. This completes the installation.

Step1 Step2 Step3 Step4

CPU Fan Header: JCFAN1

Pin Assignment

1 Ground

2 +12V

JCFAN1 3 FAN RPM rate Sense

System Fan Header: JSFAN1

Pin Assignment

1 Ground

2 +12V

JSFAN1 3 FAN RPM rate Sense

DDR DIMM Modules: DDR1, DDR2

DRAM Access Time: 2.5V Unbuffered/ Registered DDR 200 MHz (PC1600)/

DDR 266 MHz (PC2100)/ DDR 333 MHz (PC2700) Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)

DIMM Socket

Location

DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB *1

DDR 2 64MB/128MB/256MB/512MB/1GB *1

Max is

2GB

***Only for reference***

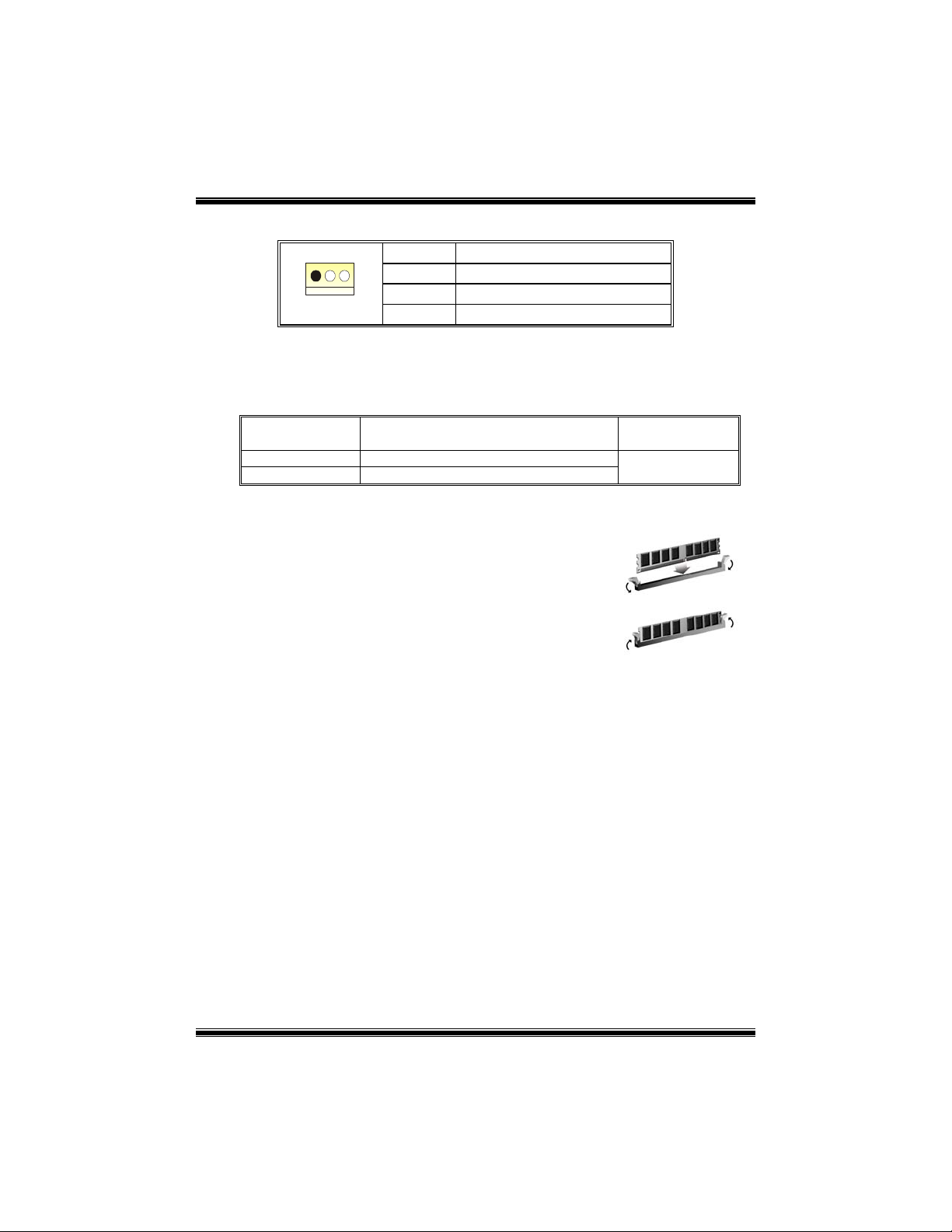

Installing DDR Module

1. Unlock a DIMM slot by pressing the retaining clips

outward. Align a DIMM on the slot such that the notch

on the DIMM matches the break on the slot.

2. Insert the DIMM vertically and firmly into the slot until

the retaining chip snap back in place and the DIMM is

properly seated.

Jumpers, Headers, Connectors & Slots

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has two

HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectors can connect a master and a slave drive, so you can connect

up to four hard disk drives. The first hard drive should always be connected to

IDE1.

Peripheral Component Interconnect Slots: PCI 1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral

Component Interconnect, and it is a bus standard for expansion cards. This PCI

slot is designated as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard supports

video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port

(AGP). An AGP card will take advantage of AGP technology for improved video

efficiency and performance, especially with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it defines a

hardware scalable riser card interface, which supports modem only.

Serial ATA Connector: JSATA1/ JSATA2

The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it

satisfies the SATA 1.0 spec and can transfer data with 1.5 Gb/s speed.

Note:

1. When plugging SATA HDD on JSATA1 connector, SATA BIOS will automatically

detect as channel 1.

2. When plugging SATA HDD on JSATA2 connector, SATA BIOS will automatically

detect as channel 0.

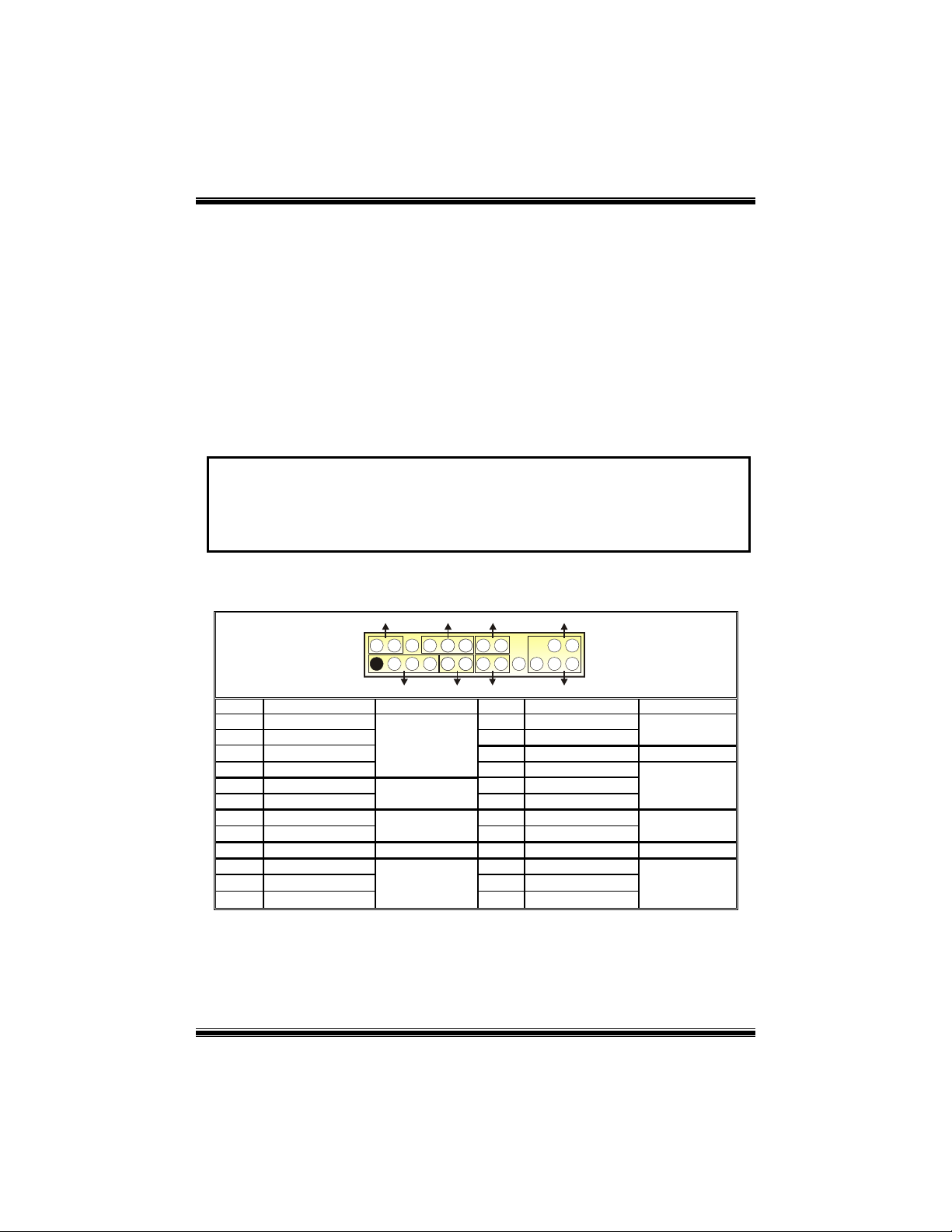

Front Panel Connector: JPANEL1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

Pin Assignment Function Pin Assignment Function

1 +5V 2 Sleep Control

3 NA 4 Ground

Sleep

Button

5 NA 6 NA NA

7 Speaker

Speaker

Connector

8 Power LED (+)

9 HDD LED (+) 10 Power LED (+)

11 HDD LED (-)

Hard Drive

LED 12 Power LED (-)

POWER

LED

13 Ground 14 Power Button

15 Reset Control

Reset

Button 16 Ground

Power-on

Button

17 NA

18 KEY

19 NA 20 KEY

21 +5V 22 Ground

23 IRTX

IrDA

Connector

24 IRRX

IrDA

Connector

JPANEL1

Power Connectors: JATXPWR1

PIN Assignment PIN Assignment

1 +3.3V 11 +3.3V

2 +3.3V 12 -12V

3 Ground 13 Ground

4 +5V 14 PS_ON

5 Ground 15 Ground

6 +5V 16 Ground

7 Ground 17 Ground

8 PW_OK 18 -5V

9 Standby Voltage +5V 19 +5V

20 11

JATXPWR1

10 +12V 20 +5V

Power Source Selection for Keyboard/ Mouse: JKBV1

JKBV1 Assignment Description

Pin 1-2 close

+5V

+5V for keyboard and mouse

Pin 2-3 close

+5V Standby

Voltage

PS/2 Mouse and PS/2 Keyboard are

powered with +5V standby voltage

Note: In order to support the function “power-on the system via keyboard and mouse

function, “JKBV1” jumper cap should be placed on pin 2-3.

Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV3

JUSBV1/JUSBV2/

JUSBV3

Assignment Description

Pin 1-2 close

+5V JUSBV3: 5V for USB located at the

J1394_USB1 port connector

JUSBV2: 5V for USB located at the JUSB2/

JUSB1 port connectors

JUSBV1: 5V for USB located at the

JUSBLAN1 port connector

Pin 2-3 close

+5V Standby

Voltage

JUSBV3: J1394_USB1 port is powered with

standby voltage of 5V

JUSBV2: JUSB2/ JUSB1 ports is powered

with standby voltage of 5V

JUSBV1: JUSBLAN1 port is powered with

standby voltage of 5V

Note: In order to support the function “power-on the system via USB devices function,

“JUSBV1/JUSBV2/ JUSBV3” jumper cap should be placed on pin 2-3 respectively.

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar P4 TDP Manuel utilisateur

Biostar

Biostar Z590A-SILVER Manuel utilisateur

Biostar

Biostar H310MHC2 Manuel utilisateur

Biostar

Biostar A320MH Manuel utilisateur

Biostar

Biostar A780L3B Guide de l'utilisateur

Biostar

Biostar TA880GB - BIOS Guide de l'utilisateur

Biostar

Biostar P43D3+ Manuel utilisateur

Biostar

Biostar TF7100P-M7 Manuel utilisateur

Biostar

Biostar I86PE-A4 Guide de l'utilisateur

Biostar

Biostar TF7025-M2 Manuel utilisateur

Biostar

Biostar A770E3 Guide de l'utilisateur

Biostar

Biostar H81MHV3 3.0 Manuel utilisateur

Biostar

Biostar A740GM2 Guide de l'utilisateur

Biostar

Biostar B350ET2 Manuel utilisateur

Biostar

Biostar 945P-A7A Guide de l'utilisateur

Biostar

Biostar 945GC-M7 TE Guide de l'utilisateur

Biostar

Biostar M5CNB Manuel utilisateur

Biostar

Biostar TH55 HD - BIOS Manuel utilisateur

Biostar

Biostar P43B-A7 - BIOS Guide de l'utilisateur

Biostar

Biostar TF710 A2 PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar K8NHA-M Grand Manuel utilisateur

Biostar

Biostar M7VIP Pro Guide de l'utilisateur

Biostar

Biostar BI94GS-IAB Guide de l'utilisateur

Biostar

Biostar P4 TDP Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
