BestScope BS-2030B Manuel utilisateur

Biological Microscope

Model Number:BS-2030M/B/T

User Manual

BS-2030M BS-2030B BS-2030T

This instruction manual is for BS-2030M/B/ T biological microscope. To ensure safety and obtain optimum

performance and familiarize yourself fully with the use of this microscope. We recommend that you read

the manual thoroughly before operating the microscope, Attain this manual instruction in an easily

accessible place near the microscope for the further reference.

 Bestscope International Limited

1

CONTENTS
User Notice................................................................. 2
1. Components............................................................. 4
2. Assembly................................................................. 5
2.1 Assembly Diagram................................................. 5
2.2 Assembly Steps .................................................... 6
3．Adjustment & Operation ........................................... 10
3.1 Adjustment Sets ................................................. 10
3.2 Operation......................................................... 11
4. Specification Table .................................................... 14
5．Outfit ................................................................. 15
6．Troubleshooting Guide.............................................. 16

Bestscope International Limited

User Notice

I. Safety Notes

1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged.

2. Do keep the instrument out of direct sunlight, high temperature or humidity, dusty and easy

shaking environment. Make sure the stage is smooth, horizontal and firm enough.

3. When moving the instrument, please use two hands to grip with the two sides of the microscope

body.

4. When running, the lamp house and nearby parts will be very hot. Please ensure there is enough

cooling room for them.

5. Make sure the instrument is earthed, to avoid lighting strike.

6. For safety, be sure the main switch is in “O”(off) state before replacing the halogen lamp or the

fuse, then cut off the power, and do the operation after the lamp bulb and the lamp house

completely cool down. (Specified: Halogen Lamp6V/20W)

7. Check the input voltage: be sure the input voltage which signed in the back of the microscope is

consistent with the power supply voltage, or it will bring a serious damage to the instrument.

8. Use the factory supplied power cord, please.

II. Maintenance

1. All the lenses have been well checked and adjusted. It is forbidden to disassemble them

yourself.

2. The nosepiece and coarse/fine focus unit have a compact and precise frame; please don’t

disassemble them as possibly as you can.

3. The nosepiece and coarse/fine focus unit have a compact and precise frame; please don’t

disassemble them as possibly as you can.

4. Keep the instrument clean, wipe dust regularly, and be attention to avoid contaminating the

optical elements especially.

5. The contaminations on the prism, as finger mark and oil, could be gently wiped with a piece of

soft cloth or tissue paper, gauze which has been immersed in pure alcohol or aether. (Note that

the alcohol and ether are highly flammable, do keep them away from the fire or potential

sources of electrical sparks, and use them in a drafty room as possible as you can.)

6. Do not attempt to use organic solvents to clean the microscope components other than the

glass components. To clean them, use a lint-free, soft cloth slightly moistened with a diluted

Bestscope International Limited

neutral detergent.

7. When using, if the microscope is splashed by liquid, cut off the power at once, and wipe up the

moisture.

8. Do not disassemble any parts of the microscope, which will affect the function or decline the

performance of the microscope.

9. Place the instrument in a cool, dry position. When not using the microscope, keep it covered

with a dust cover. Make sure the lamp socket is cool before covering the microscope.

Bestscope International Limited

1. Components

BS-2030B Biological Microscope

Binocular viewing head

Eyepiece

Slide clip

Condenser

Objectives

Nosepiece

Stage

Collector

Main body

Bestscope International Limited

2.Assembly

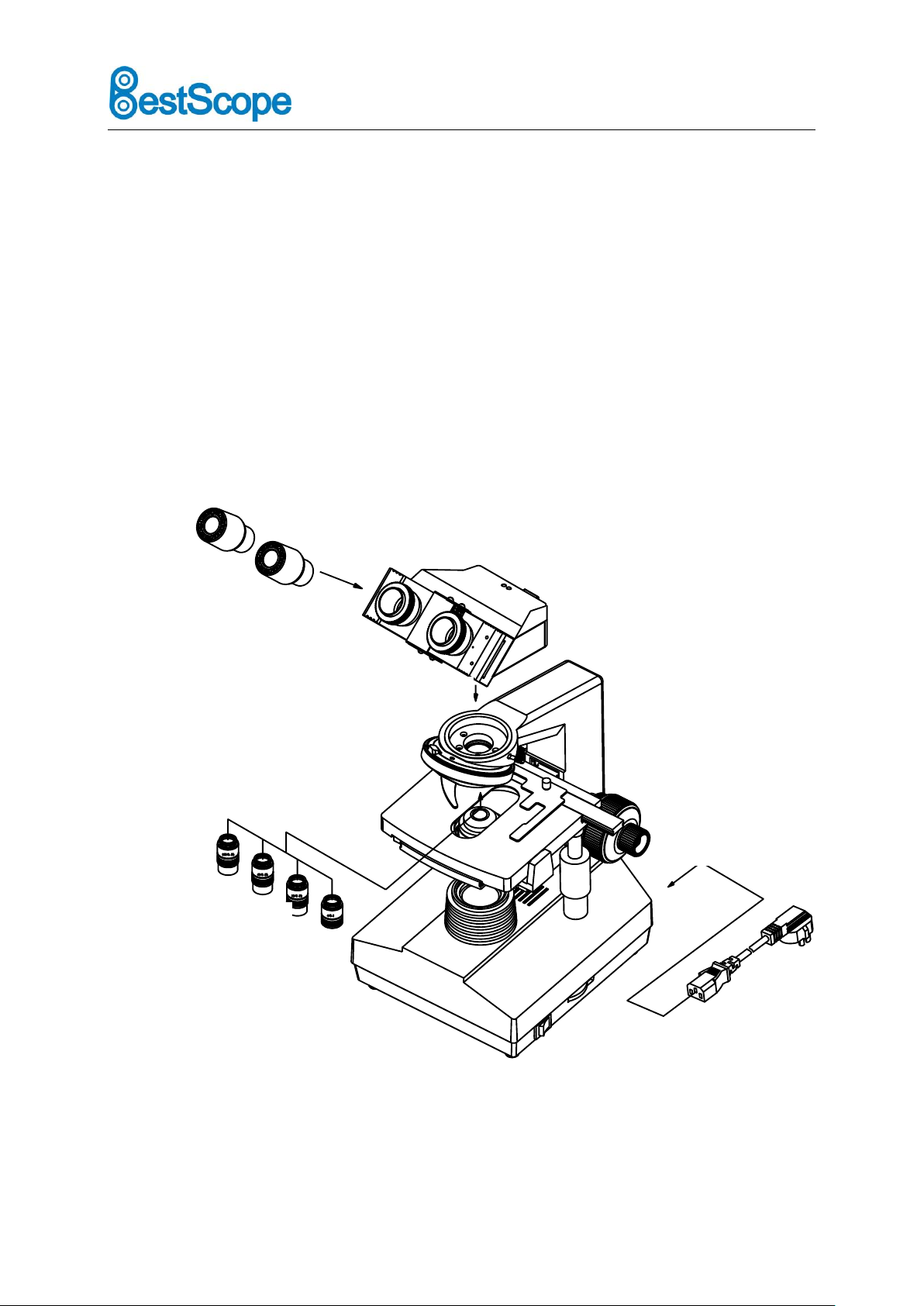

2.1 Assembly Diagram

The following figure shows the installation sequence of the components. The number in the figure

shows the assembly steps.

Before installing, be sure every component is clean, do not score any parts or glass surface.

Keep well with hexagon wrench provided. When replacing the components, you will need it again.

①

②

③

④

Objectives

Power cord

Main body

10X Eyepieces

Binocular Viewing Head

Bestscope International Limited

2.2 Assembly Steps

Fig.1

Fig.2

2.2.1 Installing Binocular viewing head

(Fig.1, 2)

Insert the digital viewing head into the

microscope head, turn into the right position,

then screw down the bolt①to fix it.

2.2.2 Installing the eyepieces (Fig.3,

Fig.4)

Insert the eyepieces into the eyepiece tube

until they are against each other as shown in

Fig.4.

Fig.4

①

Fig.3

NOTE:

Operation Conditions:

1．Temperature: 0℃ ～ 40℃,Maximum

Relative Humidity: 85%.

2．High Temperature: High Temperature

and humidity will result in a mildewing,

dew and even ruinous instrument.

3．Avoid placing the instrument in a dusty

environment. When ending your

microscope operation, please cover it with

the dust cap.

4．Lay the microscope in a plan and stable

position, please.

Bestscope International Limited

Fig.6

2.2.3 Installing objectives (Fig.5& 6)

1. Adjusting the coarse focus knob until the

support device of the mechanical stage

reaches its low limit position.

2. Screw the lowest magnification objective

into the nosepiece from the left or the right

side, then revolve the nosepiece clockwise

and mount other objectives by the sequence

of low to high magnification

Installing objective this way will make the

change of magnification to be easier during

using.

Clean the objective regularly, for lens is

susceptible to dust.

When operating, use 10×magnification

objective to search and focus specimen

firstly, then replace with higher

magnification objective if necessary.

When replacing the objective, slowly turn

the nosepiece until you hear “clicked”,

which means the objective is in the

required position--the light path center.

2.2.4 Installing the color filters (Fig.7)

1. Turn the condenser bracket①out at the

direction of arrow in Fig.7

2．Put the required filters②into the holder on

the bracket, and then turn the bracket back to

the right position.

★Baby blue and green filters are available in

standard outfit.

Fig.5

Fig.7

①

②

Bestscope International Limited

2.2.5 Connecting the power cord

(Fig.8, 9,10)

★The cable and cords are vulnerable

when bent or twisted, never subject the

power cord to excessive force.

1. Turn the main switch①to “O” (off) state

before connecting the power cord.

2. Insert the power plugs②into the power

jack③of the microscope; make sure the

connection is well.

3. Plug the power cord ④into the power

supply receptacle safely. Make sure the

connection is well.

★Do use the supplied power cord all the

time. If lost or damaged, select the same

standard cord, please.

2.2.6 Replacing the Fuse (Fig.8, 9, 10)

Do remember to set the main switch①to

the state of “O” (OFF) and unplug the power

cord ②before replacing the fuse. Rotate the fuse

kits⑤out of the holder, replace with a new fuse,

then rotate it back to the holder again.

★The rating of the new fuse should be the

same as the old one.

Fig.8

①

Fig.10

④

⑤

Fig.9

③

②

Bestscope International Limited

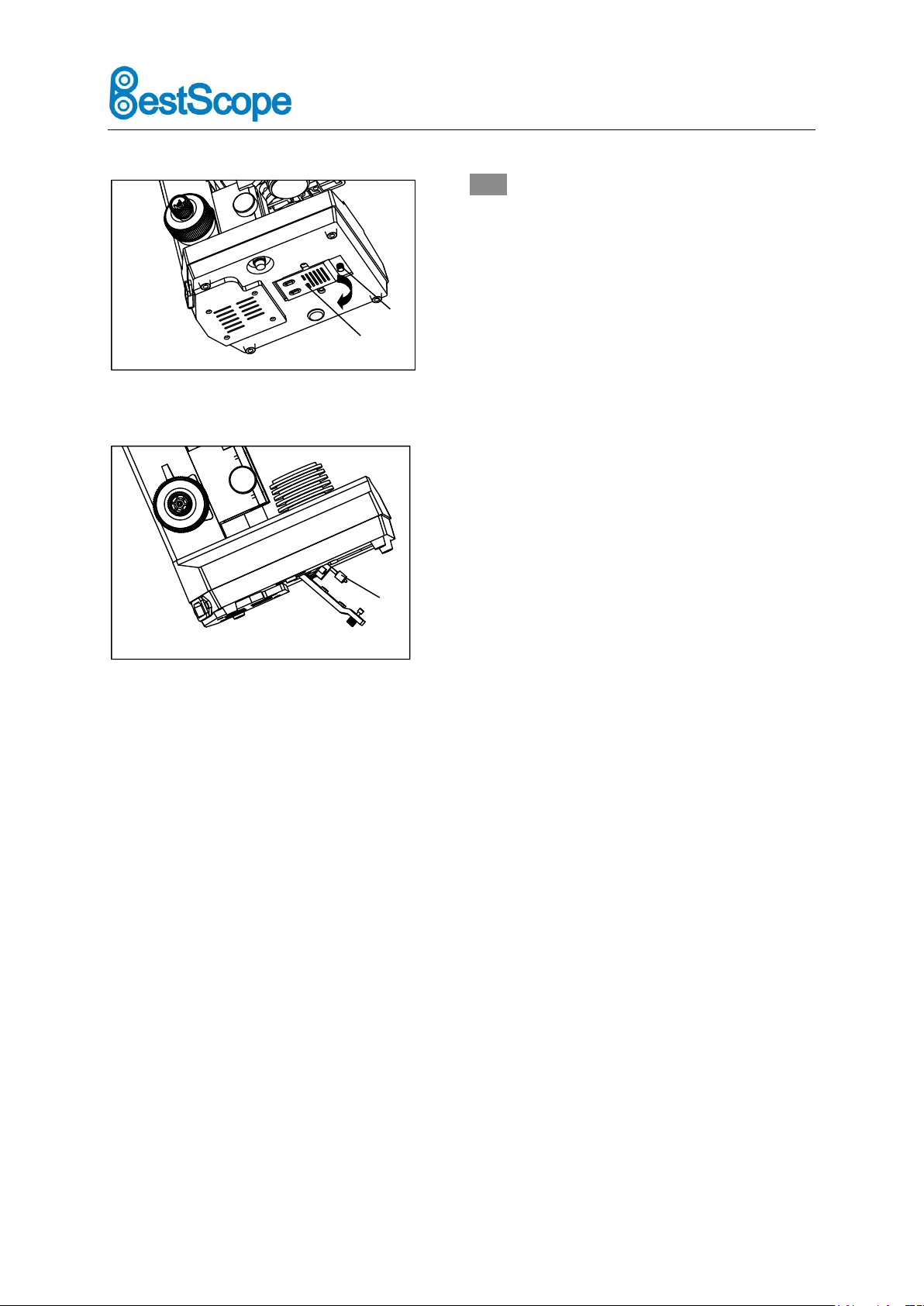

2.2.7 Installing and replacing the lamp

(Fig.11, 12)

Please use the specified halogen Lamp

6V20W. Replace the lamp as follows if

necessary.

1. Please set the main switch to “O” (off) state

before replacing, and make sure the bulb, the

lamp room and periphery are all cool enough

to carry no burn. Then, you can do your

replacing.

2. Loose the bolt①and open the window②on

the bottom of the microscope base with

“一”type screwdriver.

3. Pull out the old bulb③,hold the new bulb

after you wrap it with gauze or other

protection materials and insert its pin as

deeply as possible into the jack in the lamp

holder.

4. Close the window and tighten the bolt①.

Please insert the bulb gently, or it will be

damaged by excessive extrusion.

Do not touch the halogen bulb with

bare hands. It will shorten the service

life or cause it to burst. If you leave

fingerprints on the surface carelessly,

clean it with a piece of dry soft cloth.

Fig.11

②

①

③

Fig.12
