BenQ PX9230 Manuel utilisateur

English

Table of Contents

Notice..................................................................................................... 2

Cooling notice ................................................................................................................ 2

When edge blending...................................................................................................... 2

Product information ............................................................................. 3

Packing content.............................................................................................................. 3

Specication ................................................................................................................... 3

Terminals ........................................................................................................................ 4

Remote control .............................................................................................................. 5

Installation ............................................................................................. 6

Lens ................................................................................................................................. 6

Projection table.............................................................................................................. 6

Lens shift range .............................................................................................................. 8

Projector dimension ............................................................................. 10

Lens dimension...................................................................................... 11

RS232 command ................................................................................... 12

RS232 pin assignment.................................................................................................... 12

English

Notice

Cooling notice

yVentilation

Air inlet

Air outlet

yCaution for installation

For proper ventilation of the projector, make sure to leave some space around the projector as

shown in the illustration below:

• Table

50cm

above

50cm

above 70cm above

• Ceiling • Stacking

30cm above

Minimum 100mm

When edge blending

• To avoid the image shaking or some pixels in the display may be misaligned, do not use the

projector in the following location:

• In a building close to a construction site.

• In a room where an air conditioner unit is working and it vibrates.

• In a place where the temperature changes dramatically that may cause thermal contraction.

• Before making any adjustment, leave the projector lit for at least 15 minutes after its light source

is turned on. This allows the internal temperature of the projector to stabilize.

English

Product information

Packing content

Installation Guide

Power cable

Remote control

Projector with anti-dust cap

Batteries

VGA cable

Digital Projector

Installation Guide

Regulatory Statement Warranty card

Specication

PX9230

Projection system DLP Single 0.7 XGA DMD Chip

Native resolution 1024*768 pixels, 4:3

Brightness 6000 Lumens

Light source UHP Lamp

Power consumption 480Watts (Normal mode)/ 355Watts (Eco mode)

Dimension 431.0 x 167.0 x 320.5 mm

Weight 8.5 kg (without lens)

Note:

• The brightness is supplied by standard lens, the value will depends on lenses.

• The brightness output will vary depending on each units and actual usage.

• Pleasendthelatestuser’smanualonthelocalwebsite.

English

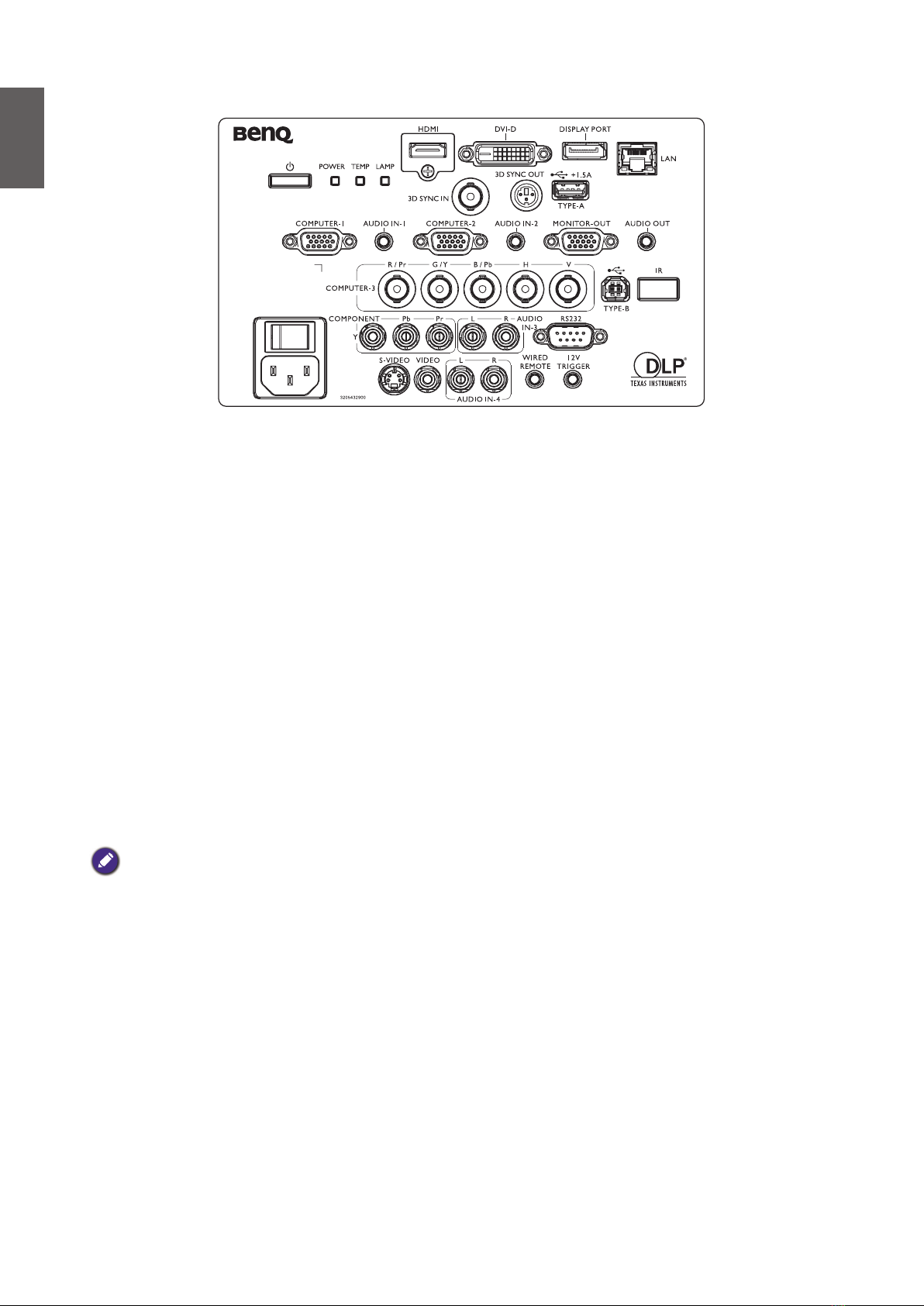

Terminals

HDMI

Connection to HDMI source.

DVI-D

Connection to DVI source.

DISPLAY PORT

Connection to DISPLAY PORT source.

LAN

For connection to RJ45 Cat5/Cat6 Ethernet cable to control the

projector through a network.

3D SYNC IN

Connect 3D sync in cable from a computer or an enabled device.

3D SYNC OUT

Connection to 3D IR sync signal transmitter.

USB 1.5A

Support 5V/1.5A output.

COMPUTER-1, COMPUTER-2

15-pin VGA port for connection to RGB, component HD source, or PC.

AUDIO IN-1/-2

Connection to an audio input source via an audio cable.

MONITOR OUT

Connection to other display equipment for concurrent playback display.

AUDIO OUT

Connection to a speaker or headset.

COMPUTER-3 (R/Pr, G/Y, B/Pb, H,V)

Connection to RGB signal with BNC type input terminal.

USBTYPE-B

Maintenance exclusive port for authorized maintenance personnel only.

COMPONENT (Y, Pb, Pr)

Connect to Component source.

AUDIO IN-3/-4(L/R)

Connection to an audio input source via an audio or audio L/R cable.

RS-232

Standard 9-pin D-sub interface for connection to PC control system and

projector maintenance.

S-VIDEO

Connection to S-VIDEO source.

VIDEO

Connection to a video source.

WIRED REMOTE

Connection to remote control for wire remote control.

12VTRIGGER

3.5mm mini earphone jack, employs 200mA display relay to provide

12(+/-1.5)V output and short circuit protection.

Caution:

Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in

case of an invalid port, e.g. a wired remote controller is connected to trigger output.

English

Remote control

KEYSTONE +/-

Left


INPUT

AUTO SYNC

FREEZE

OVERSCAN

Numeric buttons

3D MODE

CLEAR

VOLUME +/-

Off

QUICK INSTALL

MUTE

ENTER

Right

EXIT

Down

NETWORK

ASPECT

BLANK

LAMP MODE

INFO

LIGHT

ID SET

SHUTTER

WIRE REMOTE jack

yRemote ID setting

Press ID SET to set remote ID.

Press ID SET for three seconds.The POWER indicator on the remote control blinks, then press

01~99 to designate an ID.

Press CLEAR and ID SETforveseconds.ThePOWERindicatorontheremotecontrolblinksa

single instance to signify a switch from control by projector only or control by projector to remote

control.

English

Installation

Lens

Model Lens Type Part Number Throw Ratio Lens Shift

LS2ST3 Widex 5J.JDH37.002 0.81 Vertical: -10%-50%

Horizontal: -5%-5%

LS2ST1 Wide zoom 5J.JDH37.011 1.14-1.347 Vertical: -10%-50%

Horizontal: -5%-5%

LS2SD2 Standard 5J.JEN37.001 1.6-2 Vertical: -10%-50%

Horizontal: -5%-5%

LS2LT1 Semi long 5J.JDH37.032 2-3 Vertical: -10%-50%

Horizontal: -5%-5%

LS2LT2 Long zoom 5J.JDH37.041 3.11-5.18 Vertical: -10%-50%

Horizontal: -5%-5%

Projection table

Image Height

Image Width

Diagonal

Projection Distance

Projection Image

Image Hight

Screen size Wide Fix Lens Wide Zoom Lens Standard Lens

Diagonal Width Height Distance

NA Wide Tele Wide Tele

Inch mInch mInch mInch mInch mInch mInch mInch m

80 2.03 64 1.63 48 1.22 52 1.32 73 1.85 86 2.19 102 2.60 128 3.25

100 2.54 80 2.03 60 1.52 65 1.65 91 2.32 108 2.74 128 3.25 160 4.06

120 3.05 96 2.44 72 1.83 78 1.98 109 2.78 129 3.28 154 3.90 192 4.88

150 3.81 120 3.05 90 2.29 97 2.47 137 3.47 162 4 .11 192 4.88 240 6.10

200 5.08 160 4.06 120 3.05 130 3.29 182 4.63 216 5.47 256 6.50 320 8.13

300 7.62 240 6.10 180 4.57 194 4.94 274 6.95 323 8.21 384 9.75 480 12.19

400 10.16 320 8.13 240 6.10 259 6.58 365 9.27 4.31 10.95 512 13.00 640 16.26

Screen size Semi Long Lens Long Zoom

Diagonal Width Height Distance

Wide Tele Wide Tele

Inch mInch mInch mInch mInch mInch mInch m

80 2.03 64 1.63 48 1.22 128 3.25 192 4.88 199 5.06 332 8.42

100 2.54 80 2.03 60 1.52 160 4.06 240 6.10 249 6.32 414 10.53

120 3.05 96 2.44 72 1.83 192 4.88 288 7.32 299 7.58 497 12.63

150 3.81 120 3.05 90 2.29 240 6.10 360 9.14 373 9.48 622 15.79

200 5.08 160 4.06 120 3.05 320 8.13 480 12.19 498 12.64 829 21.05

300 7.62 240 6.10 180 4.57 480 12.19 720 18.29 746 18.96 1243 31.58

400 10.16 320 8.13 240 6.10 640 16.26 960 24.38 995 25.28 1658 42.10

English

Note:

• Ceilinginstallationmustbedonebyaqualiedprofessional.Contactyourdealerformoreinformation.Itisnot

recommended you install the projector yourself.

• Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped.

• Do not use the projector in an environment where extreme temperature occurs. The projector must be used

at temperatures between 41 degrees Fahrenheit (5 degrees Celsius) and 104 degrees Fahrenheit (40 degrees

Celsius).

• Screen damage will occur if the projector is exposed to moisture, dust or smoke.

• Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the

projector will occur if the vents are covered.

English

Lens shift range

yLens shift adjustable range

The adjustable range for lens shift is tabulated below and subject to the conditions listed.

Desk-Front Projection Normal projection position

Width of projected image

Height of projected image

Vertical shift

Shift to Left Shift to Right

Max 0.5V

1H 0.05H0.05H

Max 0.1V

Ceiling Mount-Front Projection

yCeiling Mount Installation

0.05H

Screen Top

Screen Center

Shift Range

C = Distance from lens to screen

English

BenQ PN Description

5J.JCY10.001 Ceiling mount (CM00G4)

98.0 (3.85)

547.8 (21.56)

372.8 (14.67)

yDesktop Installation

0.05H

Shift Range

Screen Center

Note:

• The drawings apply to the standard lens only.

• Lens Shift feature is not available to LS2ST3 (Fix Lens). This lens should be used for "zero degree"/"no-offset"

applications. See below:

113.5 Screen Center

FOR USE WITH LS2ST3 (FIX LENS) ONLY

English

Projector dimension

AIR INLET

AIR EXHAUST

M4x12L

320.5 (12.61)

334.5 (13.16)

431.0 (16.96)

260.0 (10.23)

174.5 (6.87)

156.0 (6.14)

64.0 (2.51)

83.0 (3.26)

240.0 (9.44)

73.5 (2.89)

26.5 (1.04)

165.0 (6.49)

130.0 (5.11)

316.9 (12.47)
